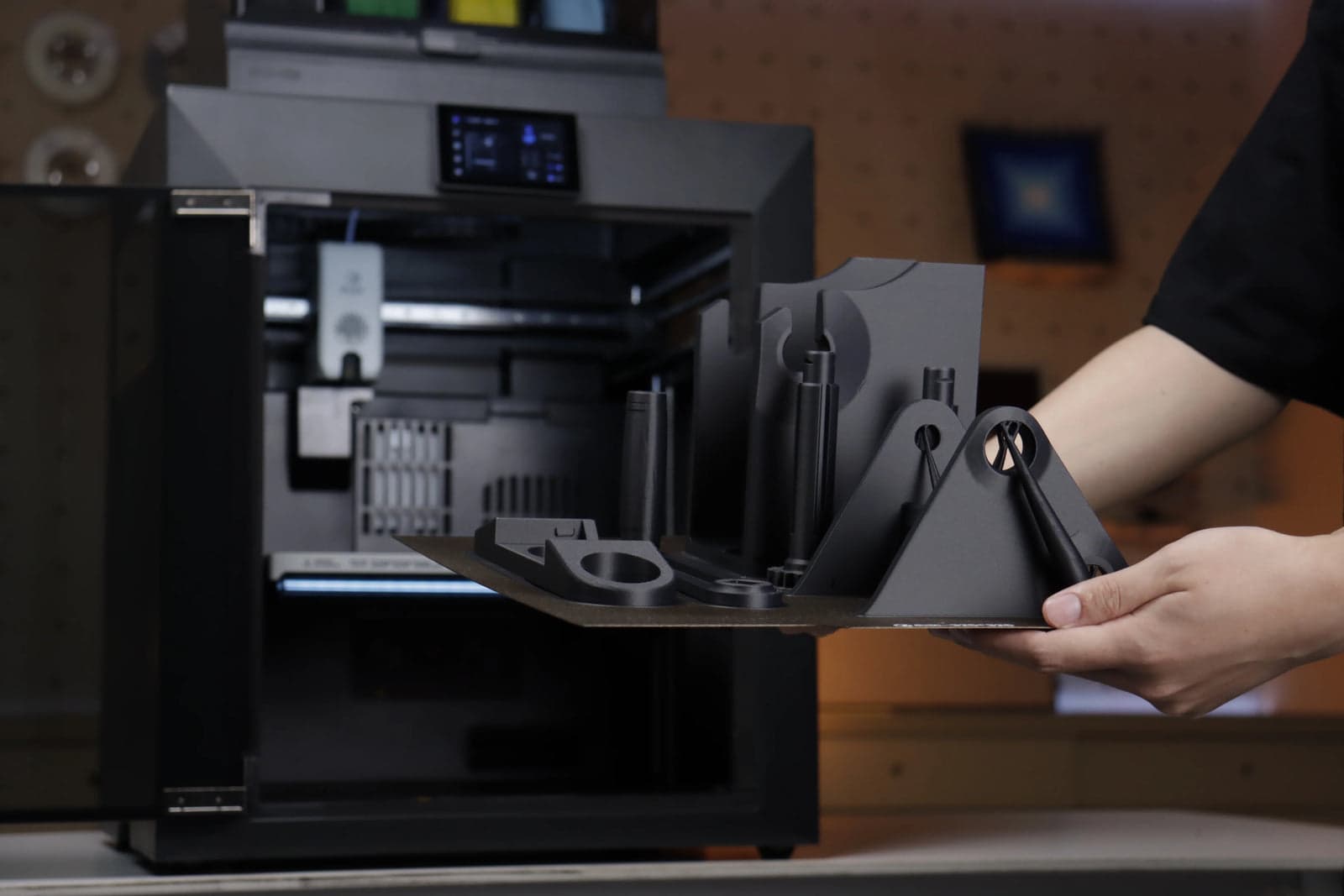

QIDI Plus5 3D Printer

A large enclosed CoreXY printer with an actively heated chamber.

1 / 4

£639

SKU QD-PLUS5003-1

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Make it yours

Choose your options. The price updates as you go.

Open comparison

Configure

65 °C

controlled chamber

30.7 L

build volume

370 °C

maximum nozzle temperature

FDM

printing technology

18% More Build Volume: 320×320×300 mm 370℃ Nozzle & 65°C Active Chamber Heating Precision Rails & 9mm 1.5GT CoreXY Belts True Auto-Leveling & Full Smart Detection 120°C Even-Heating Heatbed & RGB Status Light Enclosed Structure & 3-Stage Air Filter Optional Polar Cooler & QIDI BOX Right out of box & One-Tap Print

Features & product detailsExplore the design, capabilities and setup information.

A closer look

QIDI Plus5 3D Printer · Technical features from QIDI.

QIDI PLUS5

Bigger Build. Bolder Upgrade.

Upgrade Highlights of Plus5

Bigger than Bigger

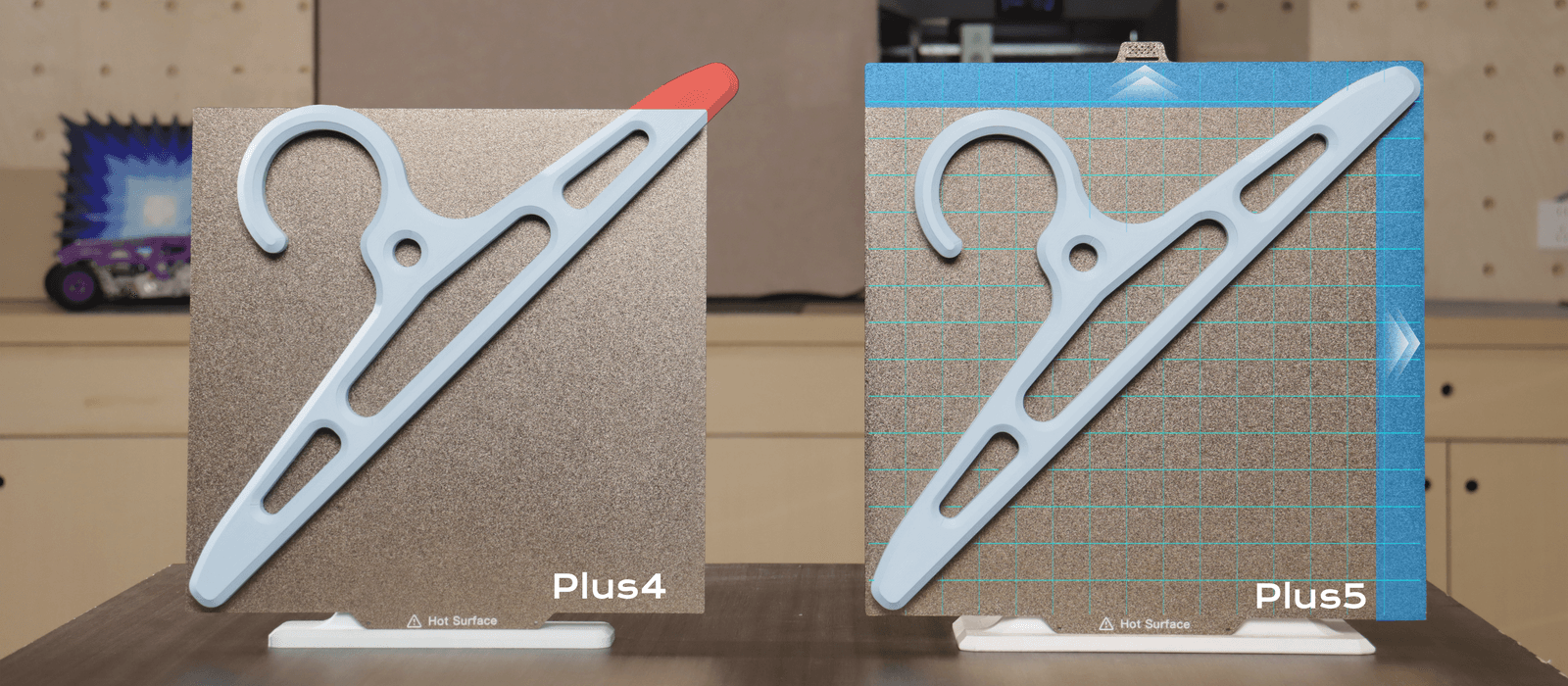

More Space to Print, More Choices to Create.

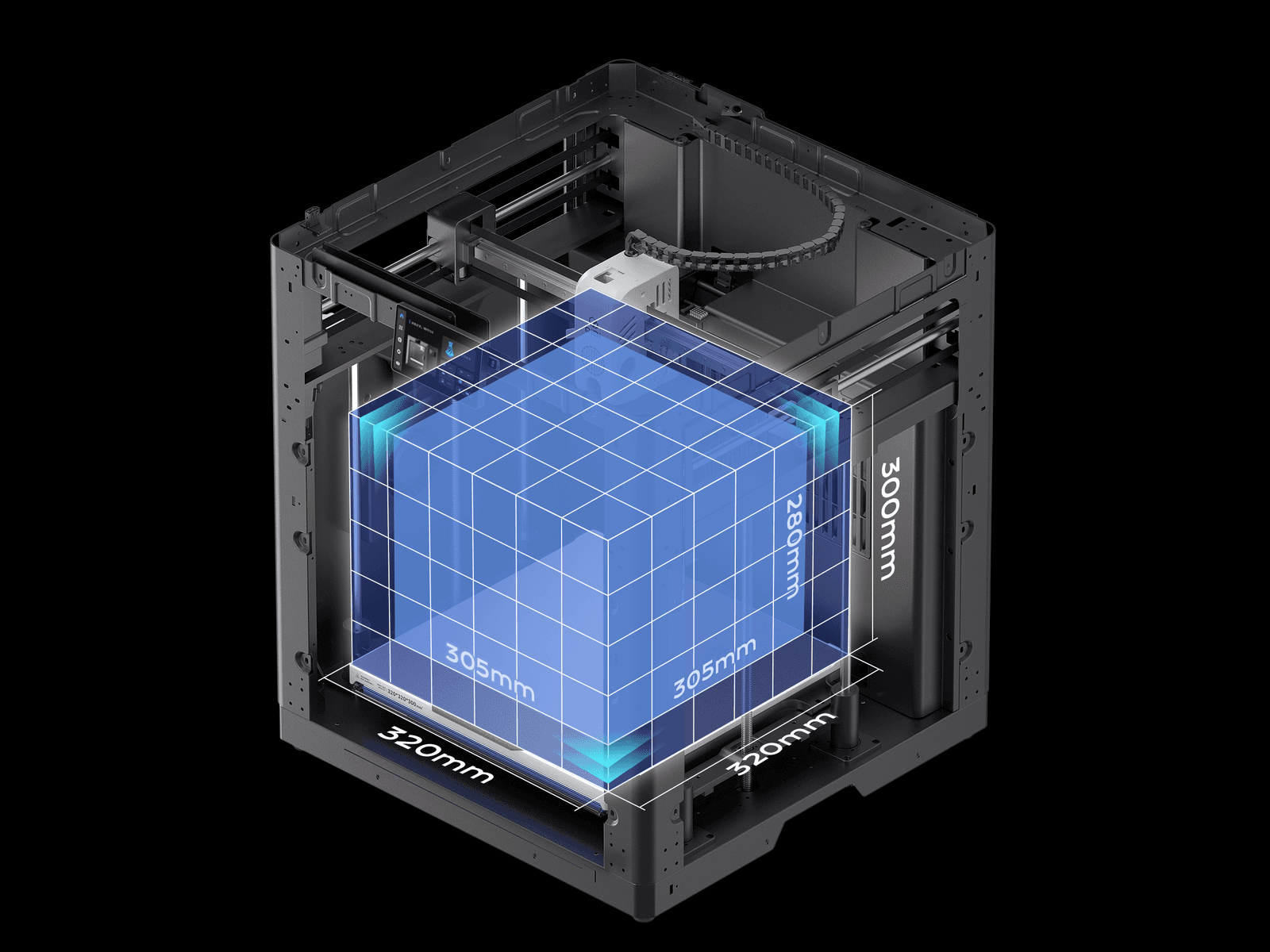

Bigger Print Area: Stepping up from 305×305mm to 320×320mm

Better Space Utilization

320×320×300mm

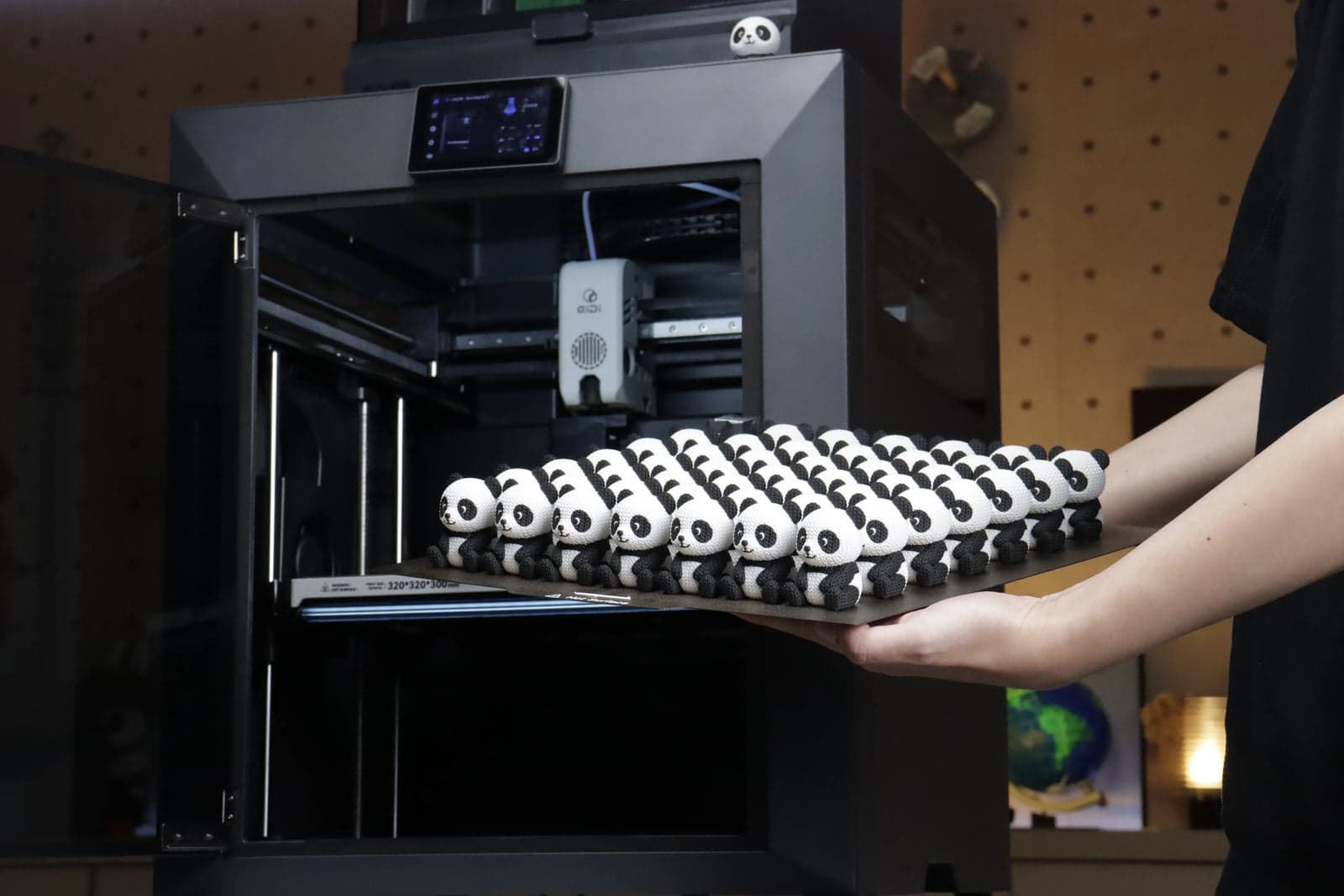

18% more build volume in the same footprint. Take on larger single-piece projects and massive batches with absolute freedom.

One-Tap Printing | QIDI Maker: Form Your Reality

Seamless Mobile-to-Printer Ecosystem. The QIDI Maker Web & App launch together to redefine your workflow. Browse thousands of exclusive designs on your phone, select a pre-configured profile, and send it to your printer instantly. From a simple tap on your screen to a solid masterpiece in your hands.

QIDI Maker & QIDI Studio

Smart Synergy. Proven Profiles.

Expert-tested parameters optimize every detail - ensuring perfect overhangs, clean seams, tight dimensional accuracy, and the reliable extrusion of demanding engineering filaments like carbon fiber.

Detail wins.

Rather than relying on generic settings, our comprehensive built-in library delivers precision slice profiles calibrated specifically for your hardware, advanced materials, and high-speed workflows.

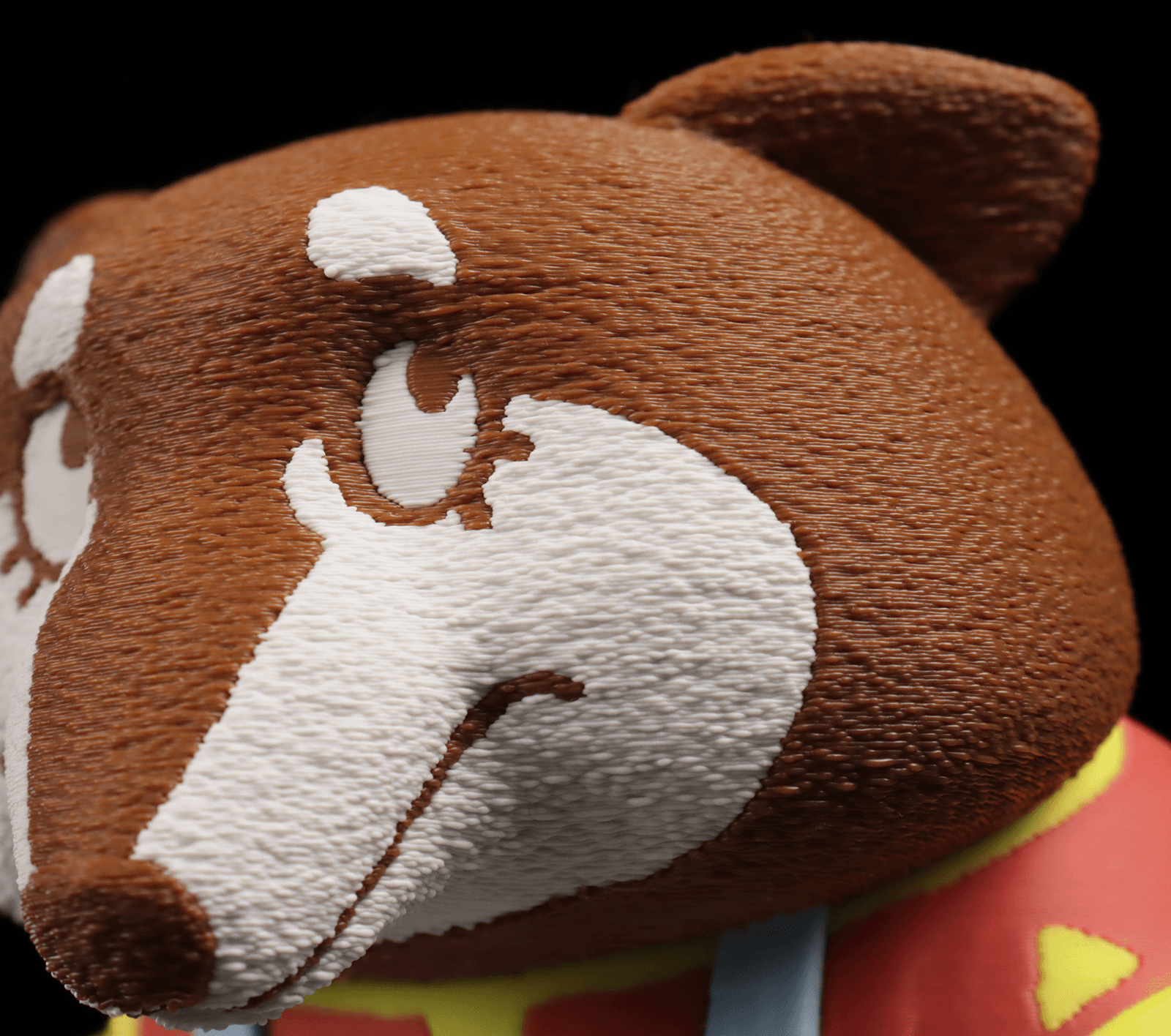

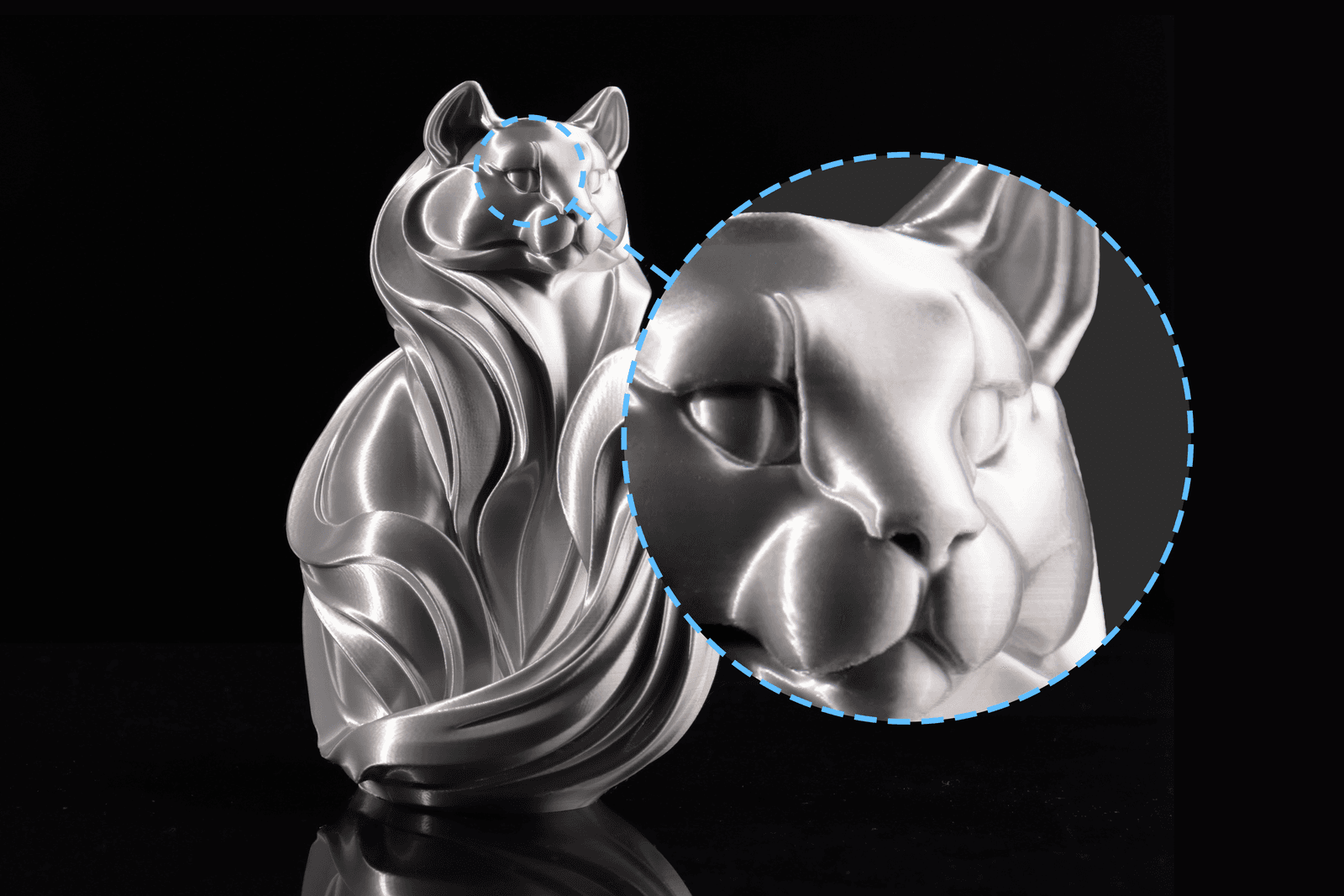

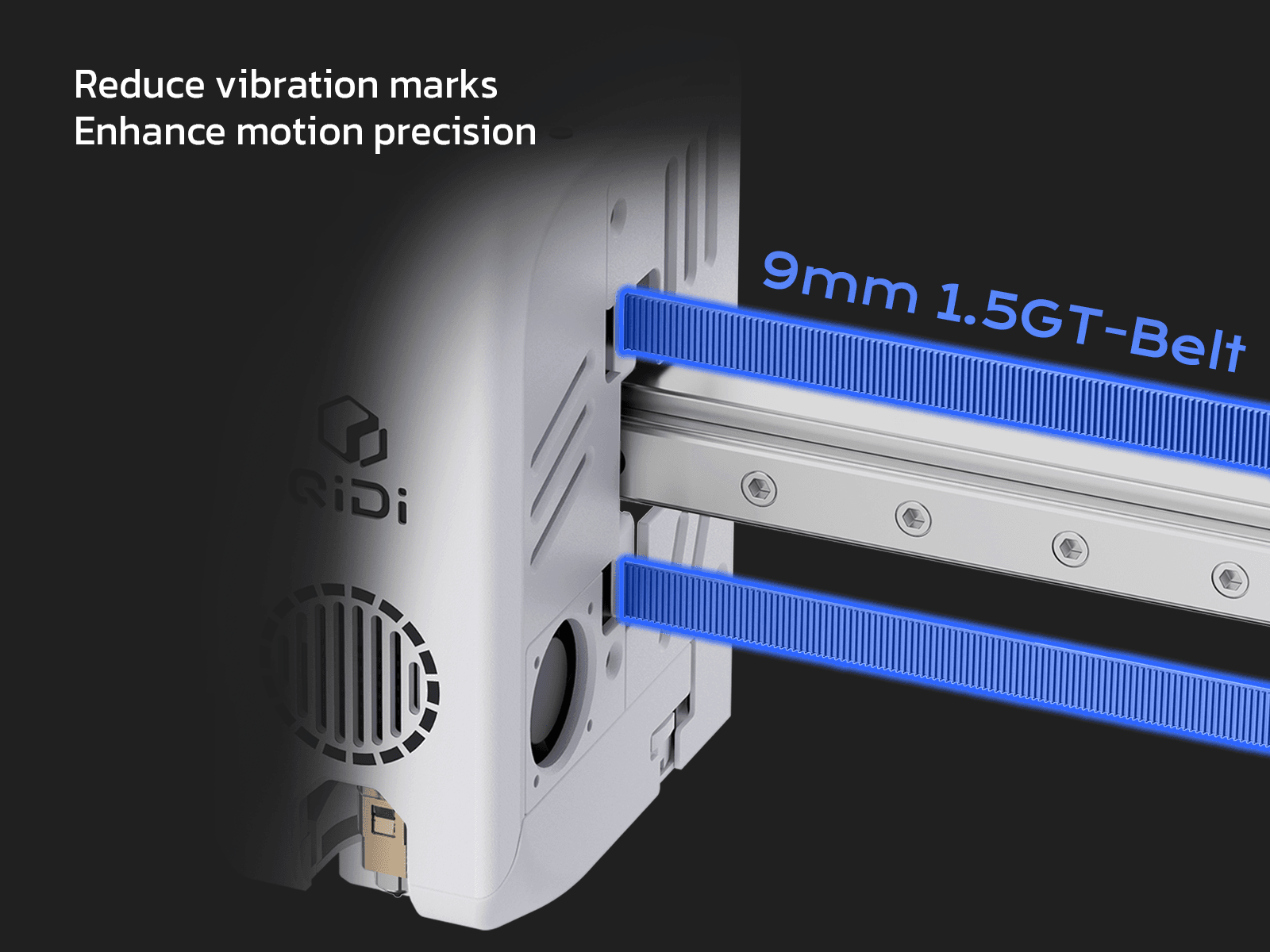

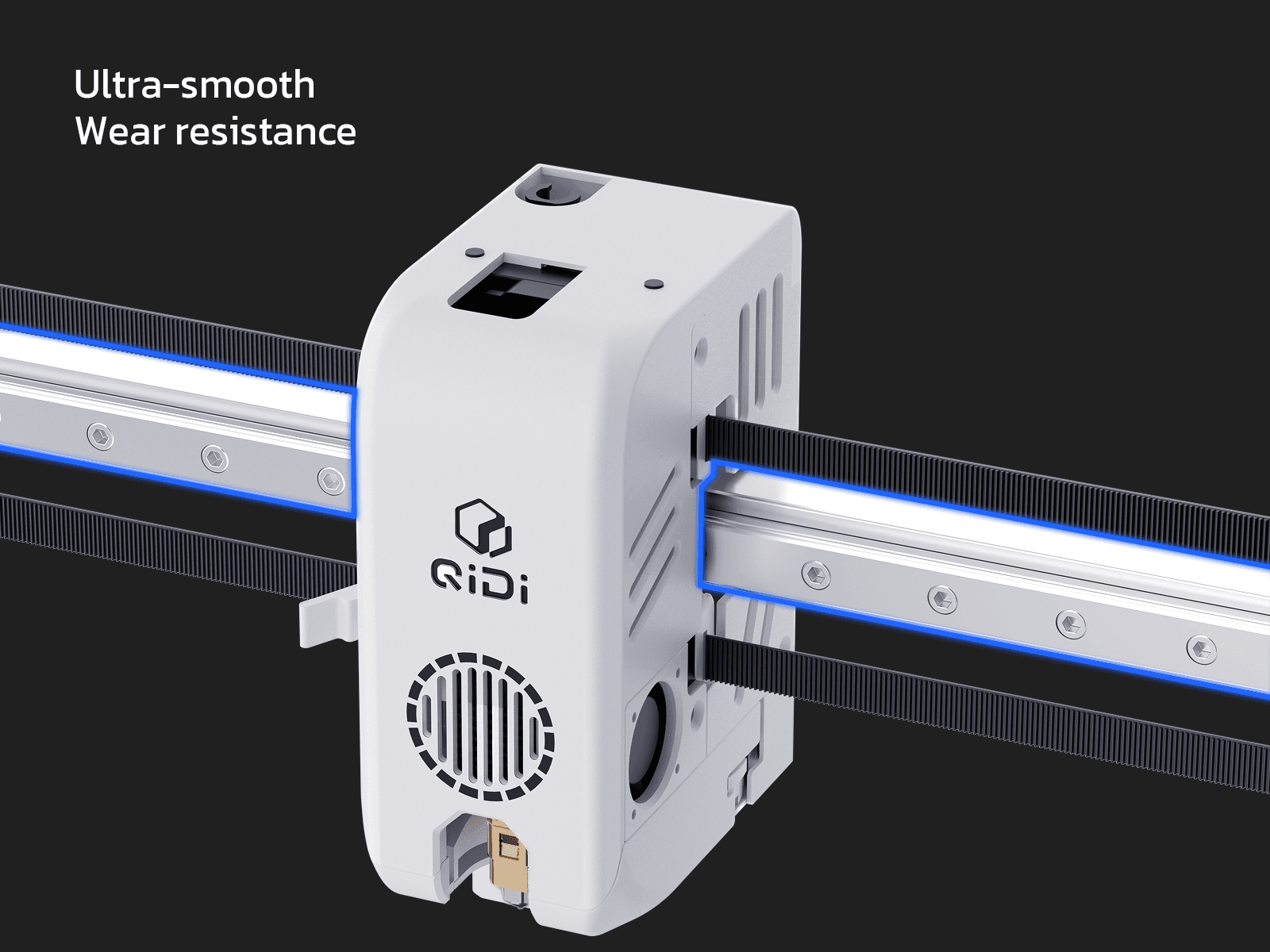

Next-Level Surface Quality

Where hardware motion precision meets flawless macro execution. No ghosting, no ringing - just pure printing perfection.

X-Axis Linear Guide Rails
Latest Custom 1.5GT Belt

Ultra-Lightweight Toolhead

Stable output, delivering consistent surface quality from bottom to top.

Master of Multi-material Printing

Advanced Chamber & Toolhead Thermal Control.

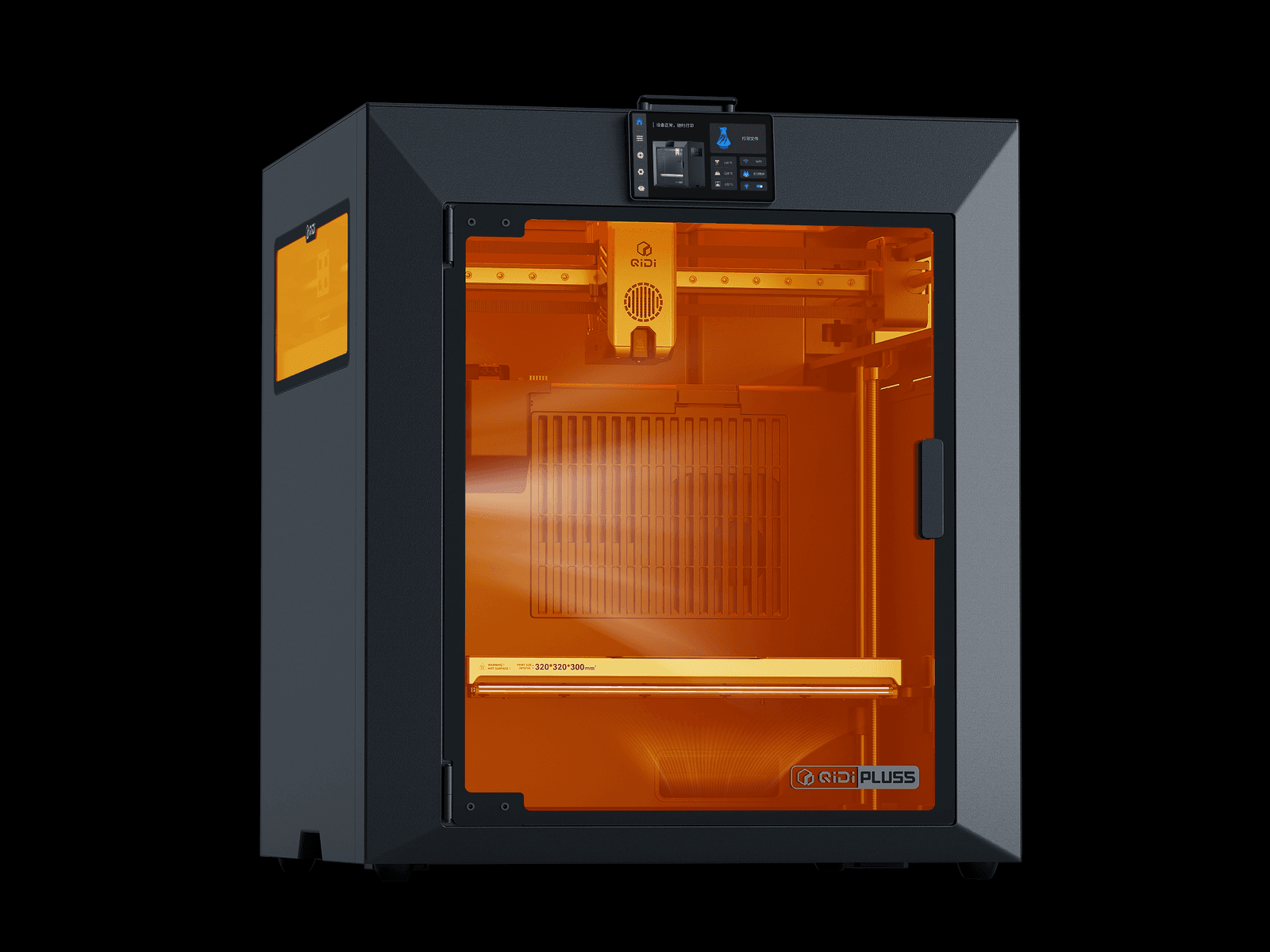

3rd-Gen 65°C Active Chamber Heating

Conquers high-temperature engineering filaments with absolute ease. Specs: 550W Ultra-High Power with 38% Increased Heating Efficiency.

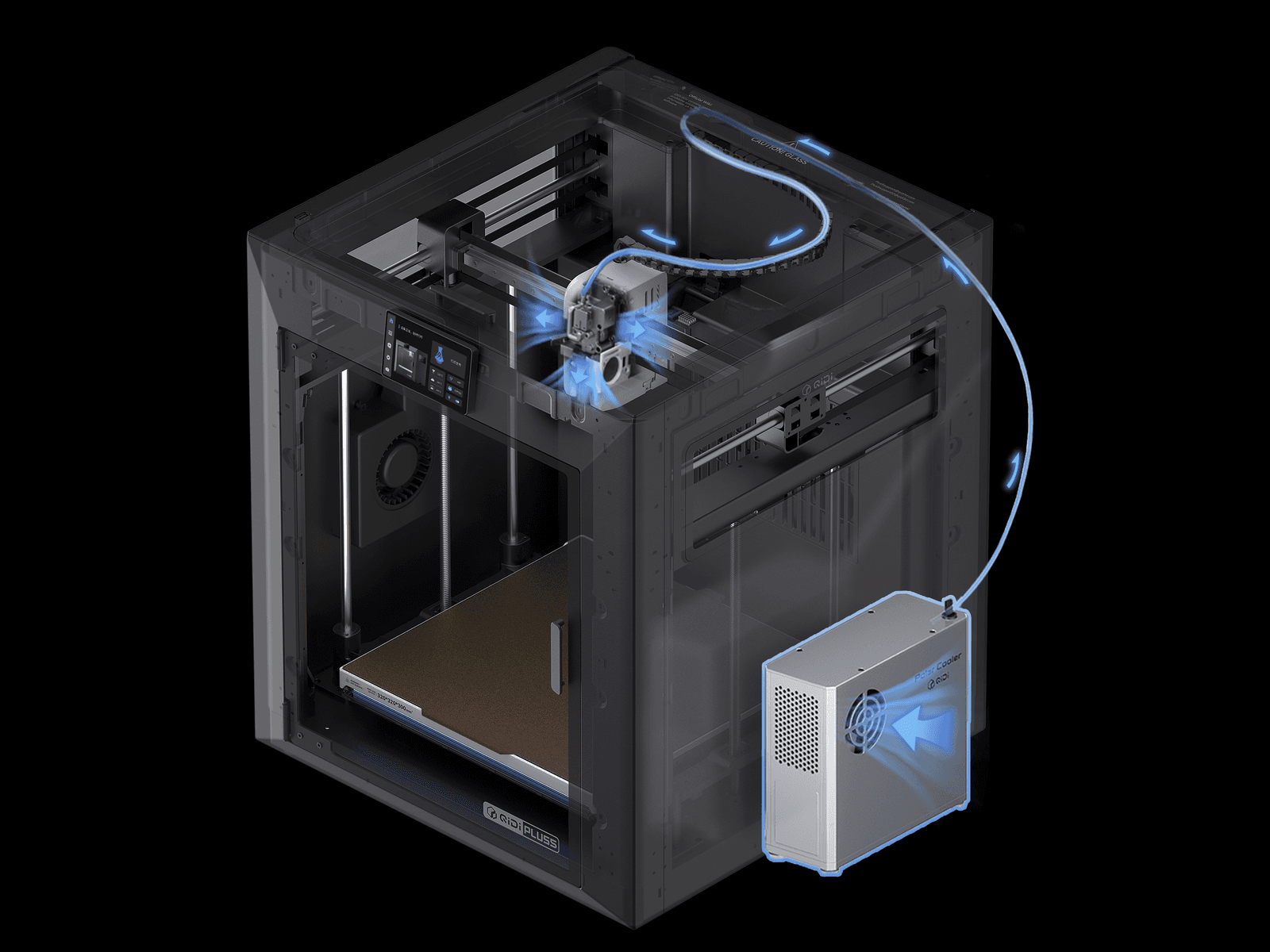

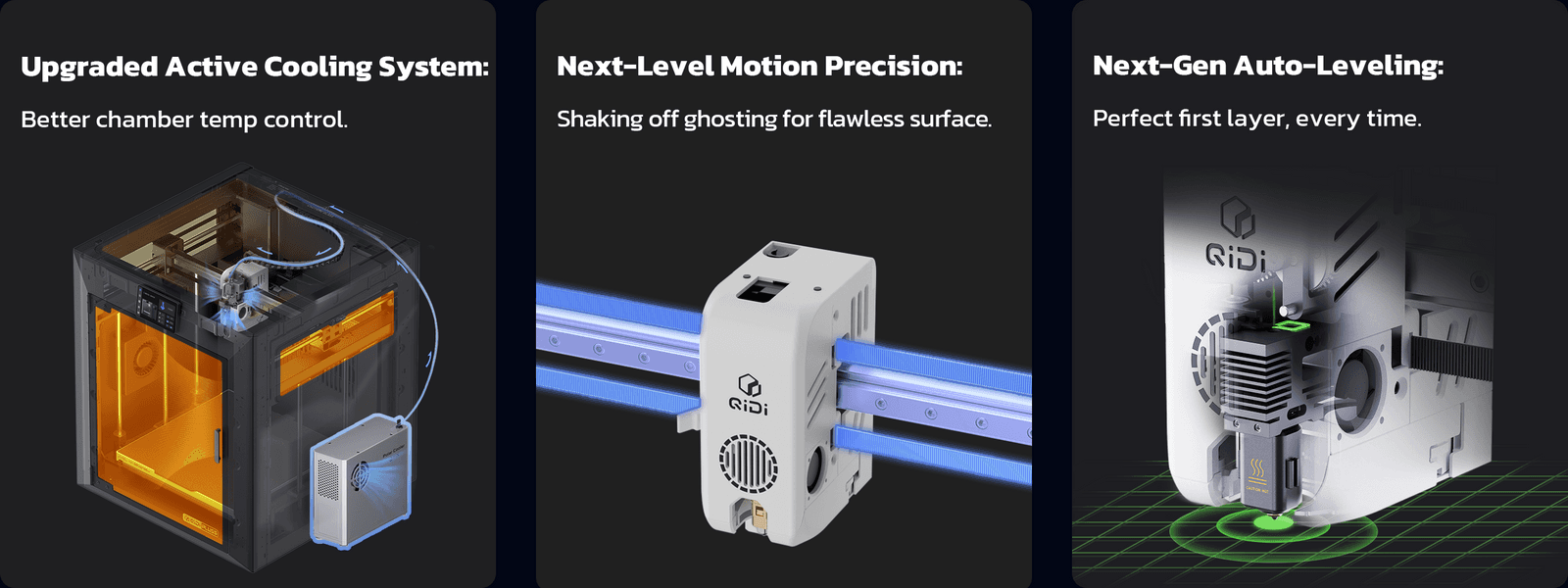

Active Toolhead Cooling System

The "Air Conditioner" for your extruder is here. It delivers powerful airflow to reduce heat creep and clogging, even during marathon prints.

Every Inch Heated - For the First Time

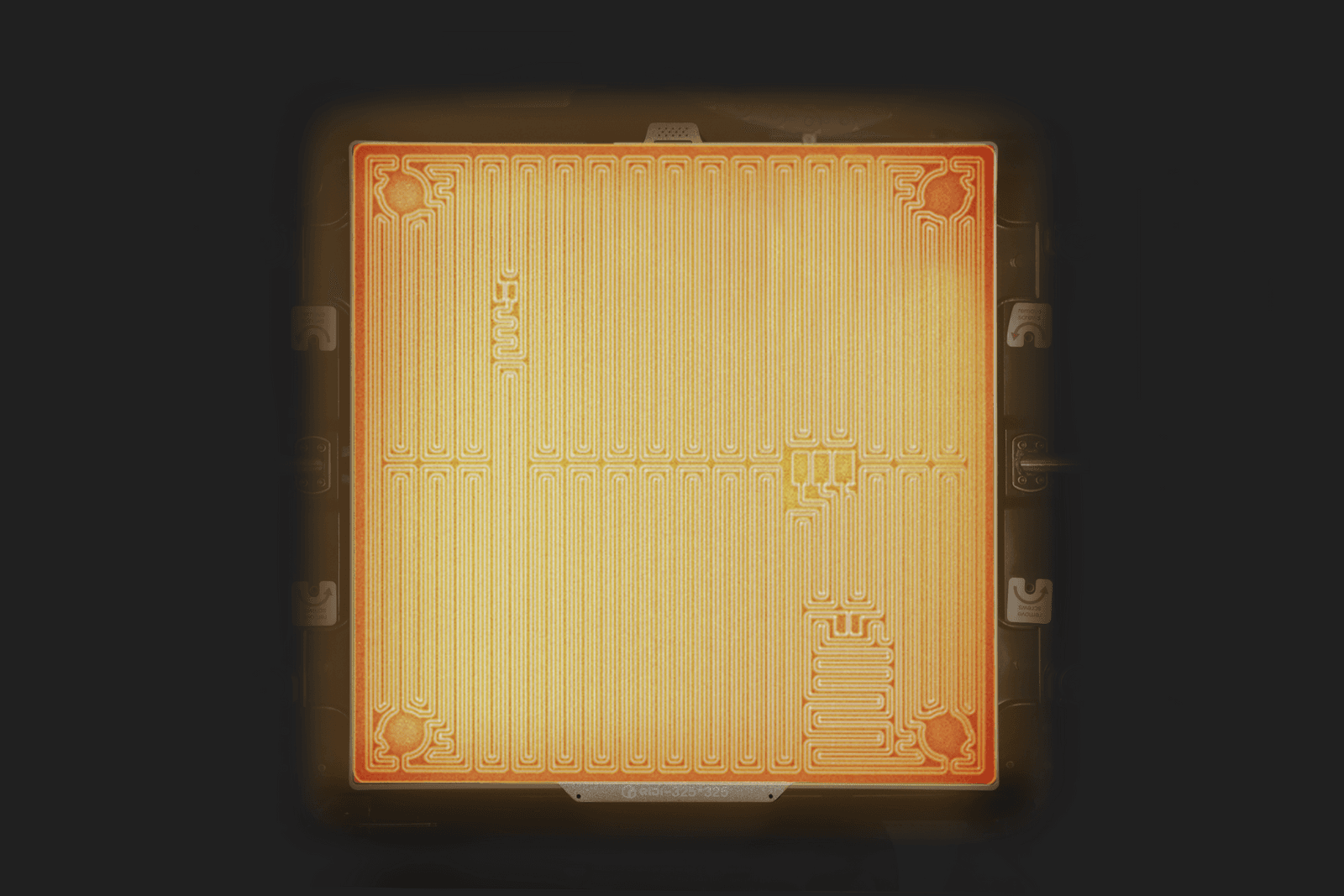

Industrial-Grade Heated Bed Control

The 320×320 mm heated bed features a full-surface silicone layer with dense heating wires and insulation cotton, ensuring even heat, strong first-layer adhesion, and stable temperatures - perfect for large, warp-free prints QIDI Plus5: Ultra-Uniform

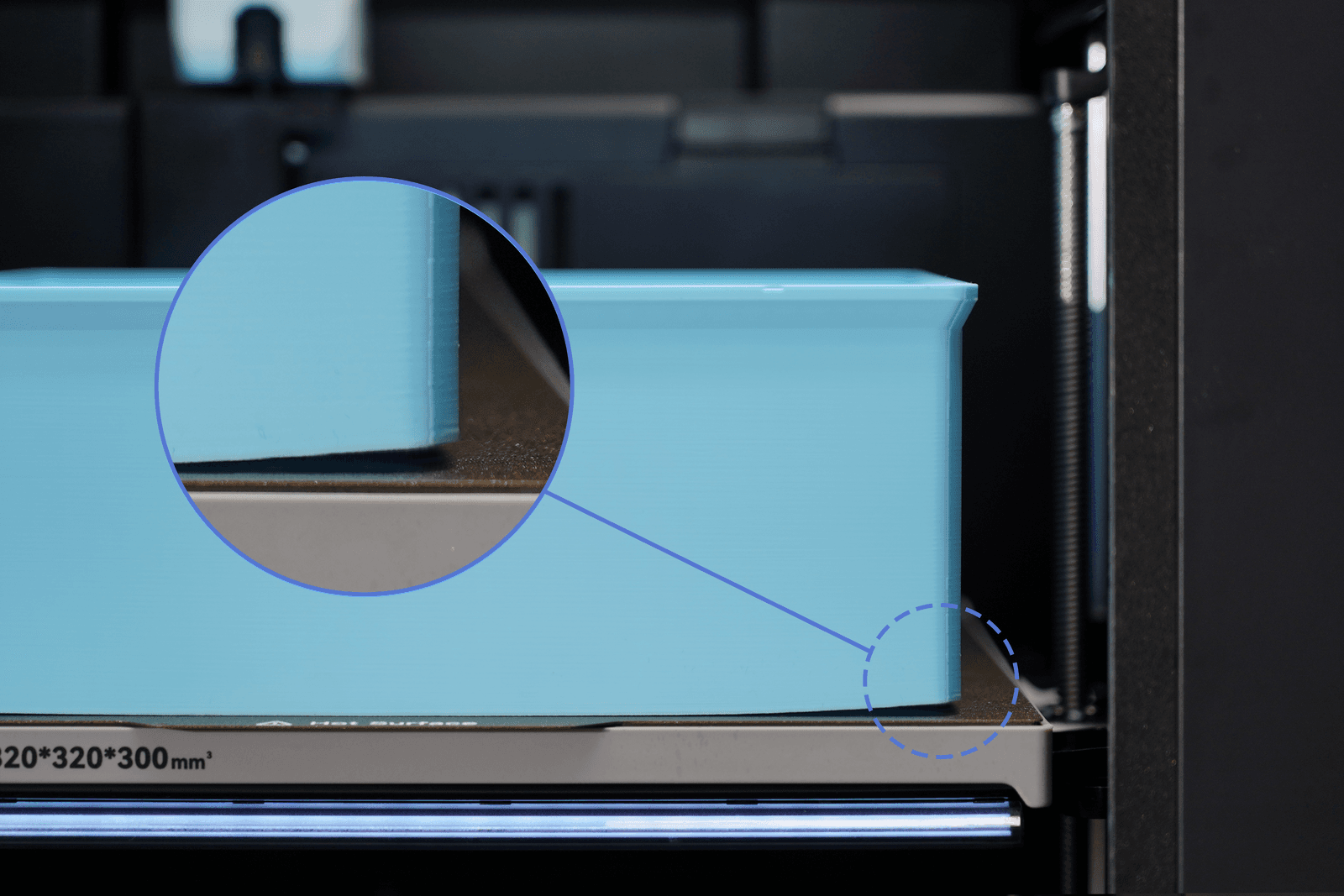

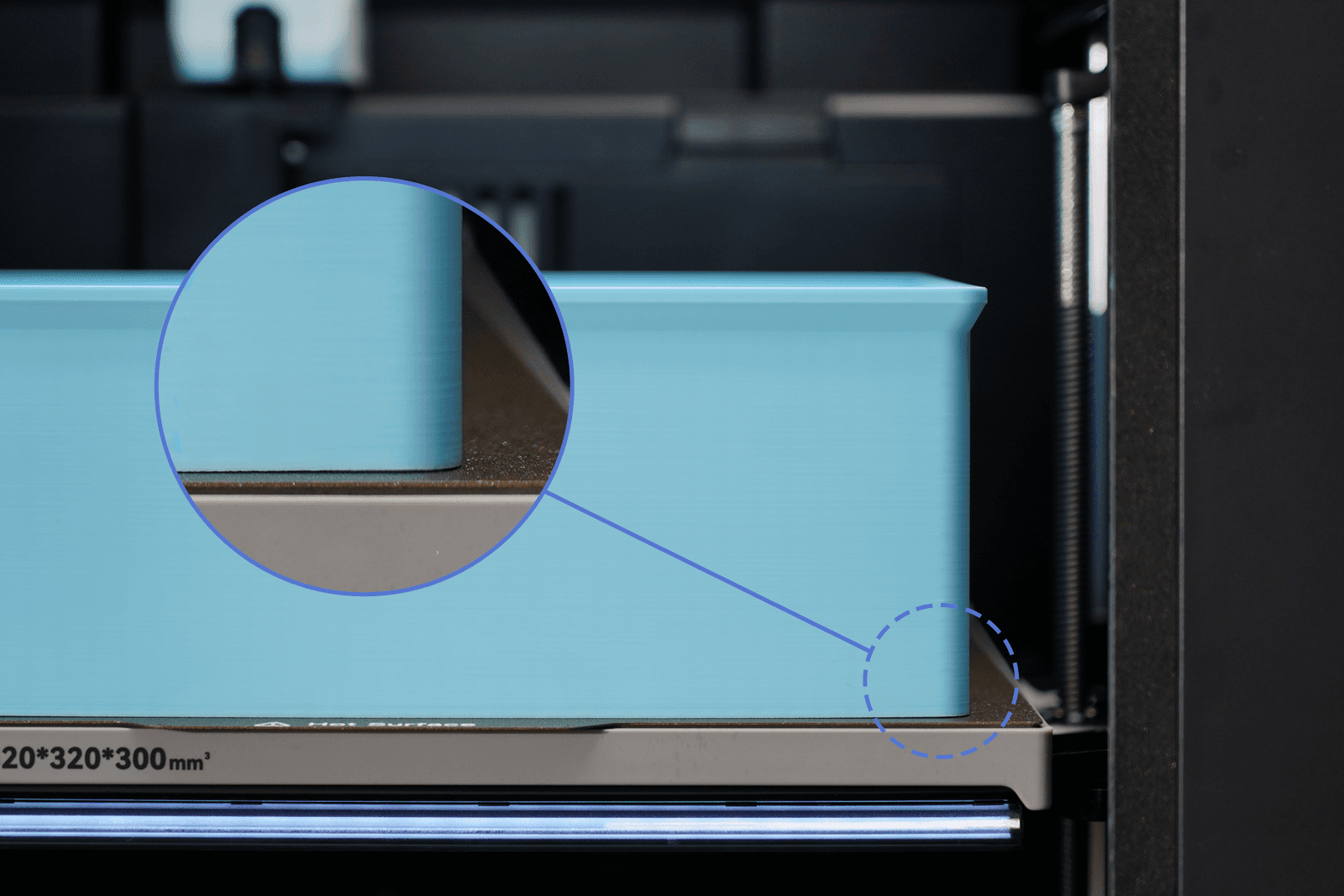

Chamber Heating & Polar Cooler ON

ensure that large-sized PLA does not warp at the edges

OFF: Warping
ON: Perfect Model

Upgraded Core Performance

Maximized Capacity. Unstoppable Performance.

Engineered for high-efficiency output and optimized for non-stop industrial productivity.

Flow rate: 40mm³/s

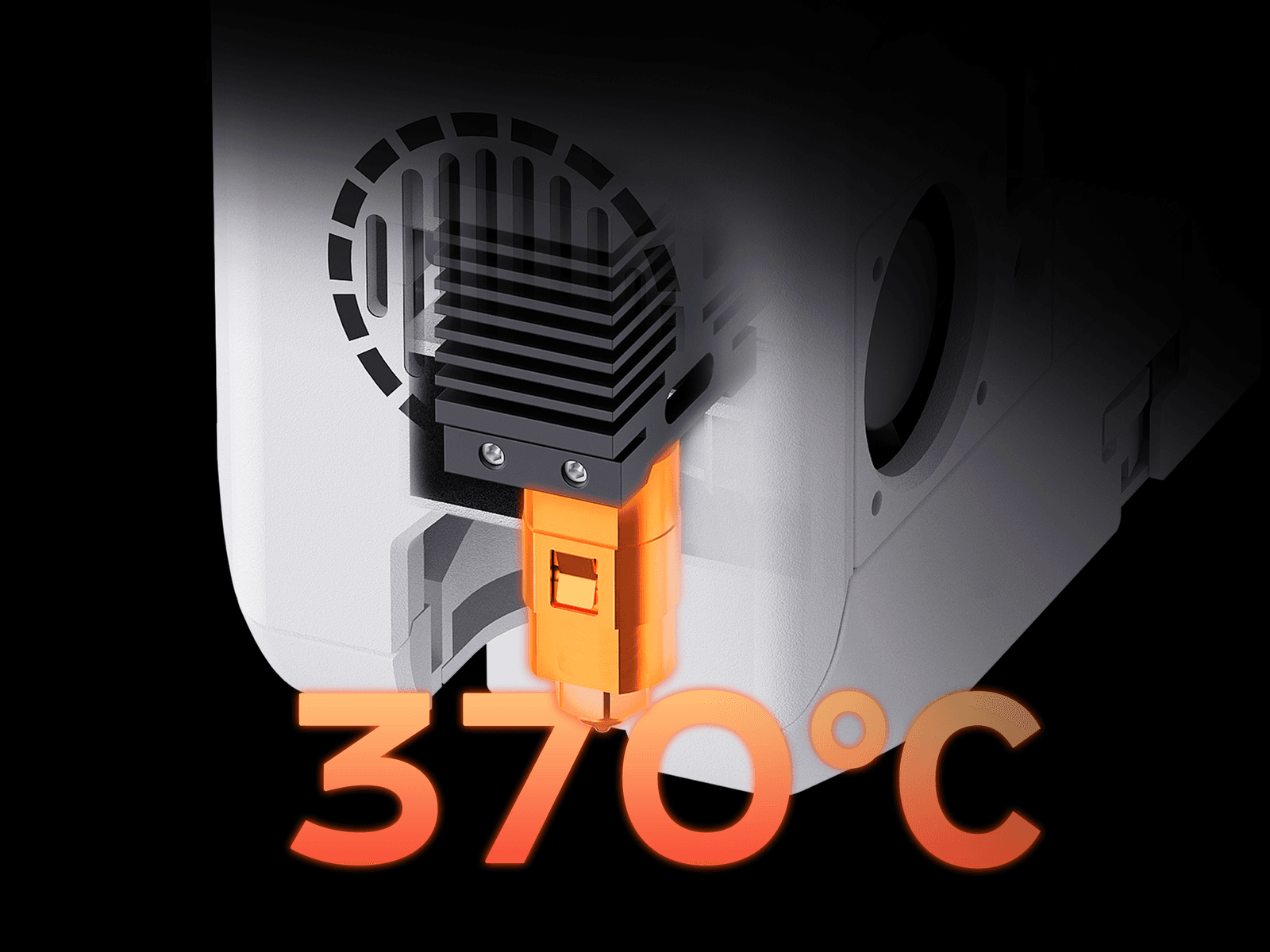

Next-Gen High-Flow Hotend:

Delivers a powerful 40mm³/s volumetric flow rate and sustains temperatures up to 370°C for flawless high-speed printing.

Wear-Resistant & Industrial Ready

Specially designed to handle abrasive engineering materials, from carbon fiber composites to high-temp nylon.

Next-Gen AI & Smart Hardware Ecosystem

Intelligent Automation & Enhanced Experience

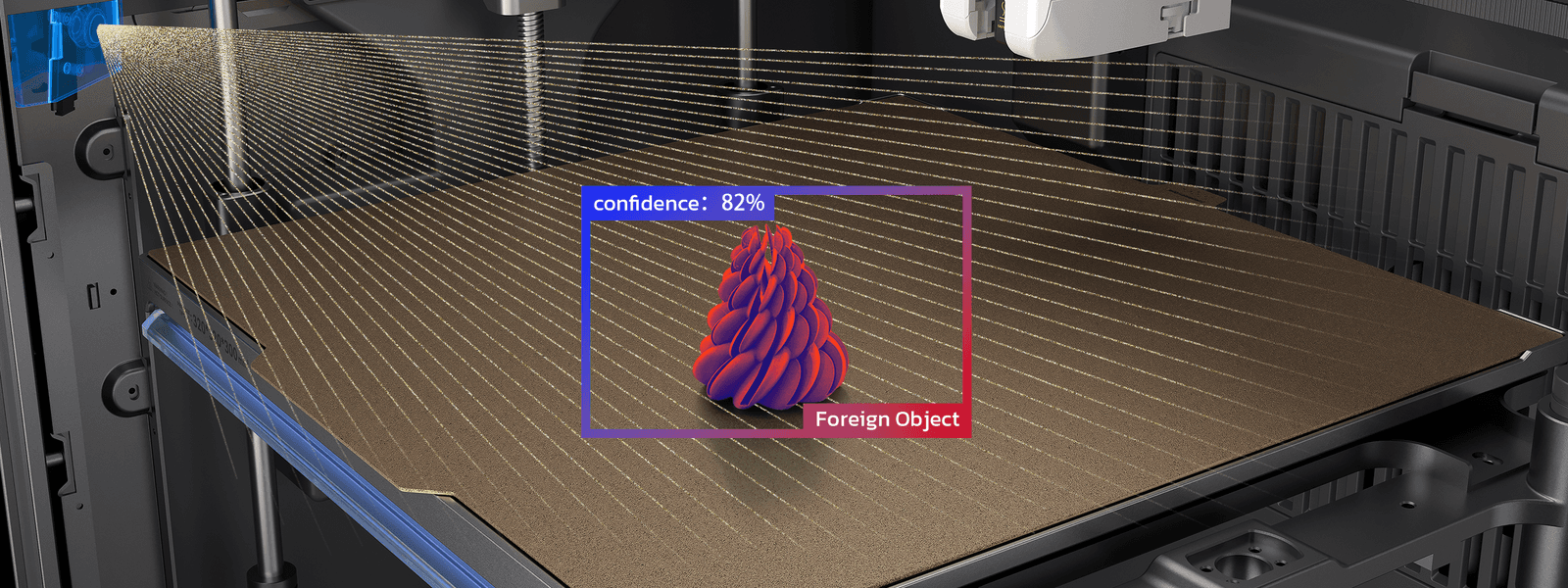

From microscopic auto-leveling and real-time AI anomaly detection to intuitive hardware cues, every feature is engineered to deliver a seamless, worry-free printing workflow.

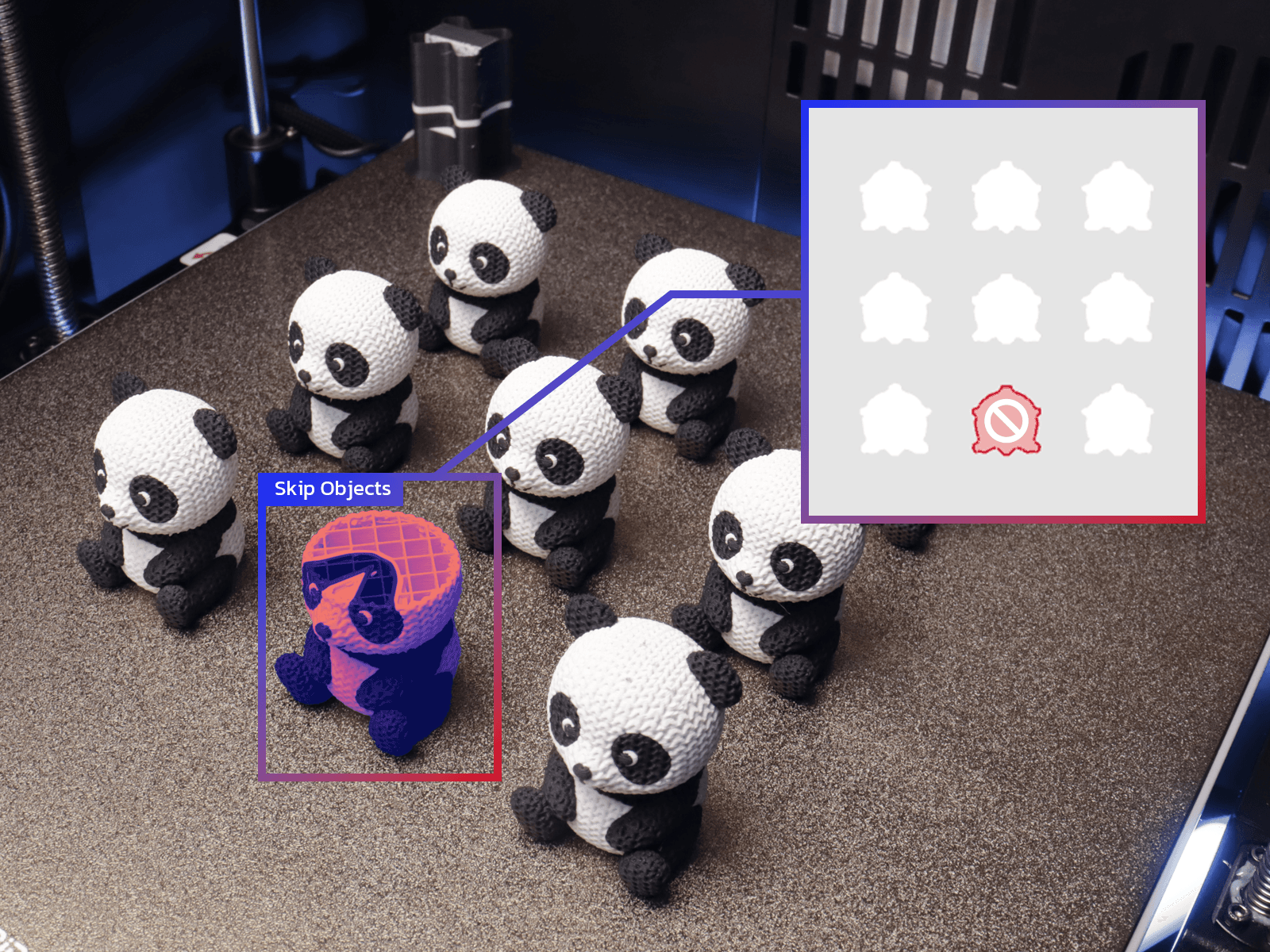

Smart Skip Objects

If one part fails during a multi-object print, simply skip it via the UI and keep the rest printing flawlessly.

Full-color Intelligent Display

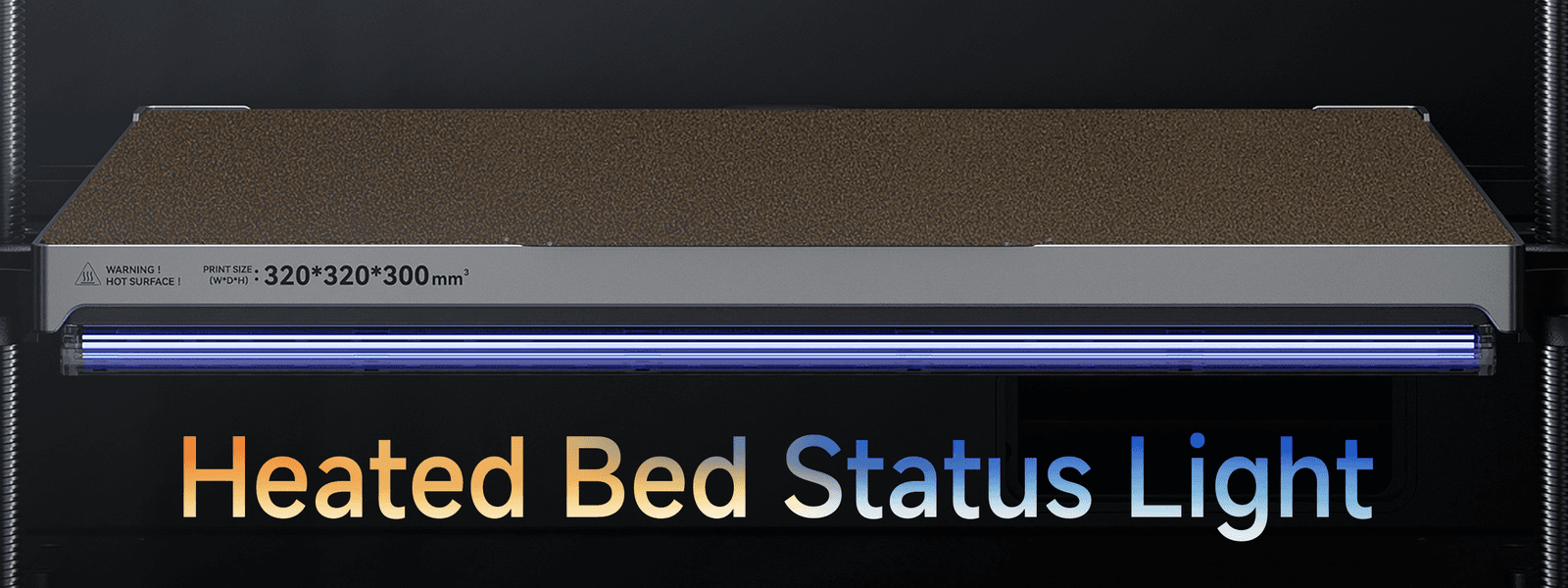

Intelligent Status LED Light

Easily identify printer status (Sleep mode; pre-print preparation; print progress during printing; etc.)

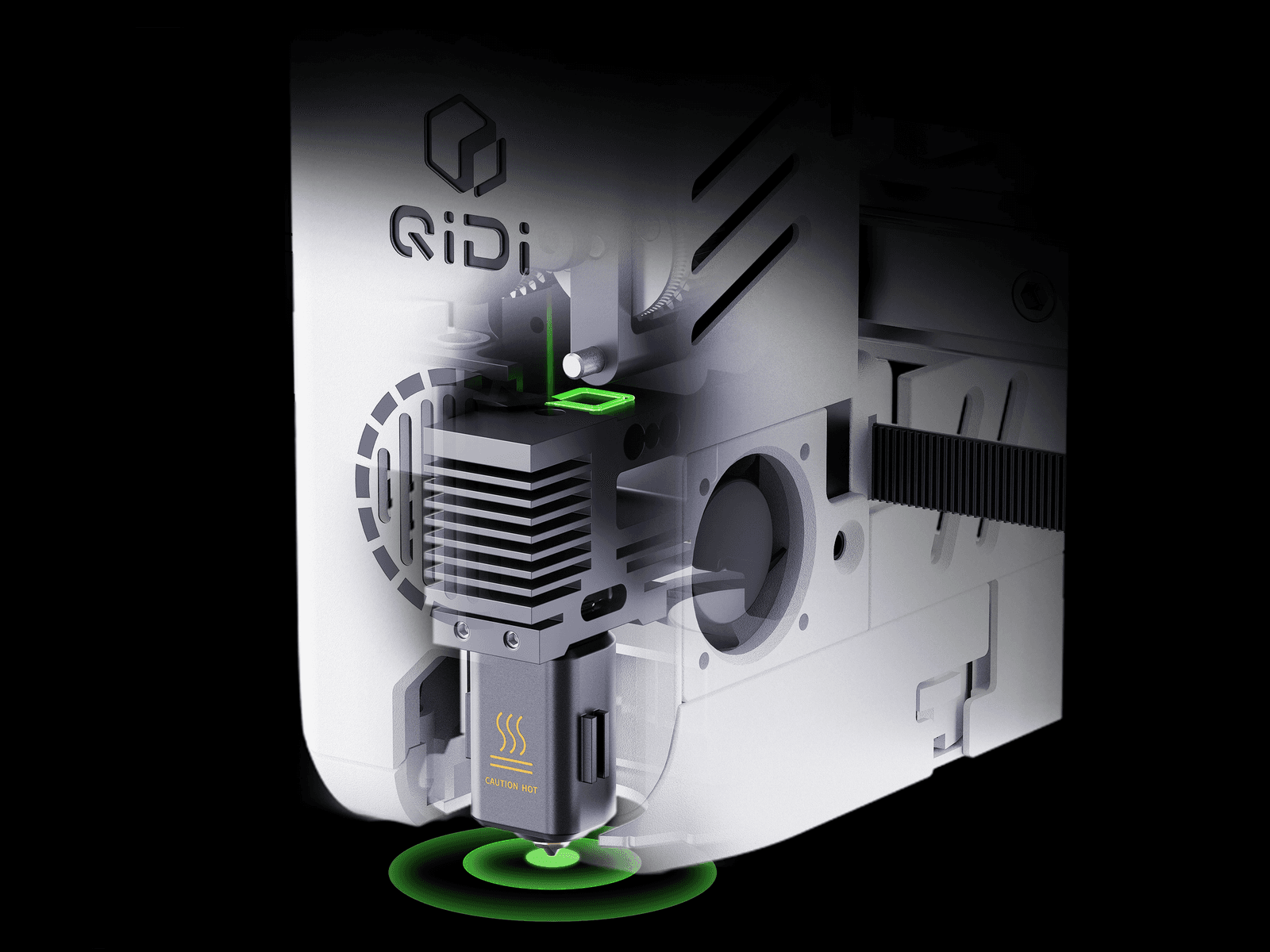

Next-Gen Auto-Leveling

Achieve a flawless first layer without the hassle. Our upgraded calibration algorithm automatically maps the bed, guaranteeing perfect adhesion and zero guesswork.

First Layer Perfection

Automatic calibration for flawless print foundations. Flawless from the Start.

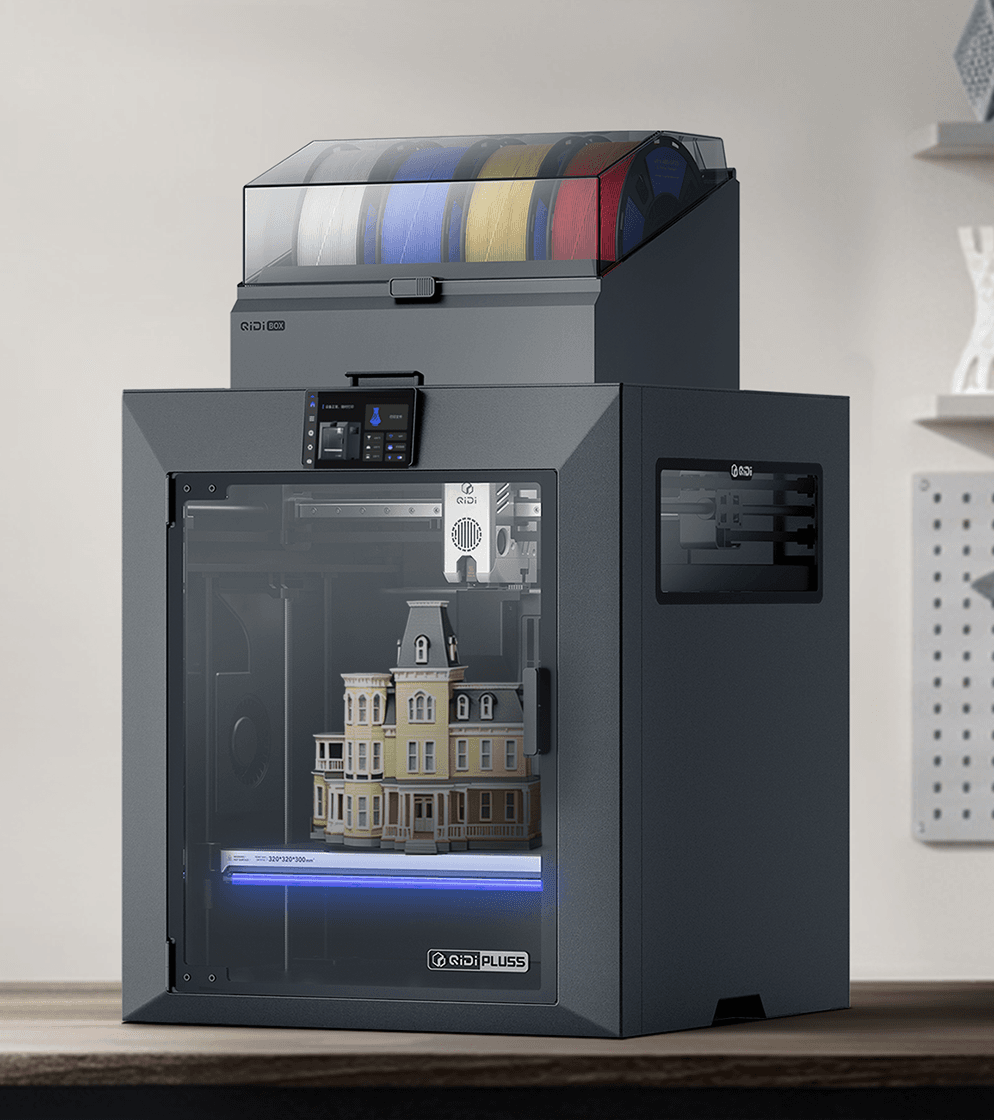

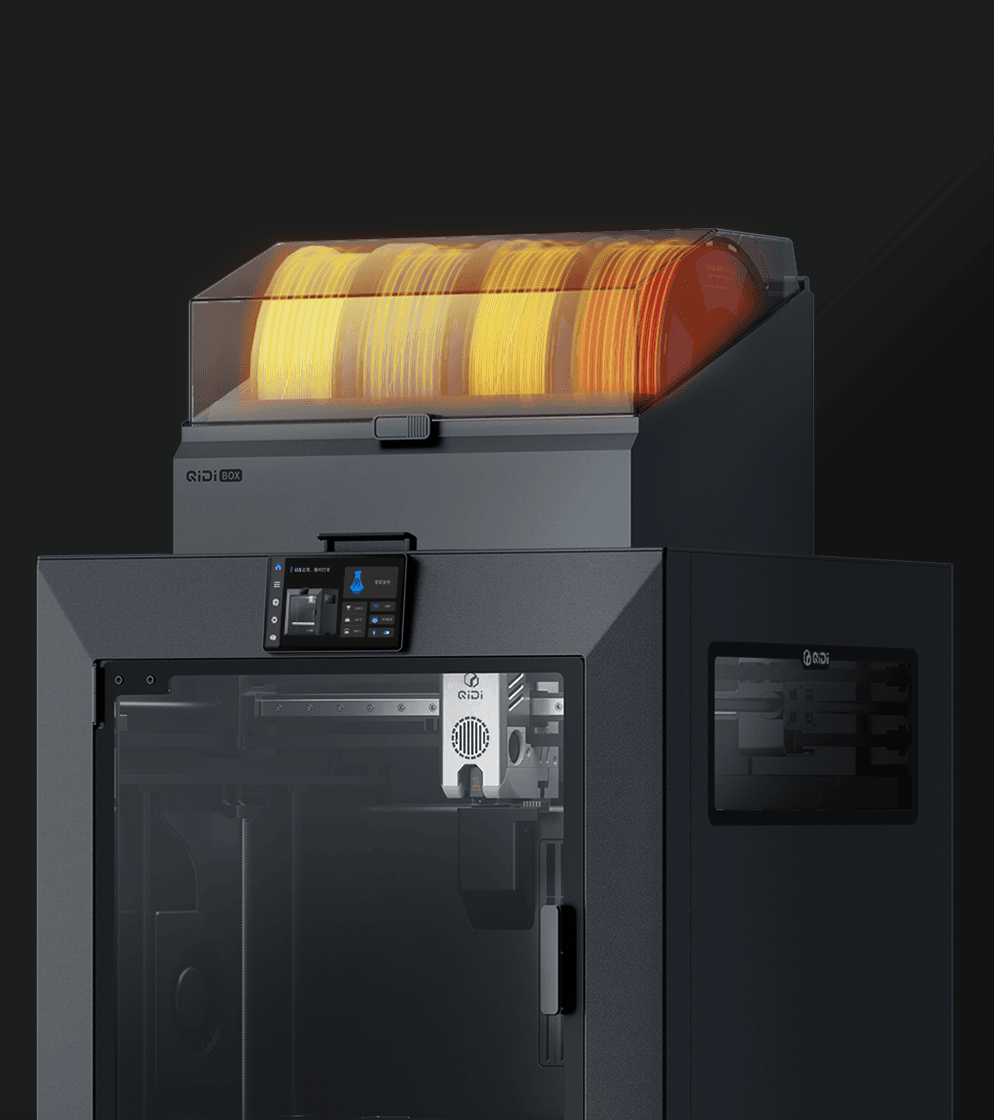

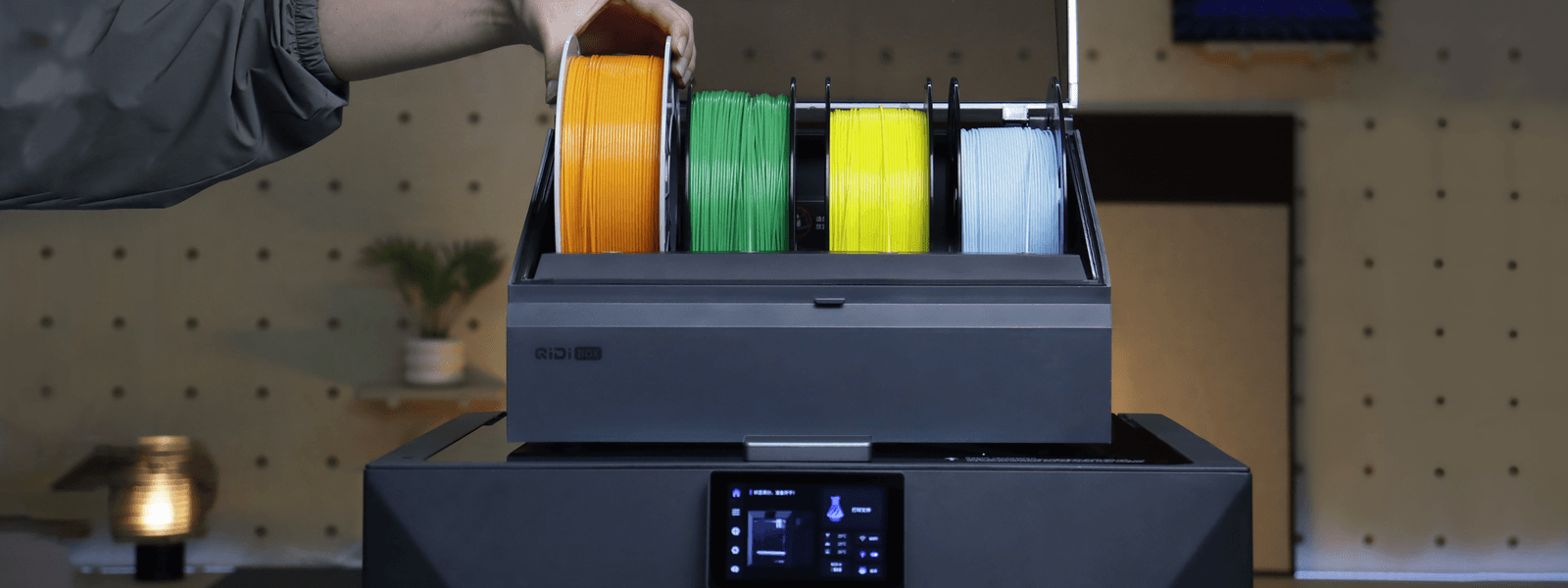

Powered by the All-New QIDI Box

Seamless Multi-Color & Multi-Material Printing

The QIDI Box features a built-in chamber heating up to 65°C, gently softening advanced filaments for smooth, vibrant multi-color prints every time

Highlights of QIDI BOX

Beyond vibrant multi-color masterpieces, it unlocks the ability to print complex geometries by seamlessly blending engineering filaments with soluble support materials. Featuring a specialized filament conditioning system, it keeps your advanced materials dry and primed for smooth, clog-free extrusion on every single layer.

True 16-Color Multi-Material Freedom Chain up to 4 QIDI Boxes and unlock endless creative possibilities with 16 different materials

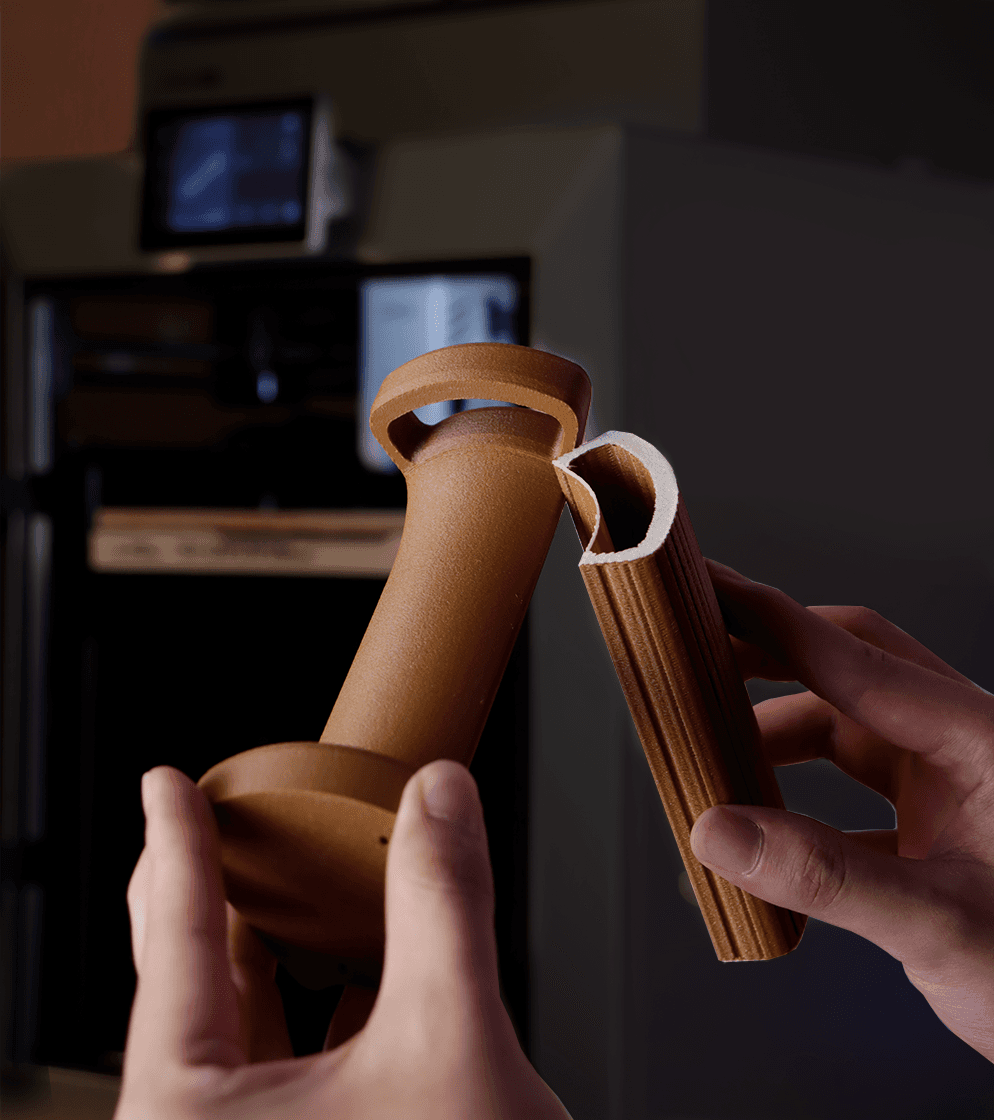

Simplified Support Removal Choose between snap-away or dissolvable supports for effortless, clean prints every time
65℃ Drying While Printing Keeps your filaments perfectly dry and ready for flawless printing - no interruptions

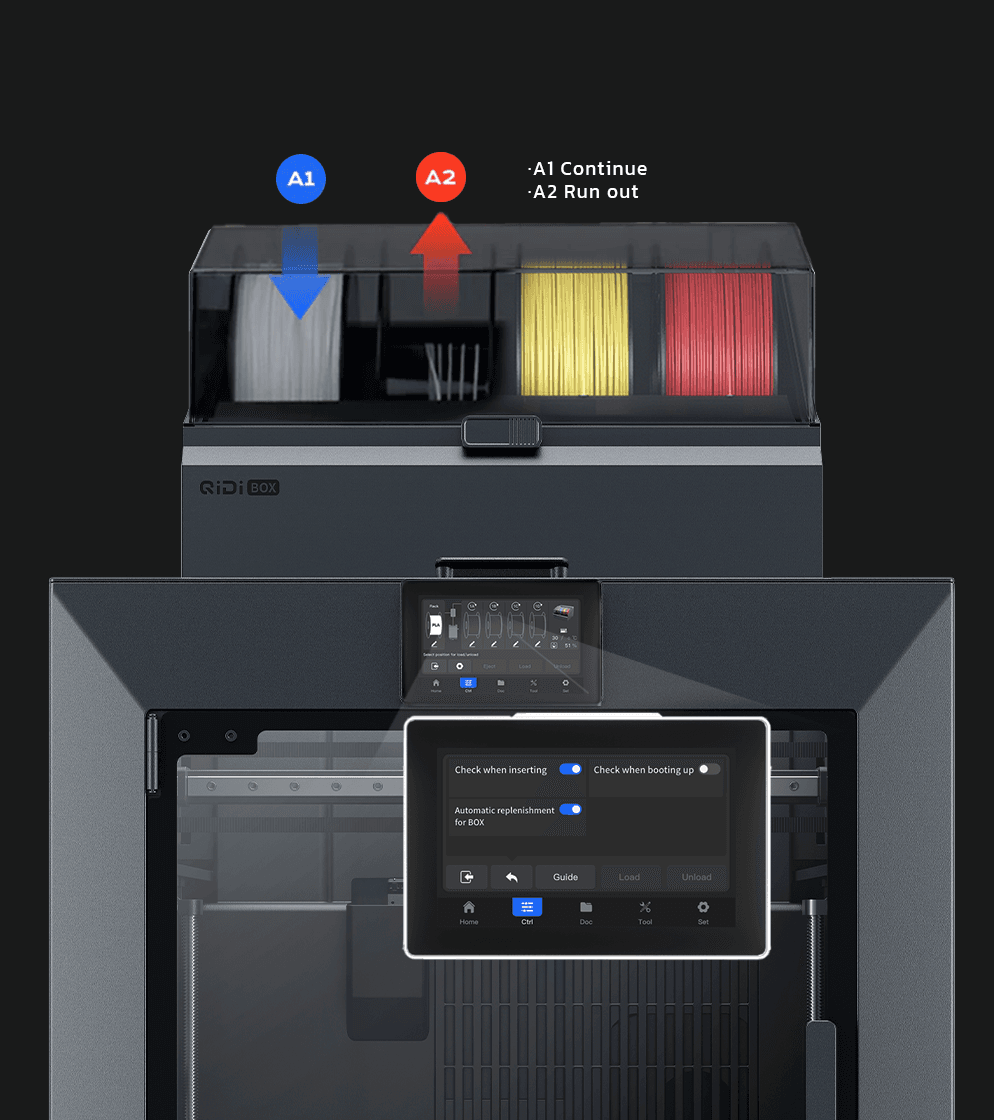

Filament Auto-Reload Switches spools seamlessly, ensuring nonstop printing and minimal filament waste

For Home Health and Safety

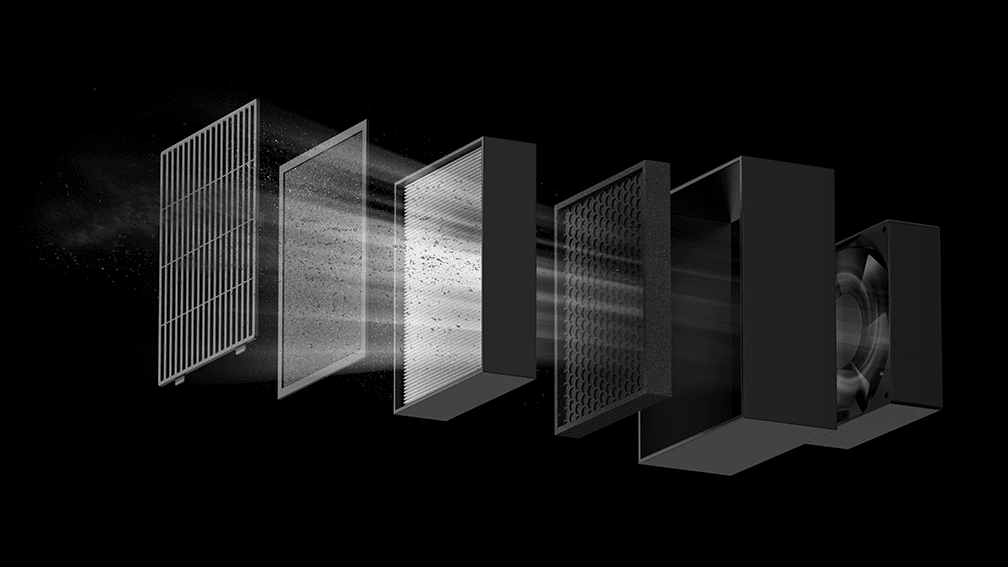

Air Circulation with 3-Layer Filter Cartridge

Highly efficient at capturing 99.5% of dust and particles

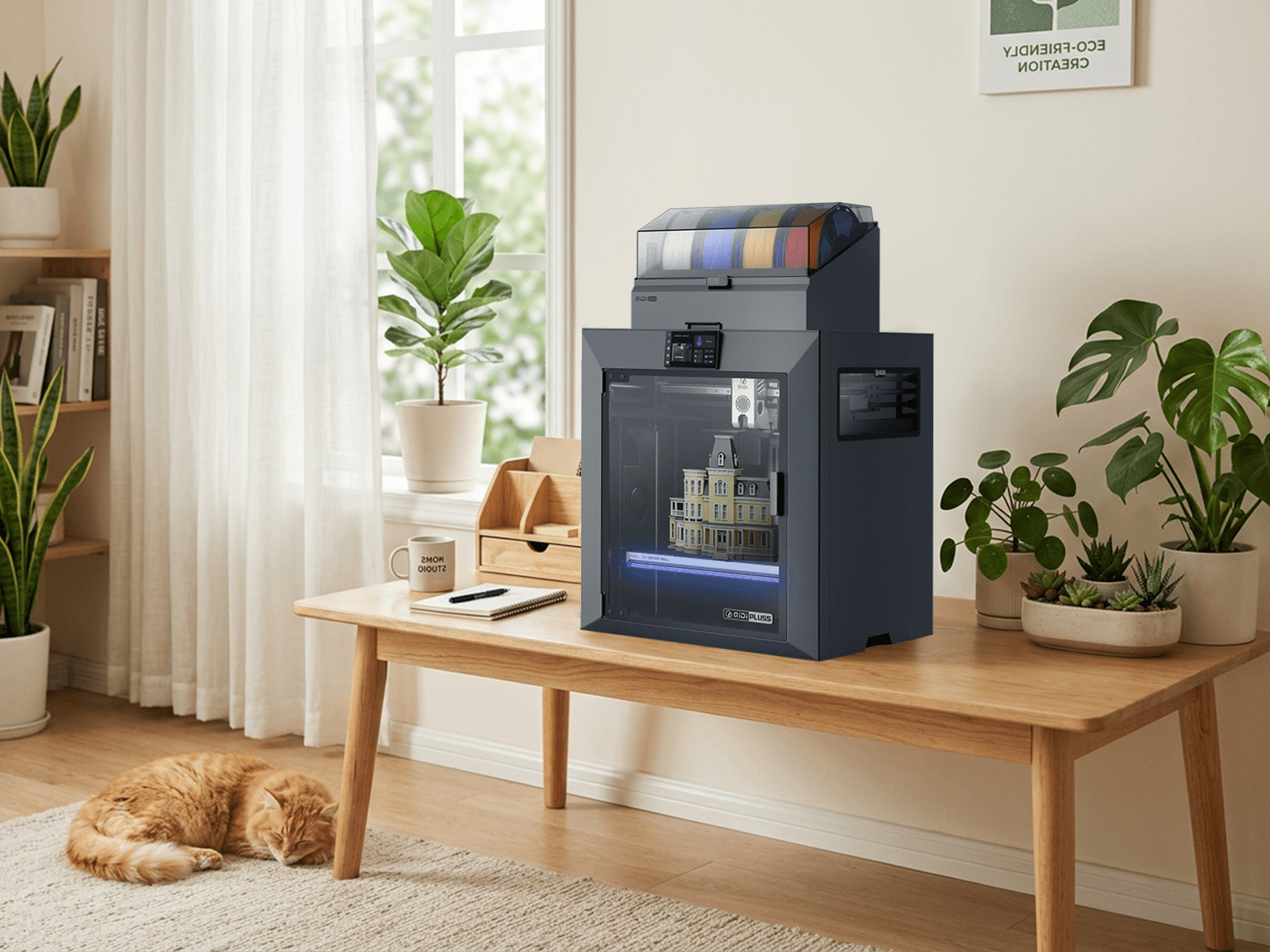

Breathe Easy, Create Safely

Our active air filtration system silently safeguards your health - reducing odors and capturing micro-particles.

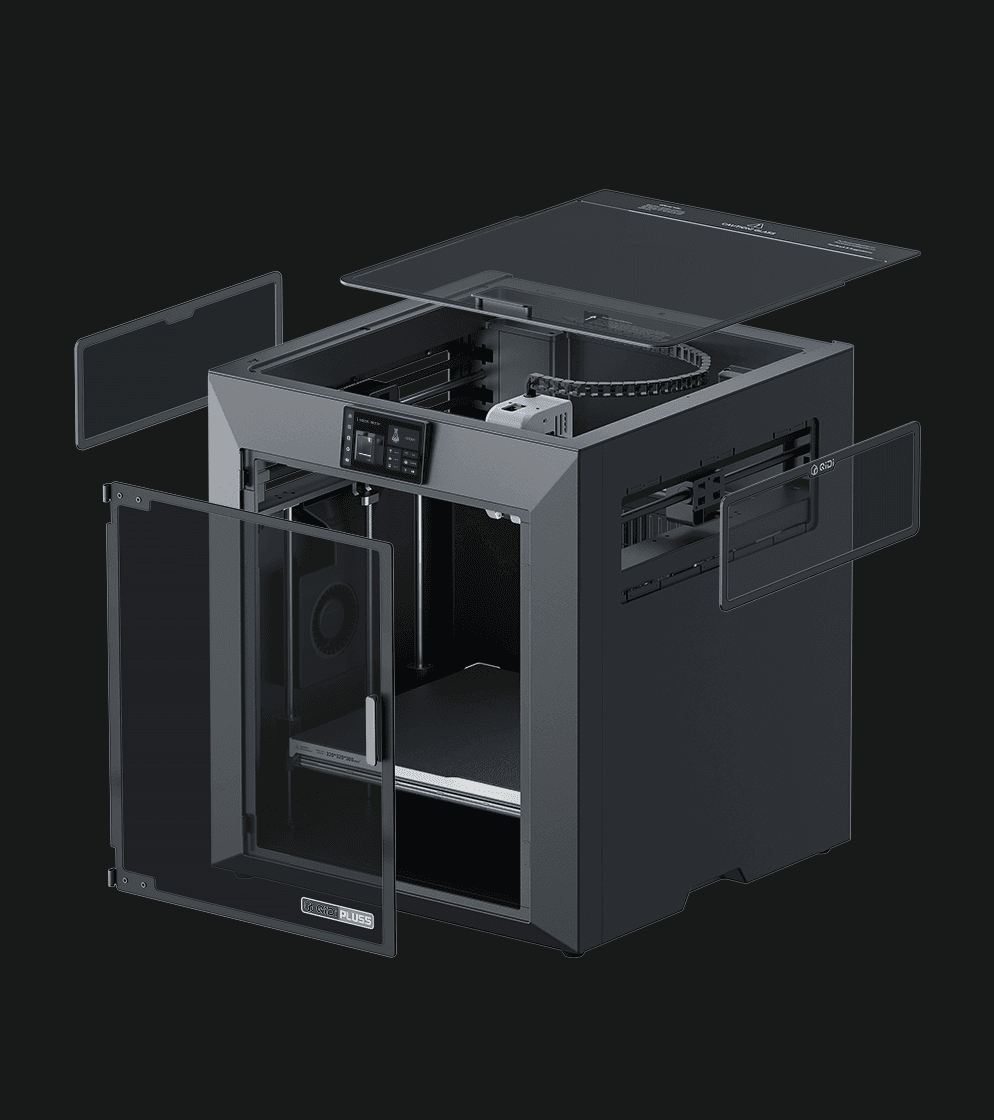

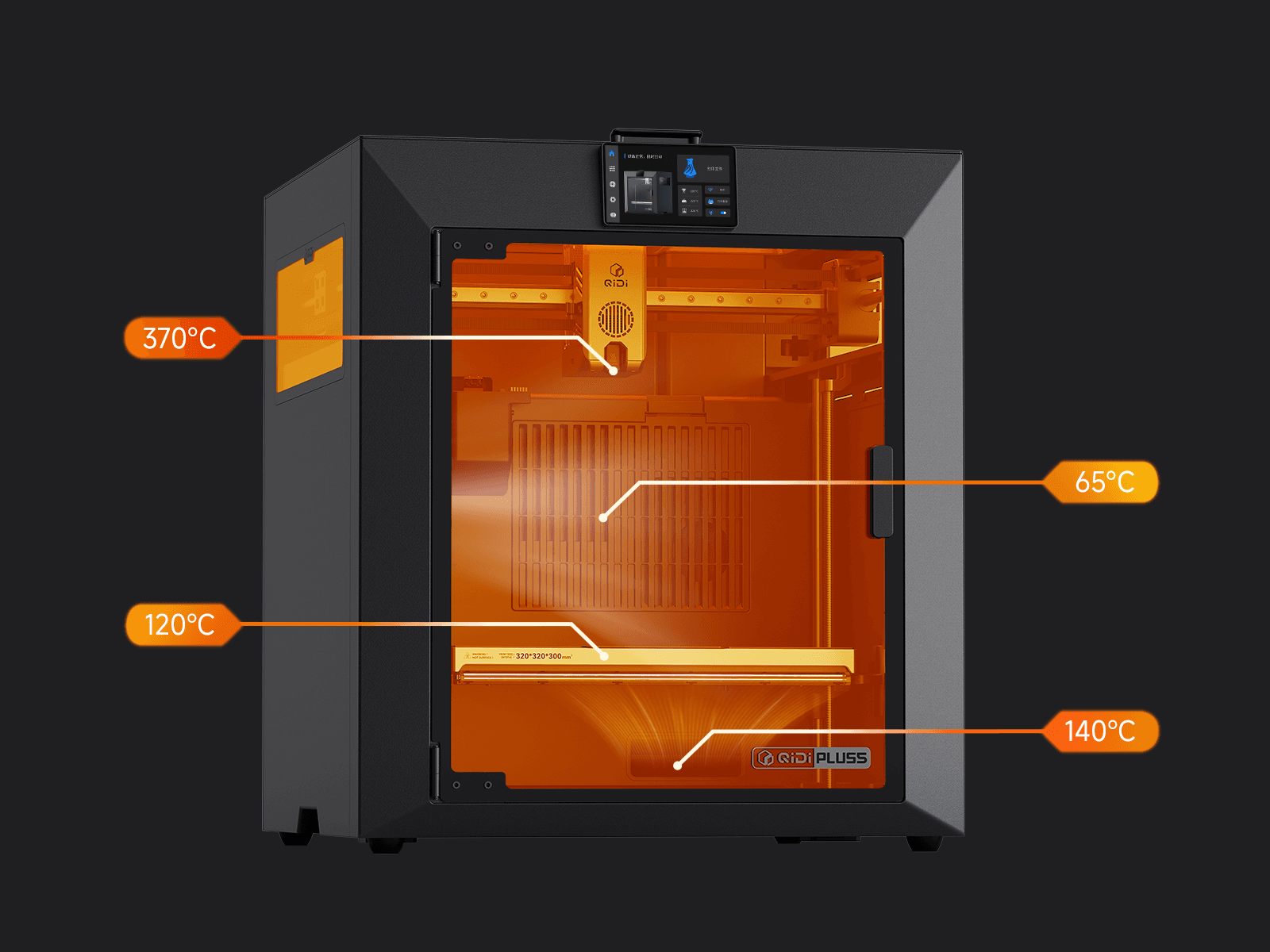

Advanced Safety: Smart Thermal Loops & Flame-Retardant Chamber

Enhanced Security

Safety engineered for peace of mind. The Plus5 features a multi-sensor closed-loop thermal control system that constantly regulates internal temperatures to prevent overheating. Paired with a robust flame-retardant chamber design, it provides an industrial-grade safety shield for overnight and high-temp printing.

User Experience Upgrade

QIDI Plus5 has undergone design upgrades based on user feedback, offering a more comfortable experience

Visible tempered glass, easy to observe

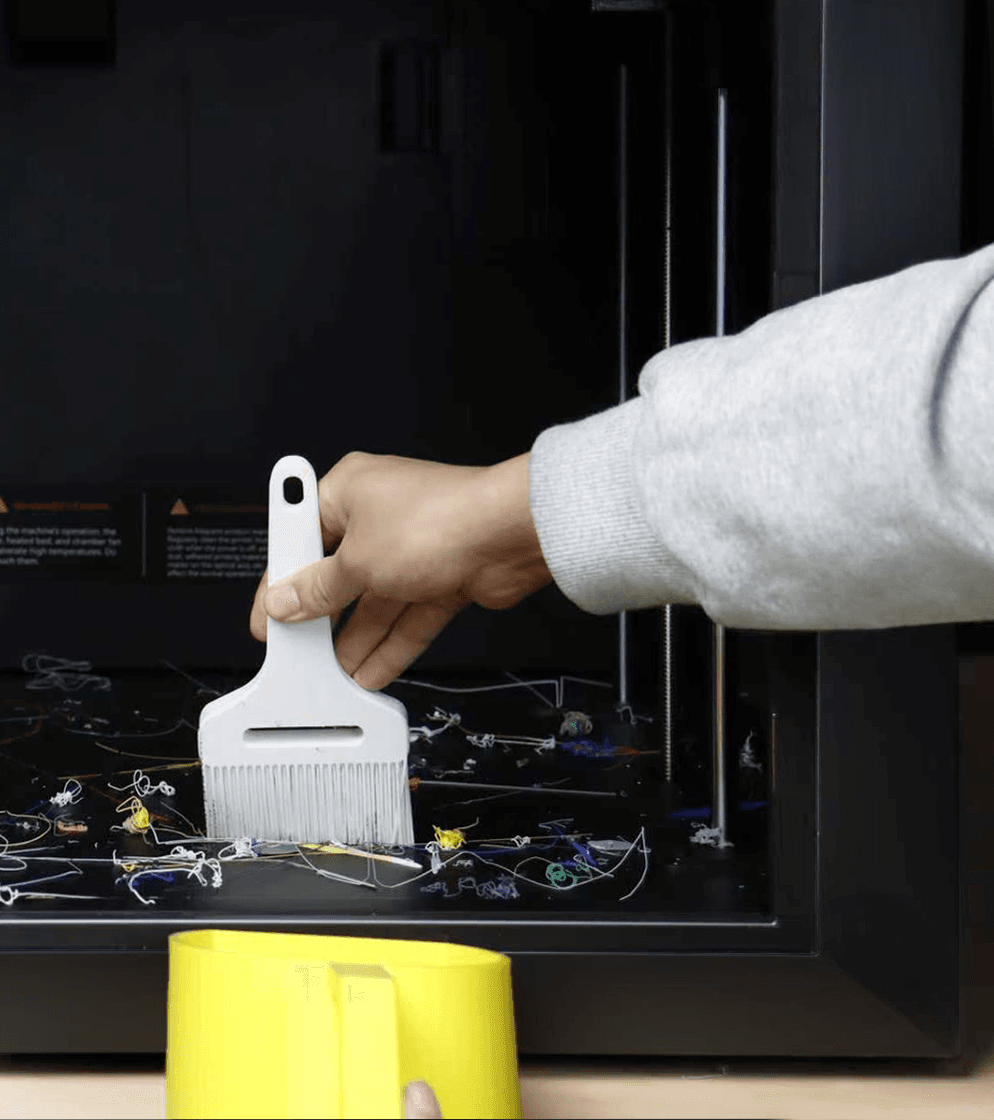

Smooth base, easy to clean

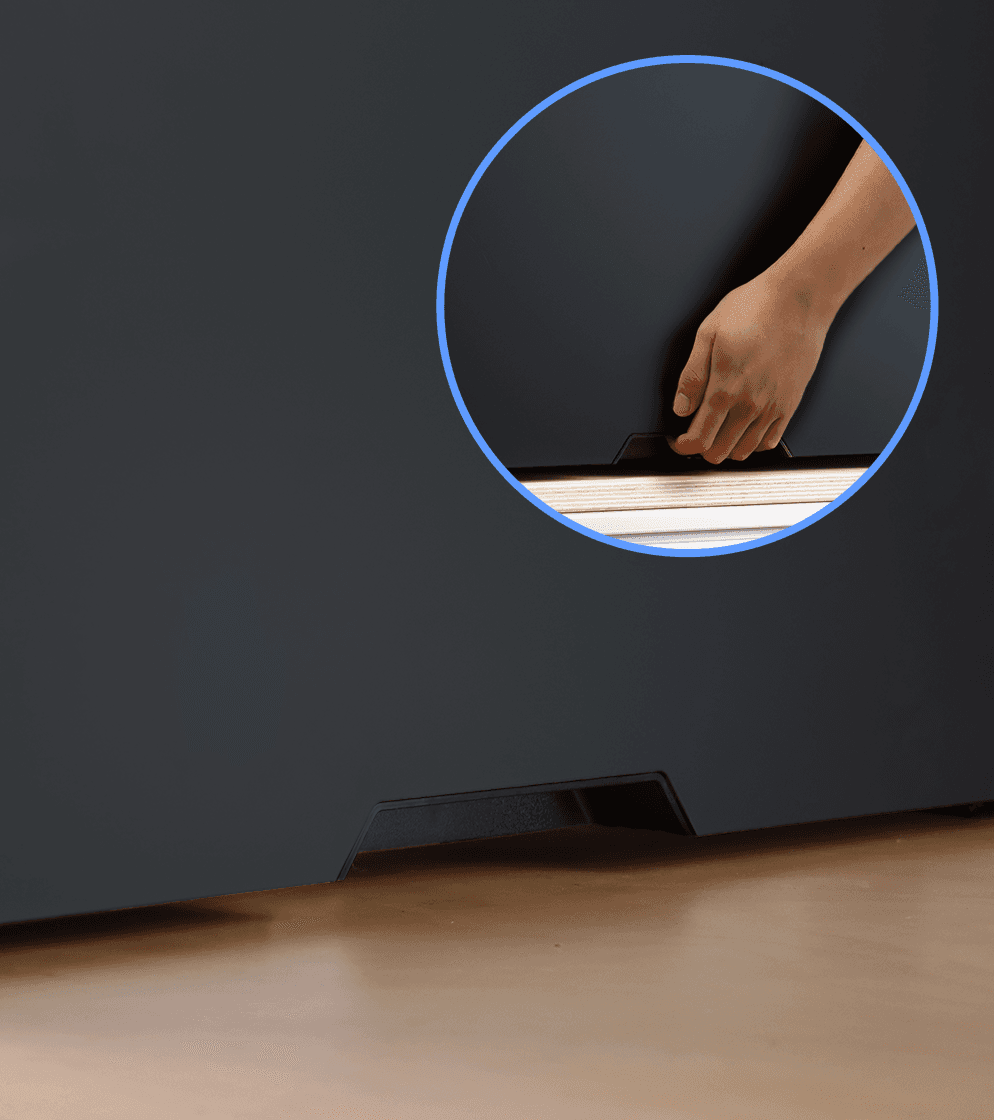

Bottom handle design, easy to carry

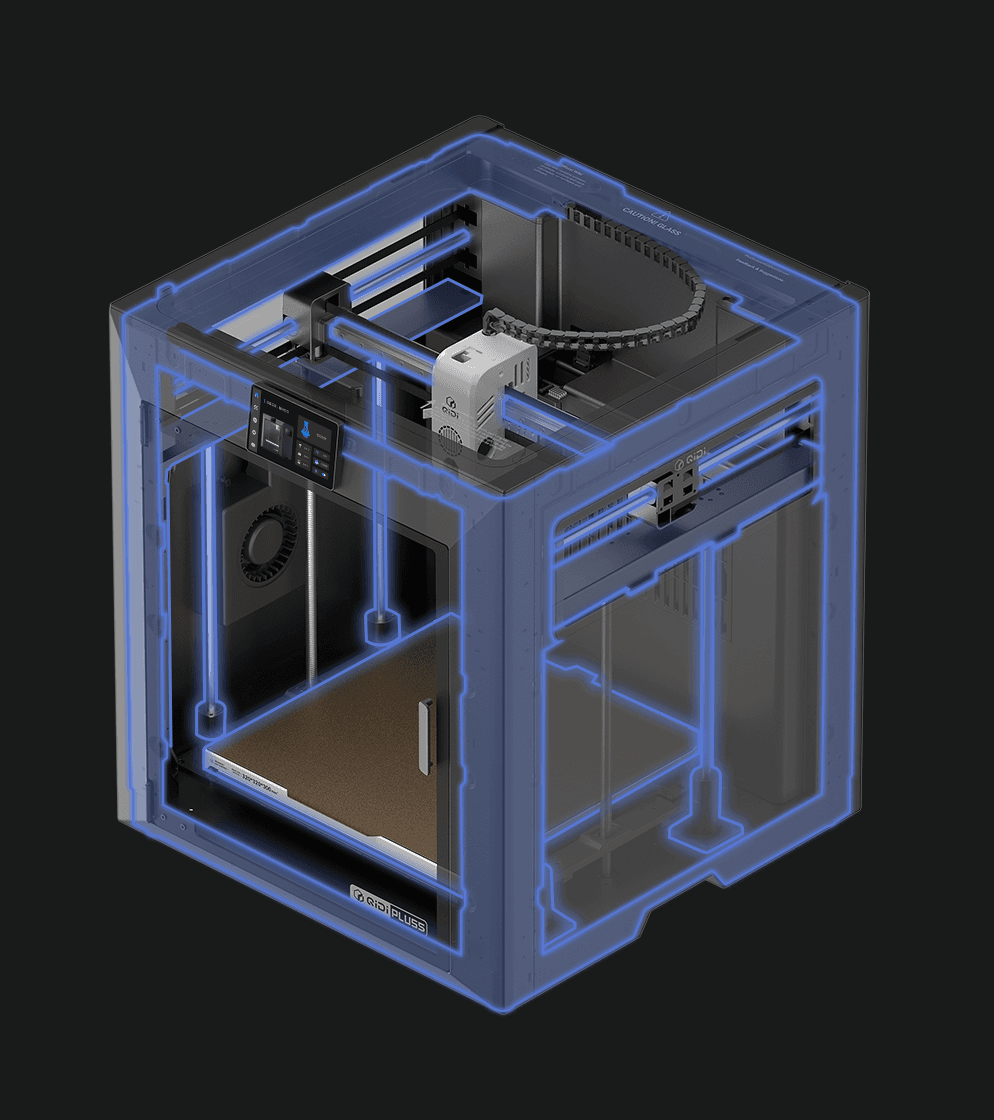

Metal Frame

Your Plus5 is Ready.

For DIYers,Families, Designers, and You!

Why Plus5?

More than a printer - it’s an industrial-grade powerhouse for your workspace. An expanded build volume, rapid-heating active chamber control, and a fully integrated AI-driven ecosystem, all engineered to form your reality.

Key Upgrades from Plus4 to Plus5:

More Space: +18% build volume in virtually the same size.

Faster Preheat: +38% higher heating efficiency. Healthier Air: Integrated 3-stage air filtration system. Better First Layer: Upgraded Next-Gen auto-leveling precision. Smarter Workflow: One-tap printing with QIDI Maker & QIDI Studio.

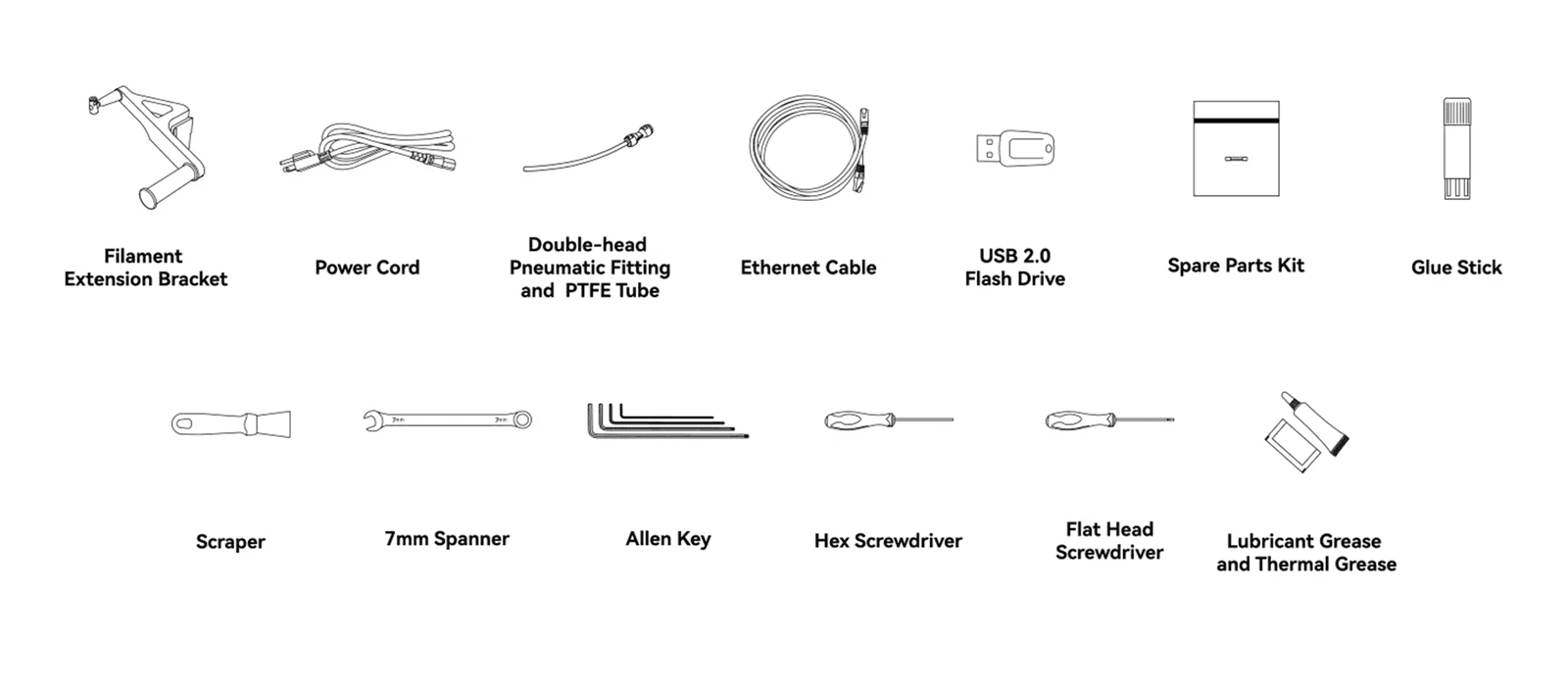

What's in the box

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

Key specifications

Build volume: 320 × 320 × 300 mmUsable print area, X × Y × Z, or diameter × height.
Layer height / resolution: Not specifiedLayer thickness; this is not the same as dimensional accuracy.
Compatible materials / filaments: PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon and glass fibre compositesSome materials need additional equipment. Check the product details.
Build type: Fully enclosedOpen, semi-enclosed or fully enclosed. Assembly options are shown separately.
Max print speed: 600 mm/sManufacturer maximum. Actual speed depends on material and print settings.
Connectivity (Wi-Fi / app): Wi-Fi, Ethernet, USBOnly listed connections are confirmed; Wi-Fi does not imply app support.
Noise level: Not specifiedNoise figures depend on measurement distance and operating mode.
Warranty: Manufacturer’s warranty (QIDI)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.

Machine & package

Printer dimensions: 500 × 488 × 558 mm
Weight: 29.0 kg
Assembly: Assembled
Gross weight: 37.8kg
Bundle contents: Plus5 Combo adds the QIDI Box. A Polar Cooler bundle is available for both.
Dimensions note: Printer dimensions and weight, without the QIDI Box.
Package dimensions: 620 × 630 × 700 mm

Materials & environment

Filtration: 3-in-1 filter: G3 pre-filter, H12 HEPA and activated carbon
Chamber temperature: up to 65 °C
Maximum bed temperature: 120 °C
Maximum nozzle temperature: 370 °C
Heated chamber: Active chamber heating up to 65 °C

Printing

Printing technology: FDM
Diameter: 1.75 mm
Nozzle: 0.4 mm bimetal
Slicer: QIDI Studio and other third-party software, such as Orca,PrusaSlicer etc.
X axis: High Hardness Linear Guide Rail
Z axis: Dual Independent Lead Screw Motors
Storage: 32G EMMC and USB2.0 Flash Drive
Voltage: 110V / 220–240V AC, 50/60Hz (region-specific models available)
Extruder: Direct drive, hardened steel gears
Air filter: Yes (3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon)
Multicolour: Plus5 Combo includes the QIDI Box for multi-colour printing. The Plus5 alone is QIDI Box compatible.
Acceleration: ≤20000mm/s^2
Xy structure: CoreXY, 9mm Width 1.5GT Belt
Extruder gear: Direct Extruder Hardened Steel Gears
Input shaping: Yes
Printing plate: Double-sided PEI Magnetic Build Plate
Nozzle diameter: 0.4mm (0.2/0.6/0.8mm Optional)
Model cooling fan: 4-Pin PWM Fan with RPM Feedback
Printing platform: Aluminum Plate Silicone Heated Bed Status RGB LED
Automatic leveling: Hands-free Automatic Leveling (Loadcell Sensor Integrated into the Hotend)
Filament detection: Run Out Sensor(mounted above extruder), and Tangle Detection(QIDI BOX required)
Hot end cooling fan: 4-Pin PWM Fan with RPM Feedback
Multi color printing: Compatible with QIDI Box(Multi-color)
Supported nozzle sizes: 0.2, 0.6 and 0.8 mm optional
First layer calibration: Automatic, load-cell sensor in the hotend
File formats for slicing: STL, OBJ, 3MF,STEP,STP
Auxiliary part cooling fan: 4-Pin PWM Fan with RPM Feedback

Controls & connectivity

Camera: AI camera, up to 1080p, with timelapse
Display: 4-inch 800 × 480 touch screen
Rated power: 150W+550W(Chamber Heating)+500W(Heatbed) Steady-State Power (25°C Ambient) : PLA:190W, ABS:500W
Power consumption: 150 W, plus 550 W chamber heating and 500 W heatbed
Ai camera detection: Yes
Power loss recovery: Yes
