710W CNC Spindle Motor Trimmer Router, 65mm Diameter, 6 Variable Speeds 6500-30000RPM
Elevate your CNC machine's performance to new heights with the Genmitsu 710W Compact Router.
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 6£101
SKU SS-101-63-GM7100E-B-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
710W CNC Spindle Motor Trimmer Router, 65mm Diameter, 6 Variable Speeds 6500-30000RPM. Elevate your CNC machine's performance to new heights with the Genmitsu 710W Compact Router.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
710W CNC Spindle Motor Trimmer Router, 65mm Diameter, 6 Variable Speeds 6500-30000RPM · Technical features from Genmitsu.
Elevate your CNC machine's performance to new heights with the Genmitsu 710W Compact Router. This high-performance tool is engineered for precision and versatility, making it the perfect addition to any workshop or studio. With an impressive power output of 710W and a rotation speed range from 6500 to 30000 RPM, this compact router is designed to handle a variety of materials with ease.
High Performance
The 710W Compact Router offers 1-6 adjustable speeds, constant torque, and soft start for smooth, reliable operation across various projects.

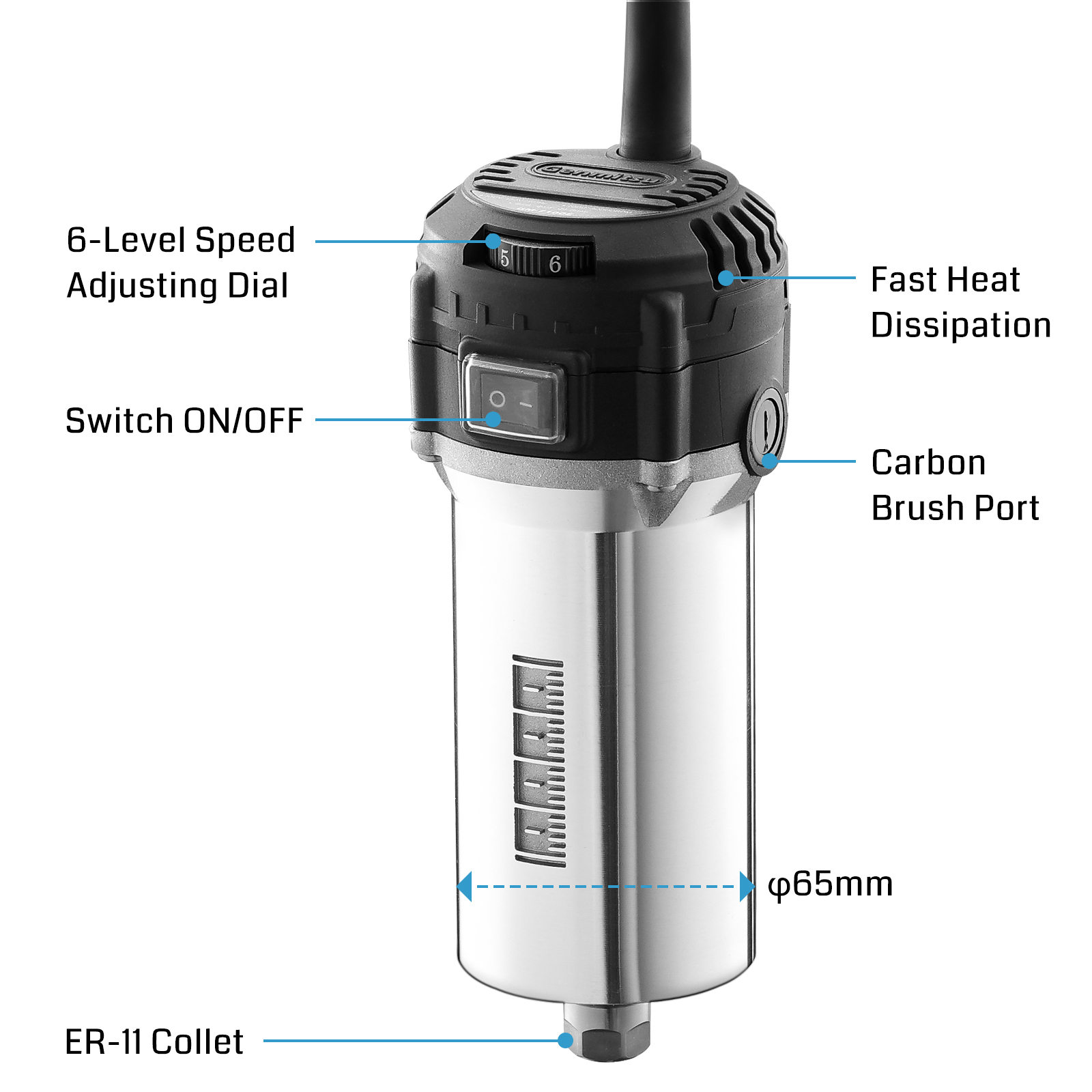

Heat Dissipation Vents
The top vents help dissipate heat efficiently and improve machine performance. No fear of long hours of high-power operation.
Durable Accessories
Includes four spare carbon brushes and a standard 1/8-inch collet.

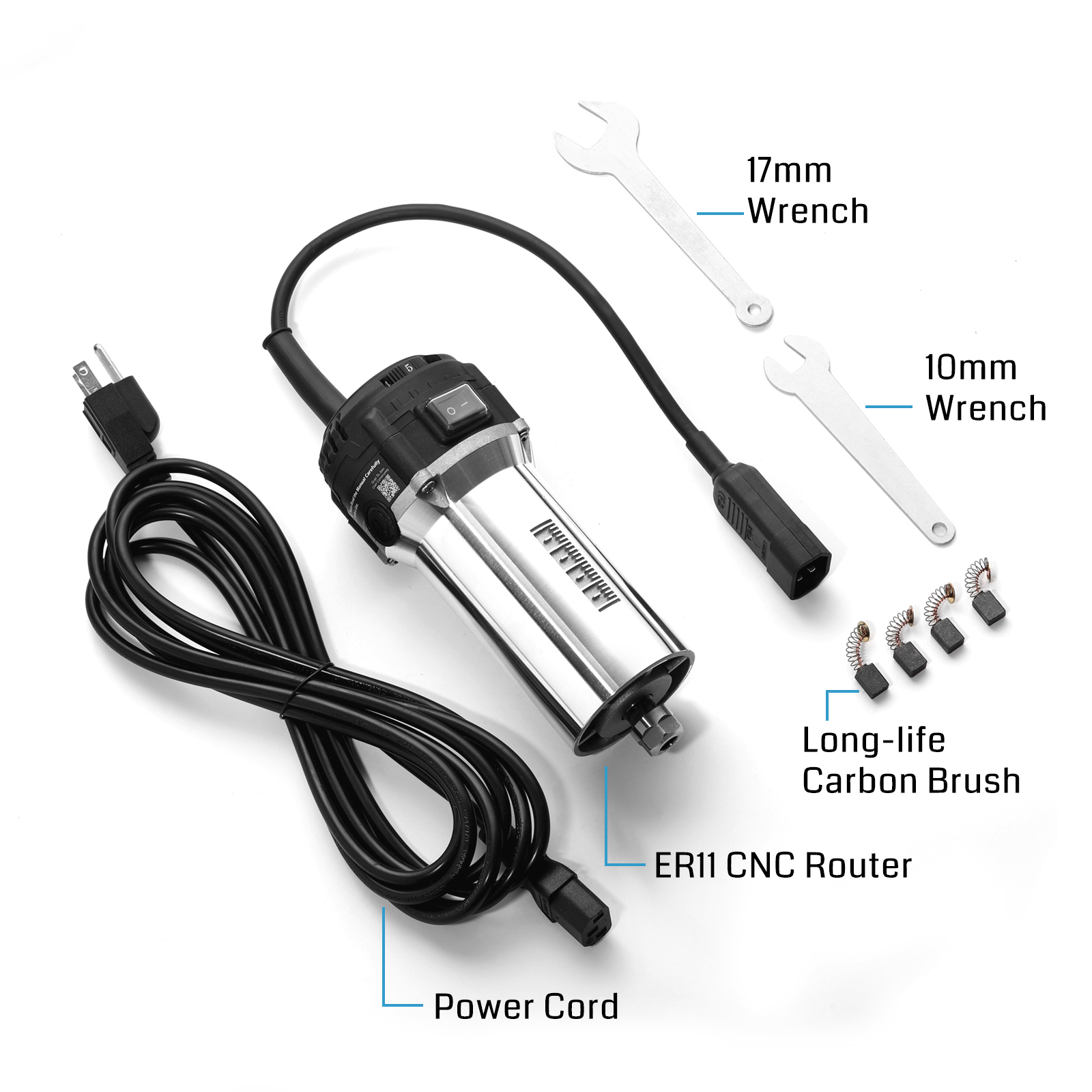

What's in the box
1 x 710W Compact Router with 1/8" ER11 Collet Installed 4 x Spare Carbon Brushes 1 x 3.5m Power Cord 1 x 10mm Wrench 1 x 17mm Wrench User Manual
Rotation Speed Level (RPM)
Gear 1: 6500±10% Gear 2: 10000±10% Gear 3: 14000±10% Gear 4: 18000±10% Gear 5: 26000±10% Gear 6: 30000±10% Input Voltage: 100-130VAC(US/JP);220-250VAC(EU/UK/AU) Power: 710W Rotation Speed: 7000-30000 RPM (10%) 1-6 speeds adjustable. Constant torque control with soft start. The typical run-out on this spindle is less than 0.05mm. Carbon Brush: Long-life carbon brushes must be checked periodically for wear. Adaptation to ER11 collets, adaptable shank diameter 1-8mm or 1/4”，1/8”.
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1 x 710W Compact Router with 1/8" ER11 Collet Installed
- 4 x Spare Carbon Brushes
- 1 x 3.5m Power Cord
- 1 x 10mm Wrench
- 1 x 17mm Wrench
- User Manual
