Φ42mm ABS Dust Shoe Cover Cleaner, for 3018 775 Spindle Motor
Material: ABS
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 12£19
SKU SS-101-63-DS3018-CL-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1

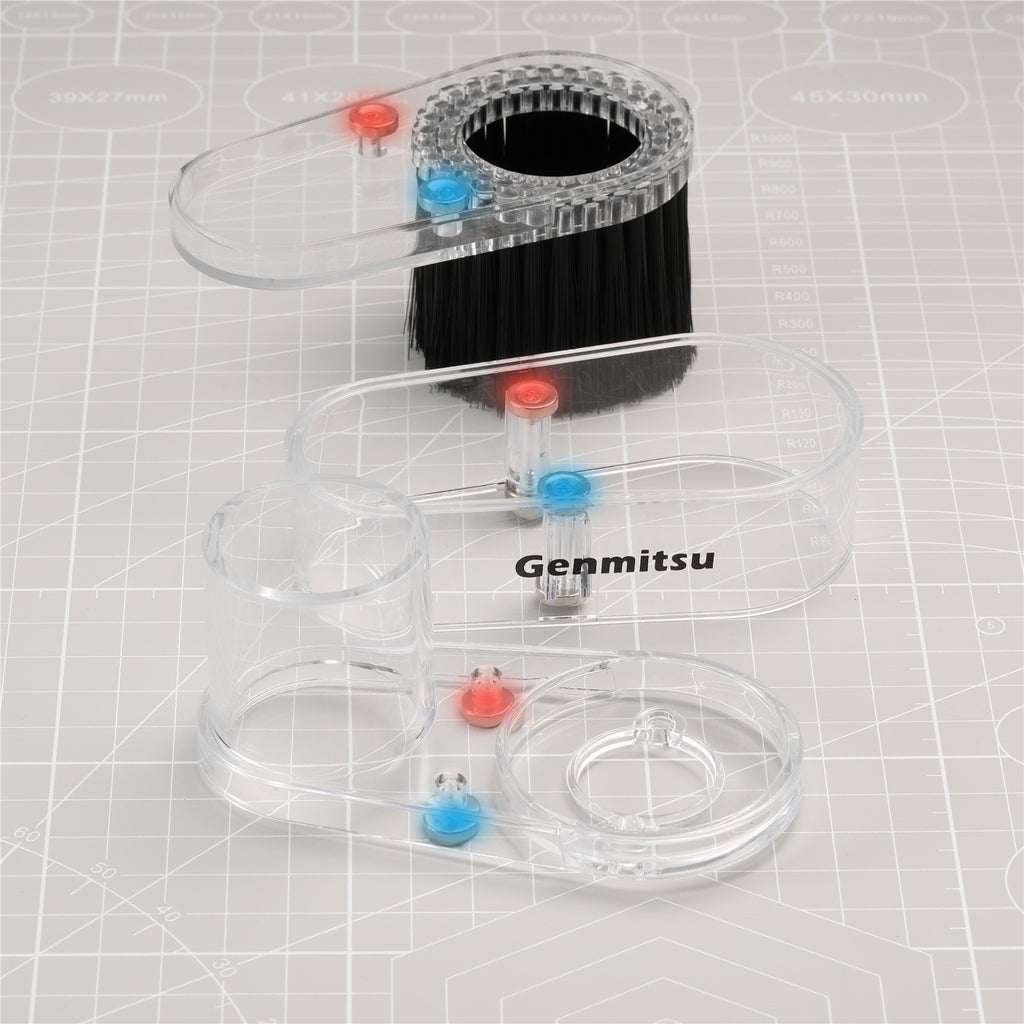

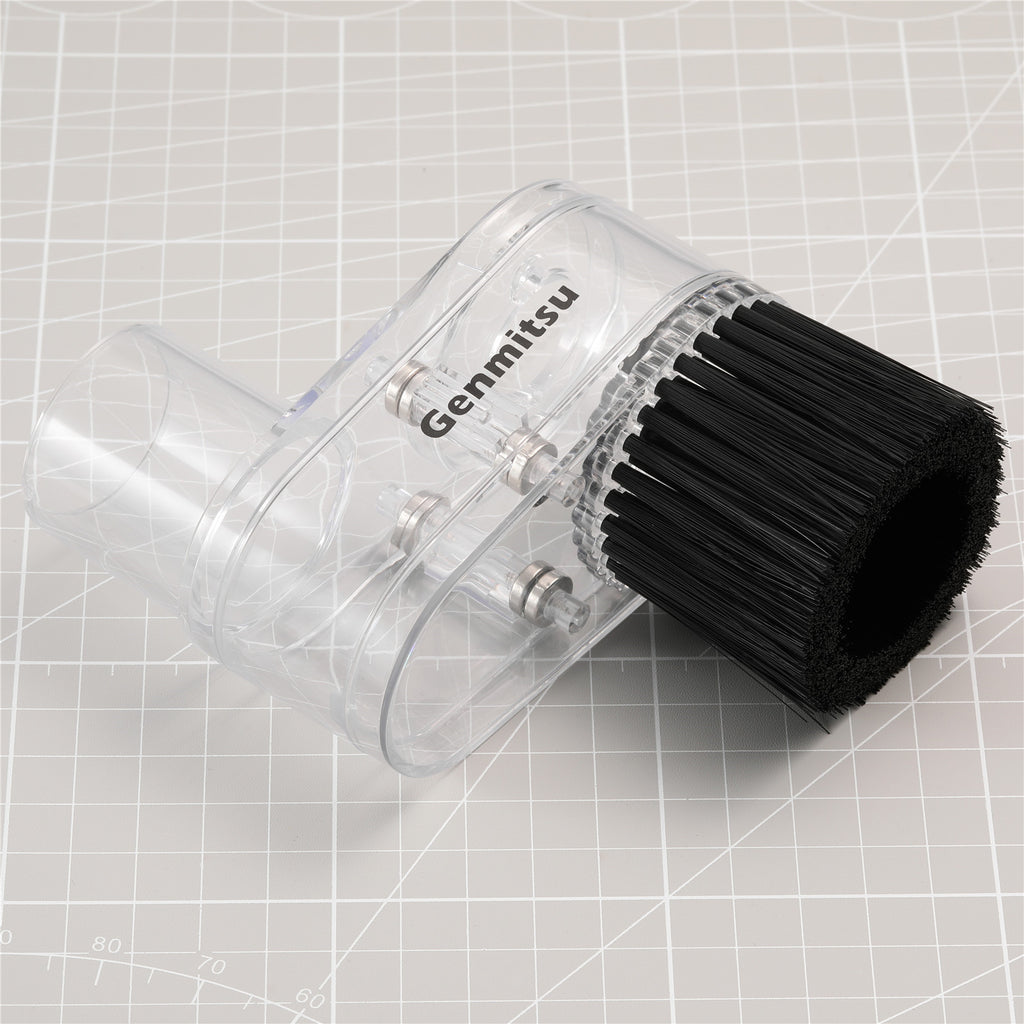

Φ42mm ABS Dust Shoe Cover Cleaner, for 3018 775 Spindle Motor. This dust shoe is made of high-quality transparent ABS . Material: ABS.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Φ42mm ABS Dust Shoe Cover Cleaner, for 3018 775 Spindle Motor · Technical features from Genmitsu.

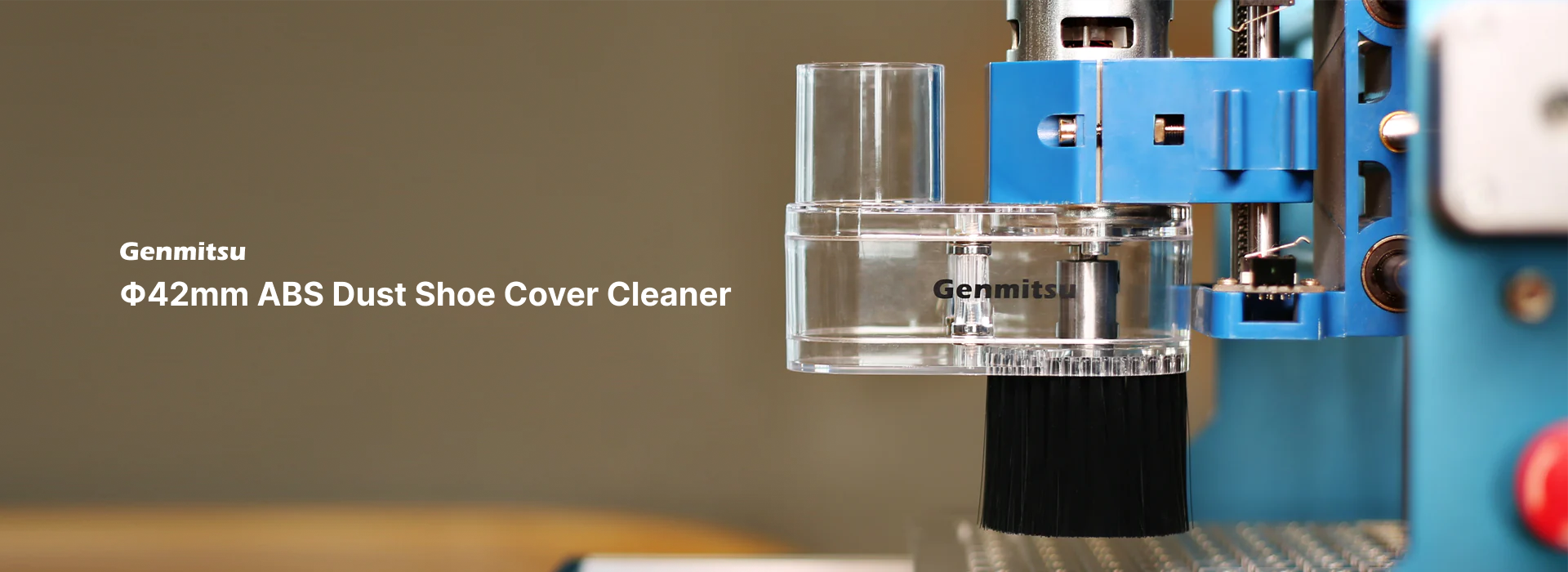

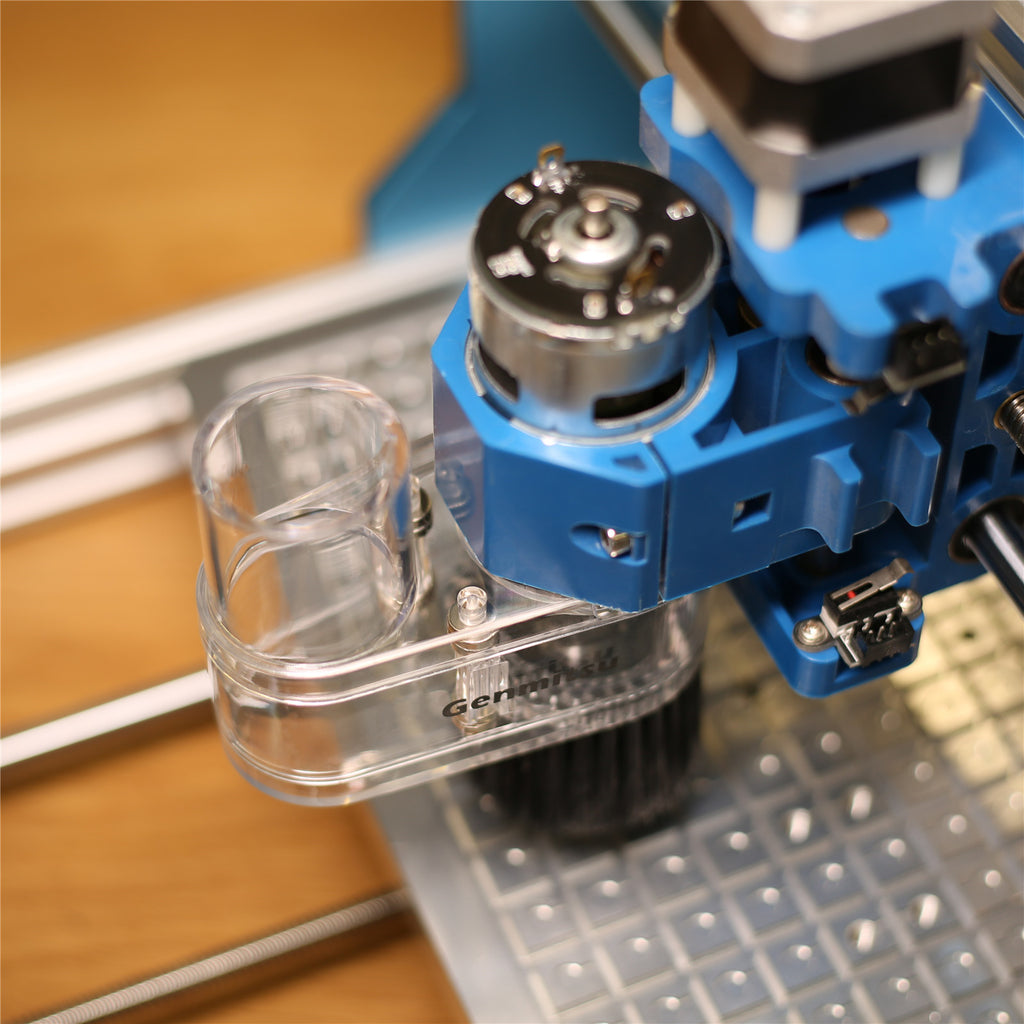

Dust Collection This dust shoe is made of high-quality transparent ABS . The transparent design helps you keep an eye on your operations. Equipped with a nylon brush to maximize vacuum suction and help act as a dust sweep with high dust removal efficiency. Keep your machine and work area clean while cutting, drilling, and carving.
Make It Cleaner
Dust shoe for a compatible Genmitsu 3018 spindle. Package contents: one 3018 dust shoe. Check the stated spindle diameter and vacuum connection before ordering.
High Quality
Made of high-quality transparent ABS. The transparent and split design helps you keep an eye on your operations and replace the bits easier.
Specifications:
Material: ABS Weight: 86g (0.18lb) Vacuum Port Outer Diameter: 38mm/ 1.5” Vacuum Port Inner Diameter: 32mm/1.26” Compatible Machine: Genmitsu 4040-PRO, 3018-PRO, 3018-PROVer, 3018-PROVer Mach3, 3018-MX3, 1810-PRO and other generic 3018-PRO CNC Machines
Nylon Brush
The planting 40mm long nylon brush is much tidy and firmer than other glued ones, it could maximize vacuum suction and help act as a dust sweep with high dust removal efficiency. Note: Ideally the tip of the bit should be mounted to be level with the bottom of the bristles when they are refitted. If the bristles is too long for your bits, the supplier suggests trimming it from the bottom according to the bits length, otherwise the bristles will be compressed against the top of the stock as it starts a cut.
Specifications

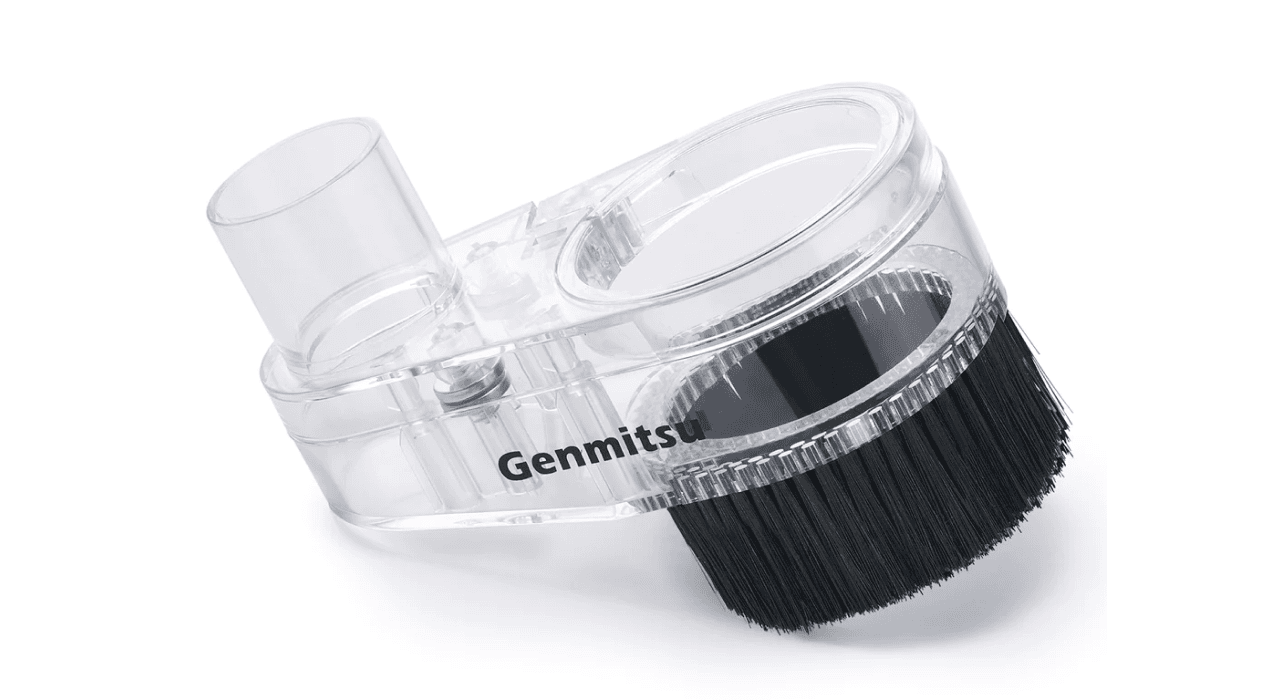

DS3018

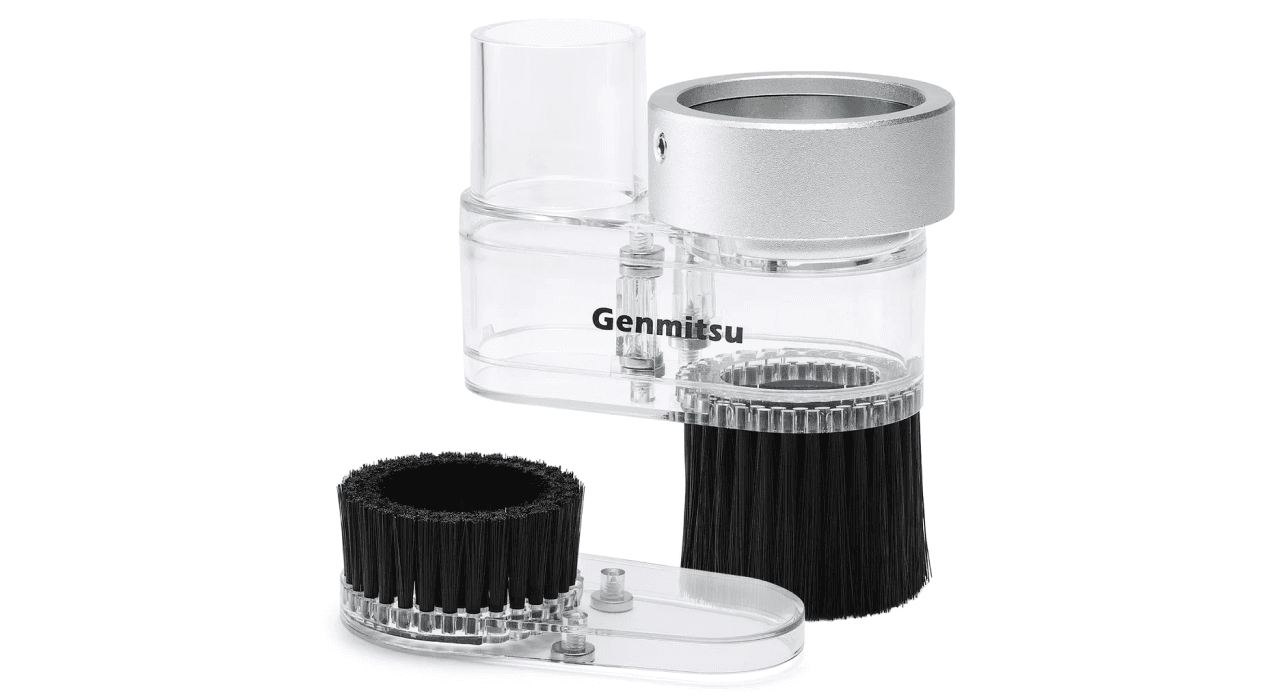

DS52

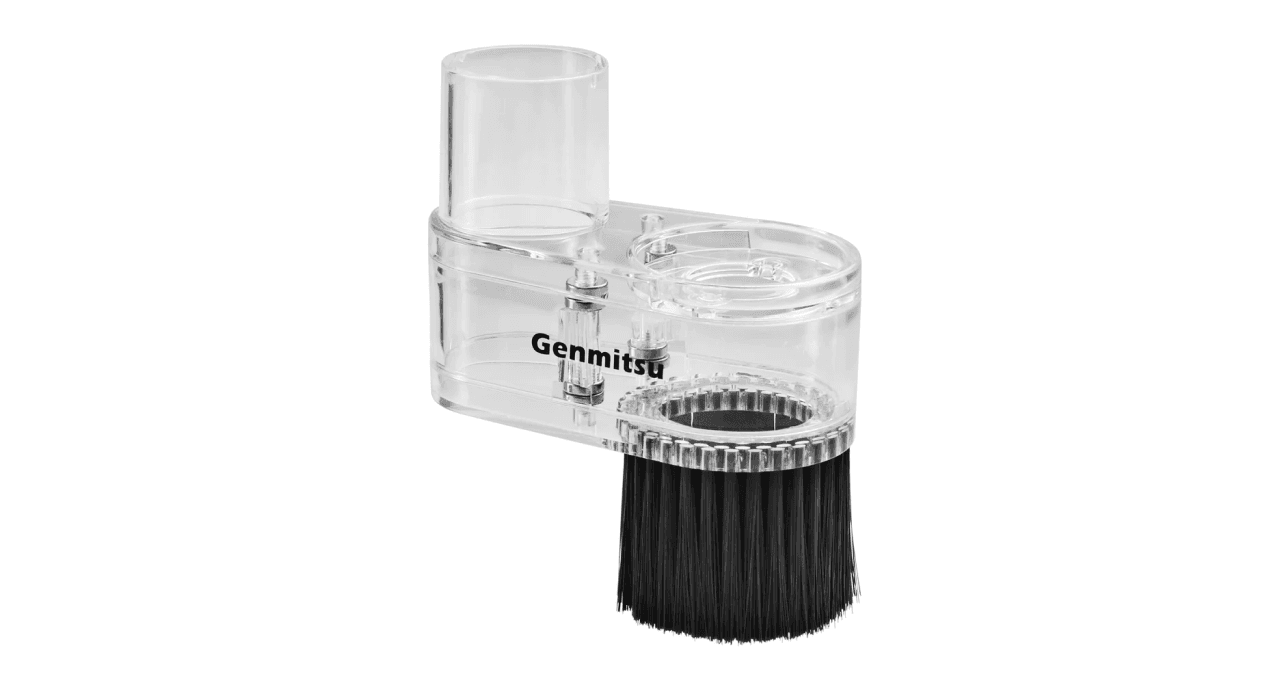

DS69
Comparison
| Feature | DS3018 | DS52 | DS69 |
|---|---|---|---|
| Spindle Diameter | 42mm (1.65") | 52mm (2.05") | 65-69mm (2.72") |
| Material | ABS | ABS & Aluminum | ABS |
| Vacuum Port Inner Diameter | 32mm (1.26") | 32mm (1.26") | 32mm (1.26") |
| Vacuum Port Outer Diameter | 38mm (1.5") | 38mm (1.5") | 38mm (1.5") |
| Compatibility: check the stated dimensions against the spindle and machine before ordering. | 3018-PRO 3018-PROVer V2 4040-PRO 3018-PROVer 3018-PROVer Mach3 GS-775M Spindle GS-775MR Spindle | PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 3020-PRO MAX 4040-PRO 3030-PROVer MAX 300W Spindle | R119 Trimmer Router R118V Trimmer Router 710W Trimmer Router 28000RPM Cordless Trimmer Router PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus DeWalt DWP611, Other large size spindle |
| With Short Brush Bottom Cover | Yes | Yes | Yes |
| Assembly Guide | User Manual | User Manual | User Manual |
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
7 specifications
Materials & environment
- Materials
- ABS
Machine & package
- Assembly guide
- User Manual
Printing
- Spindle diameter
- 42mm (1.65")
- Vacuum port inner diameter
- 32mm (1.26")
- Vacuum port outer diameter
- 38mm (1.5")
- With short brush bottom cover
- Yes
- Compatibility not genmitsu product contact us for detailed size guide
- 3018-PRO 3018-PROVer V2 4040-PRO 3018-PROVer 3018-PROVer Mach3 GS-775M Spindle GS-775MR Spindle
