Genmitsu 52 mm ABS and aluminium spindle dust shoe
Material: ABS & Aluminum
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 11£28
SKU SS-101-63-DS52-CL-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
Φ52mm ABS Aluminum Dust Shoe Cover Cleaner for PROVer 4030,4040 PRO Series 3020-PRO MAX 300-500W Spindle Motor. This dust shoe is made of high-quality transparent ABS and aluminum . Material: ABS & Aluminum.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Genmitsu 52 mm ABS and aluminium spindle dust shoe · Technical features from Genmitsu.
Dust Shoe Made with ABS & Aluminum Frame
This dust shoe is made of high-quality transparent ABS and aluminum . The transparent design helps you keep an eye on your operations. Equipped with nylon brush to maximize vacuum suction and help act as a dust sweep with high dust removal efficiency. Keep your machine and work area clean while cutting, drilling, and carving. REPLACEMENT BASE BOTTOM COVER This Bottom Cover is made of high-quality transparent ABS and preinstalled 20mm long nylon brush. Compatible with Genmitsu CNC Dust Shoes for 42mm and 52mm diameter spindle motors. The 20mm Nylon Brush is perfect for shorter cutting tools, such as V bits. Avoid snags and tangles. Don’t need to spend time reinstalling a new brush. Just replace the whole bottom cover when the brush is worn. One step replacement.

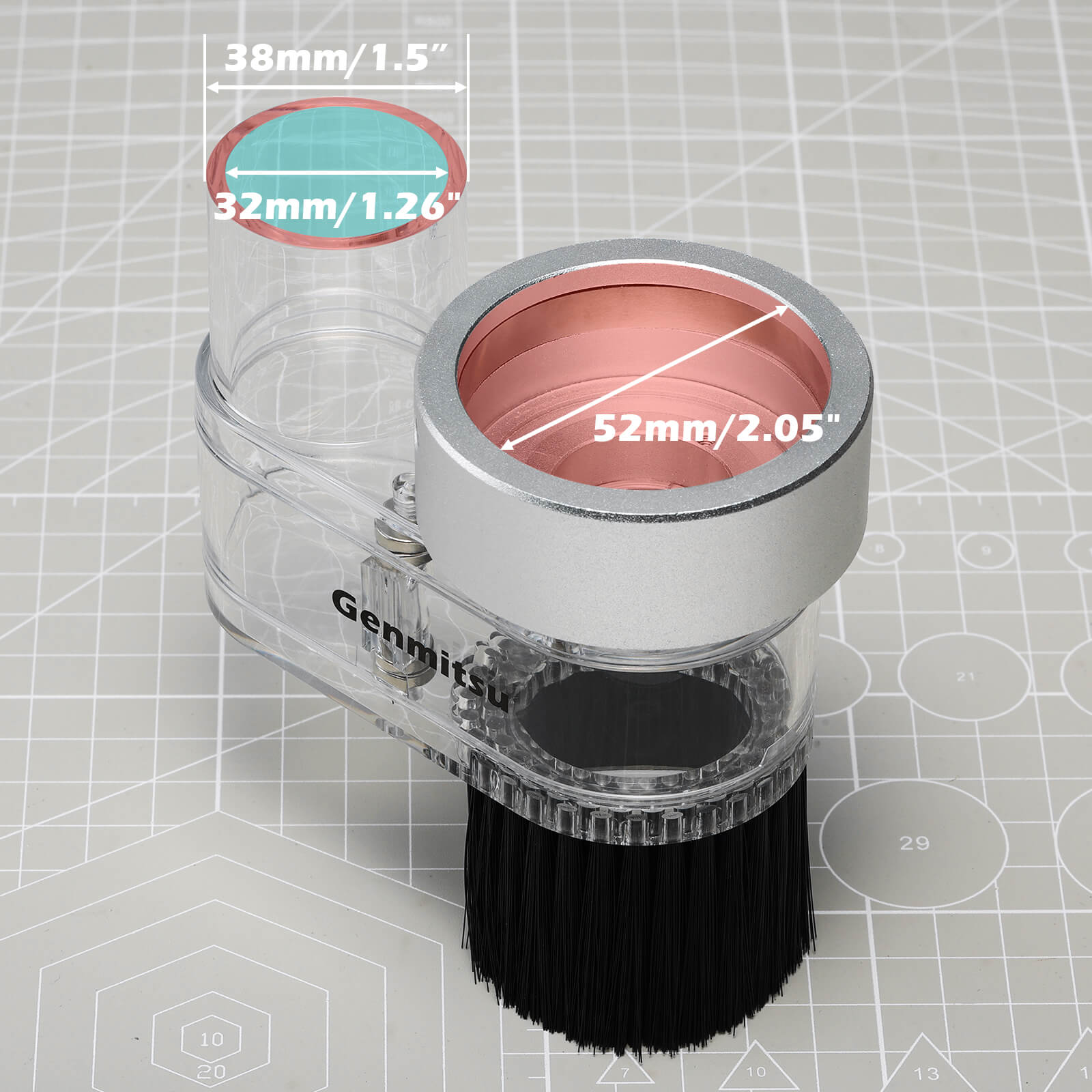

Three-Piece Magnetic Design
Durable, light and flexible, convenient for daily use and maintenance. Easy to assemble and install. Only take 3 steps to finish the installation.

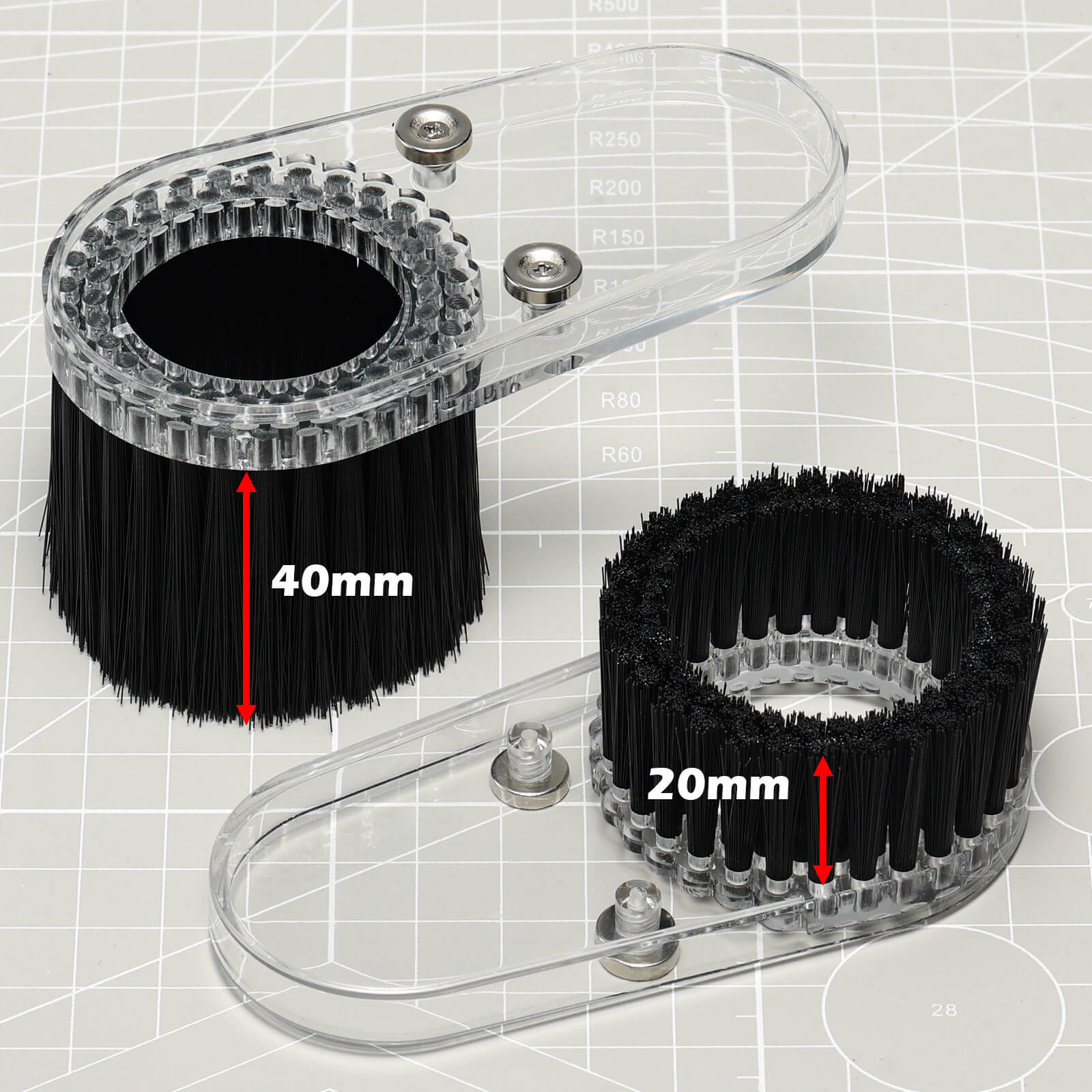

Replaceable Brushes
The sweep brush is tidier and firmer than other typical glued options. This kit comes with 2 bottom covers with different length nylon brushes, 20mm and 40mm options for adapting to different length cutting tools. Replacement bottom covers are available for sale. You could simply replace the whole bottom cover when the brush is worn. Don't need to spend time removing and adding a new brush.

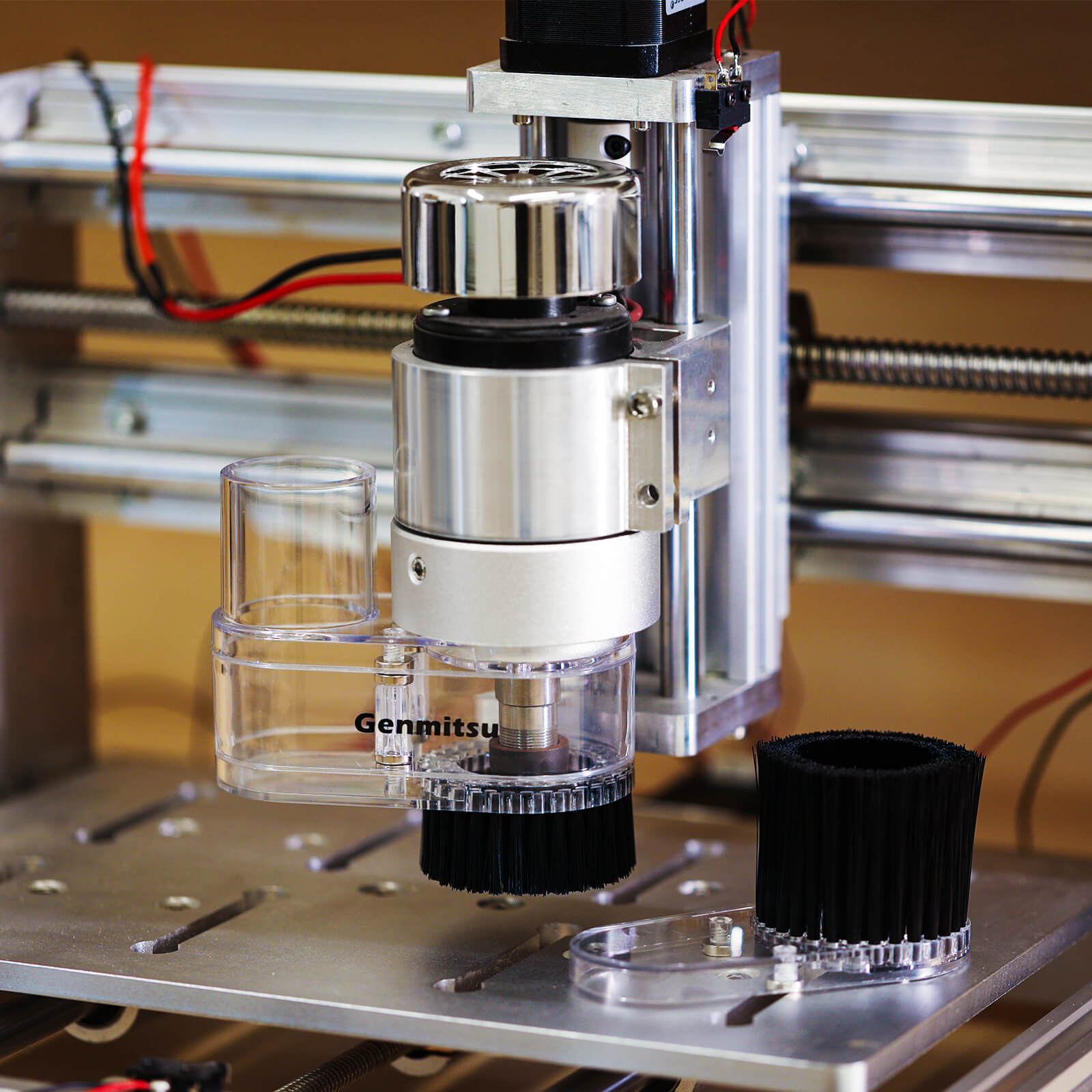

Ease Of Use
The split design makes it much easier to replace bits. You only need to pop off the bottom cover when replacing your bits, no tools required , and avoid other complicated procedures.
Specifications
DS3018
DS52
DS69
Comparison
| Feature | DS3018 | DS52 | DS69 |
|---|---|---|---|
| Spindle Diameter | 42mm (1.65") | 52mm (2.05") | 65-69mm (2.72") |
| Material | ABS | ABS & Aluminum | ABS |
| Vacuum Port Inner Diameter | 32mm (1.26") | 32mm (1.26") | 32mm (1.26") |
| Vacuum Port Outer Diameter | 38mm (1.5") | 38mm (1.5") | 38mm (1.5") |
| Compatibility: check the stated dimensions against the spindle and machine before ordering. | 3018-PRO 3018-PROVer V2 4040-PRO 3018-PROVer 3018-PROVer Mach3 GS-775M Spindle GS-775MR Spindle | PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 3020-PRO MAX 4040-PRO 3030-PROVer MAX 300W Spindle | R119 Trimmer Router R118V Trimmer Router 710W Trimmer Router 28000RPM Cordless Trimmer Router PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus DeWalt DWP611, Other large size spindle |
| With Short Brush Bottom Cover | Yes | Yes | Yes |
| Assembly Guide | User Manual | User Manual | User Manual |
What's in the box
1 x Dust Shoe 1 x Bottom Cover with 20mm Nylon Brush 1 x Wrench 1 x Manual
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
7 specifications
Materials & environment
- Materials
- ABS & Aluminum
Machine & package
- Assembly guide
- User Manual
Printing
- Spindle diameter
- 52mm (2.05")
- Vacuum port inner diameter
- 32mm (1.26")
- Vacuum port outer diameter
- 38mm (1.5")
- With short brush bottom cover
- Yes
- Compatibility not genmitsu product contact us for detailed size guide
- PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 3020-PRO MAX 4040-PRO 3030-PROVer MAX 300W Spindle
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1 x Dust Shoe
- 1 x Bottom Cover with 20mm Nylon Brush
- 1 x Wrench
- 1 x Manual
