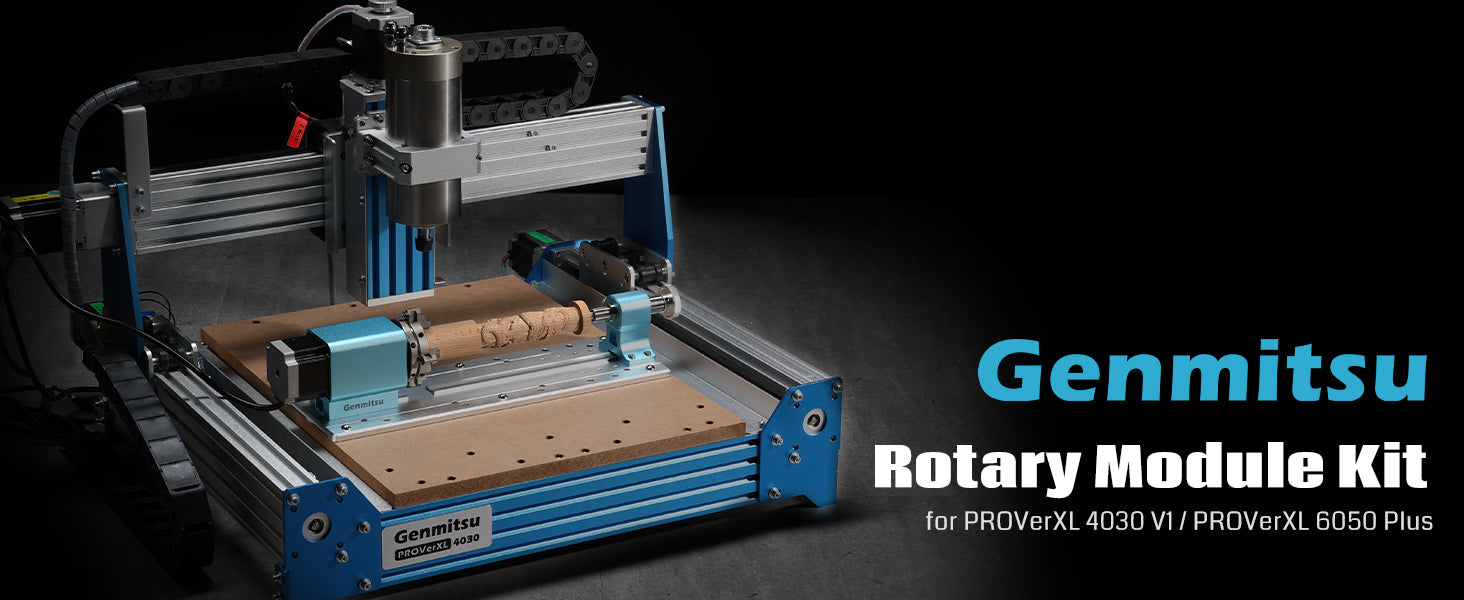

Rotary Module Kit for PROVerXL 4030, 4030S, 6050 Plus CNC Router
Enhanced accuracy with the NEMA23 Planetary Geared Stepper Motor, outperforming other belt-driven rotary modules on the market.
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 8£248
SKU SS-101-63-4AXIS-57-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
Rotary Module Kit for PROVerXL 4030, 4030S, 6050 Plus CNC Router. Enhanced accuracy with the NEMA23 Planetary Geared Stepper Motor, outperforming other belt-driven rotary modules on the market.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Rotary Module Kit for PROVerXL 4030, 4030S, 6050 Plus CNC Router · Technical features from Genmitsu.
Superior Performance
Enhanced accuracy with the NEMA23 Planetary Geared Stepper Motor, outperforming other belt-driven rotary modules on the market.

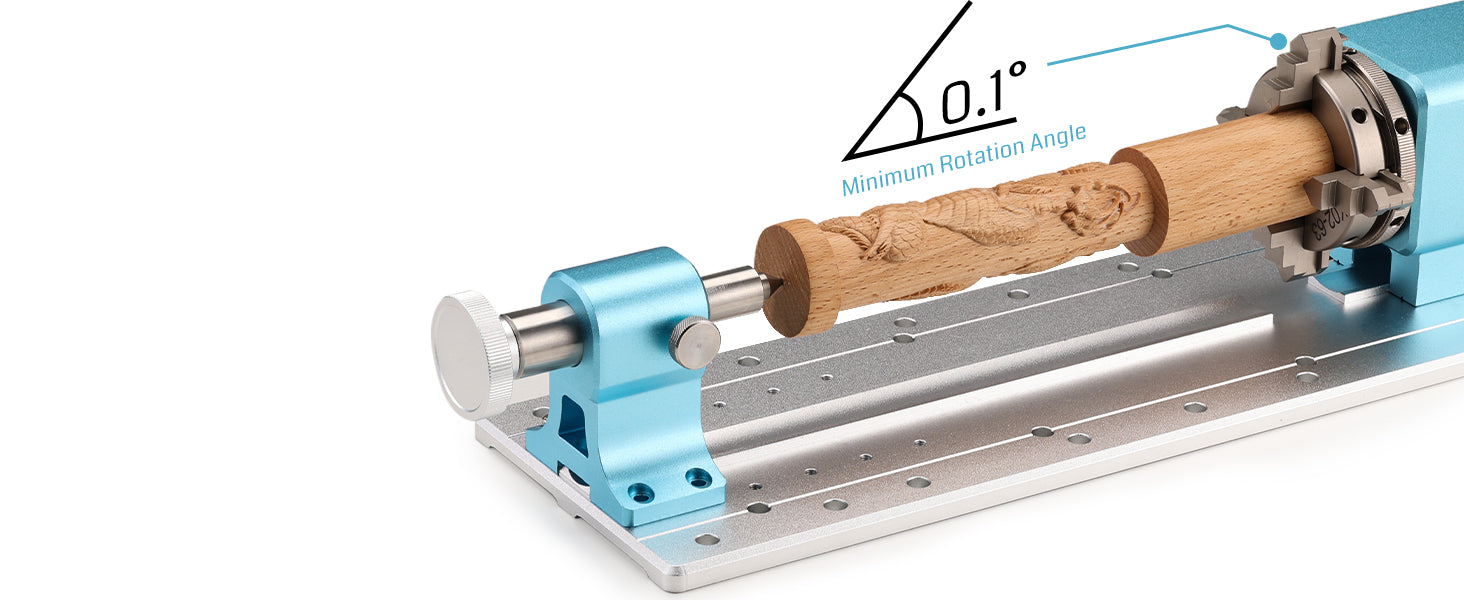

Precise Control
A 10:1 reduction ratio ensures precise control, delivering a minimum angle of 0.1° and a maximum angular speed of 480° per second.
Simple Length Adjustment
Quick setup of the rotary module kit to various material lengths and diameters, ensuring optimal precision and flexibility in all your CNC projects.
Flexible Mounting Solutions
The rotary module's clamp with forward and reverse mounting options for a wider range of sizes. Forward Mounting: 2-37mm Reverse Mounting: 20-67mm User Manual
Specifications
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
13 specifications
Printing
- Size
- 470 x 125 x 105mm (18.50” x 4.92” x 4.13”)
- Gear ratio
- 0.417361111
- Center height
- 60mm
- Max rotate speed
- 480°/S
- Direct electric motor
- NEMA23 Planetary Geared Stepper
- Compatible cnc machine
- Genmitsu PROVer XL 4030 V1/PROVer XL 6050
- Tailstock spacing adjustment
- 5 positions, 16mm spacing, 16-81mm range
- Tailstock center adjustment range
- 0-30mm
- Unidirectional maximum rotation angle
- 33512 x 360°
Materials & environment
- Clamped material size with tailstock
- 15-215mm
- Clamped material size without tailstock
- 15-275mm
- Clamped material diameter forward mounting
- 2-37mm
- Clamped material diameter reverse mounting
- 20-67mm
