CFL55P 5.5W Compressed FAC Laser Module for 3018 CNC, 3020-PRO Series CNC Router
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 11£203
SKU SS-101-63-CFL55P-EB-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
CFL55P 5.5W Compressed FAC Laser Module for 3018 CNC, 3020-PRO Series CNC Router. With an ultra-fine 0.1mm*0.1mm laser spot, this laser module upgrade provides you the possibility for more precise and demanding engraving and cutting projects.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
CFL55P 5.5W Compressed FAC Laser Module for 3018 CNC, 3020-PRO Series CNC Router · Technical features from Genmitsu.
YouTube video player

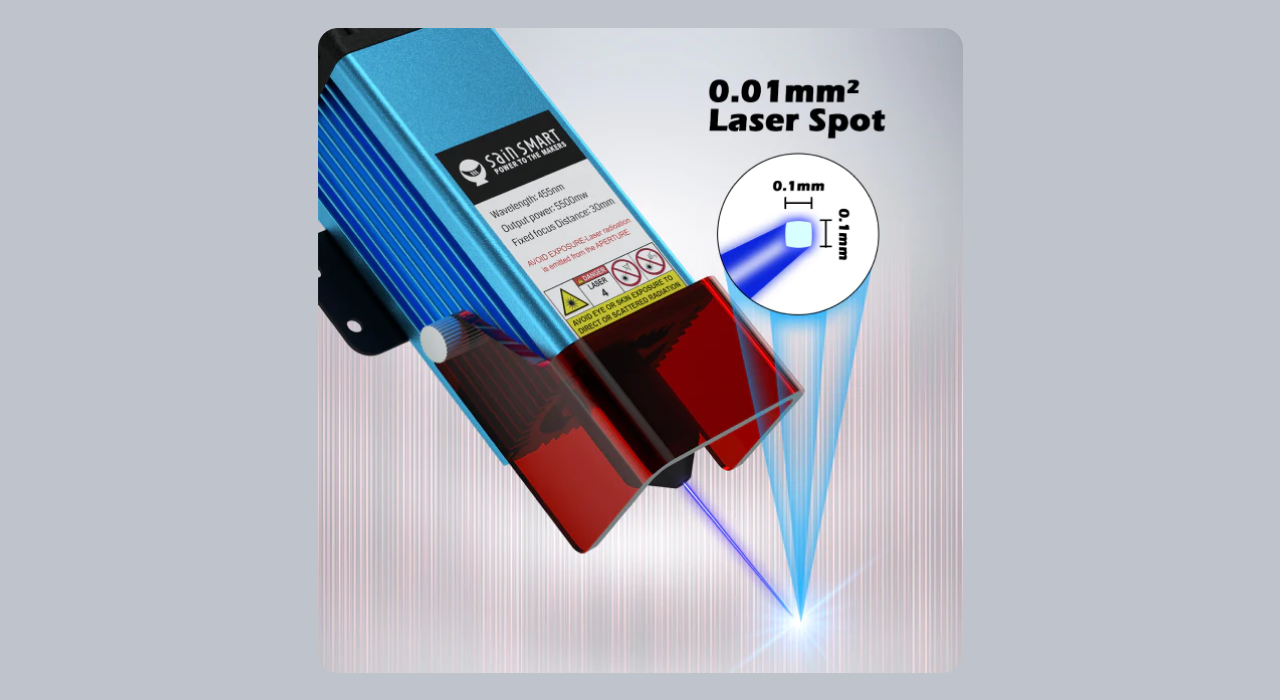

Ultra-fine Compressed Laser Spot
With an ultra-fine 0.1mm*0.1mm laser spot, this laser module upgrade provides you the possibility for more precise and demanding engraving and cutting projects. You can cut 4mm plywood in one pass.

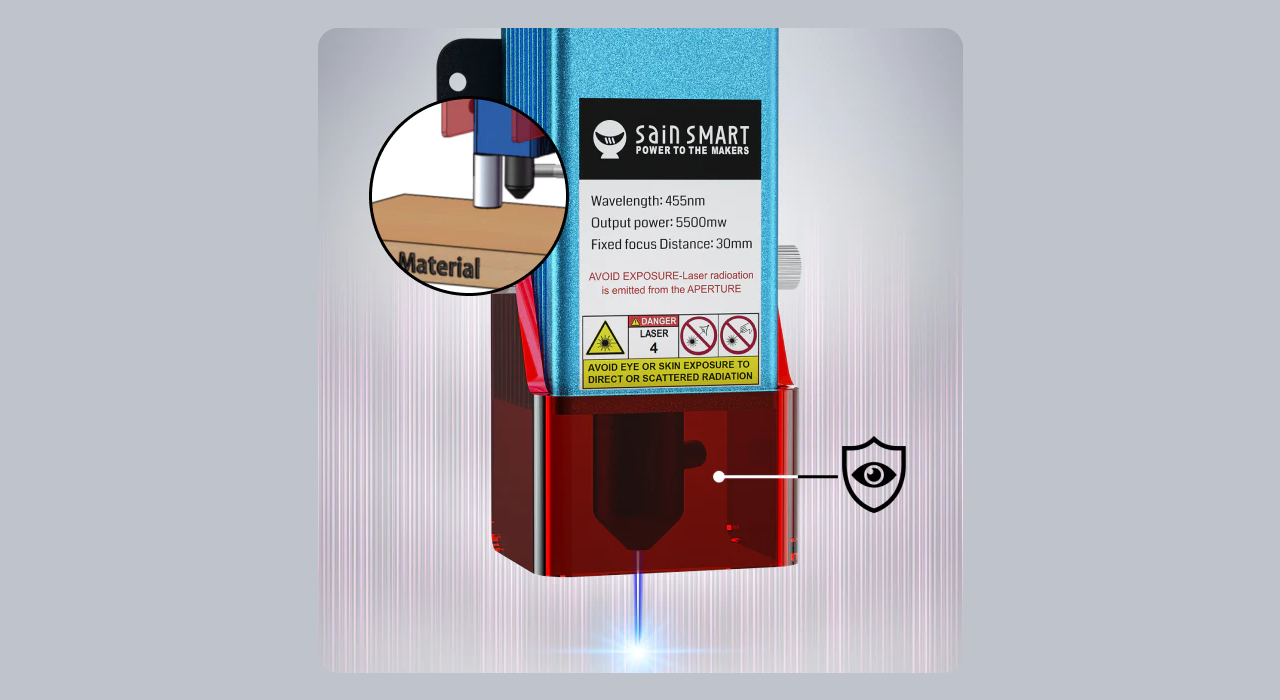

Eye Protection Design
The laser shield on the module can filter most UV light to protect you from laser beam reflection for safer operation.

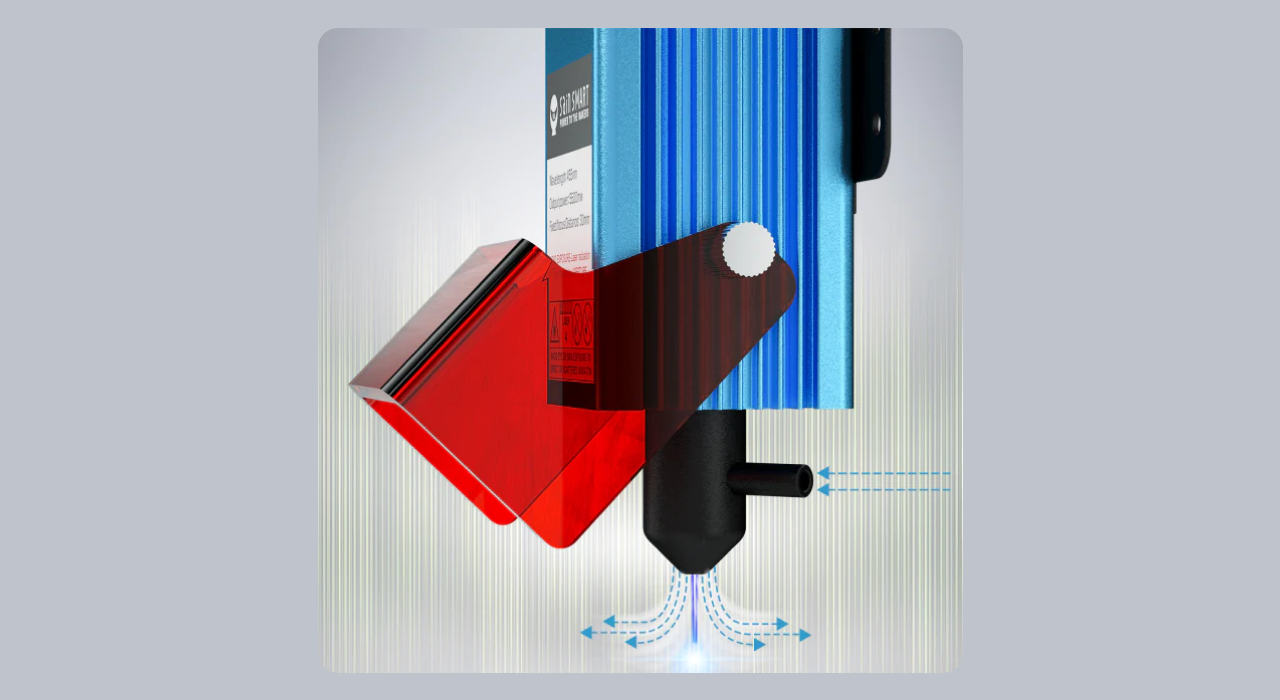

Stock Air Assist Nozzle
Taking advantage of a stock air assist nozzle and compressed laser spot, this laser module excels in engraving and cutting efficiency. The nozzle also allows for better lens protection and smooth cutting finish.
Compatibility
This 5.5W diode laser with a wavelength of 445nm is specially designed for use with the Genmitsu 3018-PROVer, 3018-PRO and 3020-PRO MAX CNC Machines.
Specifications
Laser power: 5.5W Spot size: 0.1 x 0.1mm Focal length: 30mm Laser wavelength: 455 ± 5nm Input: 12V / 2.5A
Applications
Application: Suitable for desktop laser engravers, CNC routers, laser cutters, and 3d printers Engravable materials: cardboard, plastic, PCB, aluminum alloy, stainless steel, black metal, etc. Cuttable materials: wood, acrylic, cardboard, non-woven fabric, bamboo, laser safe plastic, etc.
What's included:
1 x Laser Module with Air Assist Nozzle 1 x Connection Cable, Suitable for controller with 12V GND PWM terminal 1 x 3018-PRO Connection Cable, Suitable for controller with 12V PWM terminal 1 x Focus Calibration Tool, 30mm 1 x Safety Goggles (Green), FDA-Certified 1 x 12V Power Supply, Power Cord(US/EU), Power Adapter(UK) 1 x M3 T-nut, M3*8 Screw 1 x 2-Pin Connector 1 x User Manual
Precautions
Please read the instructions carefully before use. Direct exposure to the laser beam can cause severe burns and eye damage. Ensure that you are wearing proper laser safety goggles when working in the vicinity of the laser equipment. Know the compatibility of the laser module and its maximum input voltage and current so as not to damage the laser. When engraving reflective materials such as mirror stainless steel, it is recommended to paint the material surface black with a marker before engraving, preventing laser damage and unwanted laser exposure from the reflective laser beam. After long hours of laser working, residue from smoke and dirt will accumulate on the laser lens, cleaning the lens regularly is needed. After working with oily materials, such as pine boards, cleaning the lens in time is necessary. Cleaning method: use a cotton swab dipped in alcohol to wipe the lens. Please use a smoke exhaust device and ensure that the room or area you are operating the laser is well-ventilated
Performance
Electrical interface: XH2.54-3 Pin terminal (three-core cable, a: PWM +, b: GND, c: 12VDC) Laser shield: A movable laser shield that effectively shields the laser beam without affecting its working position. Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs. This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself. Recommended Air Tubing: inner diameter Φ4.0mm, outer diameter of Φ7.0mm) Recommended air pump: flow rate 5-8L/min
Performance
| Feature | FL55 | FL55P | CFL55 | CFL55P | RFL10 |
|---|---|---|---|---|---|
| Laser Power | 5.5W | 5.5W | 5.5W | 5.5W | 10W |
| Fixed Focus | ✓ | ✓ | ✓ | ✓ | ✓ |
| Compressed Spot | - | - | ✓ | ✓ | ✓ |
| Protective Shield | - | - | ✓ | ✓ | ✓ |
| Air Assist Nozzle | - | - | ✓ | ✓ | ✓ |
| Compatible Machines | 3018-MX3 3018-PROVer V1 3018-PROVer V2 | 3018-PRO 3020-PRO MAX XL4030 V1 XL4030 V2 | XL4030 V1 XL4030 V2 XL6050 Plus 4040-PRO 3020-PRO Max V2 3030-PROVer MAX LC-60A | 3018-PRO 3018-PROVer V1 3018-PROVer V2 3020-PRO MAX | XL4030 V2 XL6050 Plus 4040-PRO 3020-PRO Max V2 3030-PROVer MAX LC-60A |
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
6 specifications
Printing
- Fixed focus
- ✓
- Compressed spot
- ✓
- Air assist nozzle
- ✓
- Protective shield
- ✓
- Compatible machines
- 3018-PRO 3018-PROVer V1 3018-PROVer V2 3020-PRO MAX
Controls & connectivity
- Laser power
- 5.5W
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1 x Laser Module with Air Assist Nozzle
- 1 x Connection Cable, Suitable for controller with 12V GND PWM terminal
- 1 x 3018-PRO Connection Cable, Suitable for controller with 12V PWM terminal
- 1 x Focus Calibration Tool, 30mm
- 1 x Safety Goggles (Green), FDA-Certified
- 1 x 12V Power Supply, Power Cord(US/EU), Power Adapter(UK)
- 1 x M3 T-nut, M3*8 Screw
- 1 x 2-Pin Connector
- 1 x User Manual
