3040 Y-Axis Extension Kit for 3018 Series CNC Router. Expand your machine's potential with an easy upgrade that will provide over double your previous work area.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
3040 Y-Axis Extension Kit for 3018 Series CNC Router · Technical features from Genmitsu.

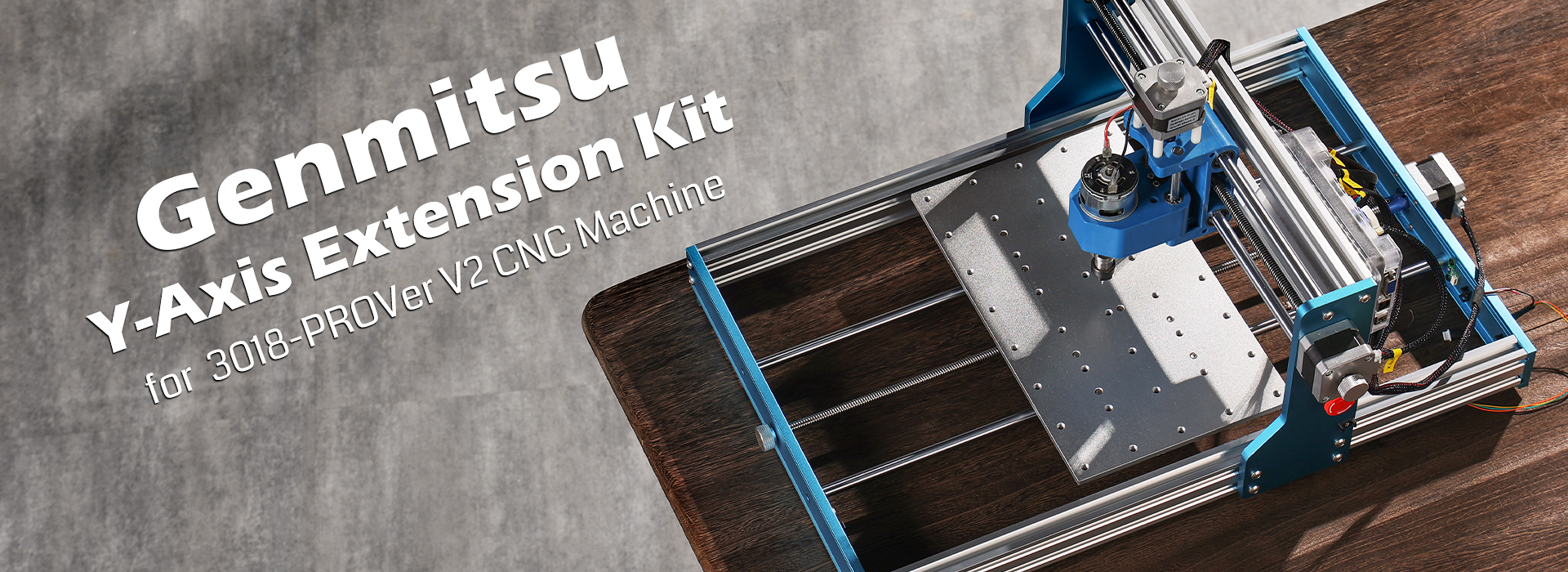

3040 Y-Axis Extension Kit for 3018 Series CNC Router

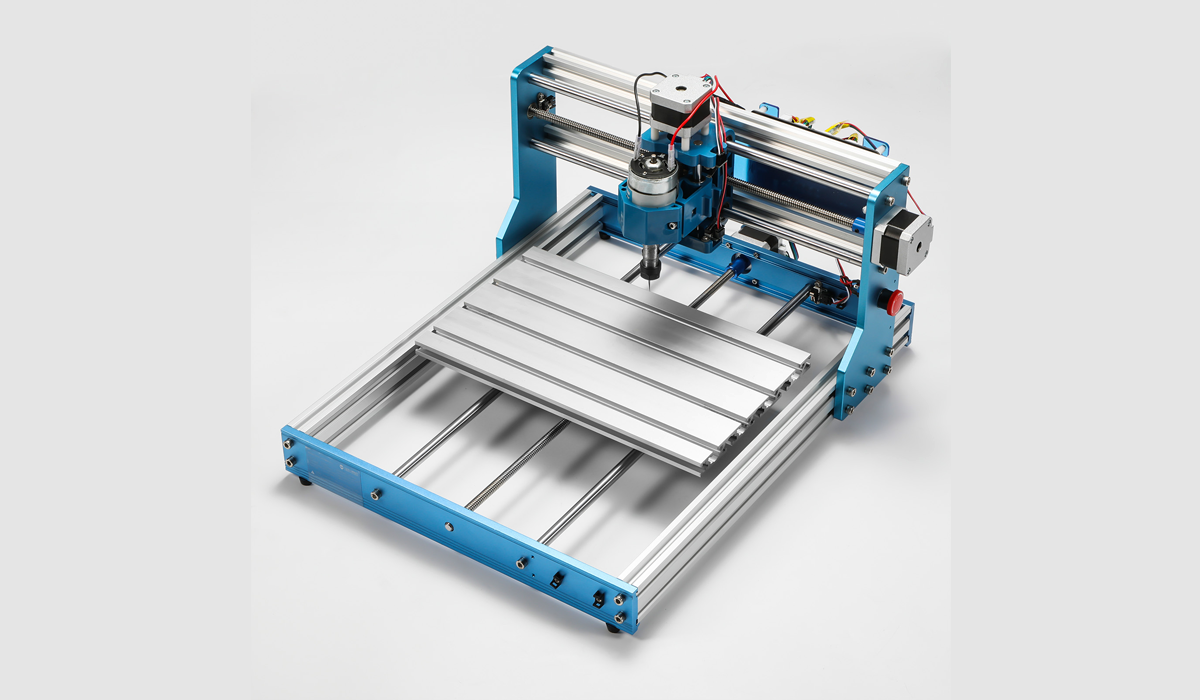

Expand your machine's potential with an easy upgrade that will provide over double your previous work area. Perfect for making signs or just accommodating larger stock material for multiple cuts.
How to assemble the Extension Kit

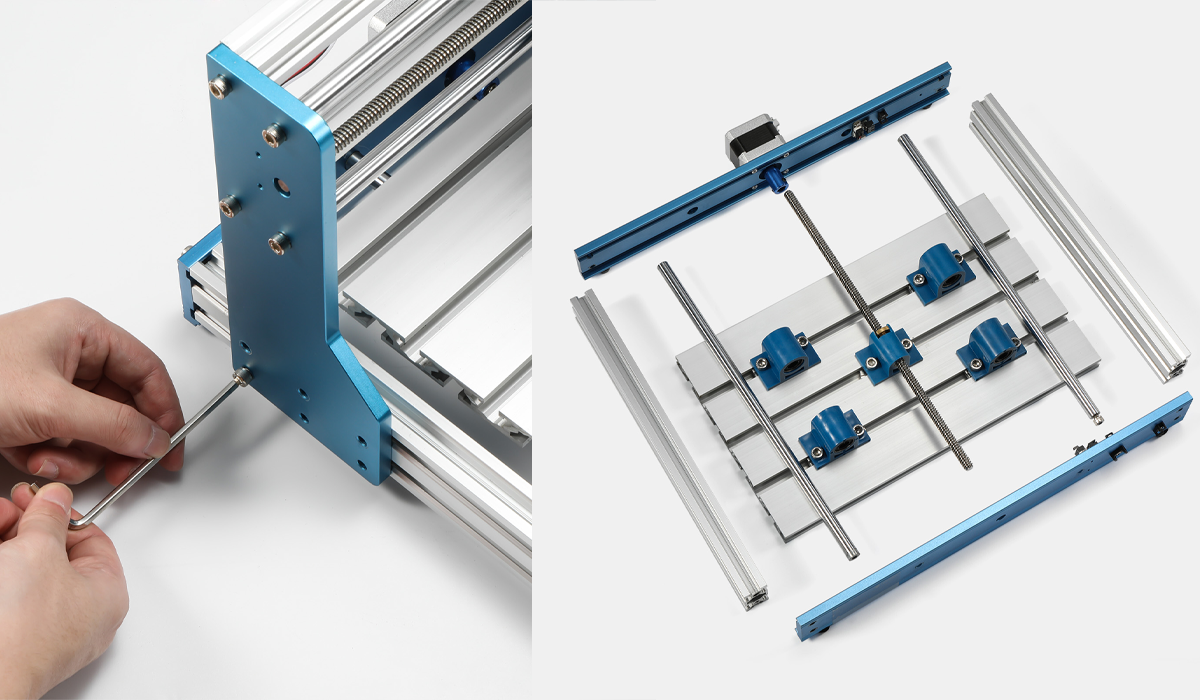

Step 1: Disassembly
Disconnect & Remove All Wires Connecting to the Base of Your CNC Unscrew the Gantry Assembly from Either Side of the CNC's Base Take Apart Your Frame

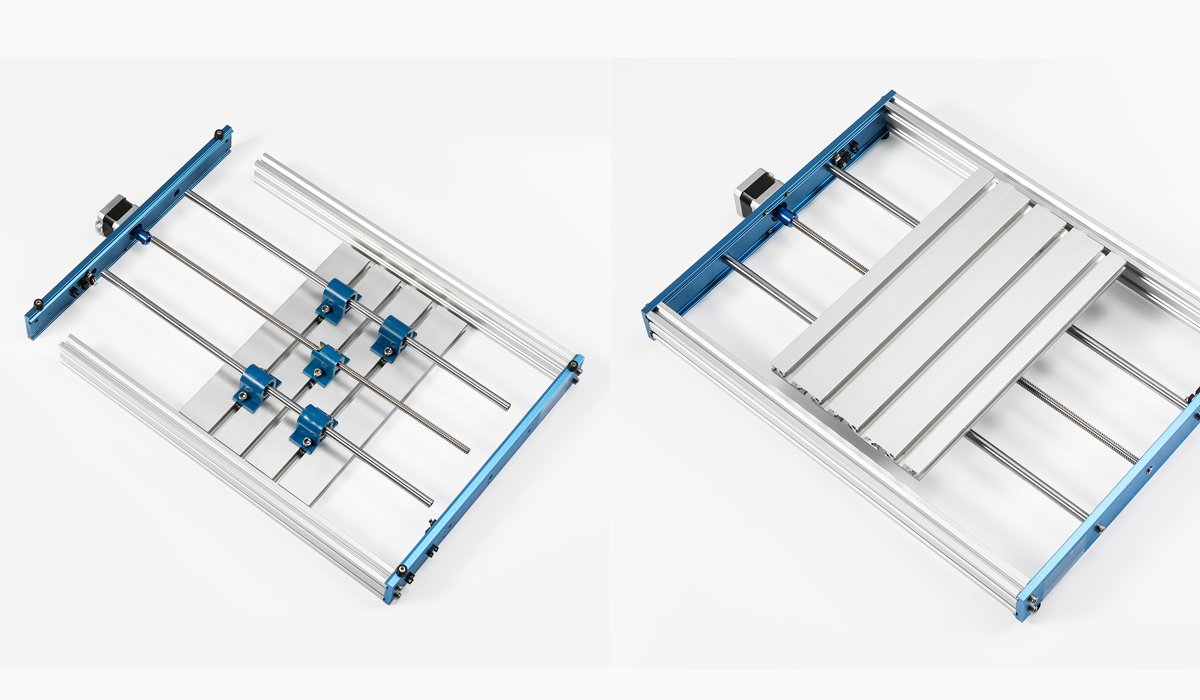

Step 2: CNC Base Assembly
Attach the Extended Side Extrusions & Linear Rails to the Back Panel Install Extended Lead Screw into CNC Bed Through Spring & Copper Nut Install the Bed with Threaded Lead Screw Into the Liner Rails Already Attached to Back Panel Secure the Lead Screw to the Y-Axis Stepper Motor through the Coupler Install the Front Panel & Square Frame
Step 3: Final Assembly
The process of mating the base frame with the gantry assembly mirrors the same process as when you assembled your CNC for the first time, the only major difference is that rather than having the gantry spaced 46.5mm from the rear of the frame, you are now going to want it to move more forward in order to take advantage of the expanded Y-Axis. Rather than give you a specific number, it is strongly suggested that you move the gantry as far forward as your wiring will allow. This is usually around 60-80mm depending on whether you have limit switches. Check the machine version and the extension-kit instructions before fitting.
Assembly Guide
3040 Y-Axis Extension Kit for 3018 Series CNC Router
Specifications
Material: Aluminum Package Weight: 1.77 KG (3.90LB) Package Dimension: 51.5*21.5*7.5cm Note for 3018-MX3 User: Since MX3 has been upgraded before, special attention should be taken when choosing this Extension Kit. If you find a COUNTERBORE in the screw hole of the optical shaft part, please choose the Extension Kit for 3018-PROVer/3018-PROVer Mach3. Note: The limit switch for the Y-extension kit is not included.
What's in the box
What's in the box
| Feature | For 3018-PRO& 3018-MX3 Series: | Y-Axis Extension Kit |
|---|---|---|
| 2 x Y-axis Aluminum Extrusions (2040*450mm) 1 x Y-axis Extended Lead Screw (T8 Pitch 2mm, Thread 4mm*450mm) 2 x Y-axis Extended Linear Rails (Hole 5mm, Depth 15mm*460mm) 1 x Replacement Zip-ties 1 x Assembly Instruction | 2 x Y-axis Aluminum Extrusions (2040*450mm) 1 x Y-axis Extended Lead Screw (∅ 8mm lead screw, T8 Pitch 2mm, Thread 4mm*454mm) 2 x Y-axis Extended Linear Rails (Hole 5mm, Depth 15mm*450mm) 1 x Replacement Zip-ties 1 x Assembly Instruction | 2x Y-axis Aluminum Profile 1x Lead Screw 2x Polished Rod 1x Y-Axis Limit Switch Cable 1x Cable of Y-Axis Motor 1x Section Seal 1x Knob 9x M5*22 Round Head Screw 10x Cable Tie 1x 3mm Allen Wrench 1x Extension Kit User Manual |
3040 Y-Axis Extension Kit for 3018 Series CNC Router
Note: The original limit switch cable of the 3018-PROVer is not compatible with the 3040 Y-axis extension kit. Please purchase a longer cable individually.
