Genmitsu 65–69 mm acrylic spindle dust shoe

Material: ABS

Φ65-69mm Acrylic Dust Shoe for Spindle Motor, Trimmer Router, for PROVerXL 4030, 6050 Plus, 4040-PRO MAX, 3030-PROVer Ultra CNC1 / 26

Genmitsu 65–69 mm acrylic spindle dust shoe

1 / 26

£37

SKU SS-101-63-DS69-CL-1

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Make it yours

Choose your options. The price updates as you go.

1

Φ65-69mm Acrylic Dust Shoe for Spindle Motor, Trimmer Router, for PROVerXL 4030, 6050 Plus, 4040-PRO MAX, 3030-PROVer Ultra CNC. Universal compatibility: The innovative gasket design allows seamless adaptation to 65mm or 69mm CNC spindle motors or compact routers. Material: ABS.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Genmitsu 65–69 mm acrylic spindle dust shoe · Technical features from Genmitsu.

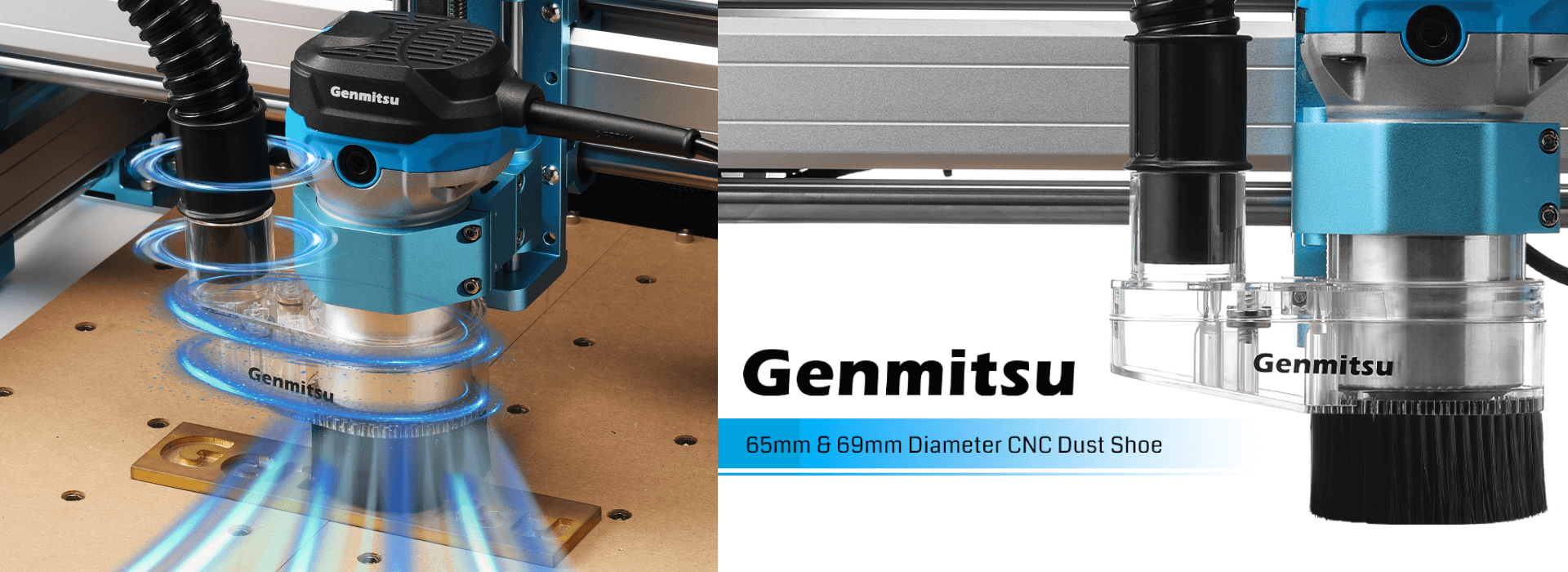

Genmitsu 65mm/69mm CNC Dust Shoe

Genmitsu 65mm/69mm CNC Dust Shoe

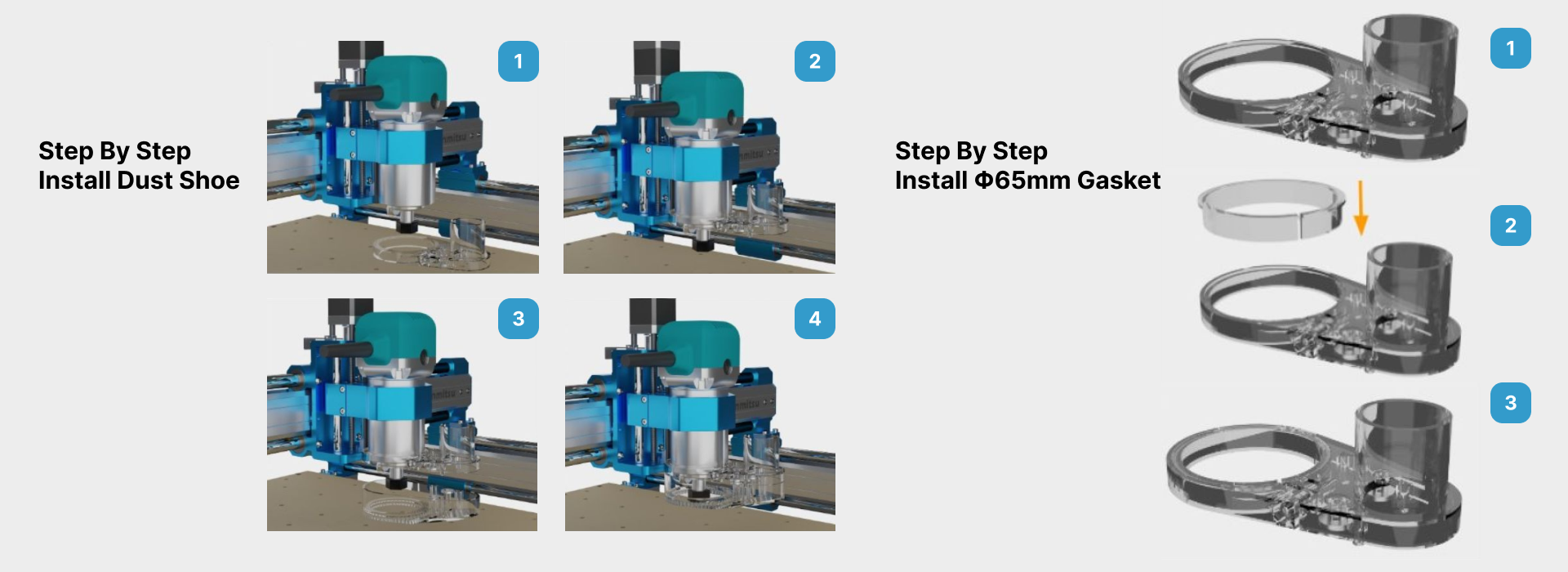

Compatible with Most 65mm/69mm Spindle Motor and Compact Router, Hose Adapter Inner Diameter 38mm (1.5″) Universal compatibility: The innovative gasket design allows seamless adaptation to 65mm or 69mm CNC spindle motors or compact routers. It's a perfect fit for the Genmitsu PROVerXL Series, 4040-PRO, 3020-PRO MAX V2 and 3030-PROVer MAX CNC machines that support adding the 65mm/69mm trimmer router. Durable & Effective: The dust shoe is constructed from high-quality and durable ABS material. Its transparent design allows you to keep an eye on your operations. Tidy Planting Brush: The planting brush used in this dust shoe is neater and firmer compared to glued alternatives. This contributes to effective dust collection and sweeping. 2-step assembly: Simply insert the top cover into the router, align the magnets on the bottom cover to the top, and you're done. This simple assembly process ensures that you can start using it without hassle. Split design: The dust shoe's integrated split design makes it easy to replace cutting bits and worn brushes. Simply pop off the bottom cover without needing tools or complicated procedures. When the brush wears out, replace the entire bottom cover for continuous and efficient dust control, saving time and effort.

More Info:

Weight: 133g (0.29lb) Vacuum Port Outer Diameter: 38mm/ 1.5” Vacuum Port Inner Diameter: 32mm/1.26”

More Info:

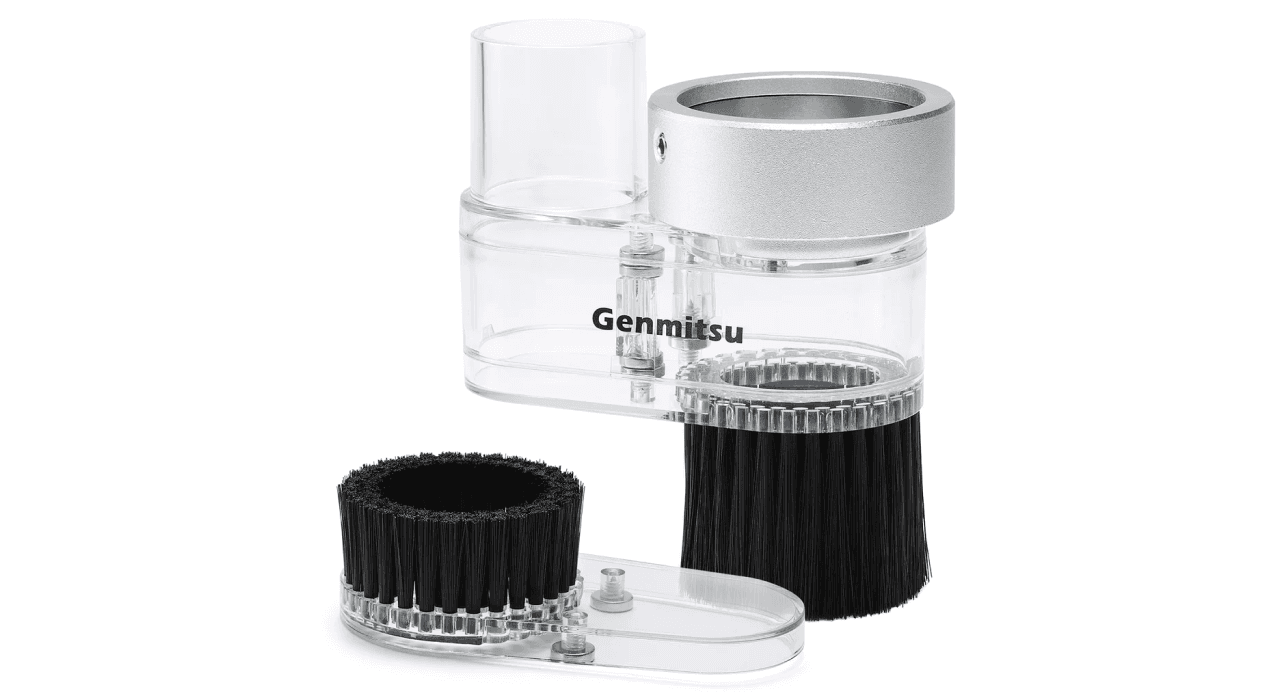

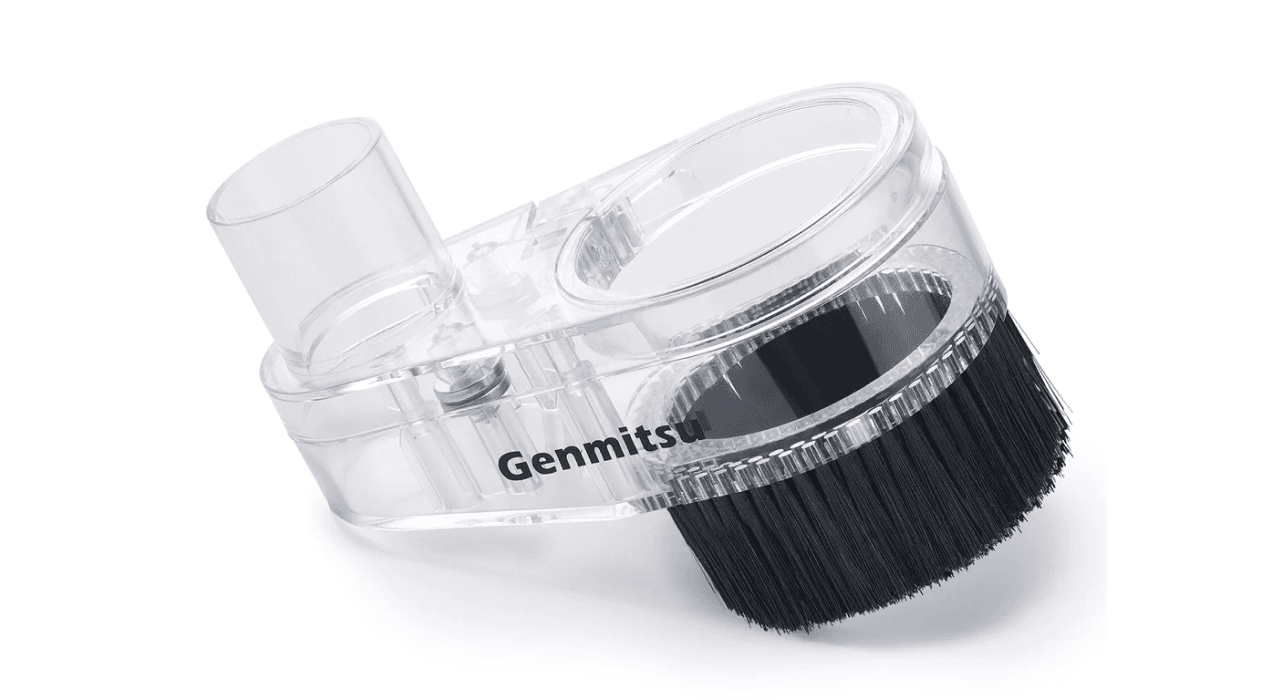

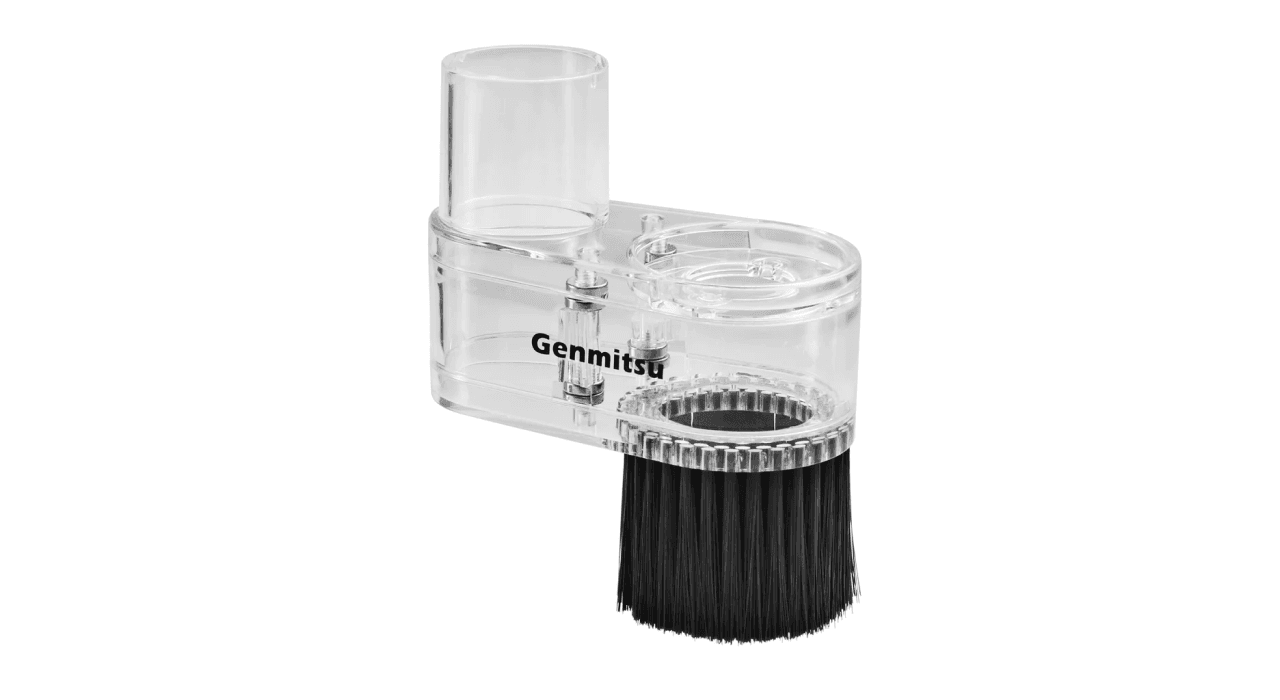

Specifications

  • Specifications

    DS3018

  • Specifications

    DS52

  • Specifications

    DS69

Comparison

FeatureDS3018DS52DS69
Spindle Diameter42mm (1.65")52mm (2.05")65-69mm (2.72")
MaterialABSABS & AluminumABS
Vacuum Port Inner Diameter32mm (1.26")32mm (1.26")32mm (1.26")
Vacuum Port Outer Diameter38mm (1.5")38mm (1.5")38mm (1.5")
Compatibility: check the stated dimensions against the spindle and machine before ordering.3018-PRO 3018-PROVer V2 4040-PRO 3018-PROVer 3018-PROVer Mach3 GS-775M Spindle GS-775MR SpindlePROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 3020-PRO MAX 4040-PRO 3030-PROVer MAX 300W SpindleR119 Trimmer Router R118V Trimmer Router 710W Trimmer Router 28000RPM Cordless Trimmer Router PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 4040-PRO MAX 3030-PRO Ultra DeWalt DWP611, Other large size spindle
With Short Brush Bottom CoverYesYesYes
Assembly GuideUser ManualUser ManualUser Manual

What's in the box

1 x Dust Shoe 1 x Spare 65mm Gasket 1 x M4 Nuts 1 x M4*25 Allen Screw 1 x M4 Allen Key

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

7 specifications

Materials & environment

Materials
ABS

Machine & package

Assembly guide
User Manual

Printing

Spindle diameter
65-69mm (2.72")
Vacuum port inner diameter
32mm (1.26")
Vacuum port outer diameter
38mm (1.5")
With short brush bottom cover
Yes
Compatibility not genmitsu product contact us for detailed size guide
R119 Trimmer Router R118V Trimmer Router 710W Trimmer Router 28000RPM Cordless Trimmer Router PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus 4040-PRO MAX 3030-PRO Ultra DeWalt DWP611, Other large size spindle
In the boxCheck the supplied package before choosing your configuration.

In the box

Package contents listed by the manufacturer.

  • 1 x Dust Shoe
  • 1 x Spare 65mm Gasket
  • 1 x M4 Nuts
  • 1 x M4*25 Allen Screw
  • 1 x M4 Allen Key
