Genmitsu L8 laser engraver, 20 W / 40 W

Cutting-edge laser beam combining technology.

SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera1 / 15

Genmitsu L8 laser engraver, 20 W / 40 W

1 / 15

£644

SKU SS-101-60-L8W20-EB-1

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Make it yours

Choose your options. The price updates as you go.

1

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera. Cutting-edge laser beam combining technology.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Genmitsu L8 laser engraver, 20 W / 40 W · Technical features from Genmitsu.

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera

Key features

  • 20W/40W Optical Power Output

    Cutting-edge laser beam combining technology. 40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics. The embedded beam shapers compress the laser spot of each laser diode. Then the splitter combines the laser beams of the eight laser diodes using the beam combining technology, resulting in a higher energy density and output power.

  • 40000mm/min

    The latest Laser tech and sturdy machine structure allow this machine to reach this speed. Saving you more time and speeding up the time to do more creation.

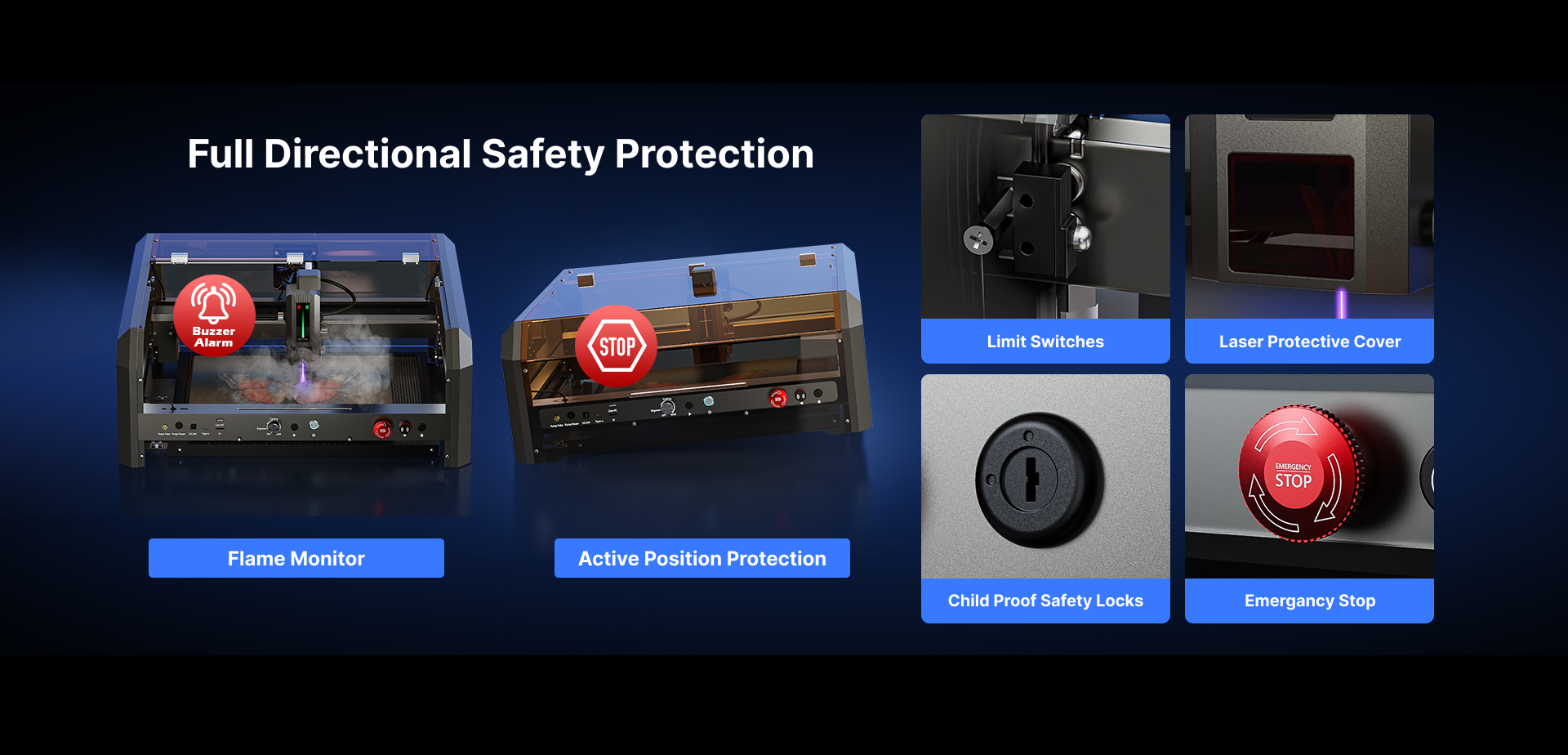

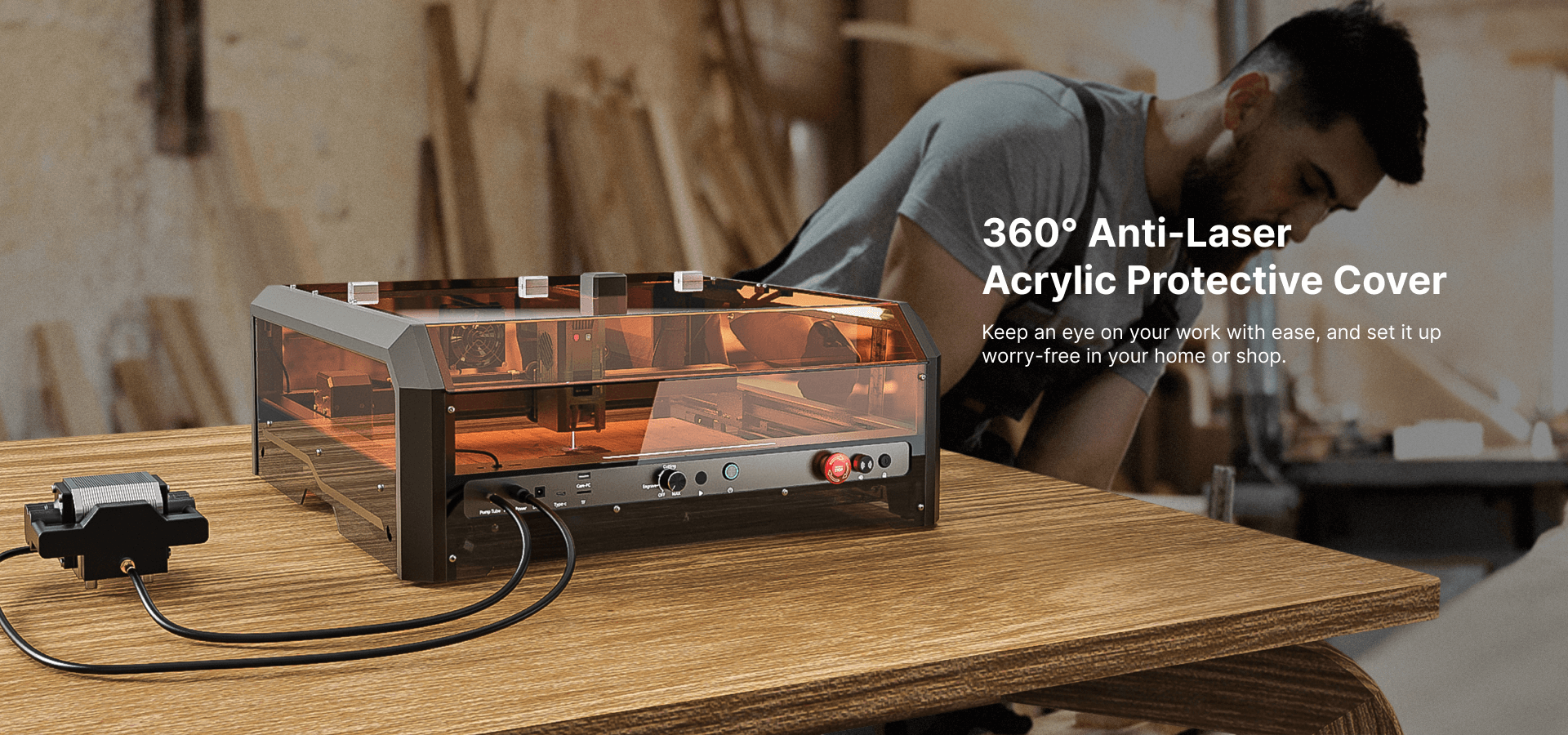

  • Laser Safety Class 1

    The L8 has an enclosure with a door-detection sensor that stops the laser job when the door is opened. Use ventilation and extraction suitable for the material. Do not bypass interlocks or assume that an optional purifier eliminates all hazardous emissions.

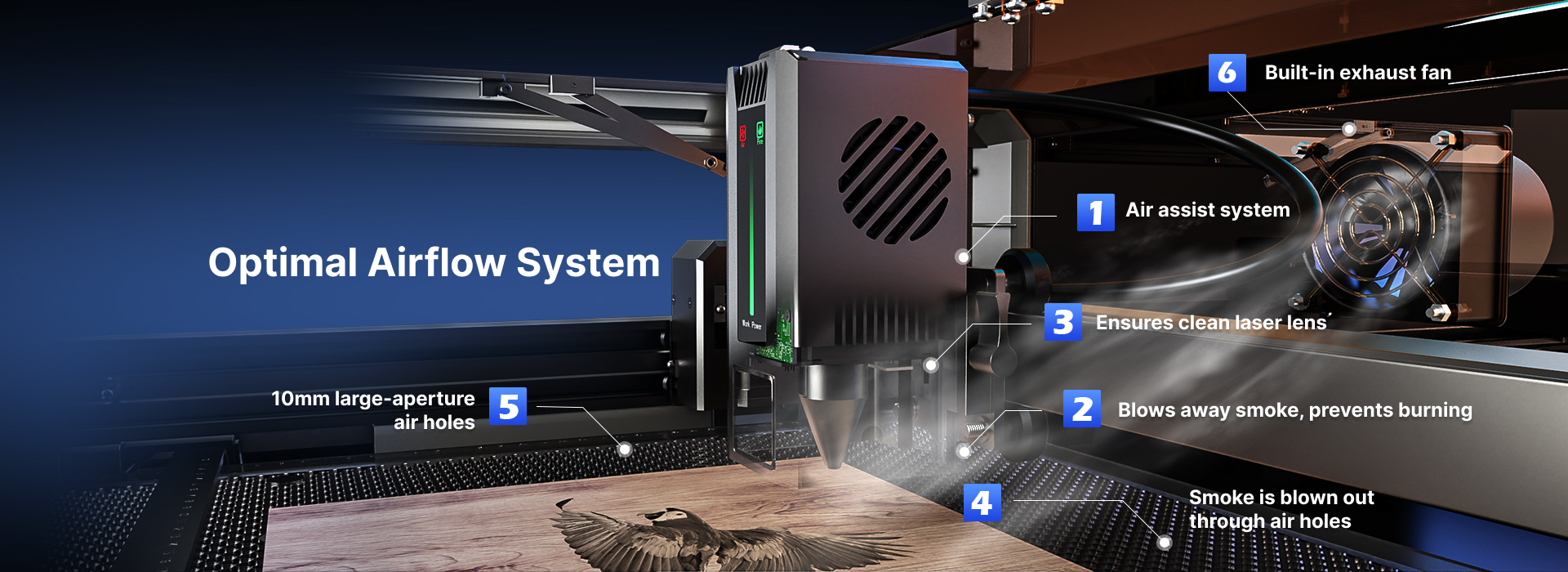

  • Smart Air Assist Pump

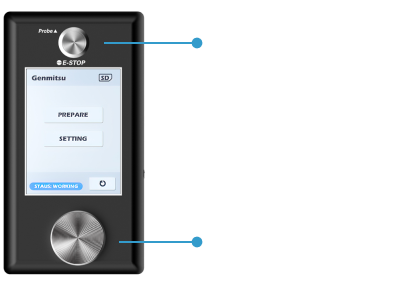

    The Genmitsu L8 comes with an air pump that offers a maximum air speed of up to 30L/min. This can be controlled either through the software or directly from the machine’s front panel. Depending on what you’re cutting or engraving, simply turn the knob and the air-assist will intelligently adjust the airflow to achieve optimal results. Coupled with the built-in honeycomb, it is for all your cutting needs.

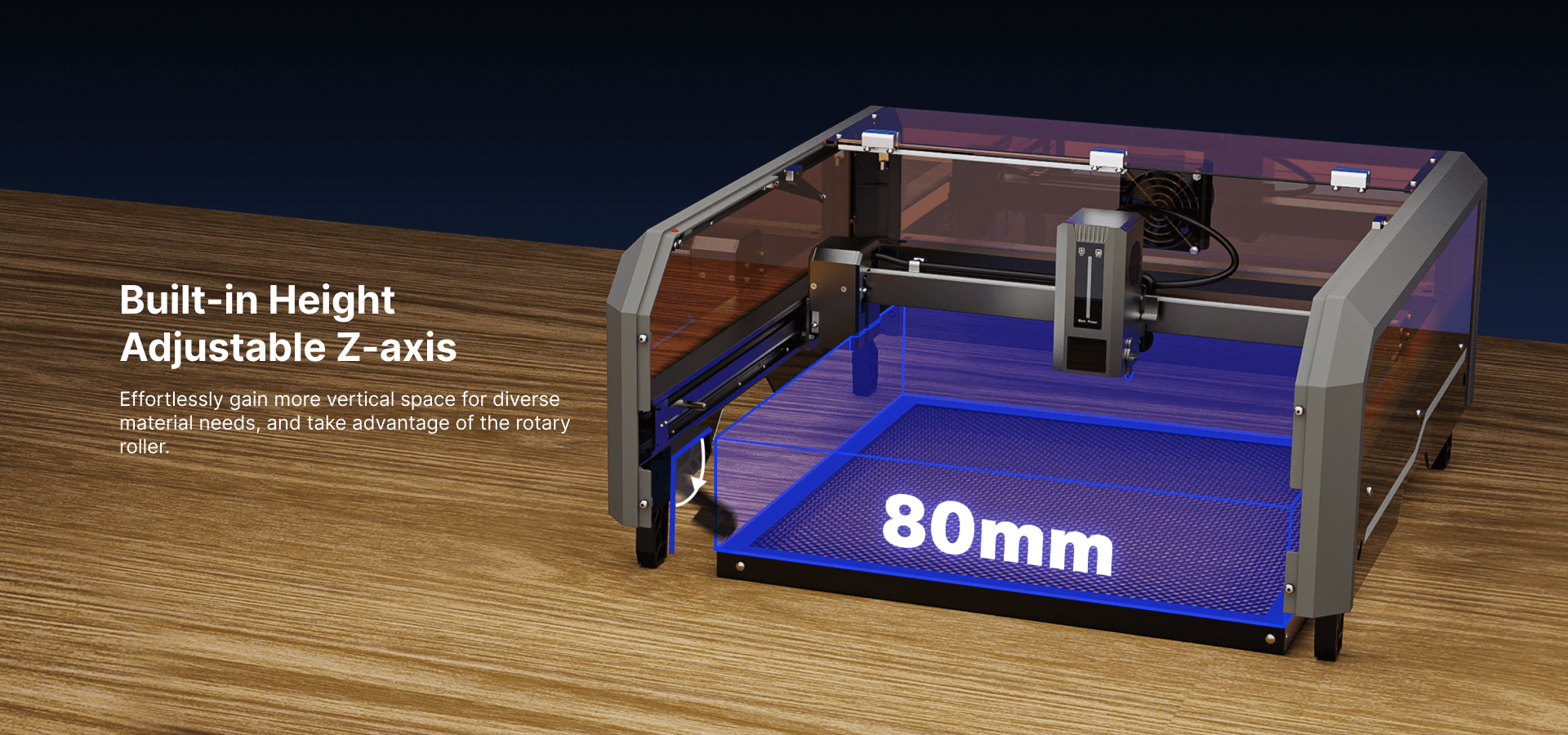

  • Flexible Z-height adjustment

    The Genmitsu L8 is equipped with an adjustable Z-axis design. With an extended Z-axis height, it’s perfect for using the rotary axis or engraving thicker objects.

  • Compatible with LightBurn

    The Genmitsu L8 is fully compatible with LightBurn, one of the top laser software in the industry. Plus, you can also access full sets of recommended parameters for common laser materials in LightBurn and the accompanying PC software & app.

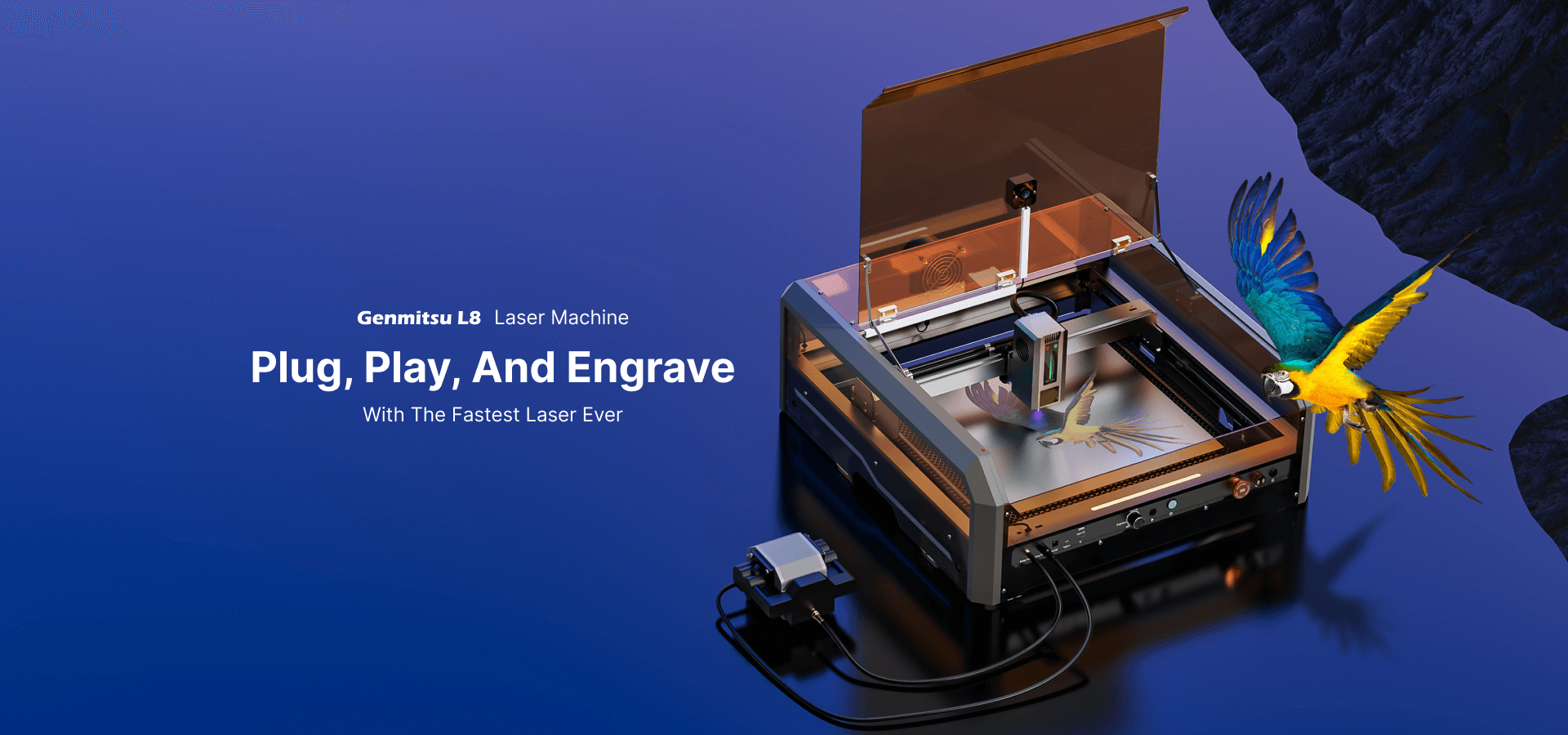

  • Use the Machine Right out of the box

    The Genmitsu L8 comes pre-assembled, offering the real deal in plug-and-play convenience. No installation needed - it’s ready to use straight out of the box! You can dive right into creating as soon as it arrives. It’s all about making your creative journey smoother.

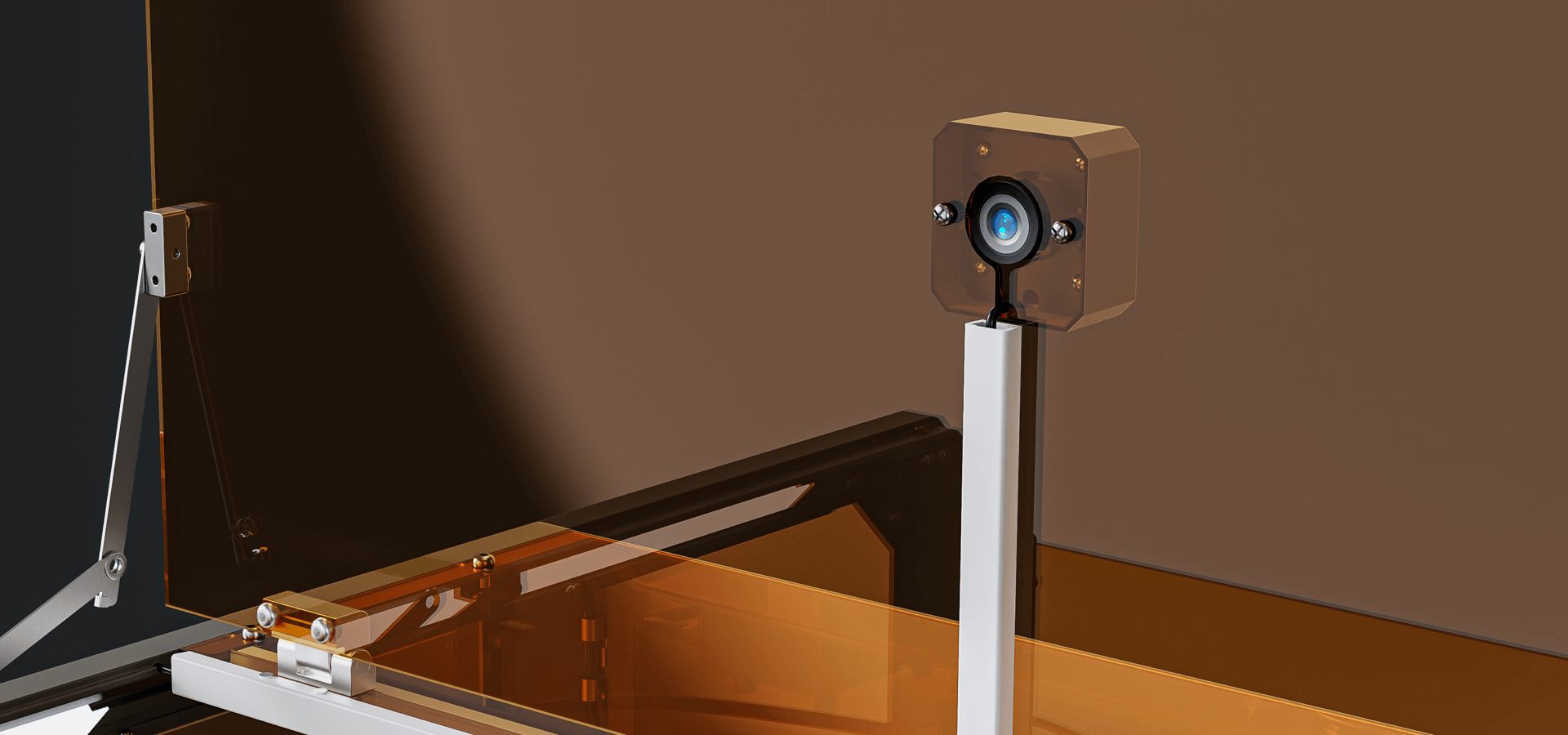

  • BuiltBulit-in Camera

    The Genmitsu L8 comes standard with a camera adapted to LightBurn, allowing you to easily locate project positions. Say goodbye to repeated attempts and hello to precision and efficiency!

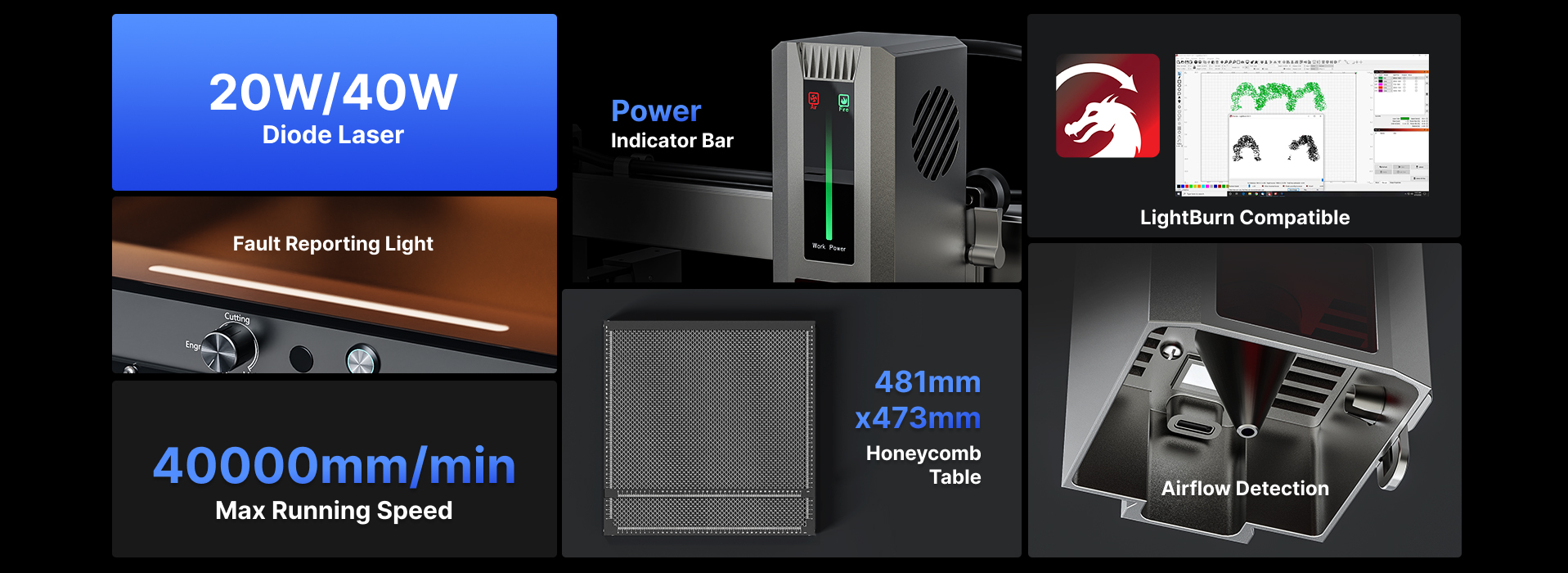

  • Smarter Laser Engraving Machines

    The Genmitsu L8 is equipped with a power indicator bar, fault reporting light, and airflow detection to enhance human-machine interaction. It’s like having a dashboard for your creative projects, keeping you informed and in control every step of the way.

  • L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera

Built in Camera LightBurn-Compatible

Real-Time preview and drag, easily locate your projects without hassle

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

19 specifications

Printing

Model
L8 Laser Machine
Laser spot
0.07 * 0.13mm
Laser class
Class 1
Image format
JPEG/BMP/PNG/JPG/GIF/DXF/PLT/HPGL
Laser module
20W, 40W
Product size
715 * 621 * 261mm
Cooling method
Air cooling
Engraving size
20W: 400 * 400mm; 40W: 390 * 390mm
Support system
Windows/MAC/Android/IOS
Engraving speed
40000mm/min
Laser wavelength
455nm
Engraving accuracy
0.01mm
Laser service time
>10000 hours
Communication interface
WIFl wireless connection; USB-Type C interface wired connection, supports MAC and Windows desktop applications

Controls & connectivity

Total power
<144W, <240W
Power supply
DC24V/6A, DC24V/10A

Machine & package

Assembly time
Down to 5 Minutes
Package dimension
765 * 670 * 345mm

Materials & environment

Engraving material
Paper, wood, plastic, leather, cloth, cardboard,leather, stone, ceramics.stainless steel, coated metals and other non-transparent materials
Frequently asked questionsAnswers to common questions about this product.

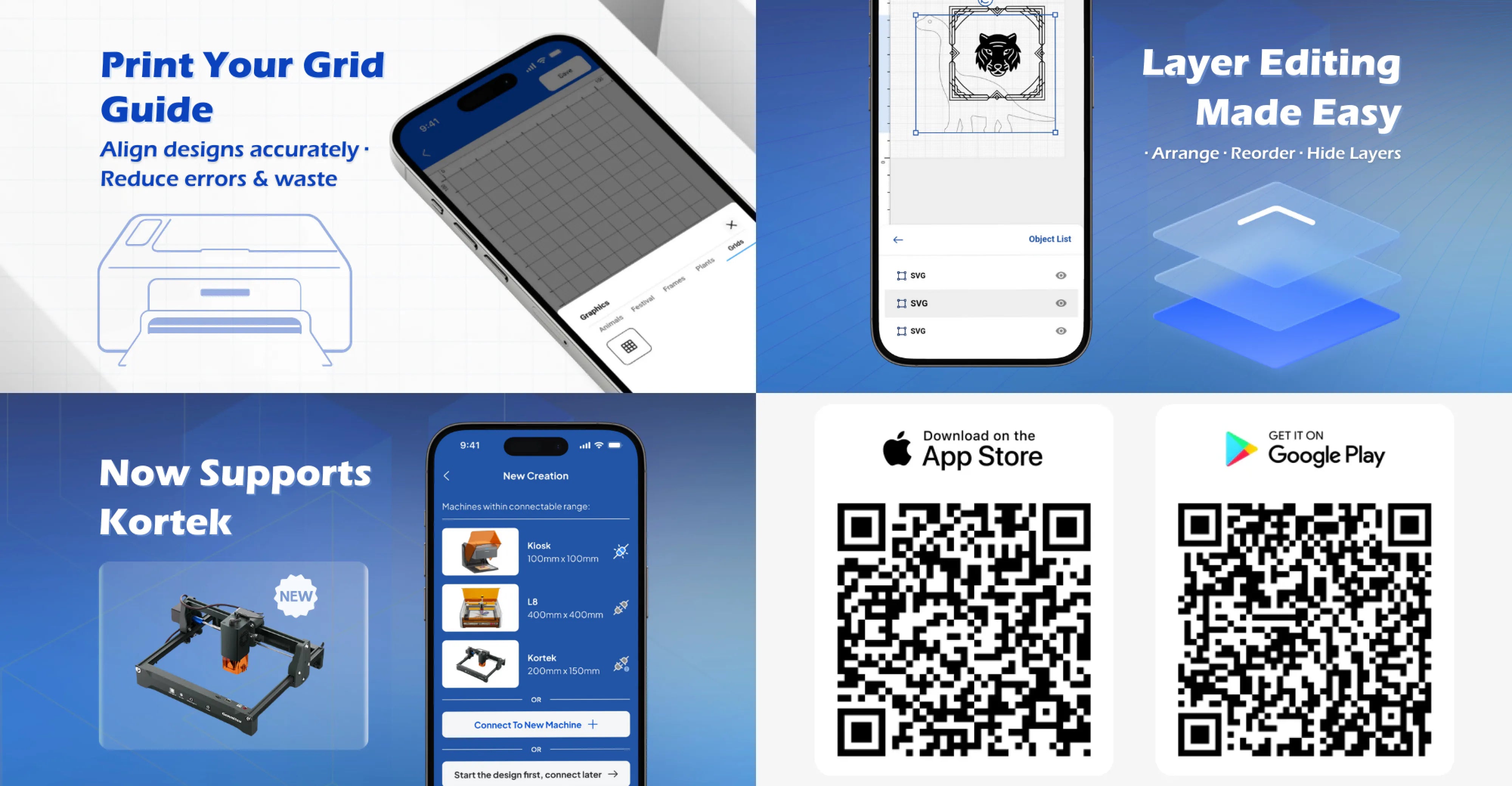

1. Genmitsu APP V2.3.0 Update

Genmitsu APP V2.3.0 – Smarter, Faster, Stronger for Your Laser Machines Support for Kortek devices Layer editing feature: Select, reorder, and hide layers with ease Grid printing feature: Generate vector grid maps for the device

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
2. Is the speed of 40000mm/min mentioned for this product for real?

Genmitsu specifies a maximum travel speed of 40,000 mm/min. Actual engraving settings depend on material, laser power and the required result.

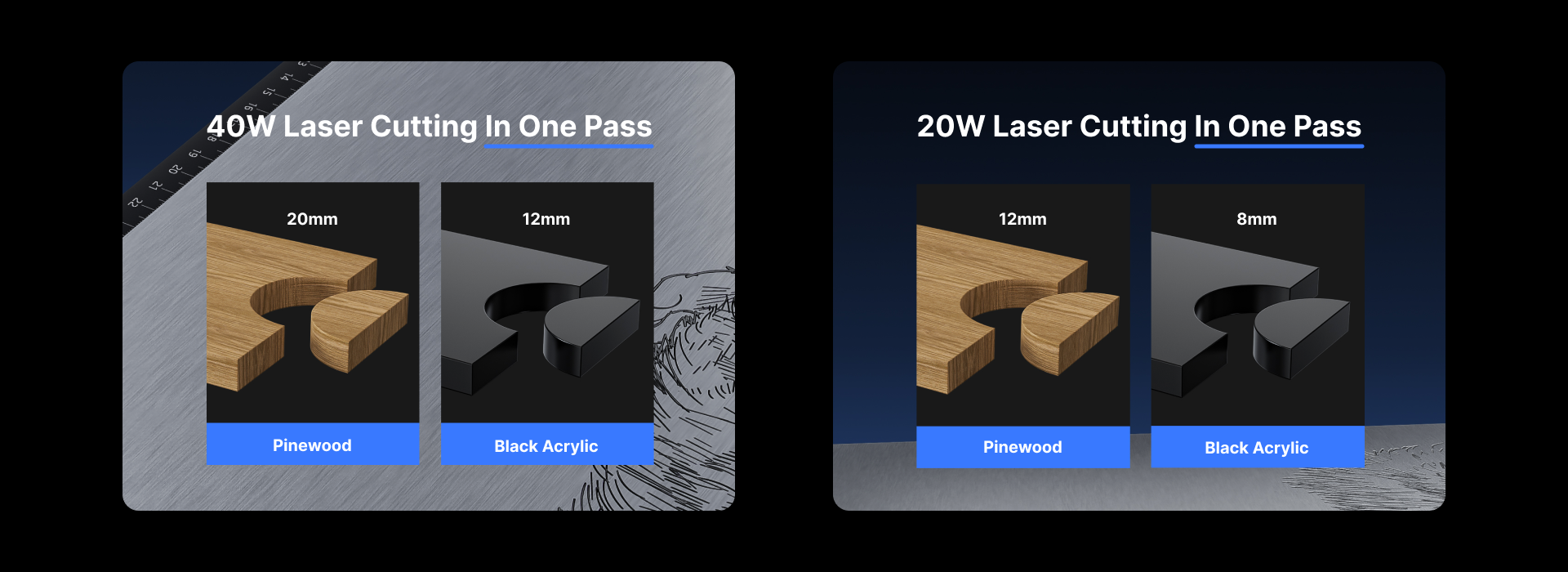

3. What distinguishes the 20W and 40W versions? What factors should be considered when choosing between them?

The accessories included with both the 20W and 40W sets are identical. In summary, if you prioritize efficiency and have higher cutting requirements, the 40W option is recommended. If your work primarily involves engraving and you don’t require that much of high efficiency or cutting capabilities, the 20W option would be suitable.

4. What items are included with the Genmitsu L8? Are there any optional accessories expected to be available soon?

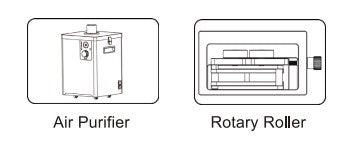

The manufacturer lists a honeycomb plate, air pump and duct, built-in camera, and enclosure with ventilation fan. Confirm the selected package’s box contents. Optional accessories and future releases are not included unless expressly listed.

L8 Laser Engraver Machine, 20W/40W Power, 40000mm/min High Speed All-in-one, Air Assist, Lightburn Camera
5. What types of materials can be engraved or cut with this device? Is there any data available for cutting different materials?

Cuttable Materials: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic, Basswood, Solid Wood, Kraft Paper, Non-woven Fabrics, Dark Plastic Sheet Engravable Materials: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Stone / Slate, Ceramic Tile, Coated or Painted Metal, Aluminum, Glass

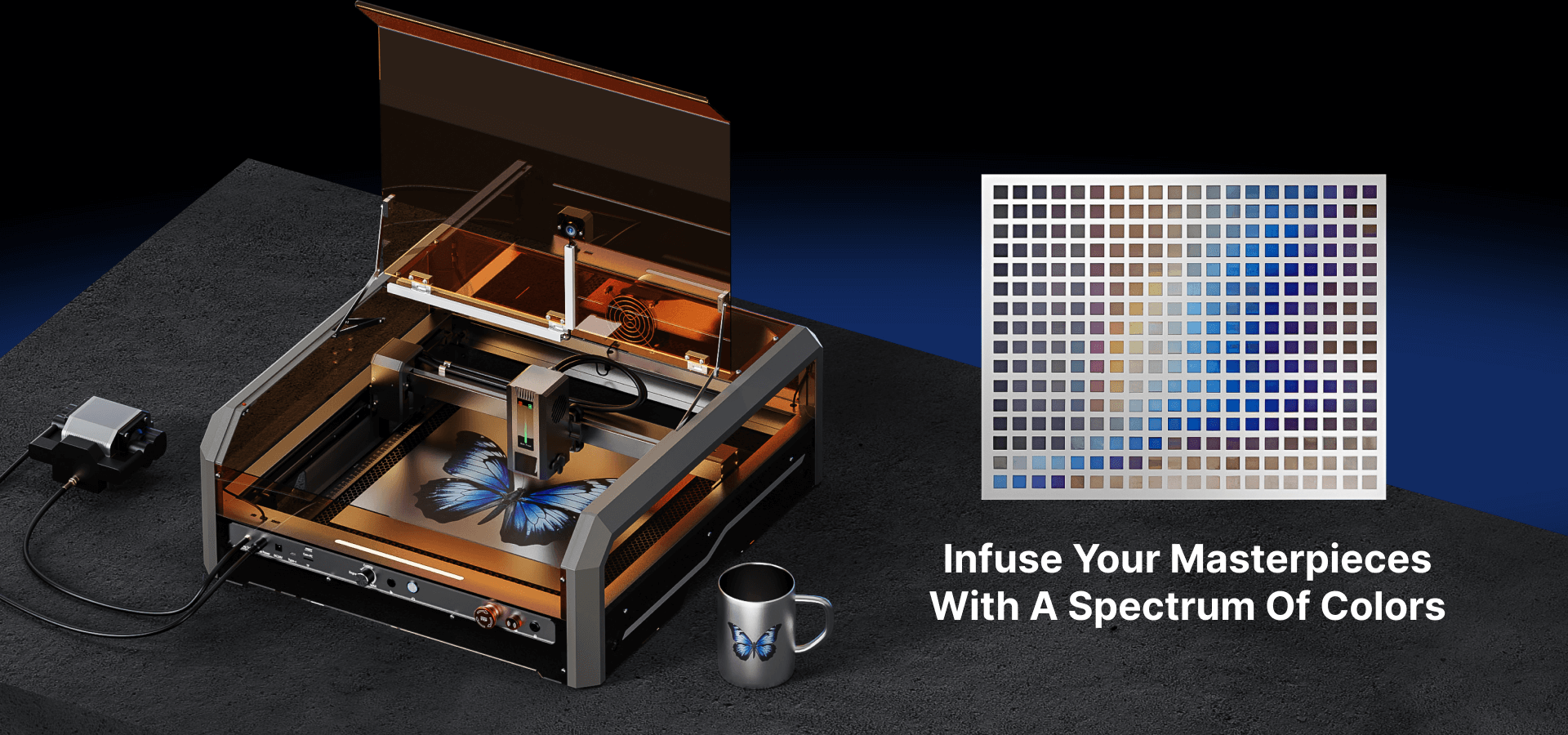

6 Can you explain how the advertised color feature functions?

Diode lasers can indeed be used to color stainless steel. The process works by absorbing enough of the laser’s blue light into the nickel and carbon in the surface layer of the stainless steel. This absorption heats the nickel and carbon, causing them to be briefly removed by the heat. This allows the warmed iron in the material to instantly oxidize, by adjusting different power and speed of the laser head, leaving colorful marks.

7. I’m a Mac user and I use LightBurn. Can I use the L8 with these?

Yes, the L8 fully support Lightburn, support system includes Windows/MAC/Android/IOS.

8. How does the camera feature function and is manual calibration required before use?

You can use the camera to position your product through lightburn. It is recommended to import preset parameters to calibrate the camera before use.
