Aluminum Bench Vise Clamp, Size 238 x 168 x 4.1mm, Range 0-145mm
Material: Aluminum alloy
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 6£69
SKU SS-101-63-BVC2417-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
Aluminum Bench Vise Clamp, Size 238 x 168 x 4.1mm, Range 0-145mm. Its four columns and grooved clamping plates ensure enhanced stability, making it ideal for securely holding uniquely shaped objects. Material: Aluminum alloy.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Aluminum Bench Vise Clamp, Size 238 x 168 x 4.1mm, Range 0-145mm · Technical features from Genmitsu.

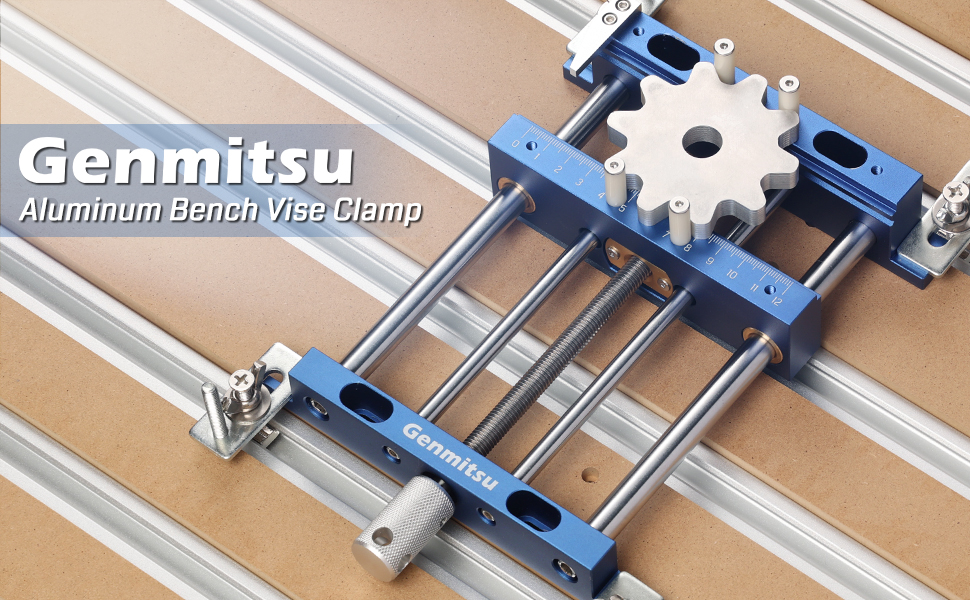

Introducing Genmitsu Aluminum Bench Vise Clamp
This is a versatile CNC router clamp perfect for woodworking and metalworking projects. Its four columns and grooved clamping plates ensure enhanced stability, making it ideal for securely holding uniquely shaped objects. Compatible with both MDF and T-track boards, this clamp fits Genmitsu CNC models and most CNC engraving machines.

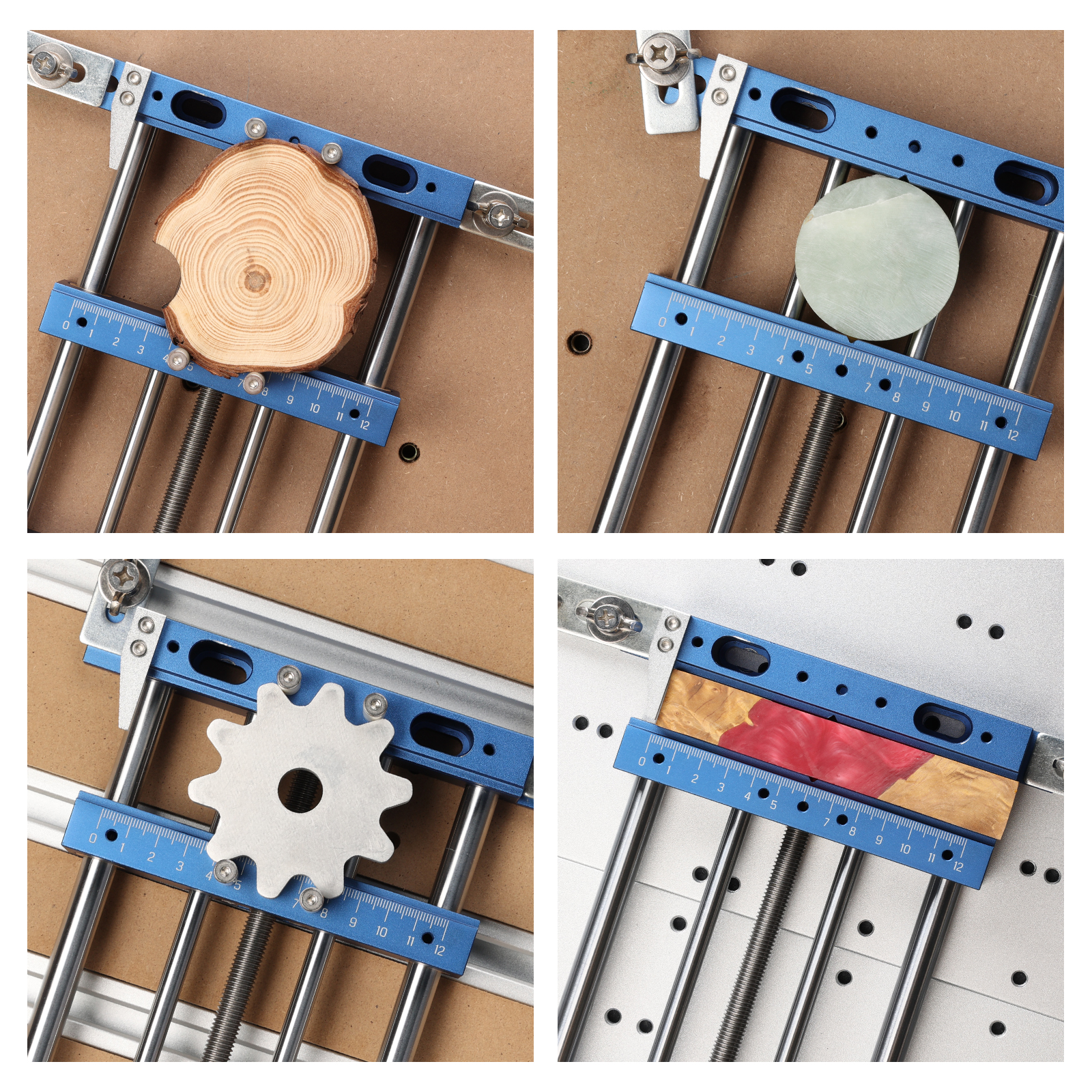

Stable & Secure
The addition of four columns and two clamping plates with grooves provides a more secure hold for various shaped objects and materials such as wood, aluminum, stone, etc.

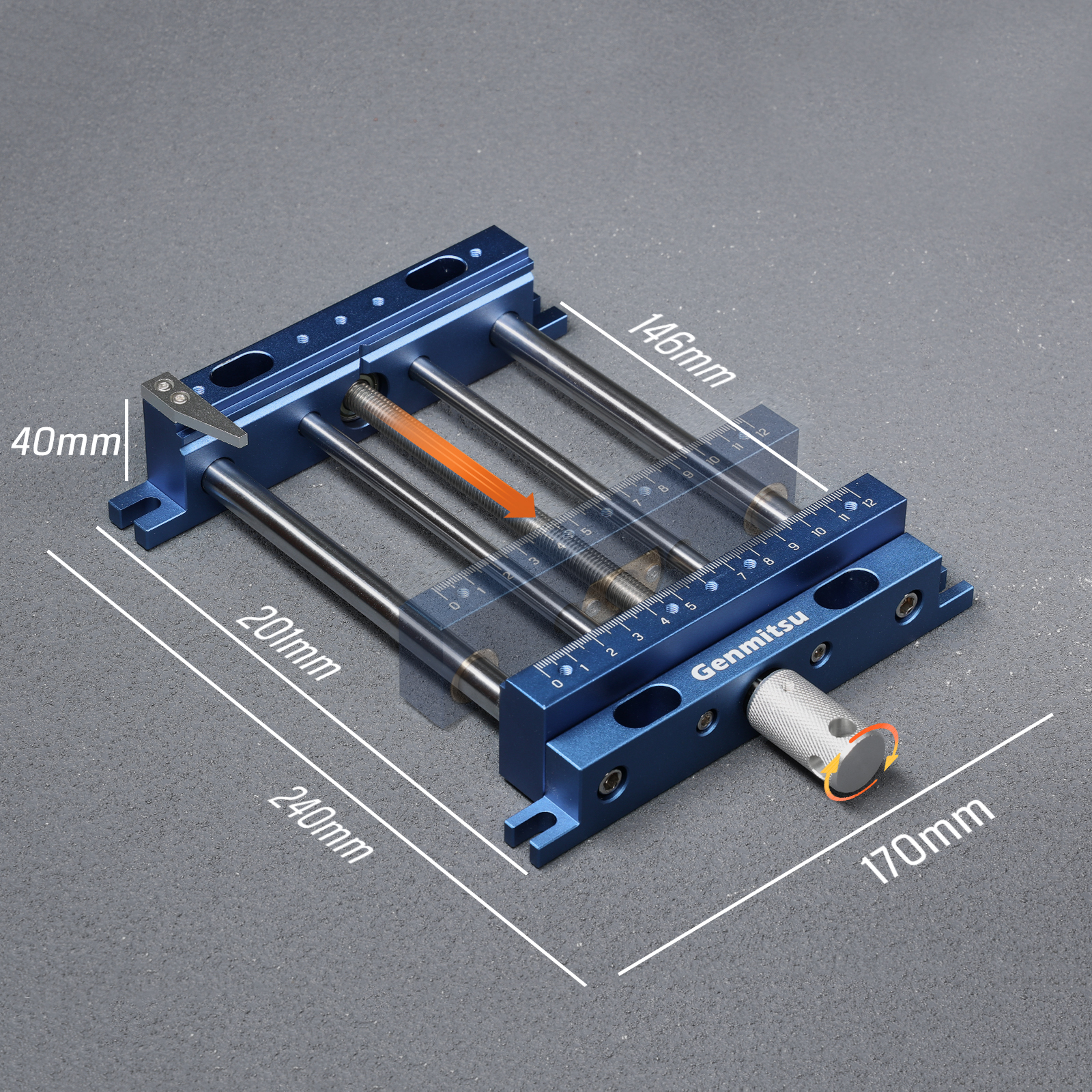

Graduated Ruler
Easy to read ruler, eliminating the need for another ruler to measure the object during processing.

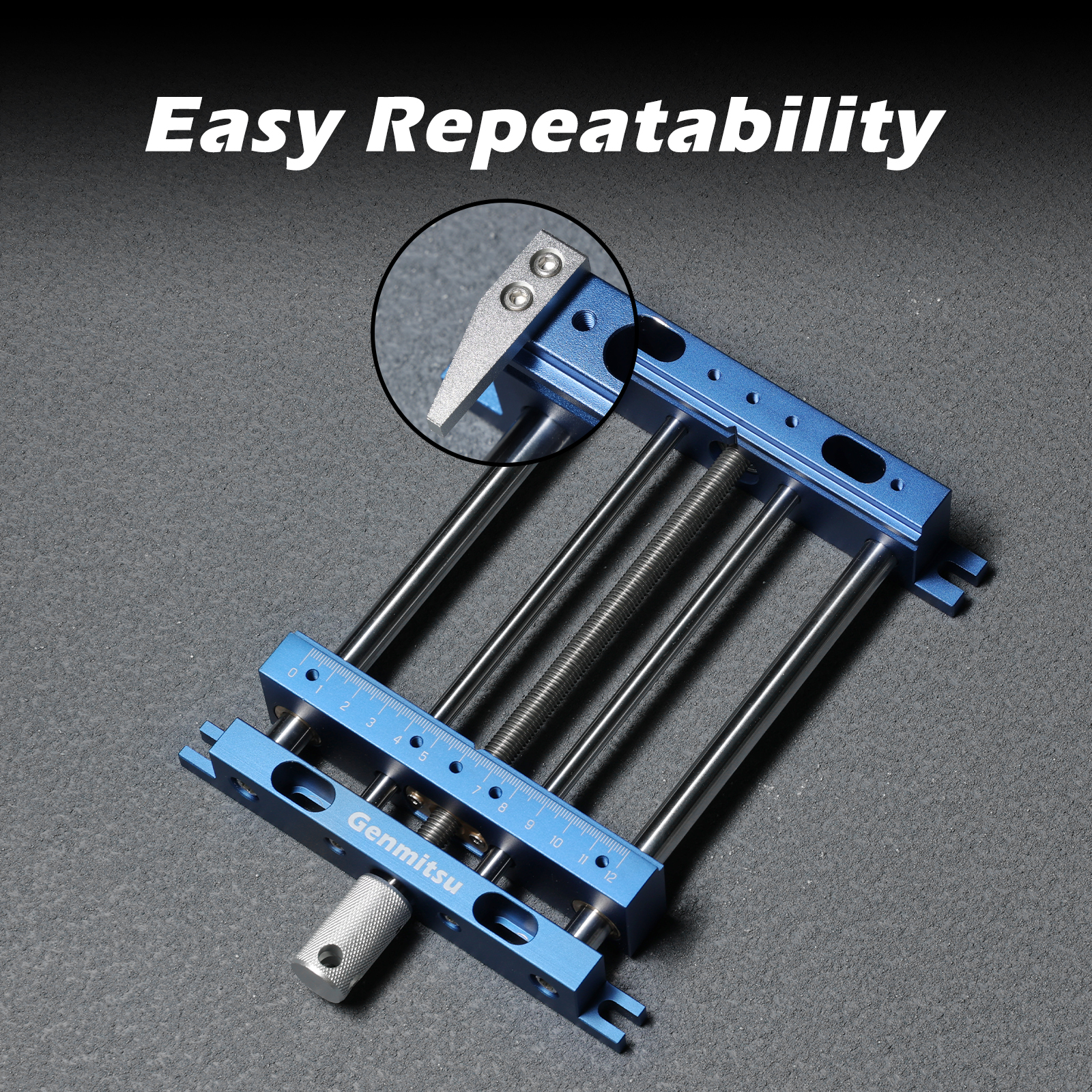

Quick Positioning
Small aluminum position piece allows you to quickly find the last clamping spot, making it easy to continue your previous carving work. For more information about the Genmitsu Aluminum Bench Vise Clamp, please visit the product page.
Specifications
Specifications
| Feature | Genmitsu Vise (101-63-BVC2614) | Genmitsu Vise (101-63-BVC2417) |
|---|---|---|
| Material | Aluminum alloy | Aluminum alloy |
| Weight | 1.44 kg | 1.45 kg |
| Dimensions | 260mm(L) x 140mm(W) x 40mm(H) | 240mm(L), 170mm(W), 40mm(H) (excluding column and ruler) |
| Clamping Range | 0-115mm | 0-146mm |
| Protrusion Height | - | 21mm |
| Scale | With scale, 0 at center | With scale, aligned with left-side fixed ruler |
| Ruler | Adjustable ruler at top left | Fixed ruler at top left |

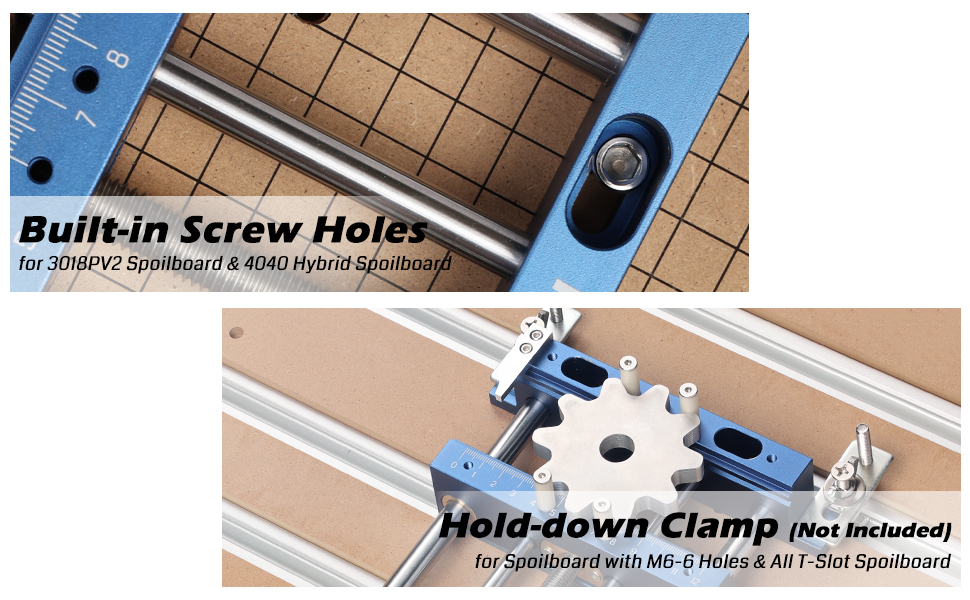

| Mounting Method | Fixed with screw holes on the inside of the machine | Three mounting methods: 1. Screw holes on the inside of the machine 2. Screw holes on the outside of the machine 3. Can be fixed with a pressure plate" |
| Workpiece Clamping | Rectangular, cylindrical objects | Rectangular, cylindrical, irregularly shaped objects, etc. |
| Compatible Models | 3018-Pro, 3018 Prover/V2, 4040-PRO | All models that can use a pressure plate (including but not limited to Genmitsu models) |
What's in the box
Package: 1x Bench vise clamp 1x Clamping column 30x M4 Flat head screws 16x M6 Screws 1x Insertion Nuts 1x 3mm&6mm Hex key User Manual
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
10 specifications
Materials & environment
- Materials
- Aluminum alloy
Printing
- Ruler
- Fixed ruler at top left
- Scale
- With scale, aligned with left-side fixed ruler
- Clamping range
- 0-146mm
- Mounting method
- Three mounting methods: 1. Screw holes on the inside of the machine 2. Screw holes on the outside of the machine 3. Can be fixed with a pressure plate"
- Compatible models
- All models that can use a pressure plate (including but not limited to Genmitsu models)
- Protrusion height
- 21mm
- Workpiece clamping
- Rectangular, cylindrical, irregularly shaped objects, etc.
Machine & package
- Weight
- 1.45 kg
- Dimensions
- 240mm(L), 170mm(W), 40mm(H) (excluding column and ruler)
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1x Bench vise clamp
- 1x Clamping column
- 30x M4 Flat head screws
- 16x M6 Screws
- 1x Insertion Nuts
- 1x 3mm&6mm Hex key
- User Manual
