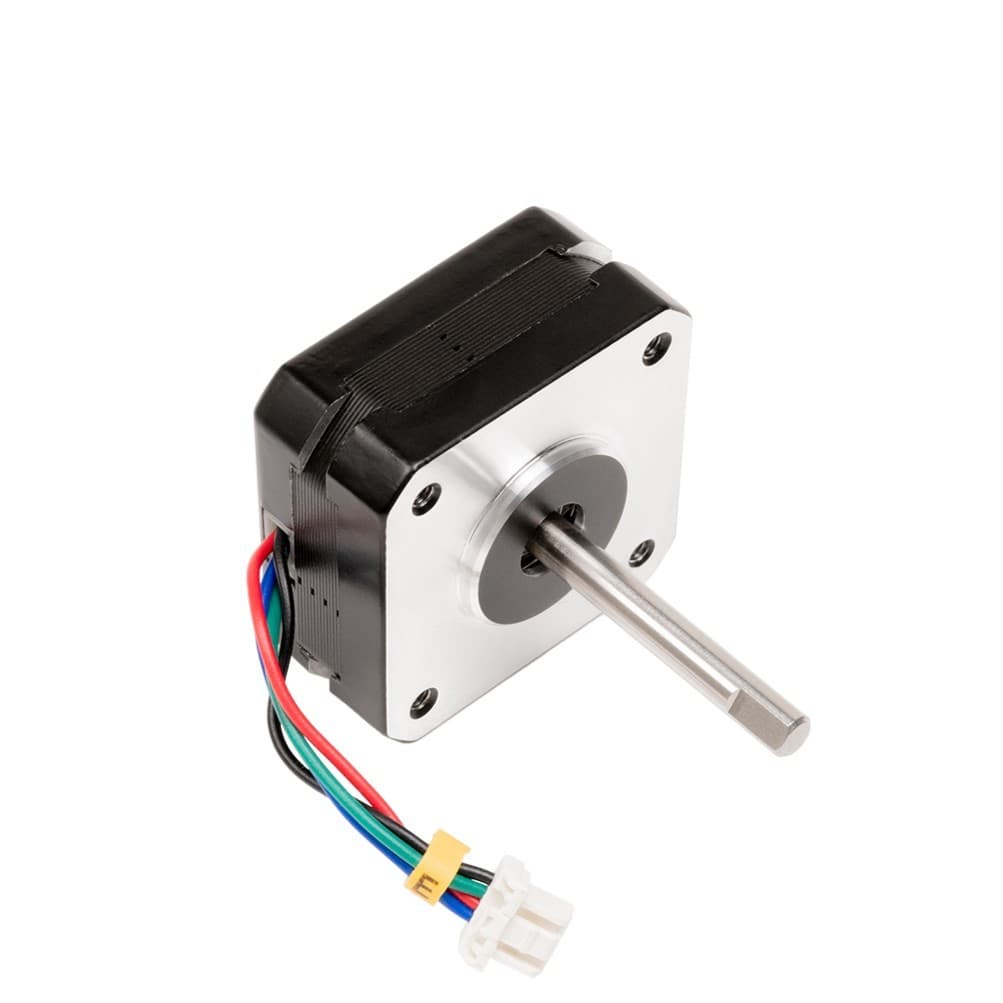

Stepper motor LDO NEMA17 Super Slim (used product)

Super Slim pancake stepper motor made by LDO.

Prusa Research 4.5/5 on Trustpilot (opens in a new tab)company reviews, not this product

Stepper motor LDO NEMA17 Super Slim (used product)

Stepper motor LDO NEMA17 Super Slim (used product)

1 / 1

£8.49

SKU PRUSA-1704-0

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Your selection

Select a quantity below to get started.

1

Stepper motor LDO NEMA17 Super Slim (used product). Super Slim pancake stepper motor made by LDO.

Features & product detailsExplore the design, capabilities and setup information.

About this product

Super Slim pancake stepper motor made by LDO. This motor was customized for Nextruder but is not used in the final product. This product is not a replacement part for any of our products!

Specification:

  • 1.8° step angle, 200 steps per rotation
  • 21 N/cm holding torque
  • 20 mm body
  • 37 mm long shaft with 7mm D-shaped part
  • 40 mm long cable terminated with Molex CLIK-Mate plug connector
  • Weight: 127 g
