3020-PRO Ultra Desktop CNC Router, 710W Spindle for Metal Carving and Cutting
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 10£460
SKU SS-101-60-3020PU-B-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
3020-PRO Ultra Desktop CNC Router, 710W Spindle for Metal Carving and Cutting. Built with solid all-metal construction, the 3020-PRO Ultra CNC router features the X-axis with dual linear rails and a lead screw, while the Z-axis uses 10mm and the Y-axis 12mm polished rods with T8 trapezoidal lead screws.
Features & product detailsExplore the design, capabilities and setup information.
A closer look

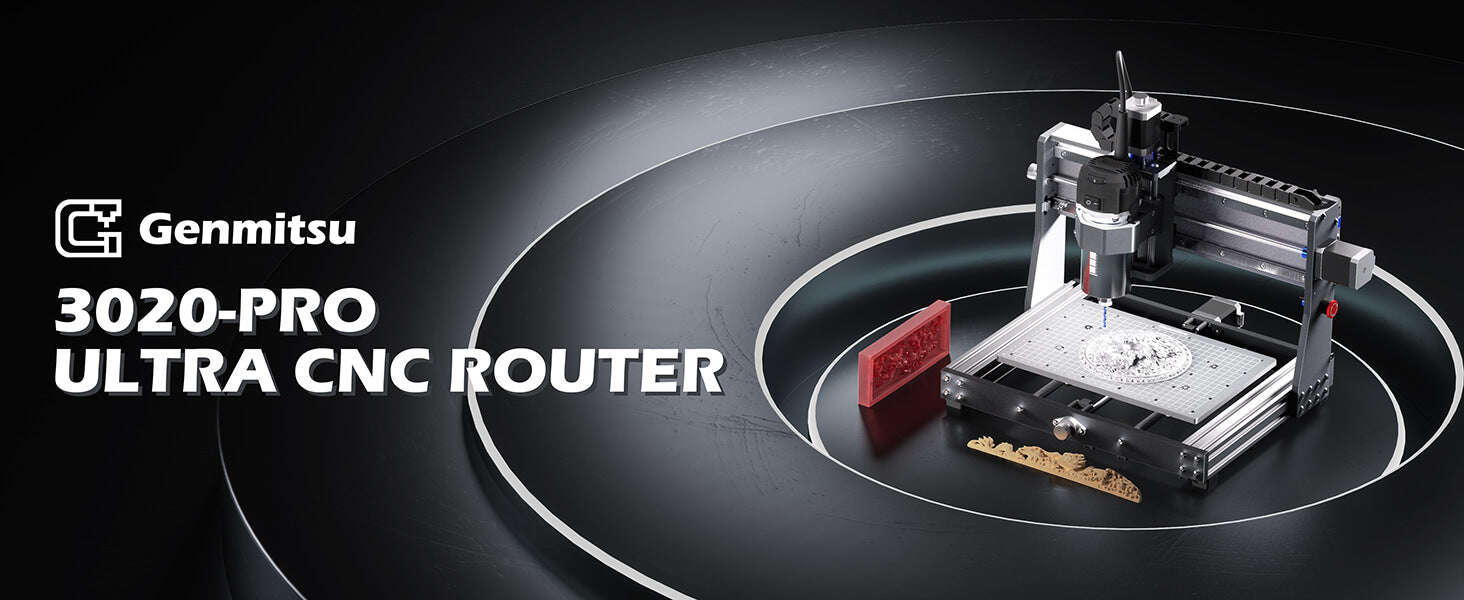

3020-PRO Ultra Desktop CNC Router, 710W Spindle for Metal Carving and Cutting · Technical features from Genmitsu.
Genmitsu 3020-PRO Ultra CNC Router, 710W Spindle, All-Metal Engraver for Metal, Wood, Acrylic, PCB

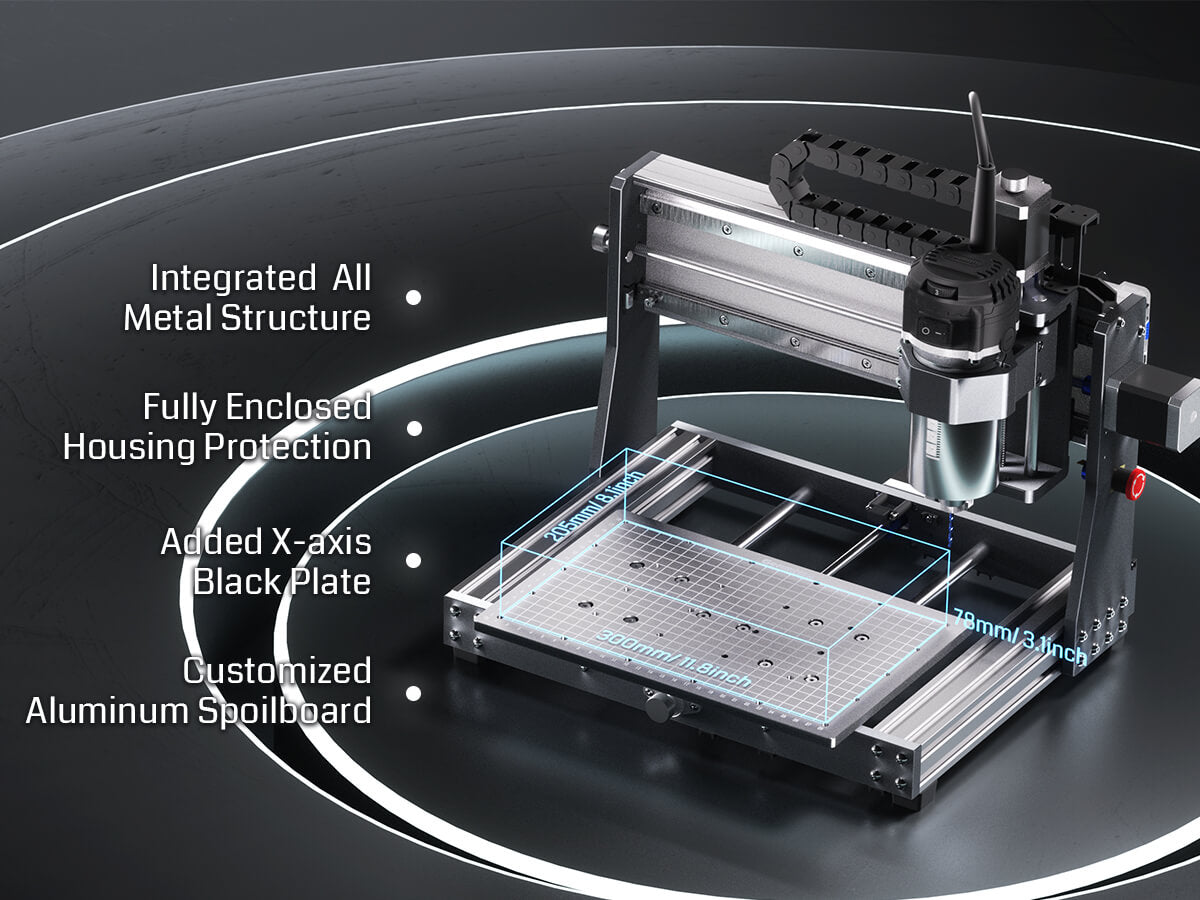

All-Metal Frame
Built with solid all-metal construction, the 3020-PRO Ultra CNC router features the X-axis with dual linear rails and a lead screw, while the Z-axis uses 10mm and the Y-axis 12mm polished rods with T8 trapezoidal lead screws. Enclosed mold materials and a reinforced X-axis backplate ensure exceptional stability and precise performance

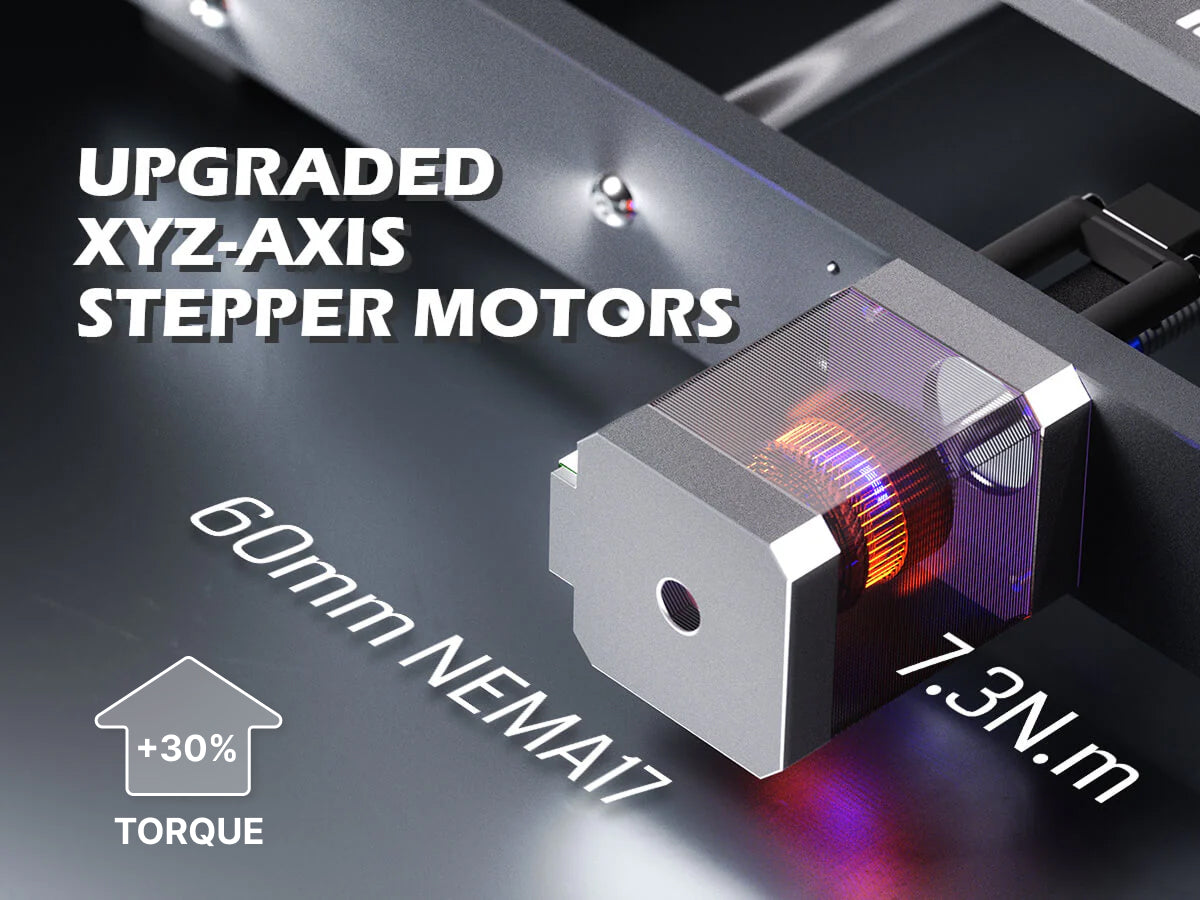

Unmatched Cutting Power
The XYZ-axis of this milling machine are equipped with powerful 60mm stepper motors, delivering an impressive 7.3 Nm of torque. Achieve deeper cuts in aluminum up to 1.5mm in one pass, making tough jobs faster and easier.

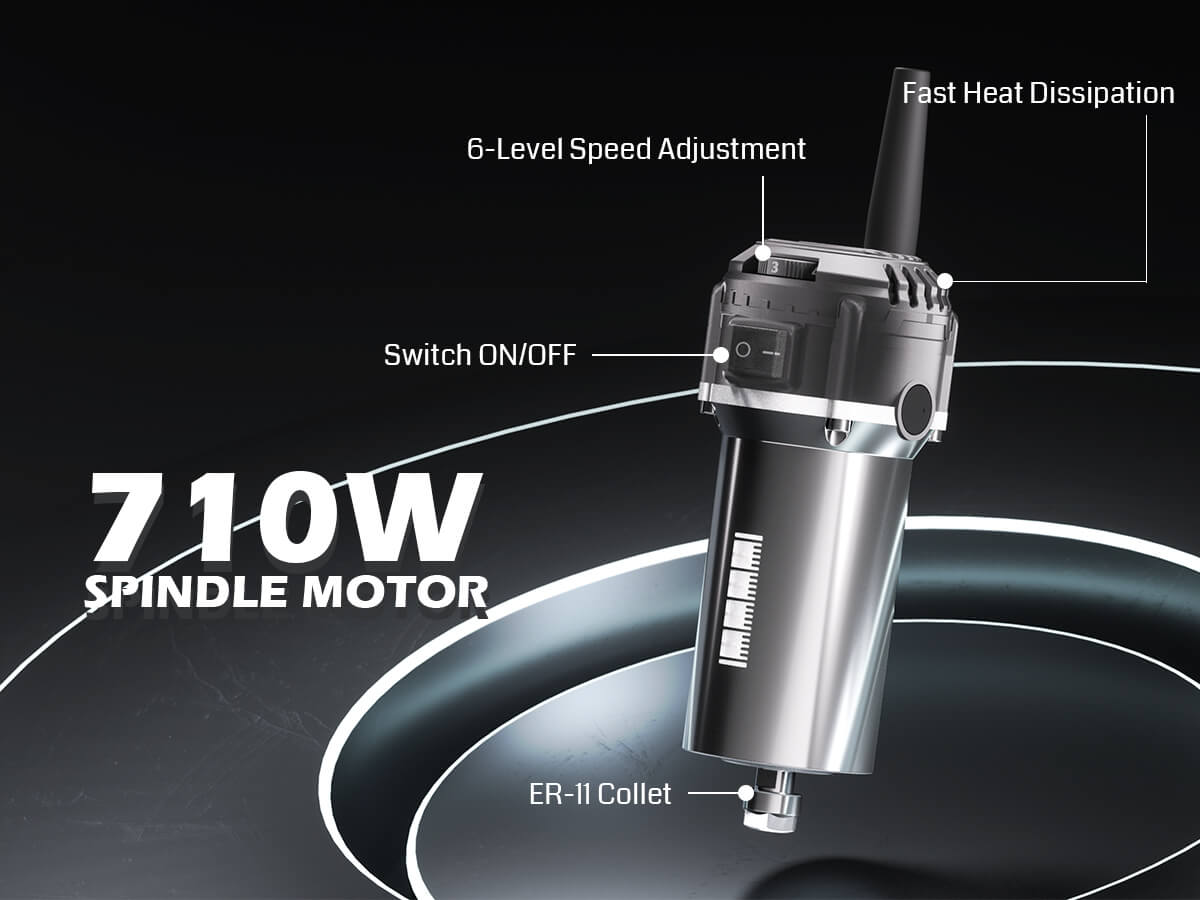

710W Spindle
Whether you're working with solid wood, metal, acrylic, carbon fiber or more, the upgraded spindle with a 1/8” ER11 collet has you covered. The adjustable speed range (6500-30000 RPM) with 6-speed settings and constant torque control delivers consistent performance.

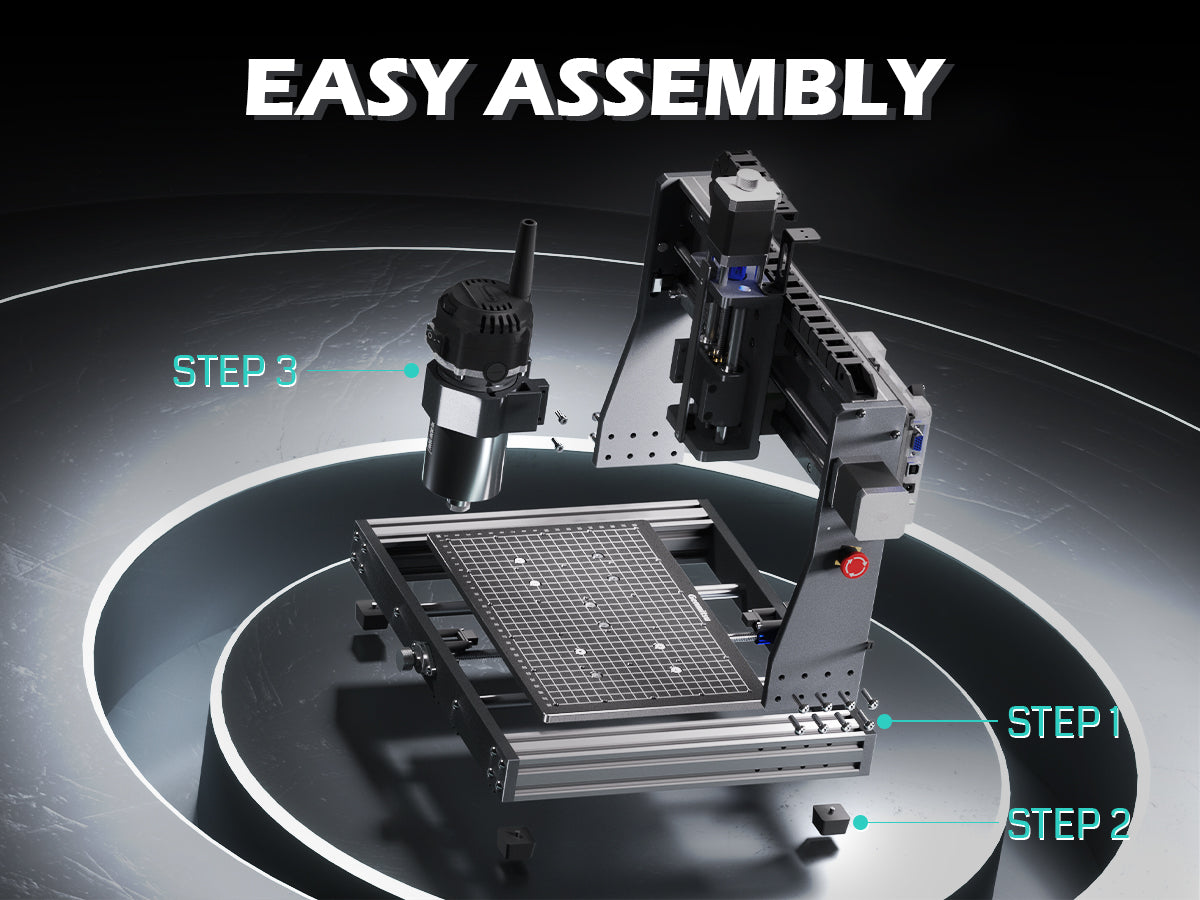

Simpler & Safer
Eliminates the heavy power box and incorporates a cooling fan with the motherboard, integration is now more streamlined and secure than ever. The machine features a modular assembly design, allowing you to complete the installation in just two simple steps.

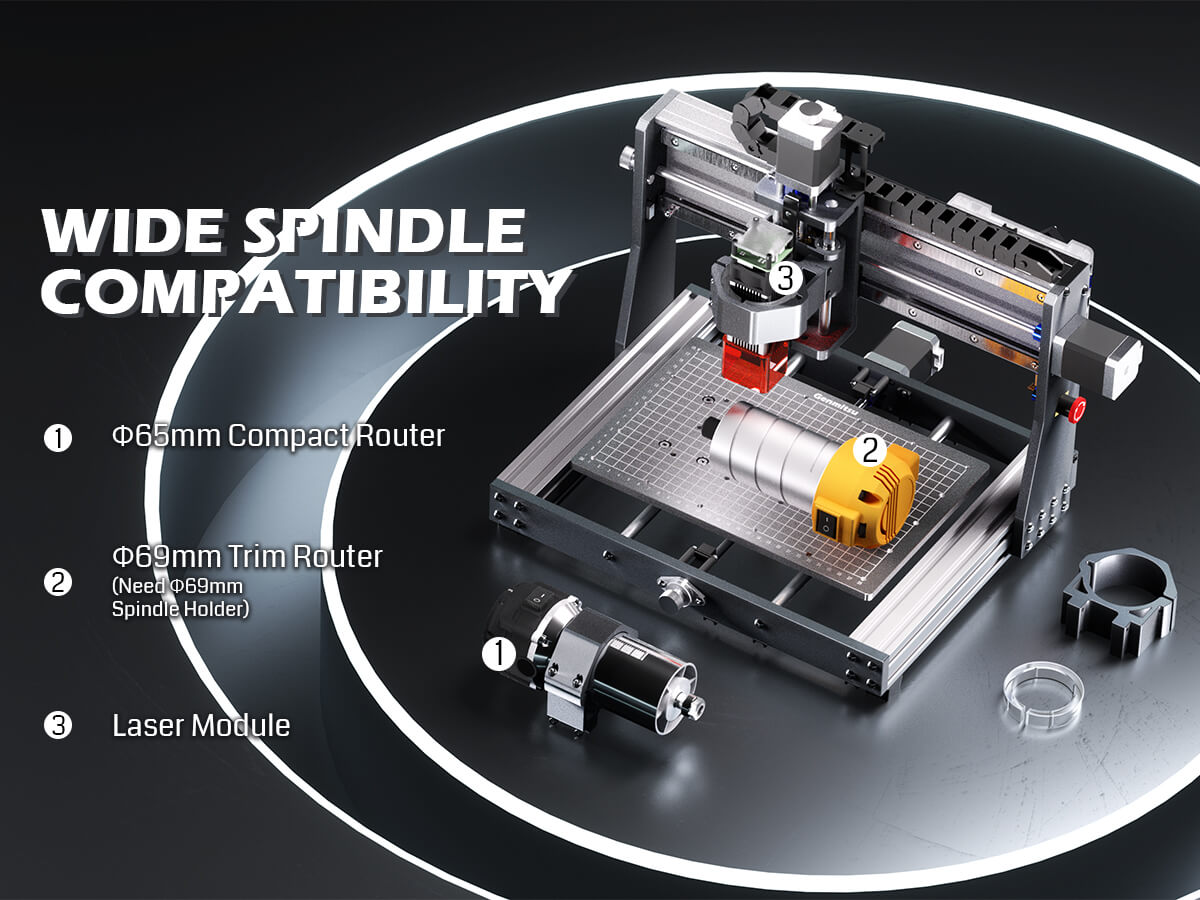

Versatile Compatibility
Easily switch between different spindles and laser modules with the included Φ65mm spindle holder and Φ52mm adapter. Also compatible with Φ69mm spindle brackets (sold separately), giving you the flexibility to expand your machine’s capabilities effortlessly.
Wide Appilcation
The 3020-PRO Ultra is designed to engrave a wide range of materials, including wood, aluminum, brass, carbon fiber, and acrylic. Equipped with a powerful 710W spindle, it delivers enhanced precision and performance, making it ideal for various applications and user needs.
Specifications
Specifications
| Feature | 3020-PRO Ultra | 3020-PRO MAX V2 |
|---|---|---|
| Effective Working Range | 300 x 205 x 78mm (11.81 x 8.07 x 3.07inches) | 300 x 205 x 78mm (11.81 x 8.07 x 3.07inches) |
| X-axis Structure | Dual steel X-axis guide rail with an enclosed mold material and added X-axis back plate | Dual steel X-axis guide rail with an enclosed mold material and added X-axis back plate |
| Spindle Motor | 710W Spindle (Φ65mm) | 300W Spindle (Φ52mm) |
| Stepper Motor | NEMA17 H60mm 42 | NEMA17 H48mm 42 |
| Limit Switches | √(6) | √(6) |
| MPG Port | √ | √ |
| Air Assistance Pump Port | X | X |
| Z-Probe | Photoelectric Z-probe with indicator | Photoelectric Z-probe with indicator |
| Offline Controller included | √ | √ |
| MCU | 32bits GD32 | 32bits GD32 |
| Emergency-Stop Pre Assembled | √ | √ |
| 4th Axis Support | X | X |
| MPG Interface | √ | √ |
What's in the box
1x XY-axis Base Assembly 1x XZ-axis Assembly 1x Φ65mm Spindle Motor Mount 1x Φ52mm Retaining Ring 1x 710W Compact Router Kit 1x Offline Controller 1x 20-degree V Bit Set 1x Z-Probe Kit 1x ER11 1/8” Collet 4x Clamp Kit 1x Cables & Ties Set 1x Power Supply 1x Screw Set 1x SD Card & Card Reader 1x Wrench (10mm, 17mm)
Resource
Resource Page (Click to read) User Manual (Click to read) 🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
6 specifications
Key specifications
- Working area (X, Y, Z)
- Not specified
- Spindle power
- 710 W
- Materials supported
- Wood, acrylic, aluminium, brass, carbon fibre
- Positioning accuracy
- Not specified
- Dust / chip extraction
- Not specified
- Warranty
- Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1x XY-axis Base Assembly
- 1x XZ-axis Assembly
- 1x Φ65mm Spindle Motor Mount
- 1x Φ52mm Retaining Ring
- 1x 710W Compact Router Kit
- 1x Offline Controller
- 1x 20-degree V Bit Set
- 1x Z-Probe Kit
- 1x ER11 1/8” Collet
- 4x Clamp Kit
- 1x Cables & Ties Set
- 1x Power Supply
- 1x Screw Set
- 1x SD Card & Card Reader
- 1x Wrench (10mm, 17mm)
