3018-PRO Desktop CNC Router DIY Kit
If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns.
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 14£138
SKU SS-101-60-280PRO-EB-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
3018-PRO Desktop CNC Router DIY Kit. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
3018-PRO Desktop CNC Router DIY Kit · Technical features from Genmitsu.

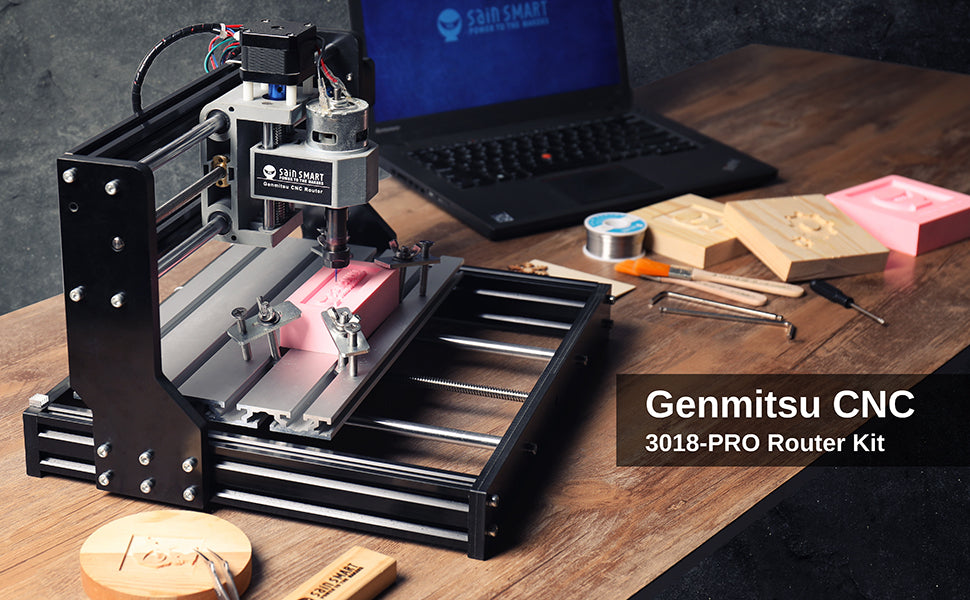

The Genmitsu CNC
Designed to deliver the best value and performance for any new Desktop CNC user, the Genmitsu is a great tool for getting started with CNC. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you can design with the included CARVECO Maker design software.
Versatile
The Genmitsu is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. The effective engraving depth is 1.8 inches. You will find the SainSmart Genmitsu is an excellent self-teaching tool which allows you to try your DIY ideas on an inexpensive platform without the risk of damaging expensive equipment.

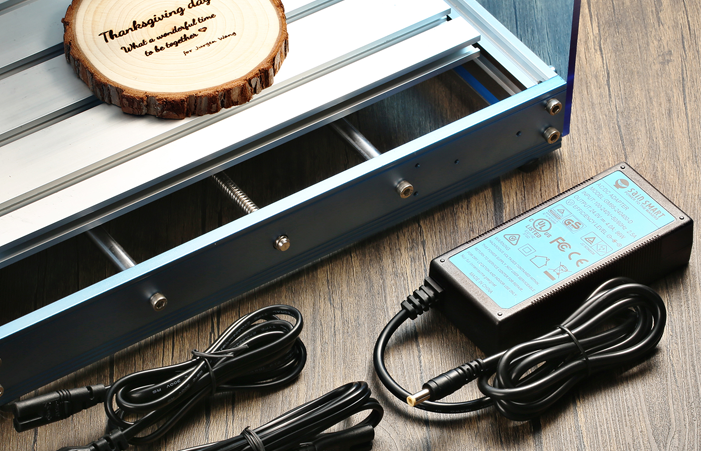

Upgraded Power Adapter
UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed and also supports the Genmitsu 3018 PRO Laser.

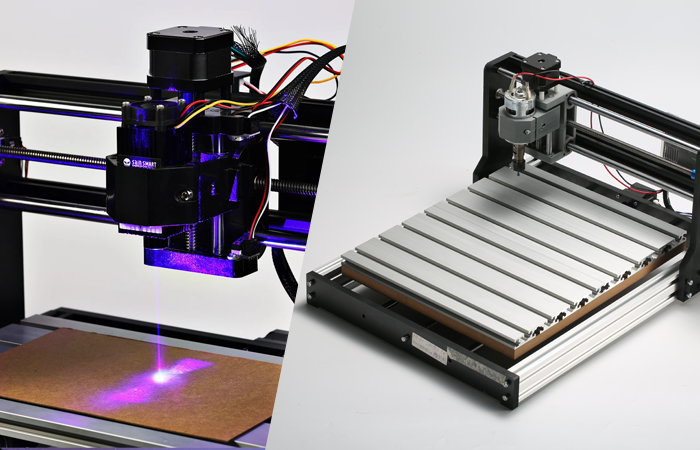

Add-on Laser, Frame Extension, and Z-Axis Module Upgrades*
If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine as a drop-in upgrade. Or if you need an extra working room you can add the Y-Extension and expand your work area potential. If you need to work with harder materials upgrade your Z-Axis with the new all-metal carrier with support for larger 300w spindles..( Laser Module ) ( Extension Kit Z-Axis Spindle Carrier* )

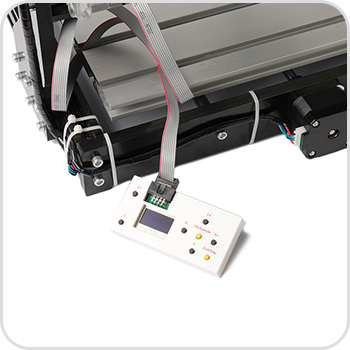

Offline Control
With SainSmart offline controller module, you can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.

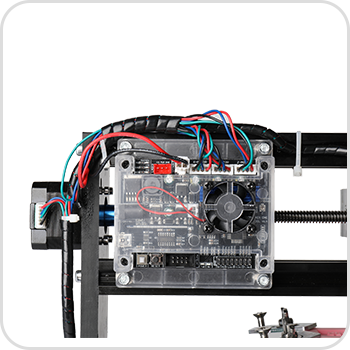

Latest V2 CNC Controller
More reliable and safer to use. With built-in fault protection and improved driver performance, you can count on your Genmitsu 3018-PRO to last for many projects to come.

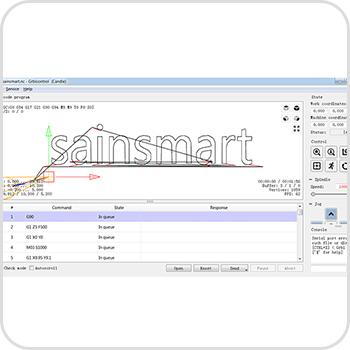

Open Source
It's built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.
Specifications
Specifications
| Feature | 3018-PROVer V2 | 3018-PRO | 3018 REX |
|---|---|---|---|
| Assembly Time | 20-35 mins | <2 hours | 10 mins |
| Working Area | 11.4" x 7.1" x 1.6" (290 x 180 x 40mm) | 11.8" x 7.1" x 1.8" (300 x 180 x 45mm) | 11.81" x 7.09" x 2.36" (300 x 180 x 60mm) |
| Spoilboard | One-piece machined and molded aluminum | T-slot 2040 Aluminum Profile | T-slot Aluminum Platform |
| Control Board | 32-bit | 8-Bit | 32-bit |
| Power Supply | 24V/4A | 24V/4A | 24V/4A |
| Max Speed | - | 1200 mm/min | 3000 mm/min |
| Driver Chip | TB67S109 | DRV8825 | TB67S109 (Silent) |
| MPG Port | √ | × | × |
| 3 Pin Laser Port | √ | × | √ |
| Air Assistance Pump Port | √ | × | × |
| Z-Probe Port | 3 Pin with indicator light | 2 Pin | √ |
| Pre Assembled(Control Board, Emergency-Stop, Cable Management, X, Y axis Limit Switches) | √ | × | √ |
| Frame & Structure | All Aluminum | All Aluminum | All Aluminum |
| Motion System | Linear Shaft & Leadscrew | Linear Shaft & Leadscrew | Linear Guide & Leadscrew |
| X-Z Axis Assembly Material | Plastic | Plastic | Plastic |
| 4th Axis Support | × | × | √ |
| Stepper Motor Jog Wheels | √ | × | × |
| Offline Controller Included | Optional | √ | Genmitsu APP |
| Home and Limit switches | √ | × | √ |
| Emergency-Stop | √ | × | √ |
| Z-Probe | √ | × | √ |
| Wireless App Control | × | × | √ |
| Switchable to Laser Module | √ | √ | √ |
What's in the box
1x 3018-PRO DIY Router Kit 1x Offline Controller 1x Extension Rod with ER11 Collet (3.175mm) 4x Plate Clamps 10x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm) 1x User Manual
Resource
3018-PRO Quick Start Guide; Test and Review Video. PSE Certification Software Links: LaserGRBL: The best free GCode sender for DIY Laser Engraver. LaserGRBL is able to load and stream GCode path to arduino, as well engrave images, pictures and logo with internal conversion tool. Can click here to buy a laser module. LightBurn is a premium version of LaserGRBL which allows you powerful tools for editing, adjusting the layout and controlling your laser. LightBurn is a native application written for Windows, Mac OS, and Linux. Can click here to buy the LightBurn GCode License Key. Easel is the all-in-one software solution for 3D carving machines. Designed by Inventables, Easel is the easiest way to get started in the world of 3D carving. Fusion 360 Integrated CAD, CAM, & CAE software for everyone. Animation. Access Anywhere. Easy Collaboration. Try It Free. Integrated Design Tools. Next-Gen 3D CAD/CAM. Fabrication. Recommended Materials
Resource
| Feature | Leather | Wood | POM |
|---|---|---|---|
| Graphite Blocks | Resin | Chipboard | PVC |
| MDF | Nylon | Cast Acrylic | Carbon Fiber |
3018-PRO Desktop CNC Router DIY Kit
Reviews 🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
28 specifications
Key specifications
- Working area (X, Y, Z)
- 11.8" x 7.1" x 1.8" (300 x 180 x 45mm)
- Spindle power
- Not specified
- Materials supported
- Wood, plastics, acrylic, PVC, PCB, soft aluminium
- Positioning accuracy
- Not specified
- Dust / chip extraction
- Not specified
- Warranty
- Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.
Additional specifications
- Z probe
- ×
- Mpg port
- ×
- Max speed
- 1200 mm/min
- Spoilboard
- T-slot 2040 Aluminum Profile
- Driver chip
- DRV8825
- Power supply
- 24V/4A
- Z probe port
- 2 Pin
- Assembly time
- <2 hours
- Control board
- 8-Bit
- Motion system
- Linear Shaft & Leadscrew
- Emergency stop
- ×
- Frame structure
- All Aluminum
- 3 pin laser port
- ×
- 4th axis support
- ×
- Wireless app control
- ×
- Home and limit switches
- ×
- Air assistance pump port
- ×
- Stepper motor jog wheels
- ×
- Switchable to laser module
- √
- X z axis assembly material
- Plastic
- Offline controller included
- √
- Pre assembled control board emergency stop cable management x y axis limit switches
- ×
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1x 3018-PRO DIY Router Kit
- 1x Offline Controller
- 1x Extension Rod with ER11 Collet (3.175mm)
- 4x Plate Clamps
- 1x Offline Controller
- 10x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)
- 1x User Manual
