In stockGenmitsu
3018-PRO Desktop CNC Router DIY Kit
- Work area
- 300 × 180 × 45 mm
- Materials
- Wood, plastics, acrylic, PVC, PCB, soft aluminium
£138
Genmitsu · UK product support
3018-PROVer V2 Desktop CNC Router Kit, Semi Assembled For Entry Level User
SainSmart provides the widest selection of Desktop CNC Machines.
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 17£248
SKU SS-101-60-3018PV2L-EB-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
3018-PROVer V2 Desktop CNC Router Kit, Semi Assembled For Entry Level User. SainSmart provides the widest selection of Desktop CNC Machines.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
3018-PROVer V2 Desktop CNC Router Kit, Semi Assembled For Entry Level User · Technical features from Genmitsu.

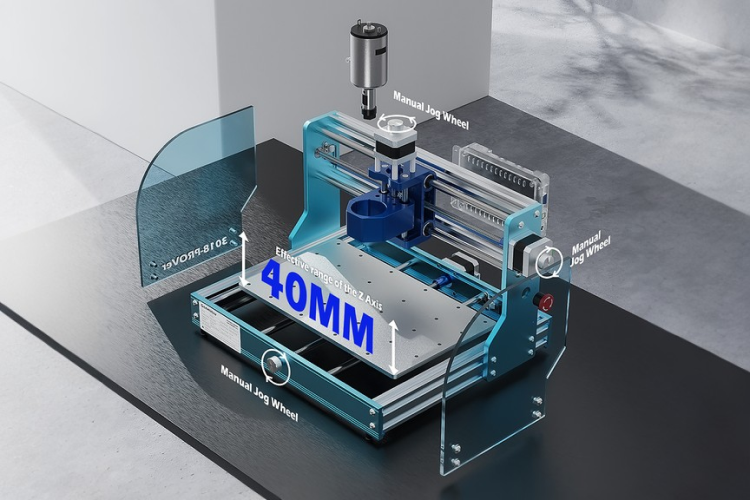

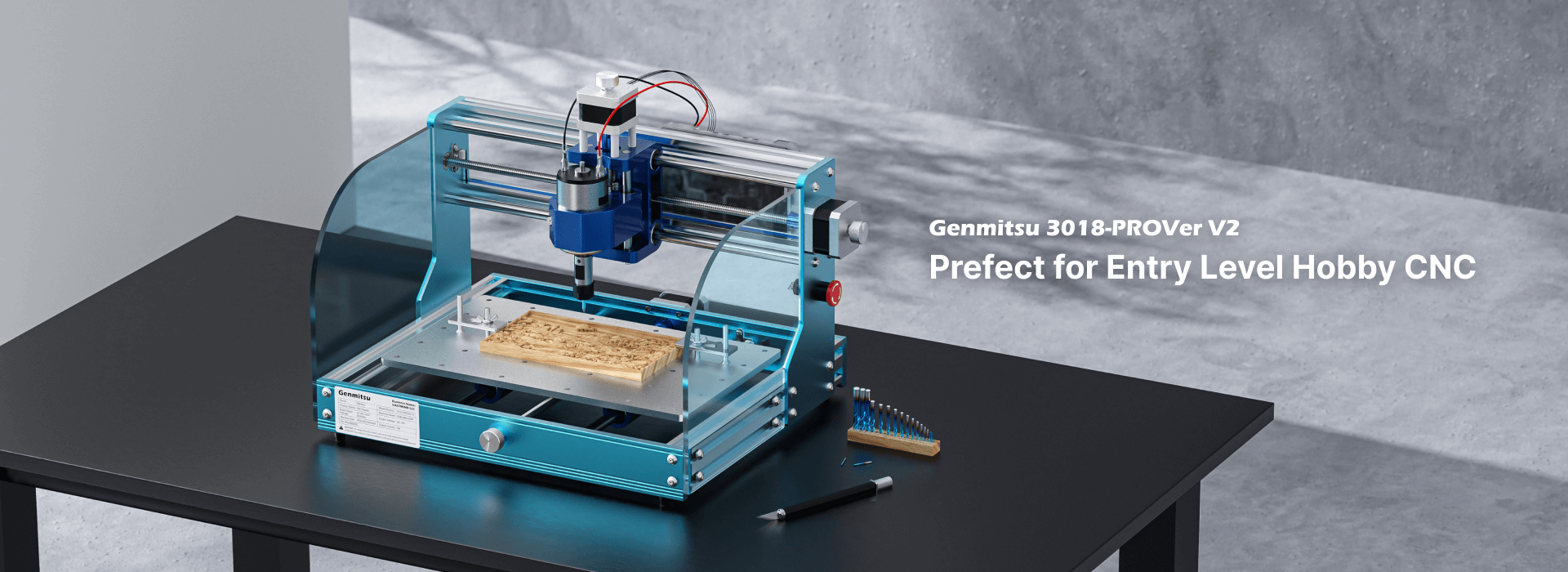

Genmitsu 3018-PROVer V2 Upgraded CNC Router, Best for Beginner
Efficient Pre-assembly
Take 20-35 mins to finish the assembly. More parts are pre-assembled, including the machine frame, emergency-stop button, limit switches, cable management. This mostly pre-assembled desktop CNC machine gets you up and running in 35 minutes instead of hours, making it no challenge for beginners.

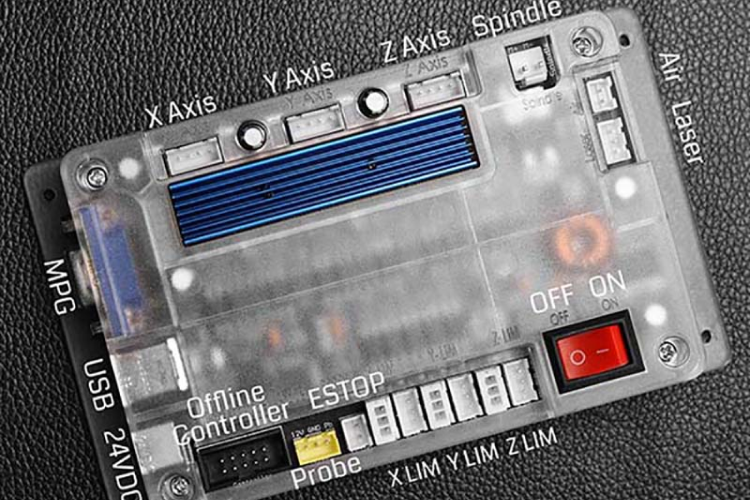

Redesigned Control Board
The new control board comes with but not limited to MPG Port, 3 Pin Laser Port, Air Assistance Pump Port. These ports will support more add-on for enriching the function of your CNC machine.

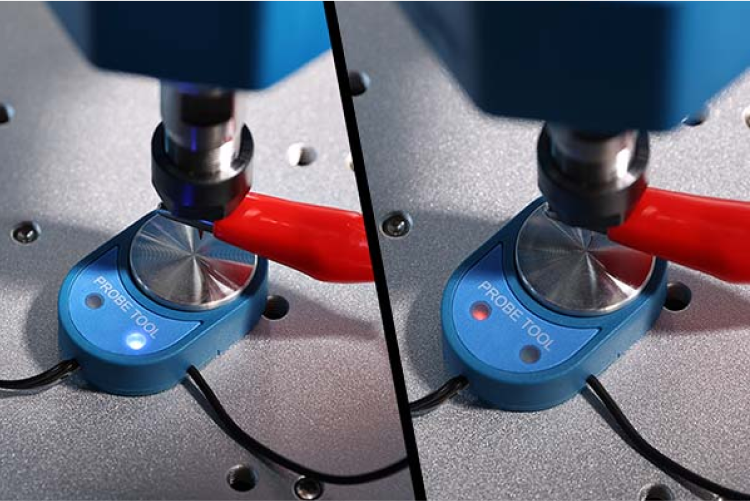

Upgraded Z-Axis Tool Setting Touch
The upgraded Z-Axis Tool Setting Touch Probe will save you time in the setup process. It comes with two indicators. The blue indicator will light on when the Z-Axis Touch Probe connects to the control board, and the red indicator will light on when the CNC bits touch the Z probe.

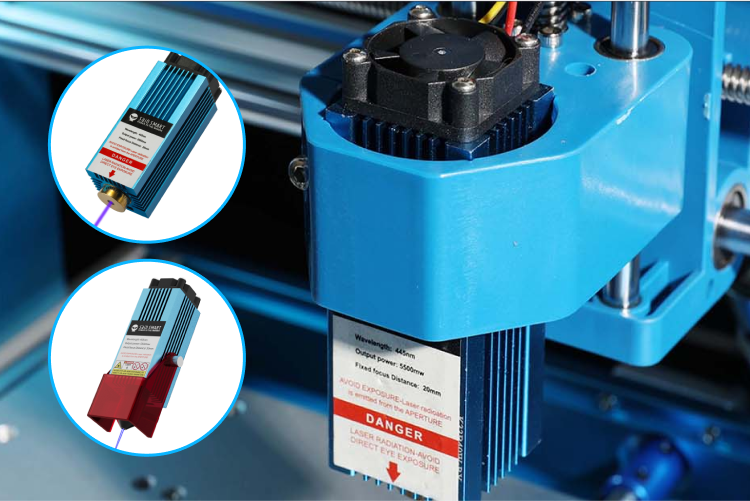

Laser Module Available
If you are a CNC engraving enthusiast looking for an upgrade, you can add the matching laser module kit to the machine. The compatible 5.5W Compressed Spot Laser Module and Fixed Focus Laser Module are available. Also, the control board supports adding the air pump for the laser module to cut faster and deeper. (Need to purchase separately)
Reviews on 3018-PROver V2
Genmitsu 3018-PROVER V2 CNC Router | SainSmart
Genmitsu 3018-PROVER V2 CNC Router | SainSmart
Genmitsu 3018-PROVER V2 CNC Router | SainSmart
Genmitsu 3018-PROVER V2 CNC Router | SainSmart
Specifications
Specifications
| Feature | 3018-PROVer V2 | 3018-PRO | 3018 REX |
|---|---|---|---|
| Assembly Time | 20-35 mins | <2 hours | 10 mins |
| Working Area | 11.4" x 7.1" x 1.6" (290 x 180 x 40mm) | 11.8" x 7.1" x 1.8" (300 x 180 x 45mm) | 11.81" x 7.09" x 2.36" (300 x 180 x 60mm) |
| Spoilboard | One-piece machined and molded aluminum | T-slot 2040 Aluminum Profile | T-slot Aluminum Platform |
| Control Board | 32-bit | 8-Bit | 32-bit |
| Power Supply | 24V/4A | 24V/4A | 24V/4A |
| Max Speed | - | 1200 mm/min | 3000 mm/min |
| Driver Chip | TB67S109 | DRV8825 | TB67S109 (Silent) |
| MPG Port | √ | × | × |
| 3 Pin Laser Port | √ | × | √ |
| Air Assistance Pump Port | √ | × | × |
| Z-Probe Port | 3 Pin with indicator light | 2 Pin | √ |
| Pre Assembled(Control Board, Emergency-Stop, Cable Management, X, Y axis Limit Switches) | √ | × | √ |
| Frame & Structure | All Aluminum | All Aluminum | All Aluminum |
| Motion System | Linear Shaft & Leadscrew | Linear Shaft & Leadscrew | Linear Guide & Leadscrew |
| X-Z Axis Assembly Material | Plastic | Plastic | Plastic |
| 4th Axis Support | × | × | √ |
| Stepper Motor Jog Wheels | √ | × | × |
| Offline Controller Included | Optional | √ | Genmitsu APP |
| Home and Limit switches | √ | × | √ |
| Emergency-Stop | √ | × | √ |
| Z-Probe | √ | × | √ |
| Wireless App Control | × | × | √ |
| Switchable to Laser Module | √ | √ | √ |

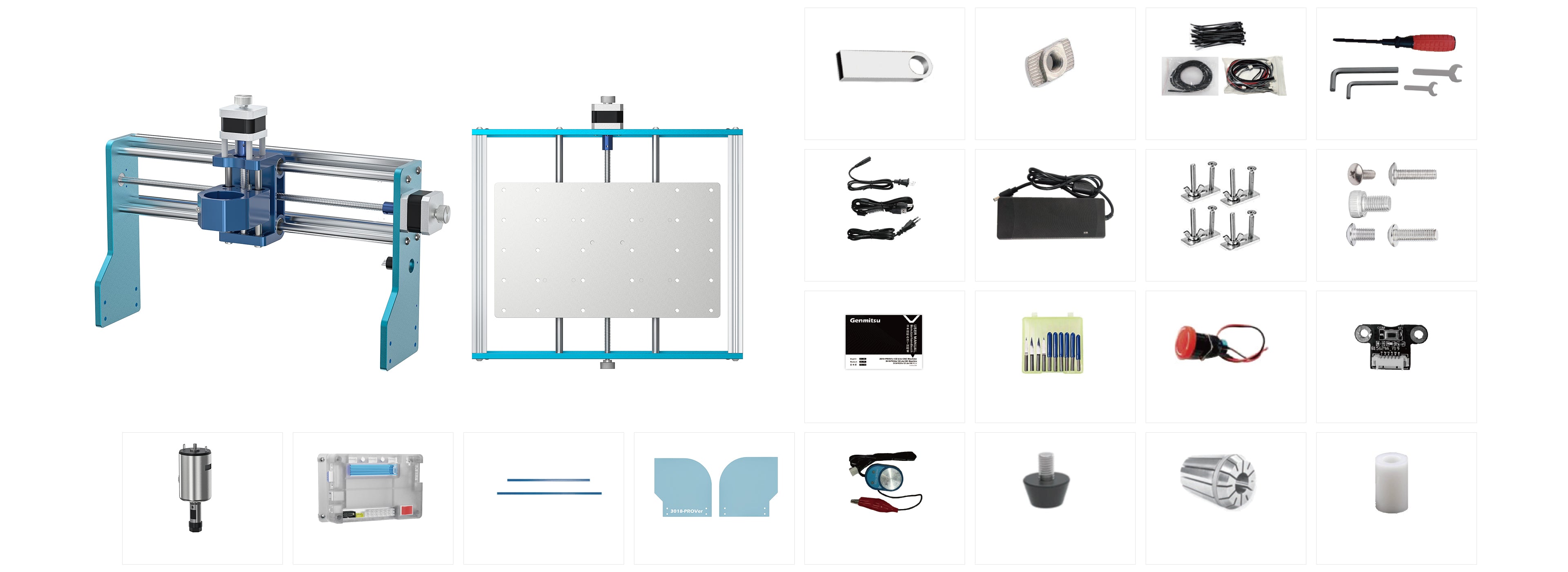

What's in the box
FAQs
How do you create the design file that tells the CNC what to do? Is that done in GRBL software? There are three steps to mill something. 1. CAD software to 3D model the part. 2. CAM to generate the GCode for toolpaths. 3. GRBL to send to the Router or put GCode on a memory card and run on the router. For 3 types of software, the manufacturer lists:CAD: Easel, Fusion360, Carveco MakerCAM: Easel, Fusion360, Carveco MakerControl software: UGS, Candle, Easel, Fusion 360 Does the control board have a power connection to install a laser? What laser module is for this CNC machine? Yes, the control board has a 3-pin port for adding the laser module. The compatible laser module is the CFL55P Compressed Spot Laser Module Is there a forum that discusses these desktop CNC machines, particularly this one? Yes, there is a very active Facebook group under 'SainSmart Genmitsu users'. What is the diameter of the spindle? Which dust shoe is compatible with this spindle? The stock spindle is 775 spindle and its diameter is 42mm. Check the 42 mm dust-shoe dimensions before purchase. Do you need a computer to run this router? It comes with an offline controller. You could copy the G-code from your computer to the SD card of the offline controller and then run the router without the computer. Does it come with clamps and CNC router bits? Yes, it comes with 4 pcs of clamps and 10 pcs of 20-degree v bits. Sent code to machine and it moves but motor no spin. I click the spindle command then will start spinning but will not move X, Y only Z up direction, why?? Will there be an extension kit for the Y-axis for the 3018-PROVer V2 in the future? Check current model-specific extension kits; historical launch promises do not confirm availability. Is the aluminum spindle holder compatible with the 3018-PROVer V2? No, it is not compatible. But we will launch the new aluminum spindle holder for the 3018-PROVer V2 soon.
Resource
🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
28 specifications
Key specifications
- Working area (X, Y, Z)
- 11.4" x 7.1" x 1.6" (290 x 180 x 40mm)
- Spindle power
- Not specified
- Materials supported
- Not specified
- Positioning accuracy
- Not specified
- Dust / chip extraction
- Not specified
- Warranty
- Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.
Additional specifications
- Z probe
- √
- Mpg port
- √
- Max speed
- -
- Spoilboard
- One-piece machined and molded aluminum
- Driver chip
- TB67S109
- Power supply
- 24V/4A
- Z probe port
- 3 Pin with indicator light
- Assembly time
- 20-35 mins
- Control board
- 32-bit
- Motion system
- Linear Shaft & Leadscrew
- Emergency stop
- √
- Frame structure
- All Aluminum
- 3 pin laser port
- √
- 4th axis support
- ×
- Wireless app control
- ×
- Home and limit switches
- √
- Air assistance pump port
- √
- Stepper motor jog wheels
- √
- Switchable to laser module
- √
- X z axis assembly material
- Plastic
- Offline controller included
- Optional
- Pre assembled control board emergency stop cable management x y axis limit switches
- √
Frequently asked questionsAnswers to common questions about this product.
Looking to get started with desktop CNC? New hobby or small business?
The Genmitsu 3018-PROVer V2 is a desktop CNC router with partially assembled components and a redesigned control board with expansion connections. Compare the selected package, software requirements and compatible accessories before ordering. Fabinity’s published warranty and returns policies apply.
