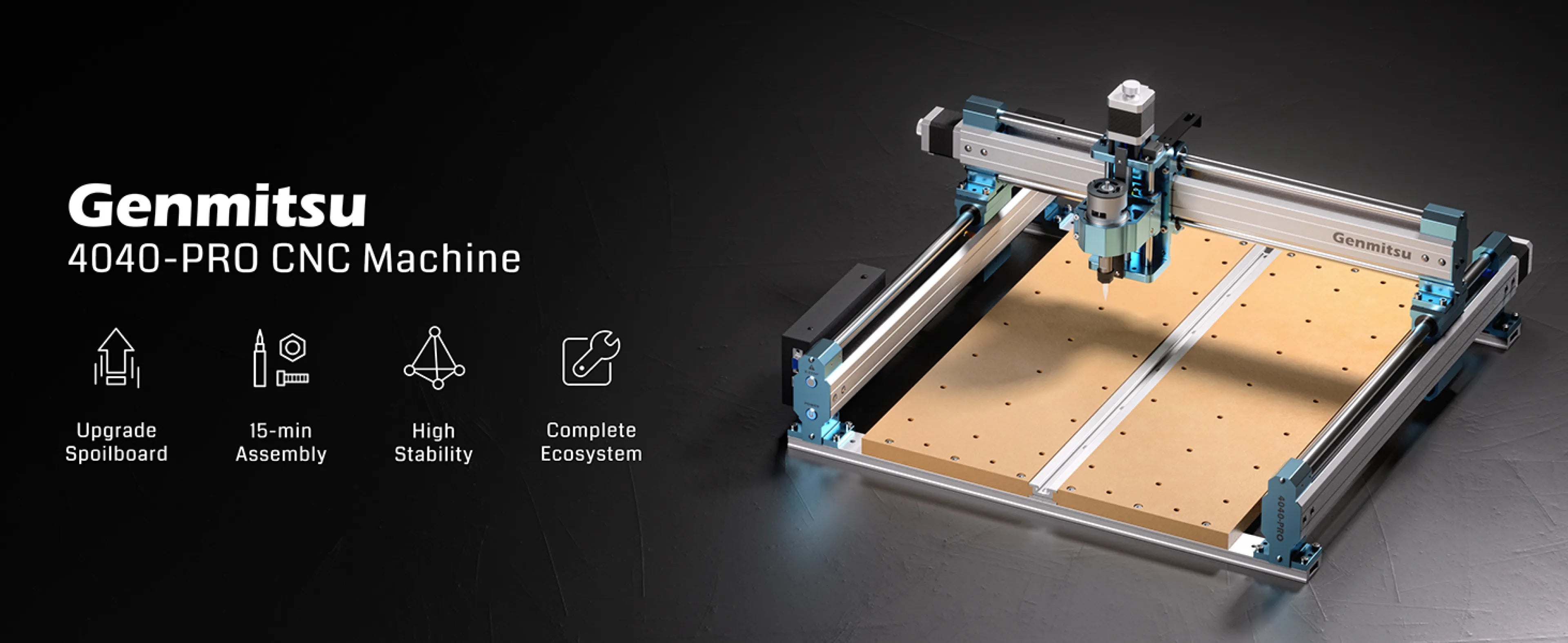

4040-PRO Desktop CNC Router Machine for Carving and Cutting
Stop struggling with uneven cuts caused by sagging platforms.
SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product
1 / 9£441
SKU SS-101-60-4040PRO-EB-1
Order before 3pm UK time for same-working-day processing, then tracked UK delivery.
Your selection
Select a quantity below to get started.
1
4040-PRO Desktop CNC Router Machine for Carving and Cutting. Stop struggling with uneven cuts caused by sagging platforms.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
4040-PRO Desktop CNC Router Machine for Carving and Cutting · Technical features from Genmitsu.

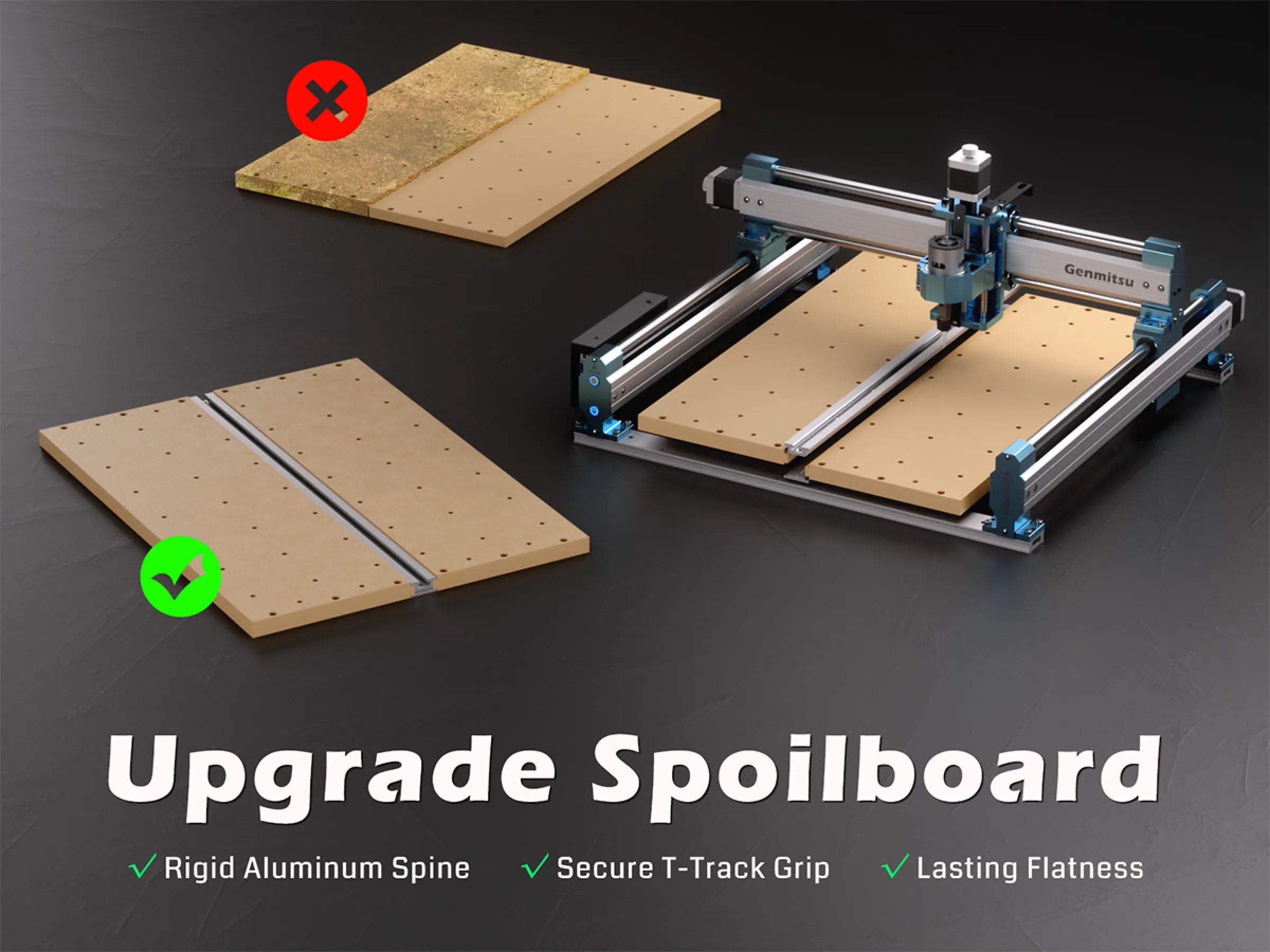

Reinforced Hybrid Spoilboard
Stop struggling with uneven cuts caused by sagging platforms. The 4040-PRO features an upgraded spoilboard with a central aluminum support bar and integrated T-track that reinforces the MDF to prevent deformation under load, ensuring consistent flatness for precision carving.

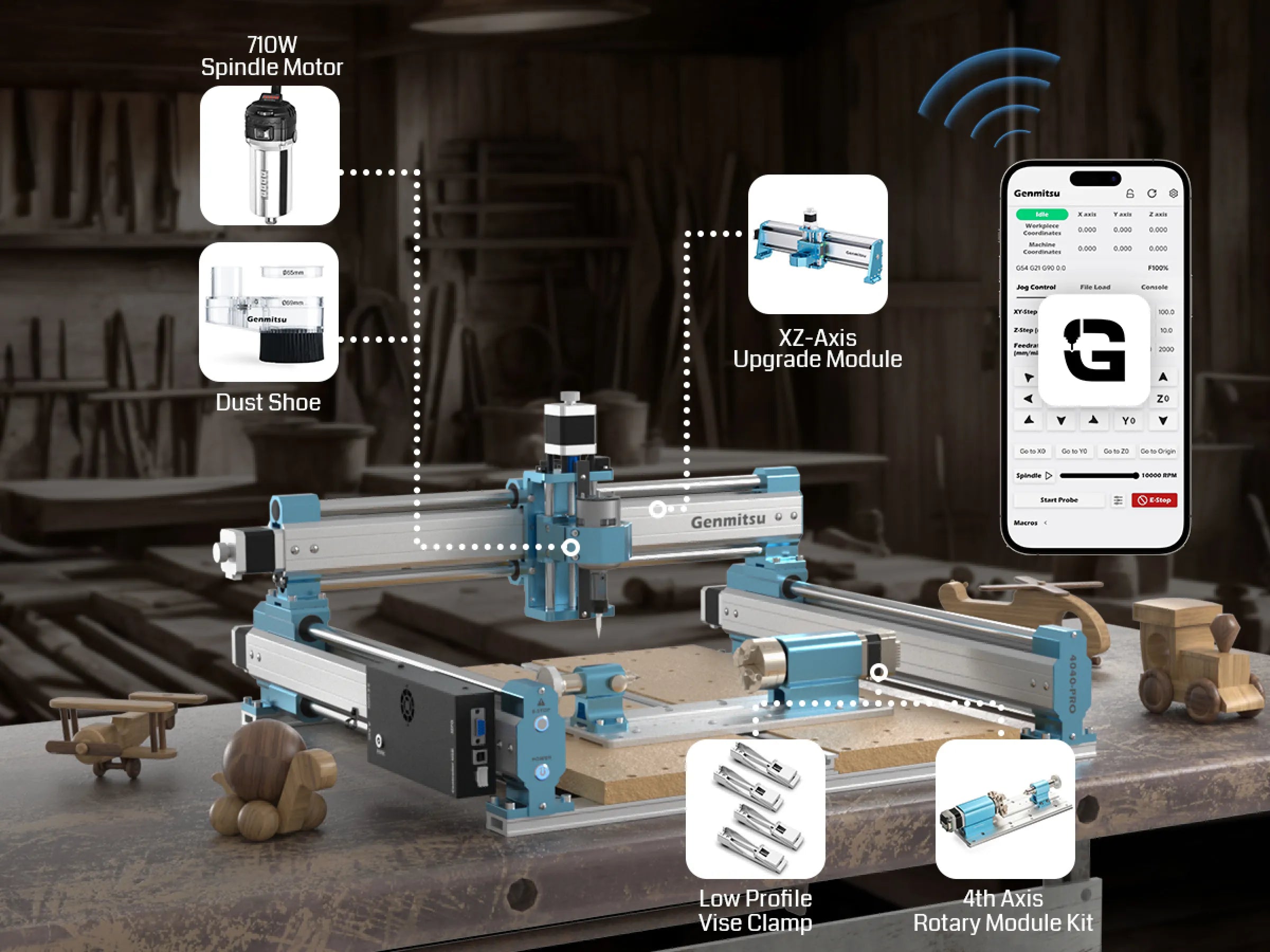

Ready for Upgrades
The redesigned Z-axis carriage simplifies spindle swaps (supports 65mm/69mm with extra mount). The control board features dedicated ports for a 3-pin laser, air assistance pump, and MPG controller, allowing the machine to grow with your skills.

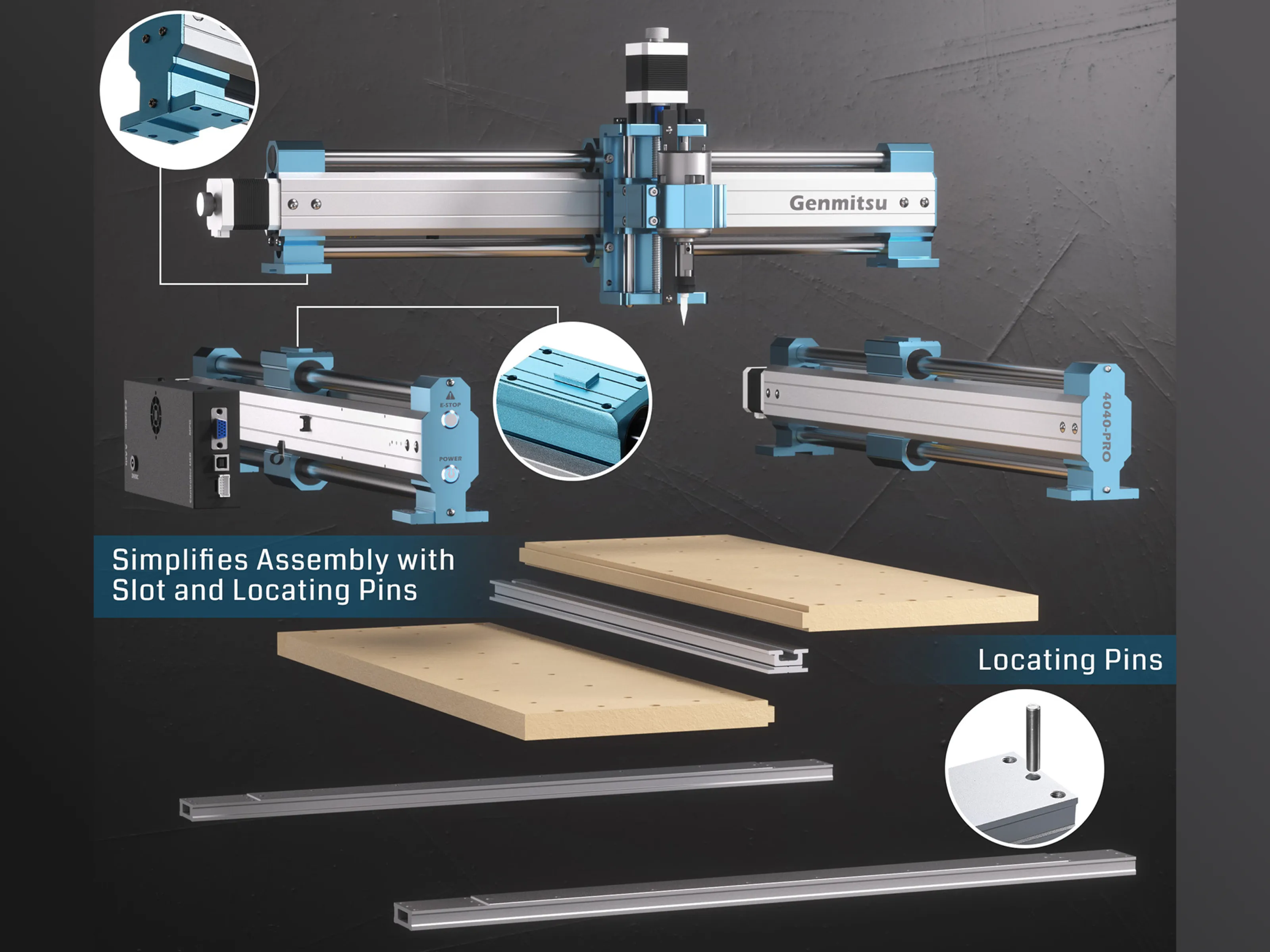

15-Min Frame Assembly
All main parts are pre-assembled and it just takes about 15 minutes to finish the whole machine assembly. Adding more grooves and locating pins on the main assembly parts will help you to locate the parts, avoid inaccurate alignment, and makes assembly easier.

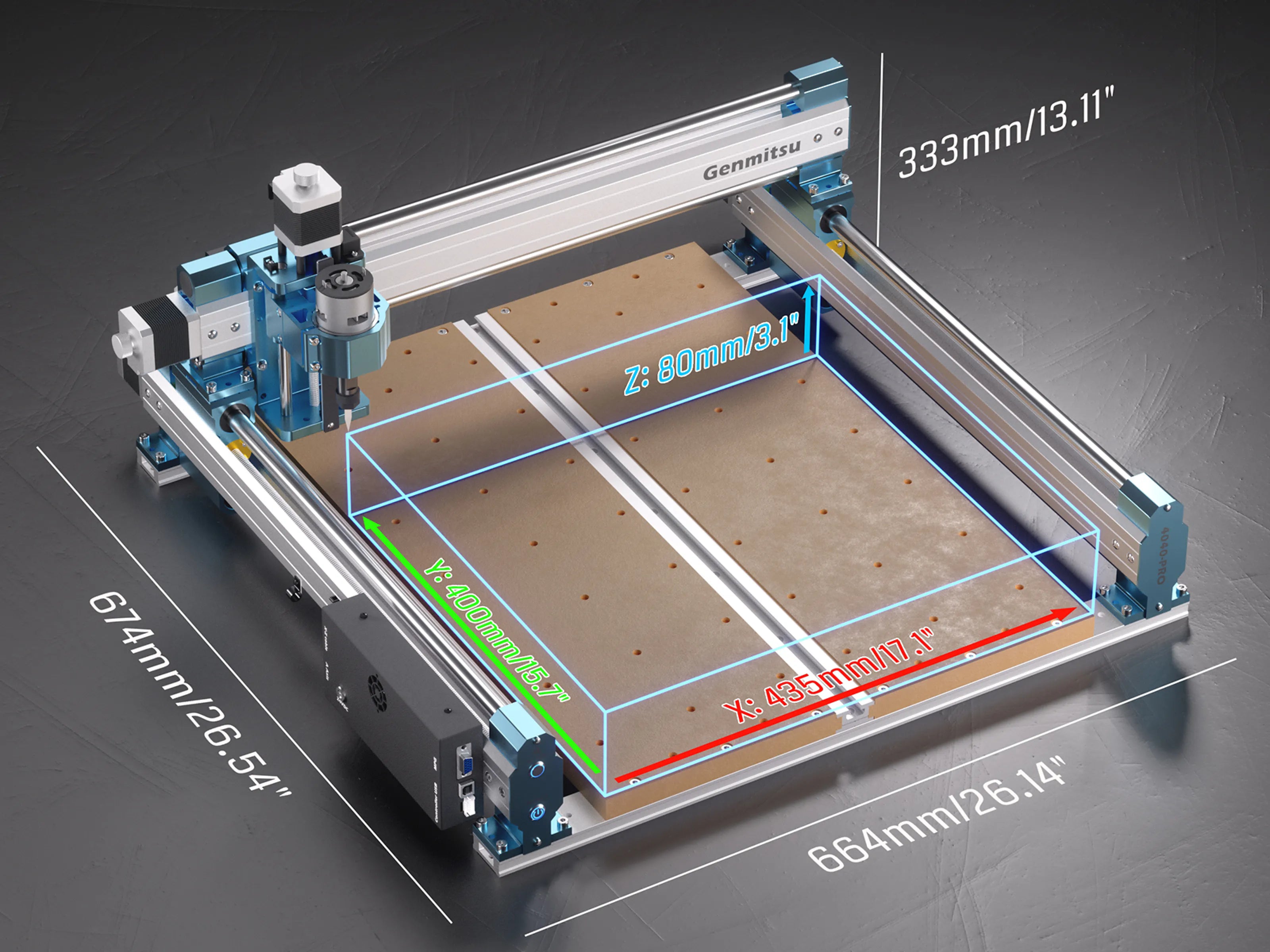

Large Working Area
An effective working area of 15.7"x15.7"x3.31" is large enough for most daily CNC projects. It provides a better experience for larger woodworking projects, whether you're a CNC beginner, a hobbyist, or a small business owner looking for enterprise quality for commercial purposes, this is an excellent choice.

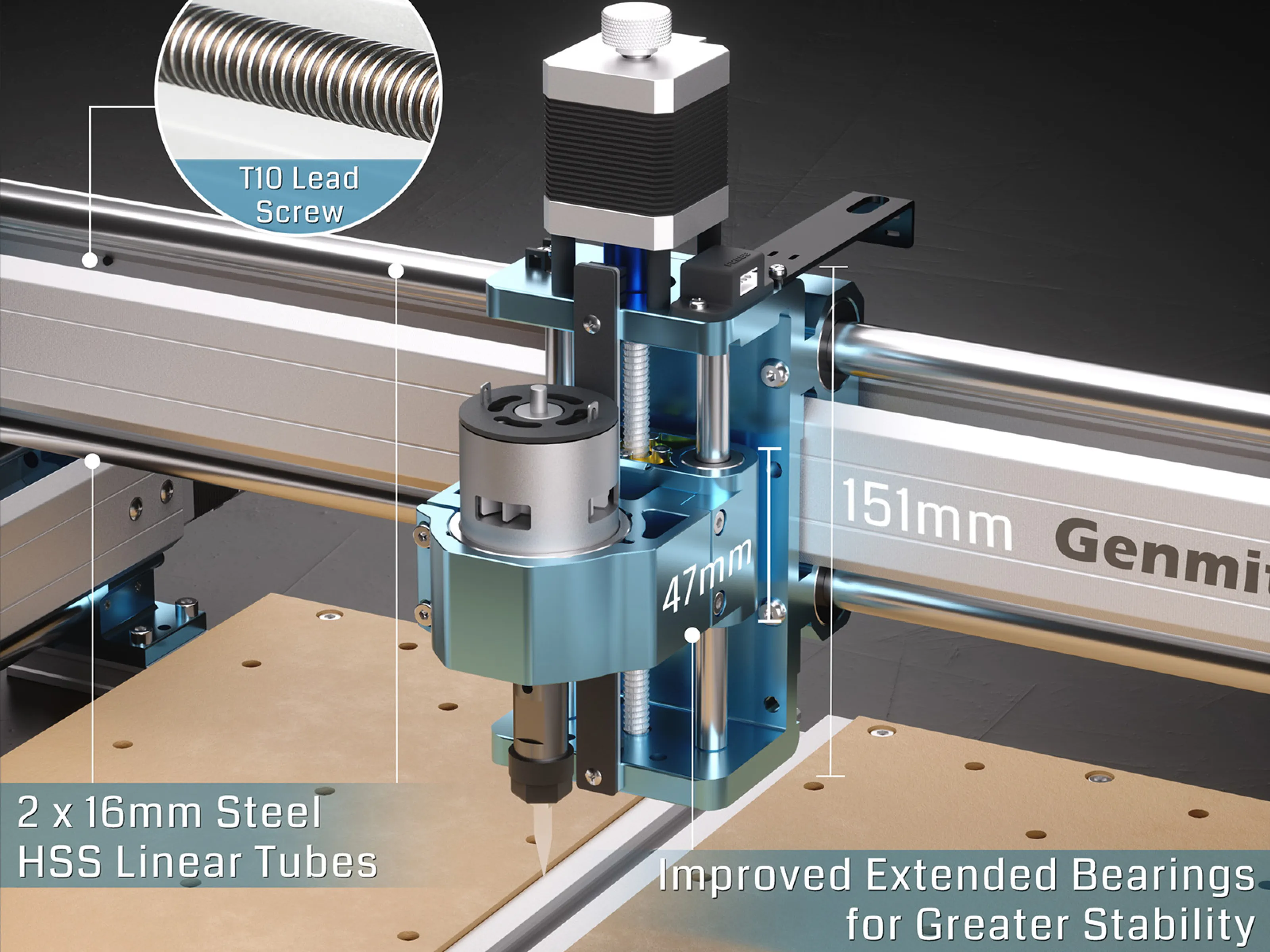

Higher & More Flexible Z-Axis
Adding more screw holes on the non-all-in-one Z-axis carriage allows you to install the larger spindle higher for extra overfeed height. The new spindle mount exchange solution makes the spindle mount exchange easier and ensures the perpendicularity of the installed spindle as well. φ65mm & φ69mm spindle mounts are available now.
YouTube video player
Sainsmart Genmitsu 4040 Pro CNC machine - Unboxing and Assembly Guide
Spoilboard and tramming on the Sainsmart Genmitsu 4040 Pro
Specifications

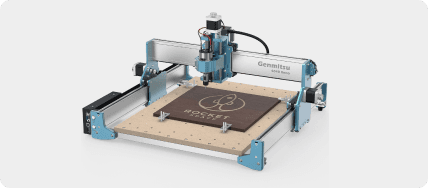

4040-RENO

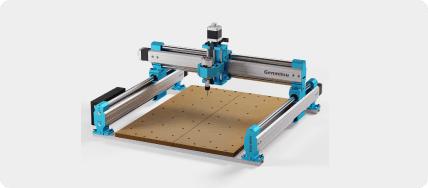

4040-PRO

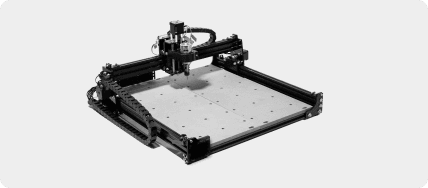

Other 4040
Comparison
| Feature | 4040-RENO | 4040-PRO | Other 4040 |
|---|---|---|---|
| Assembly Time | 30mins | <20mins | / |
| Frame Material | All Aluminum | All Aluminum | Aluminum+Acrylic |
| Max Speed(mm/m) | 2000 | 2000 | 2000 |
| Max RPM | 9000 | 9000 | 10000 |
| Running Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Drive System | Belt (X,Y)+Lead screw (Z) | Lead Screw | Belt (X,Y)+Lead screw (Z) |
| Laser Support | ✔️ | ✔️ | ✔️ |
| Semi-Assembled | ❌ | ✔️ | ❌ |
| Stepper motor | NEMA17 42 | NEMA17 42 | NEMA17 |
| Working Area | 400 x 400 x 76mm15.75 x 15.75 x 3.07in | 400 x 400 x 78mm15.75 x 15.75 x 3.1 in | 400x380x55mm15.7 x 15.0 x 2.2 in |
| Machine Size | 682 x 620 x 343mm26.85 x 24.41 x 13.50in | 673 x 663 x 336mm26.50 x 26.10 x 13.23in | / |
| Weight | 14.80kg32.6lb | 20.65kg45.5lb | / |
| Spindle Power | 75W (Upgradable) | 75W (Upgradable) | 60W |
| Spindle Mount | 42mm&52mm | 42mm&52mm | 42mm |
| Power Supply | 24V/4A | 24V/4A | 12V/5A |
| Limit switches | ✔️ | ✔️ | ✔️ |
| Emergency-Stop | ✔️ | ✔️ | ✔️ |
| Z-Probe | ✔️(Led) | ✔️(Led) | ✔️ |
| Baffles | ❌ | 4040 Dust Baffles | / |
| Offline Controller | CTL4040 | CTL4040 | ❌ |
| Hand-screwed Wheel Support | ✔️ | ✔️ | / |
| MPG Interface | ✔️ | ✔️ | / |
| Platform | MDF Platform | T-track Reinforced MDF Platform | MDF Platform |
| 4th Axis Support | ✔️ | ✔️ | / |
| Driver Chip | TB67S109 | TB67S109 | / |
| Control | GRBL | GRBL | GRBL |
| MCU | 32bits | 32bits | 32bits |

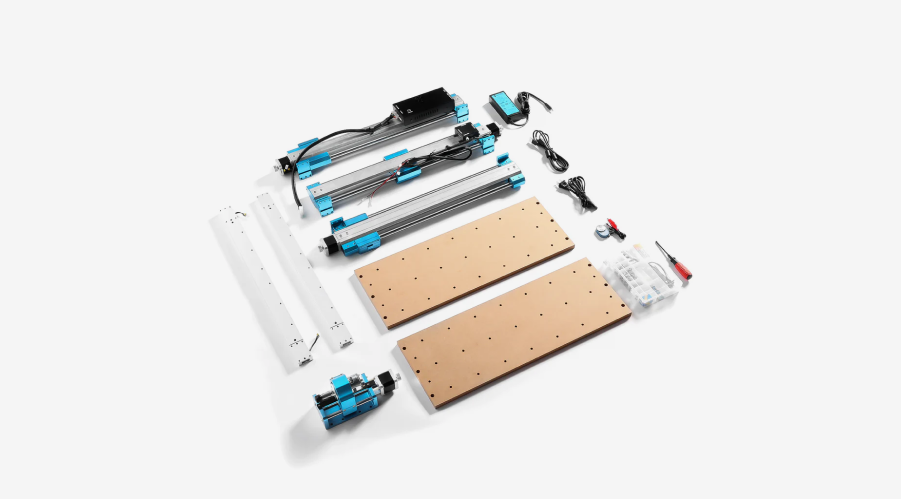

What's in the box
Package: 1x X-axis Module 1x Y-axis Modules (Left & Right) 1x Z-axis Module (Spindle Pre-Assembled) 1x Z-axis Cable Mount 1x Front Module with Locating Pins 1x Rear Module with Locating Pins 2x MDF Boards for Platform 1x Power Supply 1x USB Cable 1x USB Drive 3x 30-degree Conical V Bit 1x Upgraded LED Z-Probe Kit 4x Work Clamps 2x Collets (ER11 4mm, ER11 3.175mm) 2x Spare Limit Switches Screw and Tool Kit
Resource
Find more help articles at SainSmart Resource Center 4040-PRO resources Find more uprgade parts at Genmitsu Ecosystem 4040-PRO Upgraded Accessories 🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
31 specifications
Key specifications
- Working area (X, Y, Z)
- 400 x 400 x 78mm15.75 x 15.75 x 3.1 in
- Spindle power
- 75W (Upgradable)
- Materials supported
- Not specified
- Positioning accuracy
- Not specified
- Dust / chip extraction
- Not specified
- Warranty
- Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.
Additional specifications
- Mcu
- 32bits
- Weight
- 20.65kg45.5lb
- Baffles
- 4040 Dust Baffles
- Control
- GRBL
- Max rpm
- 9000
- Z probe
- ✔️(Led)
- Platform
- T-track Reinforced MDF Platform
- Driver chip
- TB67S109
- Drive system
- Lead Screw
- Machine size
- 673 x 663 x 336mm26.50 x 26.10 x 13.23in
- Power supply
- 24V/4A
- Assembly time
- <20mins
- Laser support
- ✔️
- Mpg interface
- ✔️
- Spindle mount
- 42mm&52mm
- Stepper motor
- NEMA17 42
- Emergency stop
- ✔️
- Frame material
- All Aluminum
- Limit switches
- ✔️
- Max speed mm m
- 2000
- Semi assembled
- ✔️
- 4th axis support
- ✔️
- Running accuracy
- ±0.1mm
- Offline controller
- CTL4040
- Hand screwed wheel support
- ✔️
In the boxCheck the supplied package before choosing your configuration.
In the box
Package contents listed by the manufacturer.
- 1x X-axis Module
- 1x Y-axis Modules (Left & Right)
- 1x Z-axis Module (Spindle Pre-Assembled)
- 1x Z-axis Cable Mount
- 1x Front Module with Locating Pins
- 1x Rear Module with Locating Pins
- 2x MDF Boards for Platform
- 1x Power Supply
- 1x USB Cable
- 1x USB Drive
- 3x 30-degree Conical V Bit
- 1x Upgraded LED Z-Probe Kit
- 4x Work Clamps
- 2x Collets (ER11 4mm, ER11 3.175mm)
- 2x Spare Limit Switches
- Screw and Tool Kit
