Genmitsu PROVerXL 6050 Plus CNC router, 300 W spindle

Larger working area (23.62" x 19.69" x 4.53"), 300W spindle motor and all metal re-designed frame, and motion-system.

SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product

PROVerXL 6050 Plus CNC Router, 300W Spindle, Dual Linear Rails, Available with Vectric Software

1 / 15

£1,288

SKU SS-101-60-XL6050-EB-1

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Make it yours

Choose your options. The price updates as you go.

Open comparison

Configure

PROVerXL 6050 Plus CNC Router, 300W Spindle, Dual Linear Rails, Available with Vectric Software. Larger working area (23.62" x 19.69" x 4.53"), 300W spindle motor and all metal re-designed frame, and motion-system.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Genmitsu PROVerXL 6050 Plus CNC router, 300 W spindle · Technical features from Genmitsu.

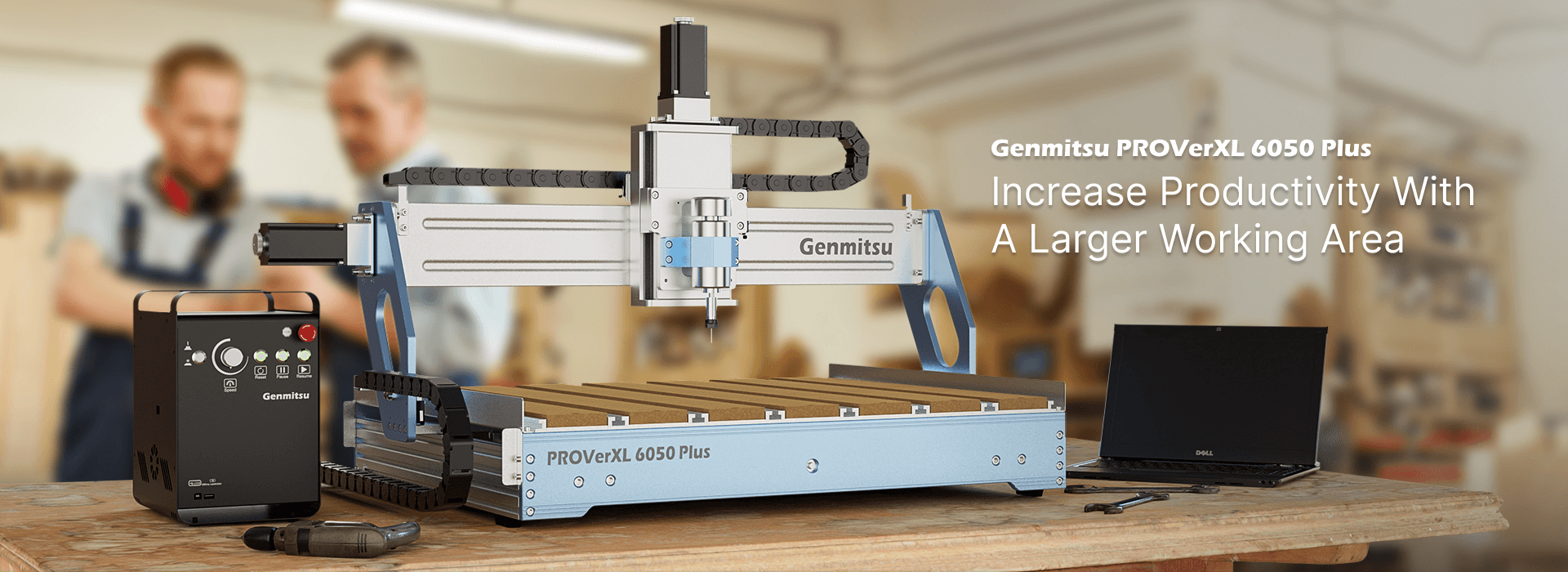

Same Budget, Bigger Size.

Larger working area (23.62" x 19.69" x 4.53"), 300W spindle motor and all metal re-designed frame, and motion-system. With the large engraving area and added safety features, the PROVerXL 6050 Plus is a cost-effective and efficient choice for starting your small business or improving your DIY crafts.

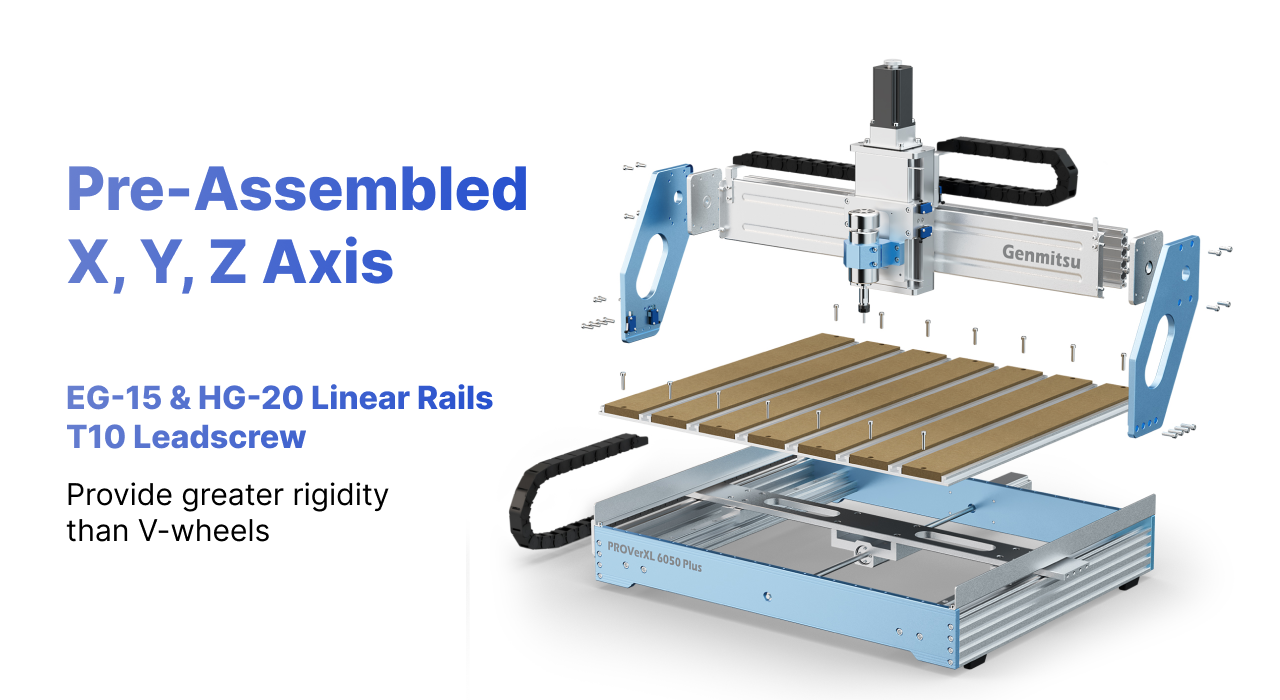

Easy to set up, save more time on your projects.

The pre-assembled module of X, Y, Z axis and wires dramatically reduces effort of assembly, allowing you to start carving your projects in less time. Dual Linear rail and lead screw structure are very rigid and greatly improve the engraving accuracy and overall strength, while also reducing noise during operation. The ProverXL 6050 Plus includes an extra 65mm diameter spindle holder for future upgrades. It's a powerhouse stable enough to engrave, carve and drill most of materials, like aluminum, copper, POM, carbon filber, wood, resin, PCB, Nylon, MDF and more.

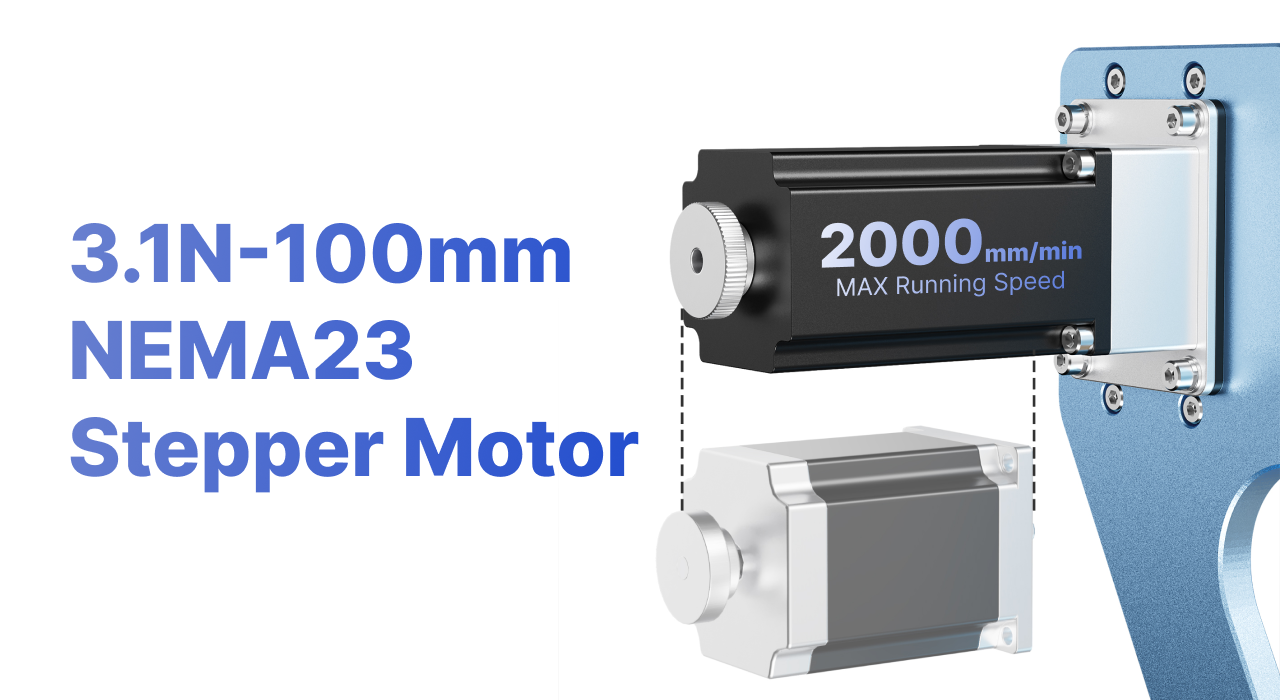

Upgraded Nema23 Stepper Motor

The 3.1Nm Torque 100mm-Length stepper motor rubber gasket could effectively reduce vibration when the motors are running.

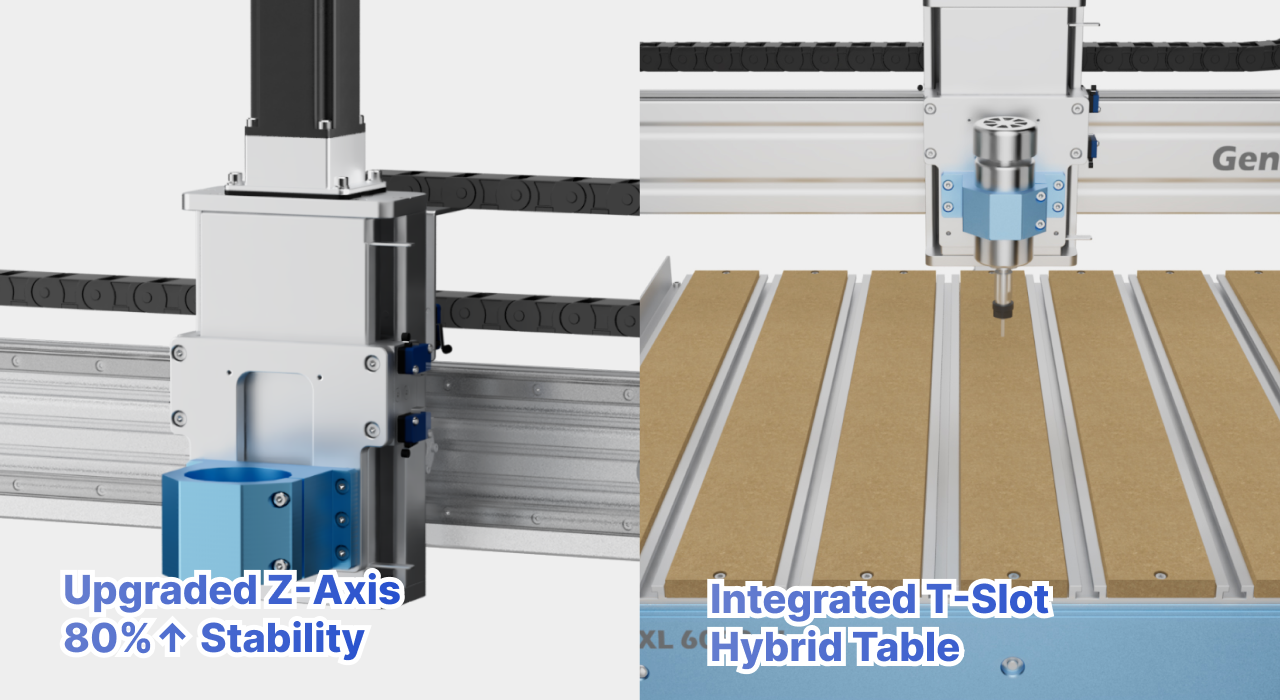

Upgraded Z-axis & Integrated T-slot Hybrid Table

New Z-axis reduce shaking and improve engraving accuracy and bring a improvement up to 80% stability of engraving. Durable aluminum T-track grid extrusions that support the MDF Spoil Boards. Compatible with a wide variety of clamp sets and easily configurable with add-ons and easy maintenance, with replacement of individual MDF spoil boards when needed.

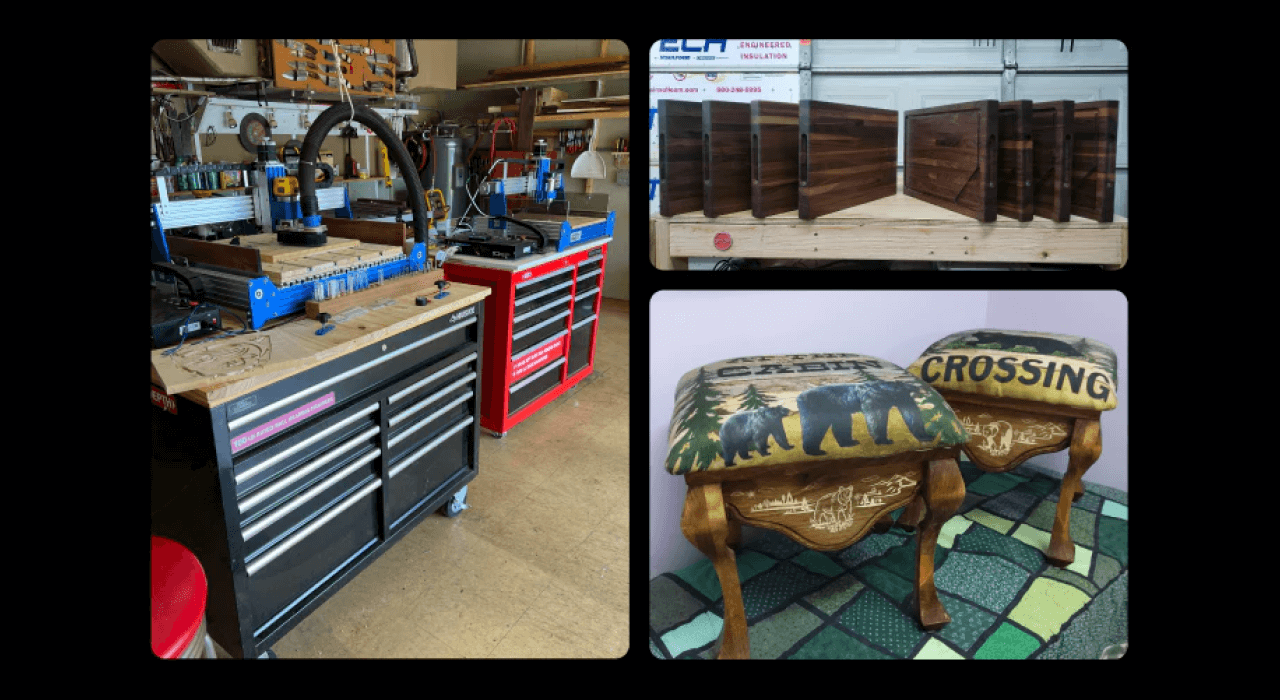

Up to 50% of PROVerXL users are Making molds or Art-crafting for selling.

Desktop CNC can be used for making signs, gifts, parts and workshop projects. Match the machine and tooling to the planned material and dimensions.

Sainsmart 6050 Cnc with Linear Rails - (Sainsmart Genmitsu PROVerXL 6050 Plus)

Sainsmart Genmitsu PROVerXl 6050 Plus CNC machine review

PROVerXL 6050 Plus vs 6060 extended original - Sainsmart CNC machines

Specifications

PROVerXL 4030
PROVerXL 4030 V2
PROVerXL 6050 Plus

Comparison

Feature	PROVerXL 4030	PROVerXL 4030 V2	PROVerXL 6050 Plus
Working Area	400 x 300 x 110 mm	400 x 300 x 110 mm	600 x 500 x 115 mm
Overall Dimensions	776 x 641 x 580 mm	742 x 489 x 605 mm	992 x 782 x 641 mm
Assembly Time	30-45 min	25-30 min	25-30 min
Extension Kit	6060 & 1010 Extension Kit	6060 & 1313 Extension Kit	Pending
X, Y, Z Axis Stepper Motor	NEMA23 57mm, Open-loop	NEMA23 76mm, Closed-loop	NEMA23 3.1N-100mm, Open-loop
Optional Upgraded Stepper Motor	DM542 NEMA23 112mm Stepper Motor Set Closed-Loop Stepper Motor	/	/
Drive System	Leadscrew	1204 Ballscrew	Dual Linear Rails & Single Y-axis
Frame & Structure	Metal Frame & MDF Spoilboard	Metal Frame & Hybrid Spoilboard	Metal Frame & Hybrid Spoilboard
Control Board Compatibility	GRBL 1.1h	GRBL 1.1h	GRBL 1.1h
Max Speed	2000 mm/min	5000 mm/min	2000 mm/min
Running Accuracy	≤ ±0.10 mm	Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm	≤ ±0.05 mm
Repositioning Accuracy	≤ ±0.10 mm	≤ ±0.05 mm	≤ ±0.05 mm
Stepper Driver	TB6560	WSD6056DN56	TB6560
Spindle Rating	300W 12000 RPM	MAX 400W 10000 RPM	300W 12000 RPM
Spindle Voltage	DC, 0-48V	DC, 0-48V	DC, 0-48V
Power Supply	48V 7A & 24V 8A	48V 7A & 24V 8A	48V 7A & 24V 8A
CAM Software	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle

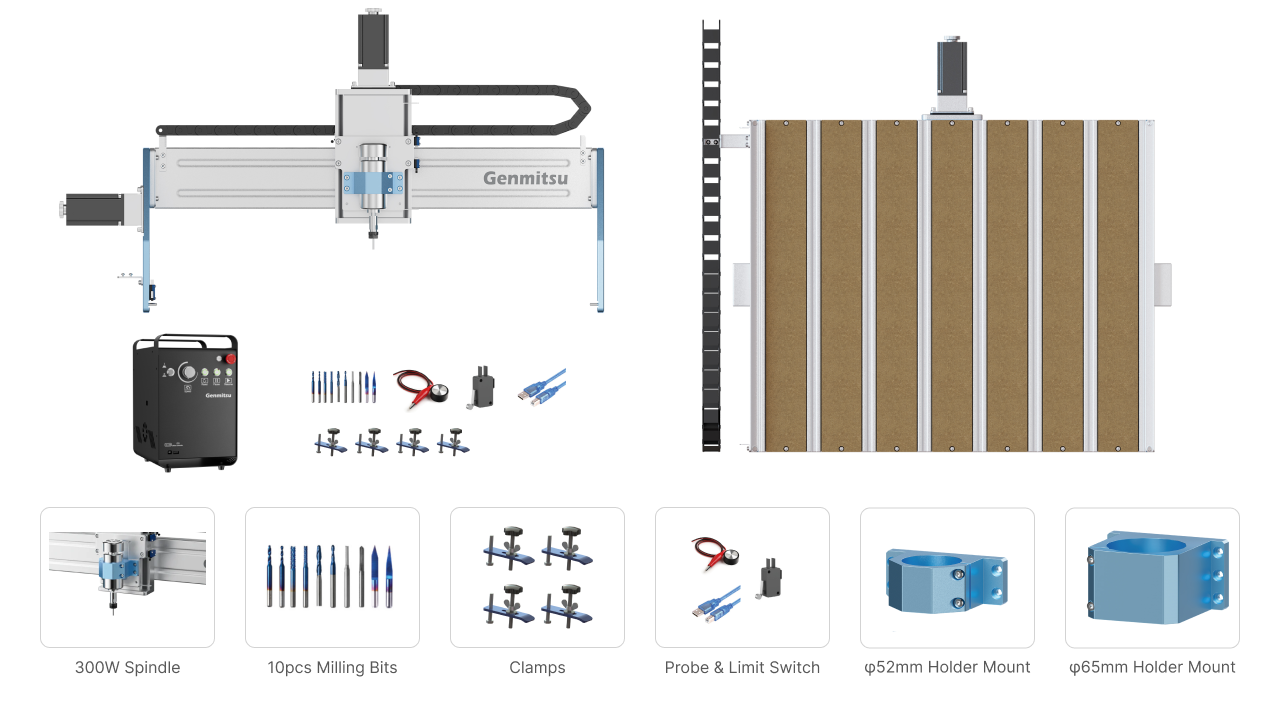

What's in the box

FAQs

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

Key specifications

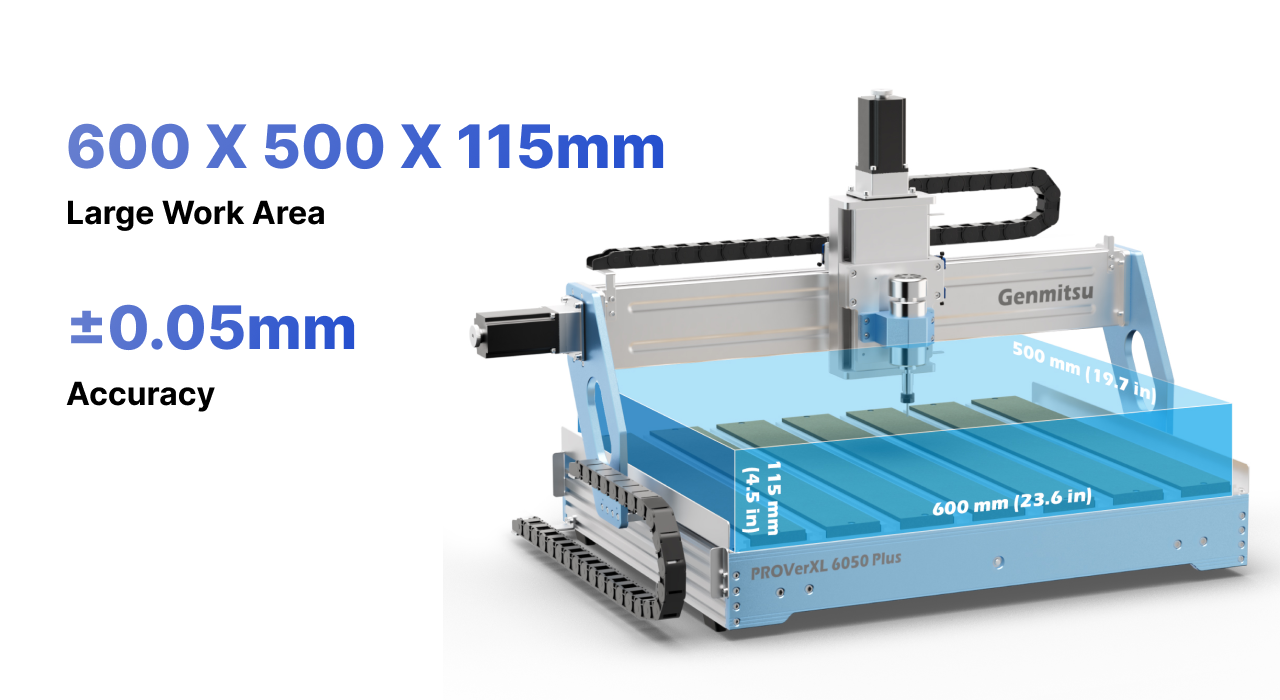

Working area (X, Y, Z): 600 × 500 × 115 mm
Spindle power: 300 W
Materials supported: Wood, MDF, PCB, nylon, aluminium, copper
Positioning accuracy: Not specified
Dust / chip extraction: Not specified
Warranty: Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.

Additional specifications

User manual: Carveco Guide
Candle guide: Community Group
