Genmitsu PROVerXL 4030 V2 desktop CNC router

SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product

PROVerXL 4030 V2 Desktop CNC Router, Closed-Loop Motors, Ball Screw Drive, Available with Vectric Software1 / 11

Genmitsu PROVerXL 4030 V2 desktop CNC router

1 / 11

£966

SKU SS-101-60-XL4030V2-EB-1

Order before 3pm UK time for same-working-day processing, then tracked UK delivery.

Make it yours

Choose your options. The price updates as you go.

1

Open comparison

PROVerXL 4030 V2 Desktop CNC Router, Closed-Loop Motors, Ball Screw Drive, Available with Vectric Software. Whether you are new to the hobby or want to increase your workshops capabilities the all new Genmitsu PROVerXL 4030 V2, now with upgraded features that take precision, versatility, and affordability to a whole new level!

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Genmitsu PROVerXL 4030 V2 desktop CNC router · Technical features from Genmitsu.

Looking for a versatile and affordable CNC router machine? Whether you are new to the hobby or want to increase your workshops capabilities the all new Genmitsu PROVerXL 4030 V2, now with upgraded features that take precision, versatility, and affordability to a whole new level! With a running speed of up to 5000 mm/min, the Genmitsu PROVerXL 4030 V2 CNC Router Machine allows you to complete your projects faster and more efficiently than ever before.

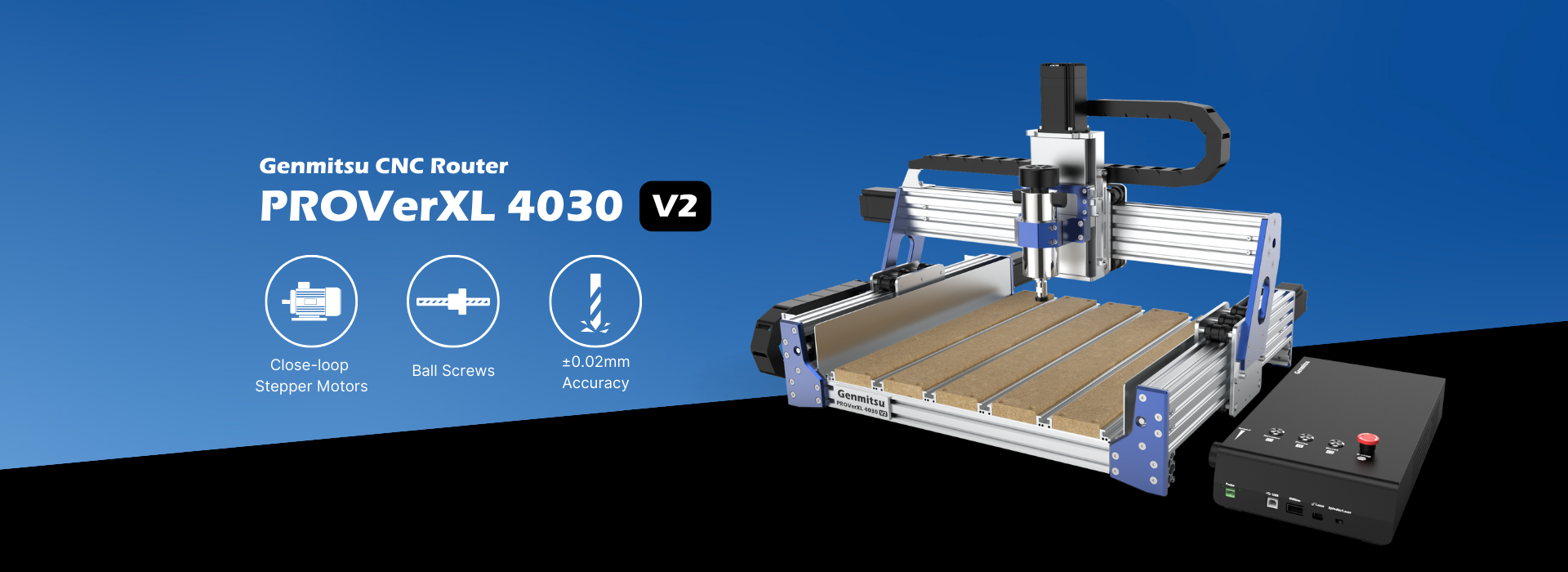

PROVerXL 4030V2 CNC router

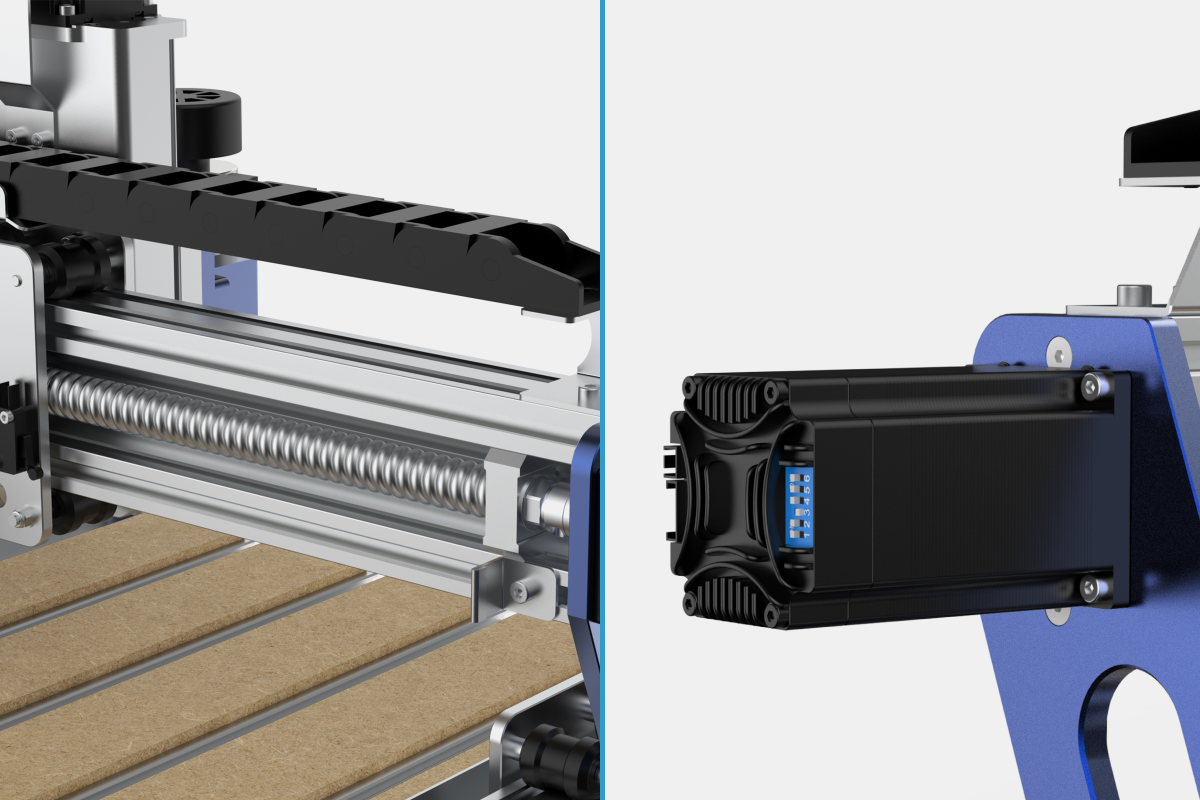

Upgraded Closed-Loop Motors and Ball Screws

Say goodbye to step loss and enjoy lower noise levels with the new closed-loop motor, and enjoy increased precision and accuracy with the 1204 ball screw. The improved Z-axis structure provides added stability, while the added eccentric nut adjustment for the roller offers greater flexibility and control over the machine's movement.

Upgraded Closed-Loop Motors and Ball Screws

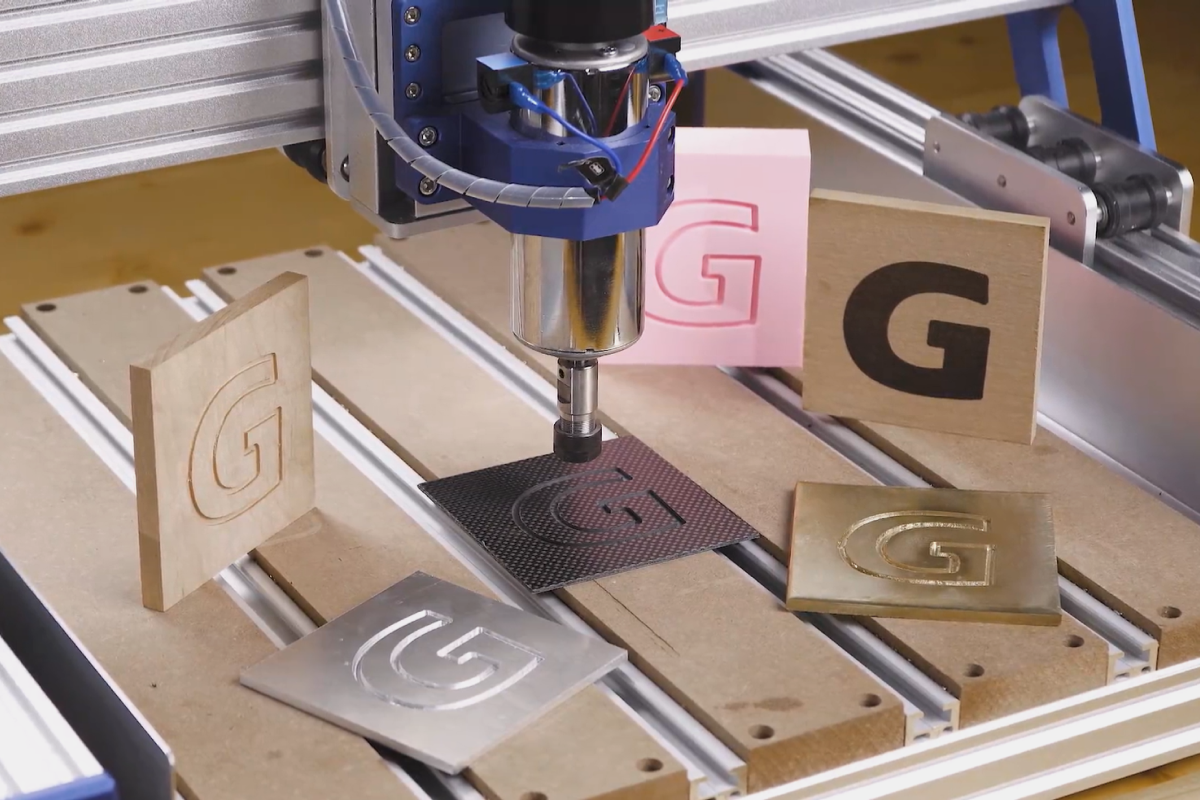

Wide Range of Materials

Wide Range of Materials

The T-slot hybrid table can help holding materials during CNC machining or laser engraving. Cut and carve an irregularly shaped or size of a variety of materials such as wood, plastics, and soft metals, and enjoy a working area of 400mm x 300mm x 110mm, making it suitable for small to medium-sized projects.

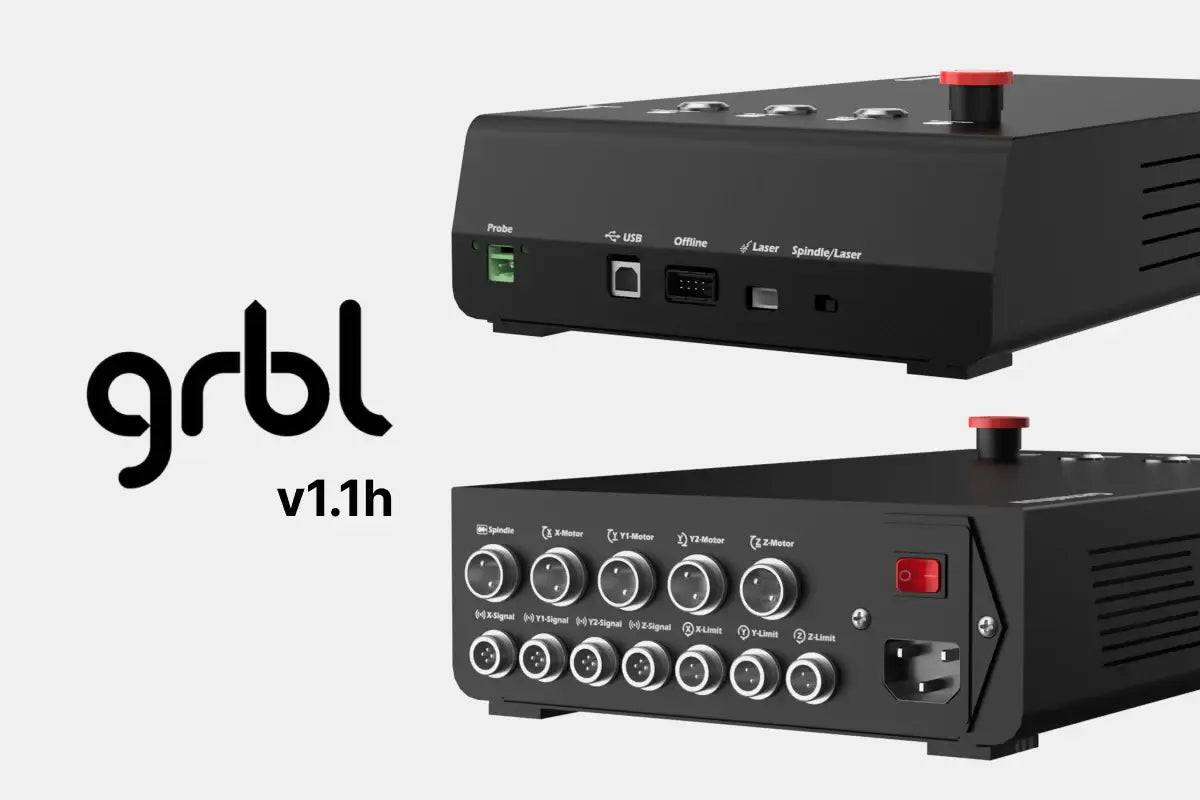

GRBL-Based Control Box and Improved Chassis Design

Operate the machine with ease via USB interface using software such as Candle or Universal Gcode Sender thanks to the GRBL-based control board. The sturdy and improved chassis design ensures long-lasting and reliable performance with minimal maintenance requirements.

GRBL-Based Control Box and Improved Chassis Design

  • Genmitsu PROVerXL 4030 V2 CNC Router

Start Making Today!

With precision, versatility, and affordability at its core, the Genmitsu PROVerXL 4030 V2 CNC router machine is the perfect tool for hobbyists, DIY enthusiasts, and small business owners alike. Upgrade your machine today and start bringing your ideas to life with ease and precision!

CNC Rotary Axis Module is available

Upgrade your 4030V2 CNC with the Genmitsu Rotary Kit for 360° carving and full rotary 3D/2D designs, enabling complex projects that traditional 3-axis machines can't achieve.

  • CNC Rotary Axis for Genmitsu PROVerXL 4030 V2

Videos

  • Genmitsu PROVerXL 4030 V2 CNC Router | SainSmart

  • Genmitsu PROVerXL 4030 V2 CNC Router | SainSmart

  • Genmitsu PROVerXL 4030 V2 CNC Router | SainSmart

Specifications

  • PROVerXL 4030

    PROVerXL 4030

  • PROVerXL 4030 V2 CNC

    PROVerXL 4030 V2

  • Specifications

    PROVerXL 6050 Plus

Comparison

FeaturePROVerXL 4030PROVerXL 4030 V2PROVerXL 6050 Plus
Working Area400 x 300 x 110 mm400 x 300 x 110 mm600 x 500 x 115 mm
Overall Dimensions776 x 641 x 580 mm742 x 489 x 605 mm992 x 782 x 641 mm
Assembly Time30-45 min25-30 min25-30 min
Extension Kit6060 & 1010 Extension Kit6060 & 1313 Extension KitComing Soon
X, Y, Z Axis Stepper MotorNEMA23 57mm, Open-loopNEMA23 76mm, Closed-loopNEMA23 3.1N-100mm, Open-loop
Optional Upgraded Stepper MotorDM542 NEMA23 112mm Stepper Motor Set Closed-Loop Stepper Motor//
Drive SystemLeadscrew1204 BallscrewDual Linear Rails & Single Y-axis
Frame & StructureMetal Frame & MDF SpoilboardMetal Frame & Hybrid SpoilboardMetal Frame & Hybrid Spoilboard
Control Board CompatibilityGRBL 1.1hGRBL 1.1hGRBL 1.1h
Max Speed2000 mm/min5000 mm/min2000 mm/min
Running Accuracy≤ ±0.10 mmCircular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm≤ ±0.05 mm
Repositioning Accuracy≤ ±0.10 mm≤ ±0.05 mm≤ ±0.05 mm
Stepper DriverTB6560WSD6056DN56TB6560
Spindle Rating300W 12000 RPMMAX 400W 10000 RPM300W 12000 RPM
Spindle VoltageDC, 0-48VDC, 0-48VDC, 0-48V
Power Supply48V 7A & 24V 8A48V 7A & 24V 8A48V 7A & 24V 8A
CAM SoftwareGRBL Firmware, e.g. UGS, CandleGRBL Firmware, e.g. UGS, CandleGRBL Firmware, e.g. UGS, Candle

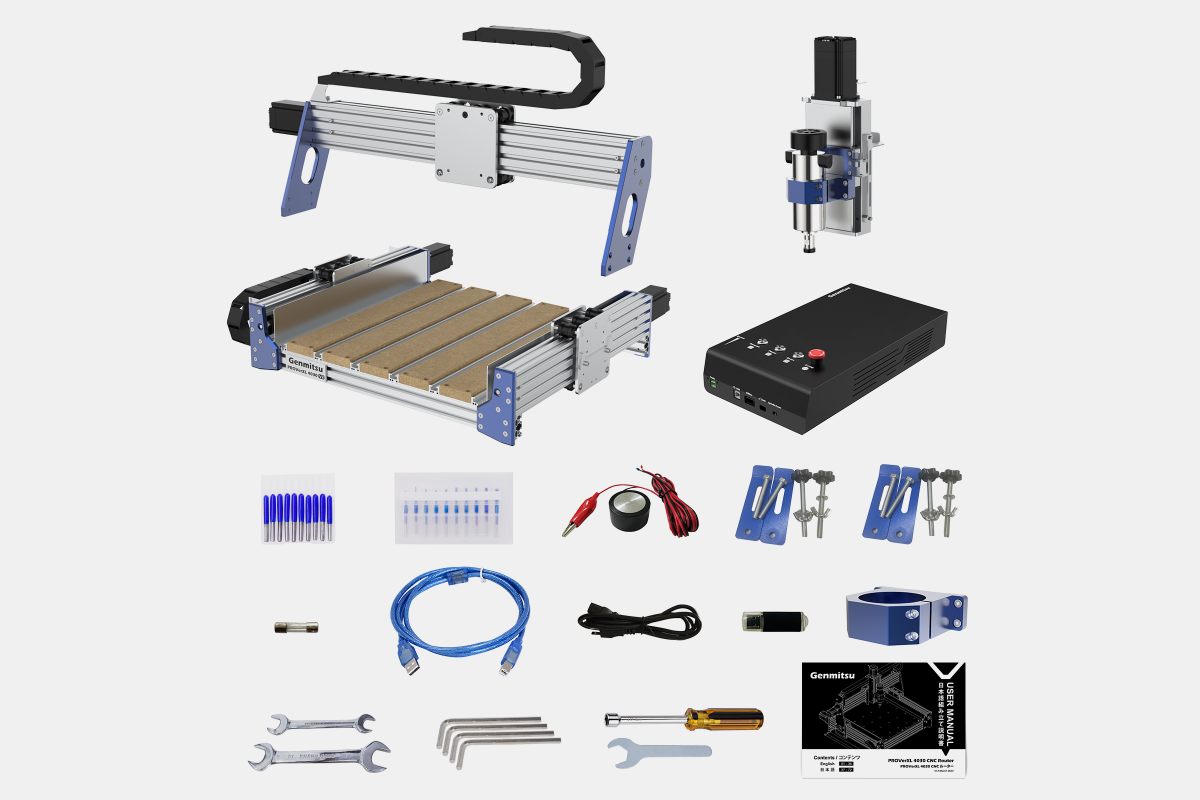

What's in the box

Package: 1x X Axis & Motor 1x XZ Axis & Spindle & Motor 1x XY-Axis Base with Motors 1x Coupler 2x Dust baffles 2x Drag Chain & Mounts 1x Extra φ65mm Holder 1x Collet 2x Milling bits 10pcs (Flat engraving, slot drills) 4x Clamps 1x Z-probe 1x USB drive 1x Fuse tube 1x Tools box with screws & wrenches 1x User Manual

package

FAQs

Quick Start Guide Resource Page Click to learn software guide, user manual, and assembly guide. Will it work with the PROVerXL 4030 CNC Router Expansion Kit? No, the expansion parts 6060/1010 are not available because of the modified ball screw and motor design. Check current V2-specific expansion-kit compatibility separately. Why should I adjust the Y-axis position? It‘s a maintenance action. In order to use the machine with optimum accuracy, follow the instructions for adjustments at the beginning of the installation as shown in the user manual. What's the parameter of the milling bits? 20 Milling Bits: 10 from the C08 Set (0.8-3.0mm) 10 x Nano Blue Coat End Mill CNC Router Bits, Shank Diameter: 3.175mm (Different cutting edge diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm) 10 from the 70V30 Set 10 x V-Shaped Nano Blue Coat Engraving Bits Cutting Angle: 30 Degree Shank Diameter: 3.175mm Carveco Maker software compatibility notice: Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system. If you are using macOS, please ensure that you can run a Windows environment through virtual machine software or other solutions before making a purchase, to ensure seamless use of the PROVerXL 4030 V2 CNC milling machine. Check the software publisher’s current system requirements. About using 10W laser module: If you need to use a 10W laser, check the required adapter cable with Fabinity before ordering.

Resource

🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

22 specifications

Key specifications

Working area (X, Y, Z)
400 × 300 × 110 mm
Spindle power
Not specified
Materials supported
Wood, plastics, soft metals
Positioning accuracy
Not specified
Dust / chip extraction
Not specified
Warranty
Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.

Additional specifications

Max speed
5000 mm/min
Cam software
GRBL Firmware, e.g. UGS, Candle
Drive system
1204 Ballscrew
Power supply
48V 7A & 24V 8A
Assembly time
25-30 min
Extension kit
6060 & 1313 Extension Kit
Spindle rating
MAX 400W 10000 RPM
Stepper driver
WSD6056DN56
Frame structure
Metal Frame & Hybrid Spoilboard
Spindle voltage
DC, 0-48V
Running accuracy
Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm
Overall dimensions
742 x 489 x 605 mm
Repositioning accuracy
≤ ±0.05 mm
X y z axis stepper motor
NEMA23 76mm, Closed-loop
Control board compatibility
GRBL 1.1h
Optional upgraded stepper motor
/
In the boxCheck the supplied package before choosing your configuration.

In the box

Package contents listed by the manufacturer.

  • 1x X Axis & Motor
  • 1x XZ Axis & Spindle & Motor
  • 1x XY-Axis Base with Motors
  • 1x Coupler
  • 2x Dust baffles
  • 2x Drag Chain & Mounts
  • 1x Extra φ65mm Holder
  • 1x Collet
  • 2x Milling bits 10pcs (Flat engraving, slot drills)
  • 4x Clamps
  • 1x Z-probe
  • 1x USB drive
  • 1x Fuse tube
  • 1x Tools box with screws & wrenches
  • 1x User Manual
