Genmitsu PROVerXL 4x4 CNC router, 1300 × 1300 mm work area

SainSmart 4.7/5 on Trustpilot (opens in a new tab)company reviews, not this product

PROVerXL 4x4 CNC Router Machine, Support Dual Z-Axis, Closed-loop Stepper Motor, Ball Screw Drive System, 1300x1300 Work Area for Wood Metal Carving1 / 11

Genmitsu PROVerXL 4x4 CNC router, 1300 × 1300 mm work area

1 / 11

£3,680

SKU SS-GM-4X4-U2-EB-1

Pre-order: contact us to confirm the estimated dispatch date.

Make it yours

Choose your options. The price updates as you go.

1

Open comparison

PROVerXL 4x4 CNC Router Machine, Support Dual Z-Axis, Closed-loop Stepper Motor, Ball Screw Drive System, 1300x1300 Work Area for Wood Metal Carving. Take your woodworking projects to the next level with the Genmitsu PROVerXL 4x4 CNC Woodworking Machine - your ultimate wood CNC machine for professional-grade results.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Genmitsu PROVerXL 4x4 CNC router, 1300 × 1300 mm work area · Technical features from Genmitsu.

  • Genmitsu PROVerXL 4x4 CNC Router Machine

Precision Craftsmanship, Designed for You

Take your woodworking projects to the next level with the Genmitsu PROVerXL 4x4 CNC Woodworking Machine - your ultimate wood CNC machine for professional-grade results. Perfectly engineered to handle wood, plastics, and even soft metals, this versatile CNC router for woodworking offers power, precision, and convenience.

Unlock the Potential with the PROVerXL CNC Machine
High Quality Precision for Businesses Big or Small

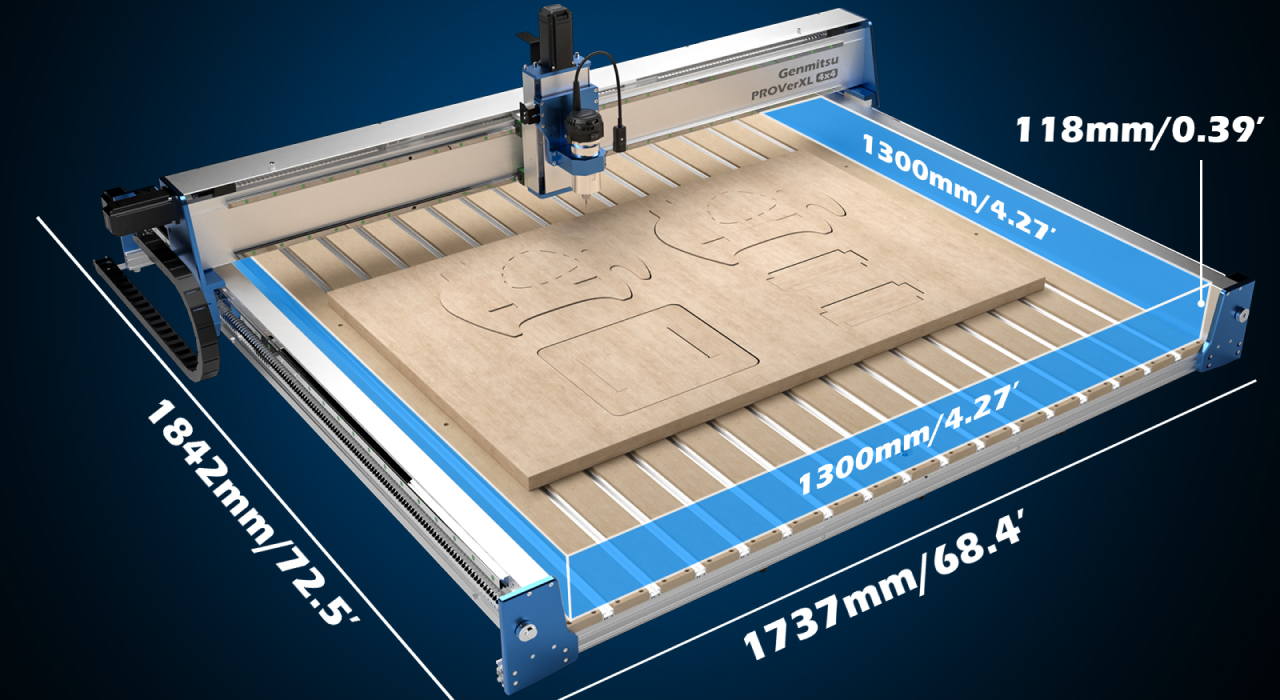

Expansive 4x4 Work Area

With a generous 1300mm x 1300mm workspace, this woodworking CNC machine can accommodate large projects like furniture and signs without resizing.

Genmitsu PROVerXL 4x4 CNC Machine | SainSmart
Genmitsu PROVerXL 4x4 CNC Machine | SainSmart

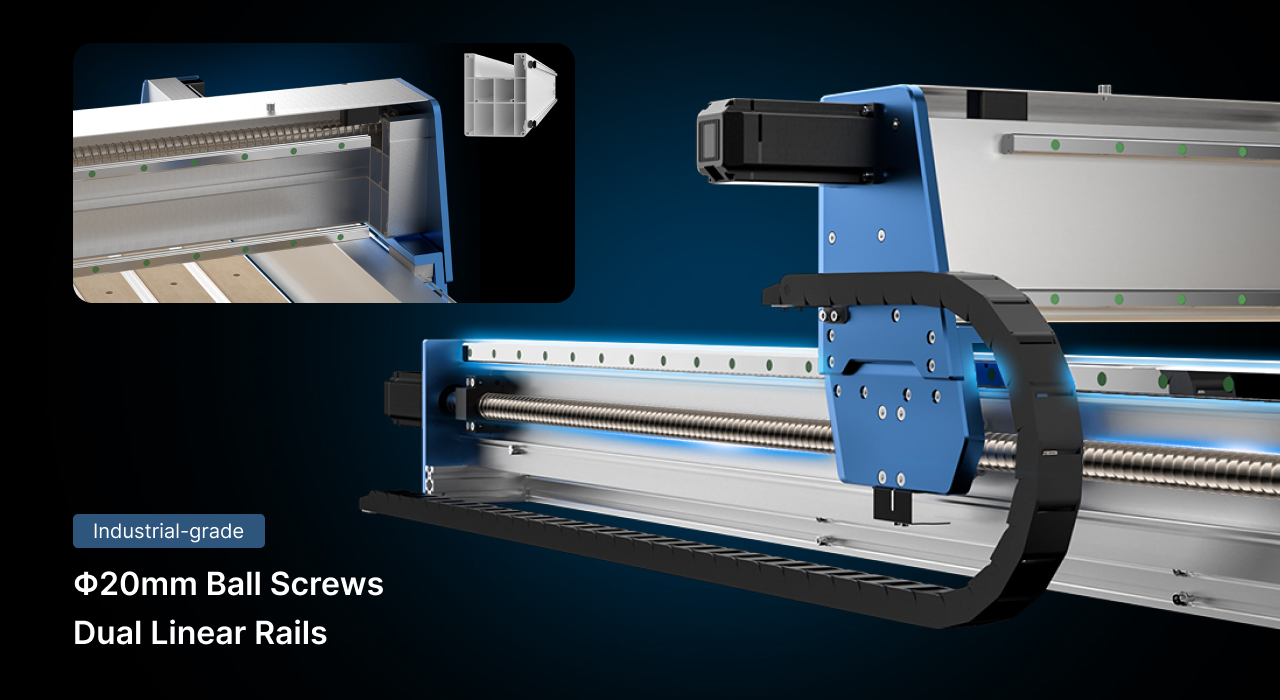

Industrial-Grade Precision

The PROVerXL 4x4 uses 20 mm ball screws and dual linear rails. Its extruded-aluminium X-axis profile includes internal reinforcement ribs.

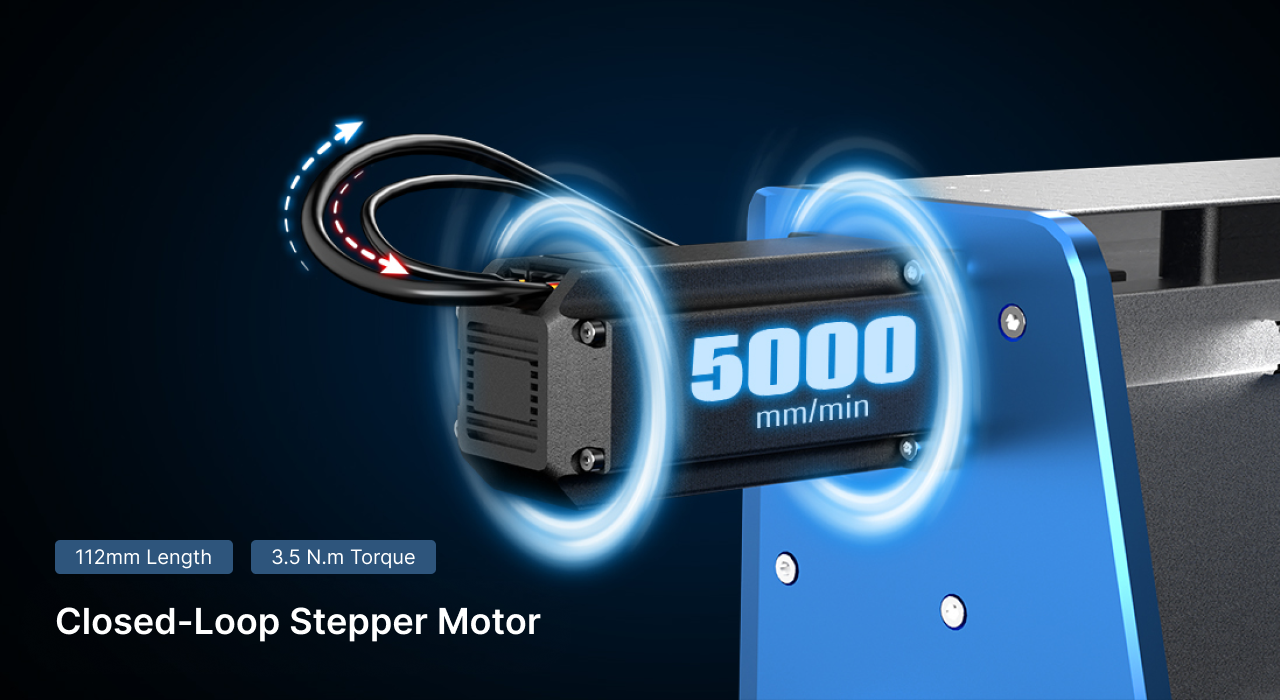

Speed Meets Strength

Four NEMA 23 closed-loop stepper motors on the XY axis monitor position through signal feedback, ensuring precise movements without lost steps. Reaching speeds of up to 5000mm/min and 3.5 N-m of torque, they deliver speed and efficiency without compromising detail.

Genmitsu PROVerXL 4x4 CNC Machine | SainSmart
Genmitsu PROVerXL 4x4 CNC Machine | SainSmart

Versatility for Every Project

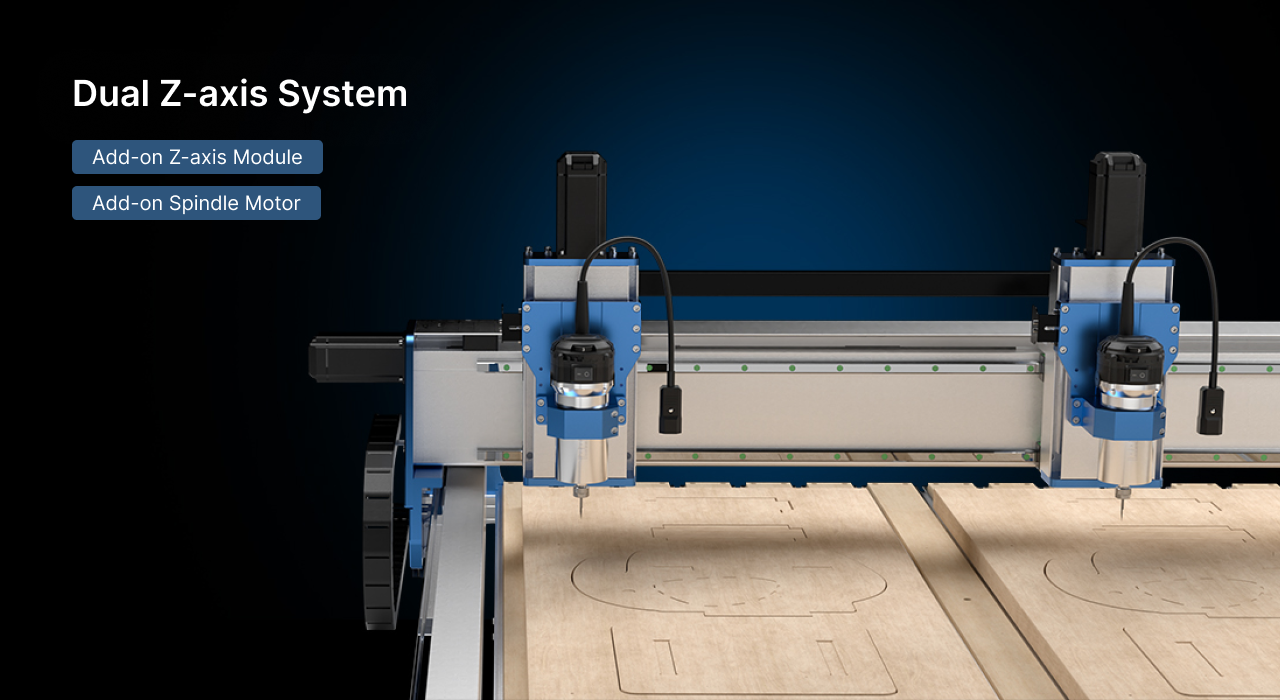

This 4X4 CNC machine for woodworking is designed to handle intricate designs and repetitive tasks effortlessly, making it the go-to tool for carpenters and makers. The optional dual Z-axis accommodates two spindles or trimming routers, providing flexibility for diverse applications like engraving, cutting, and milling.

Next-Gen Connectivity

Genmitsu App Integration: Operate your wood CNC router machine via smartphone or desktop with the built-in Wi-Fi module, giving you unparalleled control and convenience.. Advanced Controller: The 32-bit MCU offers faster processing and enhanced precision compared to traditional CNC routers for woodworking.

Genmitsu PROVerXL 4x4 CNC Machine | SainSmart
Genmitsu PROVerXL 4x4 CNC Machine | SainSmart

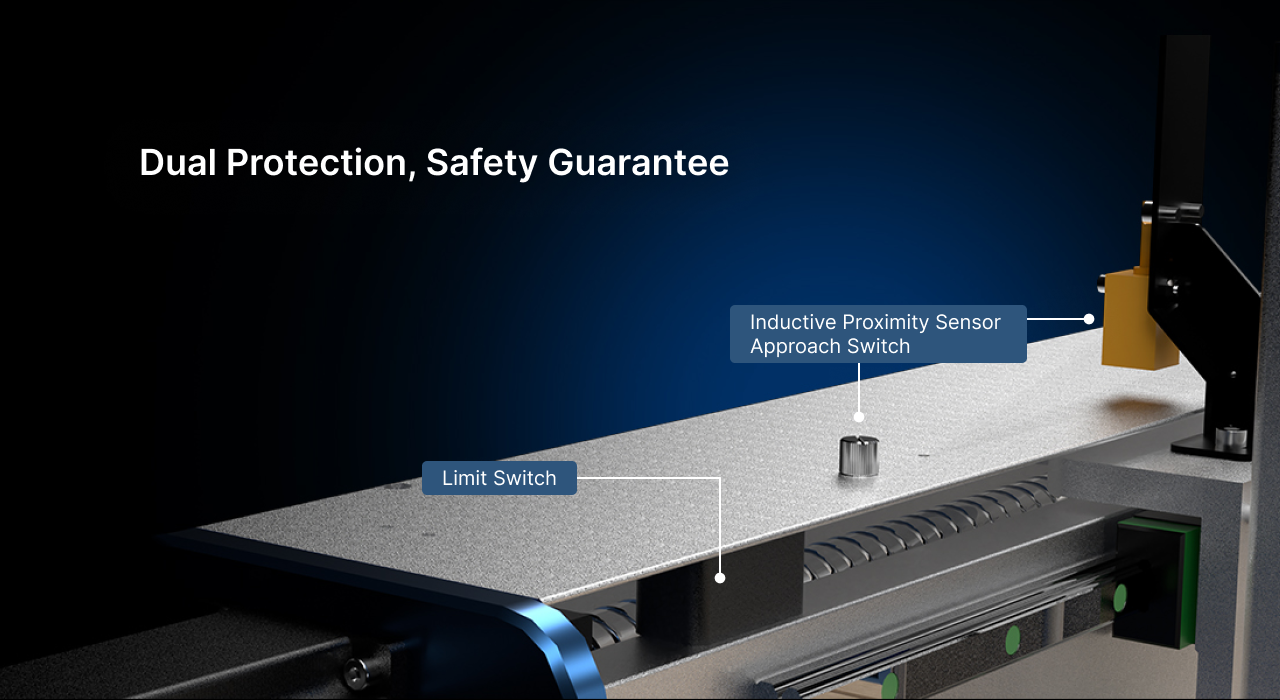

Safety and Reliability

The dual limit switches on the Genmitsu PROVerXL 4X4 - both inductive and hard - are designed to enhance machine safety and operational reliability. The inductive limit switches provide precise position detection, reducing the risk of overtravel that could cause damage to the machine. This system ensures smoother and safer operation, protecting both the equipment and your projects from unexpected mishaps.

Specifications

Specifications

FeaturePROVerXL 2X2PROVerXL 4X4
Work Area679 x 679 x 113mm (2.23’ x 2.23’ x 0.37’)Single Z-Axis: 1300 x 1300 x 118mm (4.27’ x 4.27’ x 0.39’) Dual Z-Axis: 600 x 1300 x 118mm (1.97’ x 4.27’ x 0.39’)
Overall Dimensions1161 x 1142 x 617mm (3.81’ x 3.75’ x 2.02’)1893 x 1842 x 617mm (6.21’ x 6.04’ x 2.02’)
Control Board CompatibilityGrbl 1.1hGrbl 1.1h
MCU32-Bit32-Bit
Max Speed5000mm/min5000mm/min
Control SoftwareSoftware Based on GRBL Firmware, e.g. Candle, UGSSoftware Based on GRBL Firmware, e.g. Candle, UGS
Body MaterialMetal Frame & Hybrid SpoilboardMetal Frame & Hybrid Spoilboard
Wireless ControlGenmitsu APPGenmitsu APP
Motion SystemLinear Guides：Y-HG20，X-HG15，Z-HG15Ball screws：Y-Φ20mm，X-Φ20mm，Z-Φ12mmLinear Guides：Y-HG20，X-HG15，Z-HG15Ball screws：Y-Φ20mm，X-Φ20mm，Z-Φ12mm
Spindle Motor710W AC Spindle included, 1.5kw-2.2kw Water Cooled Spindle Motor (Optional)710W AC Spindle, 1.5kw-2.2kw Water Cooled Spindle Motor (Optional)
Stepper MotorNEMA 23, Closed-loop Stepper MotorNEMA 23, Closed-loop Stepper Motor
SafetyXYZ Limit Switch & Emergency Stop SwitchXYZ Limit Switch & Emergency Stop Switch
Power SupplyAC110/230V (Switch Power)AC110/230V (Switch Power)
Net Weight90kg (198.4 lb)150kg (330.7 lb)

What's in the box

Package: PROVerXL 4X4 Assembly Accessories MDF & Aluminum Hybrid Spoilboard Assembly Tools Wi-Fi Module Z-Probe Kit Clamp Kit End Mill Set (¼”, ⅛”): 10Pcs Flat engraving bit set, 1Pc 1/4" Surfacing Bit, 2Pcs 1/8" 1-Flute, 2Pcs 1/4" 1-FLute, 1Pc 1/8" 2-FLute. Φ65mm Spindle Holder & Dust Shoe User Manual Optional Add-Ons Add-on Z-axis Module 710W Trimmer Router 1.5KW-2.2KW Water Cooled Spindle Motor iMaticBox Relay Module Switch Genmitsu USB Version Wi-Fi Module MPG Hand Wheel Controller View More on Genmitsu Ecosystem Support: 24-Hour Response Email Support Spare Parts Resupply Technical response with Genmitsu Professional Engineer Compatible with GRBL-Base CAM/CNC Software

FAQs

What are the corresponding load capacities for each PROVerXL 4x4 CNC machine axis?

What are the corresponding load capacities for each PROVerXL 4x4 CNC machine axis?

FeatureStatic Moment (KN/M)Equivalent Load Capacity (kg)
Y0.756108
X0.336168
Z0.12060

What You Need to Provide:

Φ65mm Trim Router or Spindle Motor (Recommend: Genmitsu 710W spindle motor) Computer with Windows or iOS System or Phone with Genmitsu APP

Materials the Genmitsu PROVerXL 4x4 Can Handle:

1. Wood/Wood Composites: Hardwoods, softwoods, MDF, plywood, particle board, and engineered woods. 2. Plastics: Acrylic, polycarbonate, HDPE, Delrin®, Corian®, and similar synthetic polymers. 3. Non-Ferrous Metals: Aluminum, brass, copper, and other softer metals. 4. Soft Composites: Fiberglass, carbon fiber panels, and other non-metal composite materials. 5. Foam: High-density foam and other light-density materials for rapid prototyping.

Notice:

To ensure optimal performance, the PROVerXL 4X4 CNC machine should be placed on a sturdy table capable of supporting both the machine and the materials you're working with. While the exact table dimensions can be tailored to your space, it must be large enough to accommodate the full size of the machine.

Resource

PROVerXL 4x4 Resource Page 🔍 Click here to explore the Genmitsu CNC router collection 🔍 Click here to explore the upgraded parts of CNC router ecosystem

  • Bigger is Better: SainSmart Genmitsu ProVerXL 4X4 CNC Machine Review

  • Genmitsu PROVerXL 4x4 CNC Router Critical Final Steps Before Carving! (Features and benefits)

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

20 specifications

Key specifications

Working area (X, Y, Z)
Not specified
Spindle power
Not specified
Materials supported
Not specified
Positioning accuracy
Not specified
Dust / chip extraction
Not specified
Warranty
Manufacturer’s warranty (Genmitsu)The term is set by the manufacturer. Ask us for the terms for this model; your statutory rights are not affected.

Additional specifications

Mcu
32-Bit
Safety
XYZ Limit Switch & Emergency Stop Switch
Max speed
5000mm/min
Work area
Single Z-Axis: 1300 x 1300 x 118mm (4.27’ x 4.27’ x 0.39’) Dual Z-Axis: 600 x 1300 x 118mm (1.97’ x 4.27’ x 0.39’)
Net weight
150kg (330.7 lb)
Power supply
AC110/230V (Switch Power)
Body material
Metal Frame & Hybrid Spoilboard
Motion system
Linear Guides：Y-HG20，X-HG15，Z-HG15Ball screws：Y-Φ20mm，X-Φ20mm，Z-Φ12mm
Spindle motor
710W AC Spindle, 1.5kw-2.2kw Water Cooled Spindle Motor (Optional)
Stepper motor
NEMA 23, Closed-loop Stepper Motor
Control software
Software Based on GRBL Firmware, e.g. Candle, UGS
Wireless control
Genmitsu APP
Overall dimensions
1893 x 1842 x 617mm (6.21’ x 6.04’ x 2.02’)
Control board compatibility
Grbl 1.1h
Frequently asked questionsAnswers to common questions about this product.
Why Choose the Genmitsu PROVerXL 4x4 CNC Machine?

Whether you’re a professional furniture maker or a DIY enthusiast, this CNC woodworking router provides the perfect balance of power, precision, and value. Step into the world of advanced wood CNC machines and explore endless possibilities in your workshop.

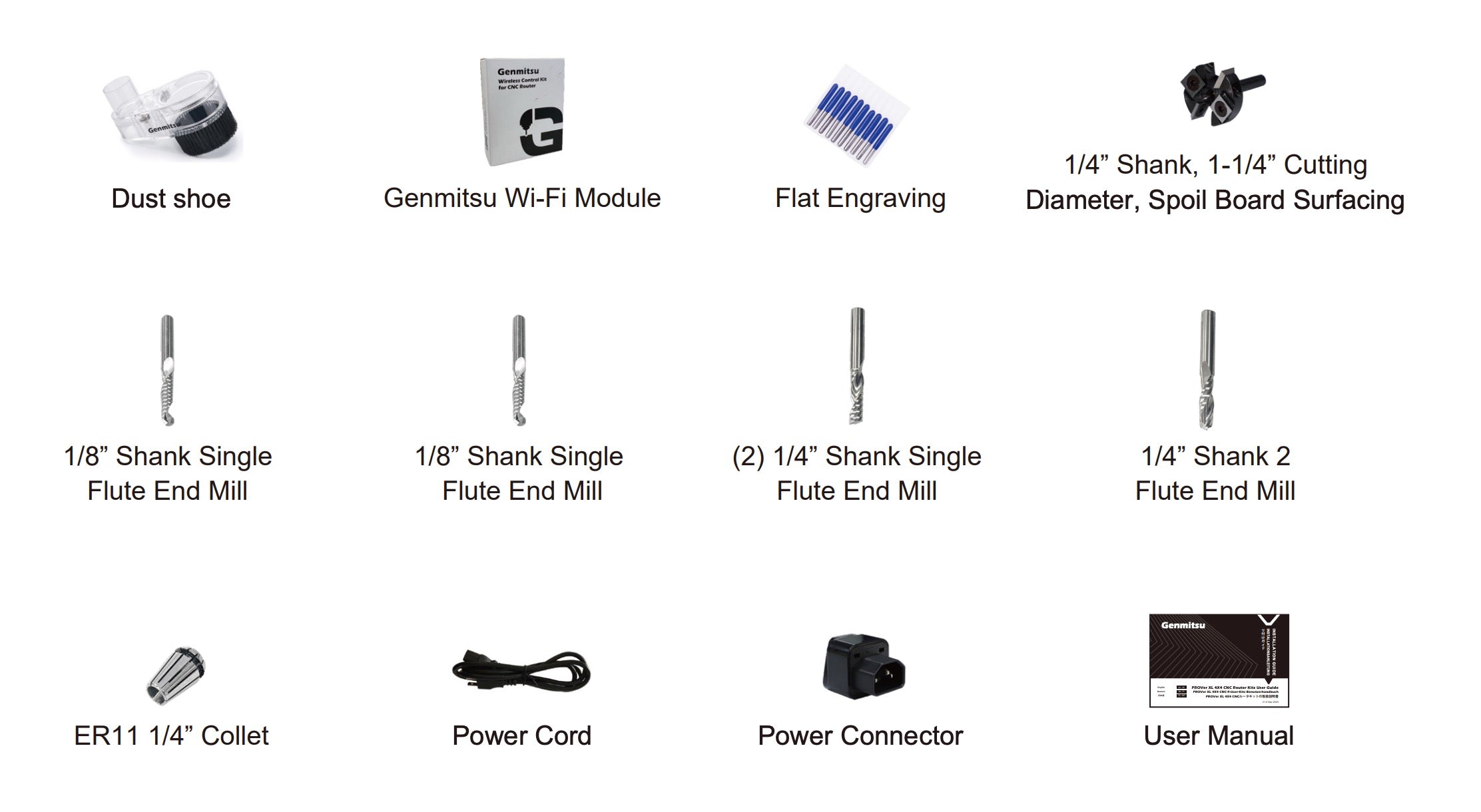

What milling bit set does it come equipped with?

The PROVerXL 4x4 includes a comprehensive end mill set (¼” and ⅛”): 10 pcs flat engraving bits 1 pc ¼” surfacing bit 2 pcs ⅛” single-flute bits 2 pcs ¼” single-flute bits 1 pc ⅛” double-flute bit

Genmitsu PROVerXL 4x4 Package milling bit set display

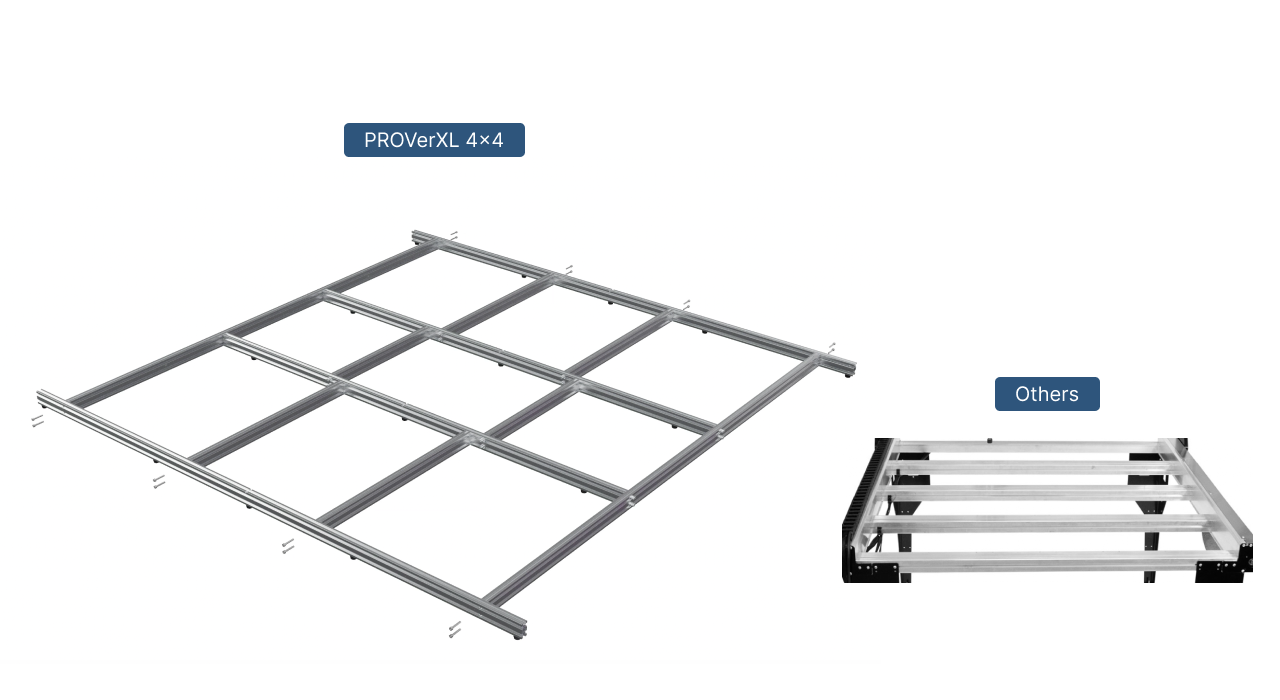

What is the platform chassis bracket of the PROVerXL 4x4 like? Will it not provide enough support?

The PROVerXL 4x4 CNC machine is equipped with a robust platform and chassis designed to support heavy-duty operations. Its base and structural framework consist of high-quality aluminum extrusions and reinforced support plates, which enhance its load-bearing capacity and overall stability. Although the aluminum frame may raise questions compared to steel alternatives in industrial machines, the design compensates with advanced features like: Ball screws for enhanced precision over lead screws. Rigid linear rails, which reduce wobble during operation.

PROVerXL 4x4 frame structure compare to others
In the boxCheck the supplied package before choosing your configuration.

In the box

Package contents listed by the manufacturer.

  • PROVerXL 4X4 Assembly Accessories
  • MDF & Aluminum Hybrid Spoilboard
  • Assembly Tools
  • Wi-Fi Module
  • Z-Probe Kit
  • Clamp Kit
  • End Mill Set (¼”, ⅛”): 10Pcs Flat engraving bit set, 1Pc 1/4" Surfacing Bit, 2Pcs 1/8" 1-Flute, 2Pcs 1/4" 1-FLute, 1Pc 1/8" 2-FLute.
  • Φ65mm Spindle Holder & Dust Shoe
  • User Manual
  • Add-on Z-axis Module
  • 710W Trimmer Router
  • 1.5KW-2.2KW Water Cooled Spindle Motor
  • iMaticBox Relay Module Switch
  • Genmitsu USB Version Wi-Fi Module
  • MPG Hand Wheel Controller
  • View More on Genmitsu Ecosystem
  • 24-Hour Response Email Support
  • Spare Parts Resupply
  • Technical response with Genmitsu Professional Engineer
  • Compatible with GRBL-Base CAM/CNC Software
